EDM Tension Meter

See More Tension Meters, Mechanical

EDM Tension Meter

See More Tension Meters, Mechanical
Call for price
  • FREE Ground Shipping on Orders Over $150
warrenty

Product Description

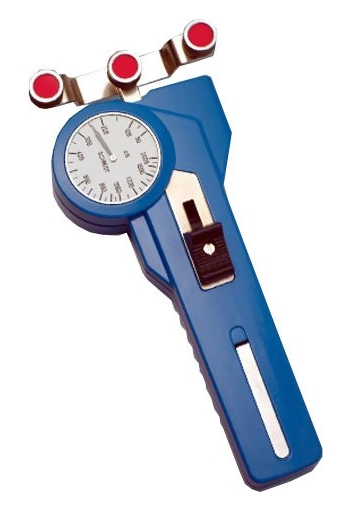

For wire EDM Machines
Special versions for specific EDM machines are available

Manufactures of wire-EDM machines recommend checking the erosion wire tension once a week. Depending on the machine type as well as the wire material and diameter, the measured tension should lie between 50 and 3000 g.

The correct erosion wire tension reduces wire oscillation and guarantees a pinpoint accuracy of your machines. Always check the tension in calibration mode on the moving wire. Make sure the generator is switched off for the tension check


line
Features
line

  • Easy-to-read analog scale.
  • Simple handling.
  • Special versions for specific EDM machines are available.
  • Measuring range 2000 g, 3000 g or higher.
  • Calibration in cN is available.


line
Specifications
line

Accuracy± 1% Full scale or ± 1 scale graduation mark
RollersMaterial : Hardcoated aluminum Diameter: 12 mm
Scale Diameter41 mm
Temperature Range8 - 45 °C
Humidity Maximum85% RH
Housing MaterialAluminum die casting
Dimensions215 mm x 90 mm x 44 mm (L x W x H)
Weight(net/gross) approx. 500 g / 1000 g


line
Ranges
line

ModelRangeRoller distance c:c mm
DX2-2000-EDM50 - 2000 cN75
DX2-3000-EDM100 - 3000 cN75


line
Downloads
line

EDM Tension Meter - Instruction Manual
EDM Tension Meter - Data Sheet
