FX2 Optic Fiber Tension Meter

See More Tension Meters, Mechanical

FX2 Optic Fiber Tension Meter

See More Tension Meters, Mechanical
Call for price
    warrenty

    Product Description

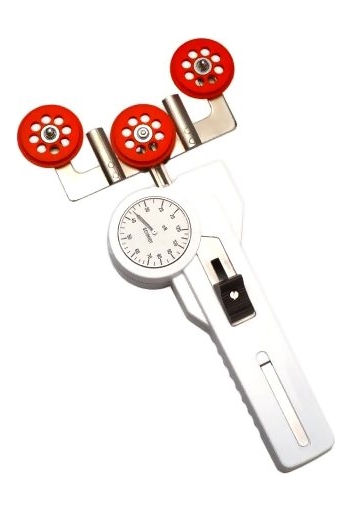

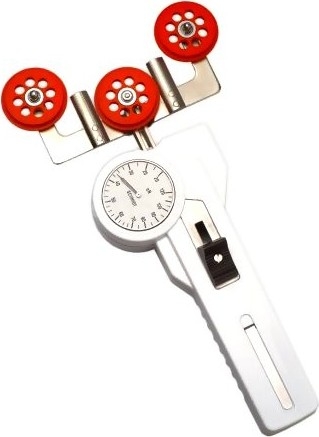

    Optic Fibers / Fragile Filaments
    Large light-weight plastic rollers with 100mm spacing

    Large diameter rollers and 100 mm spacing between outer rollers minimize damage to optic fibers and similar materials that cannot withstand a small bending radius.

    Finger Support: We recommend mounting a finger support for higher tension ranges

    Note:This model does not include a material thickness compensator


    line
    Kit Contents
    line

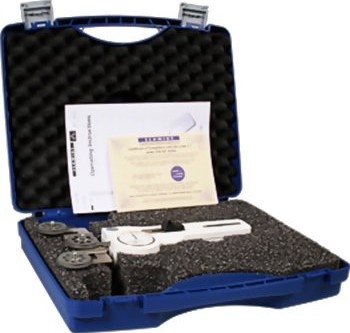

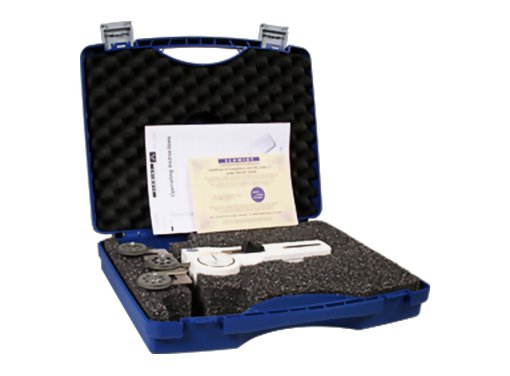

    • FX2 Optic Fiber Tension Meter
    • Instruction manual
    • Carrying case


    line
    Features
    line

    • Standard roller material is Delrin plastic or, optionally, aluminum (L).
    • Lightweight, low inertia 32 mm diameter rollers for speeds up to 2000 m/min or, optionally, up to 4000 m/min (K).
    • The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment
    • Large bending radius assures gentle handling of the material being measured
    • Special finger support located on the rear side reduces the effort to move the outer roller assembly
    • Built-in mounting holes permit fixed installation for continuous tension measurement
    • Special guides on the bracket assembly permit easy material acquisition


    line
    Specifications
    line

    Accuracy±1 % full scale or ±1 graduation on scale
    Diameter of Scale41 mm
    Temperature Range10 - 45 ºC
    Air humidity85 % RH, max
    Housing materialDie-cast aluminium
    Housing Dimensions188 x 85 x 45 mm (LxWxH)


    line
    Ranges
    line

    ModelRangeMeasuring Width Head
    FX2-505-50140
    FX2-12010-120140
    FX2-40010-400140
    FX2-100020-1000140


    line
    Guide Rollers
    line

    Order CodeLine Speed...m/minRoller Material
    Standard4000Hardcoated aluminium
    Code -PL4000Plastic (PVC) Red


    line
    Downloads
    line

    FX2 Optic Fiber Tension Meter - Instruction Manual
    FX2 Optic Fiber Tension Meter - Data Sheet
