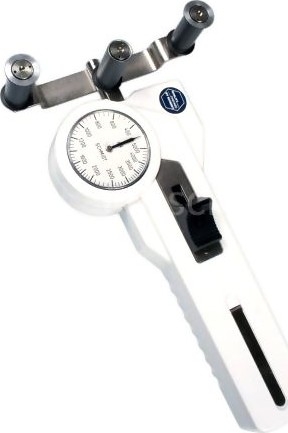

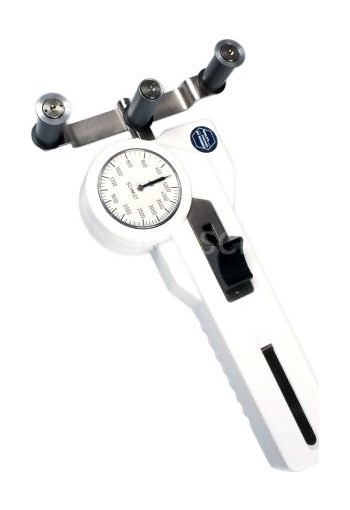

RX2/BX2 Tension Meter

See More Tension Meters, Mechanical

Narrow Webs / Tapes

Available with single or dual flanged cylindrical rollers up to 100mm long

Cylindrical rollers are offered in 7, 10, 15, 20, 30, 36, 41 and 50 mm lengths to measure tapes, bands, films and similar materials. Roller length should not exceed 2x the width of the material being measured.

Tension Ranges: Refer to DX2 Data Sheet.

NOTE 1: Starting point of low-range instruments will be higher than DX2.

NOTE 2: Models using 50 mm roller lengths are supplied with a special heavy-duty bracket and use the DXX model designation.

Finger Support: We recommend mounting a finger support for higher tension ranges

Note:This model does not include a material thickness compensator

line

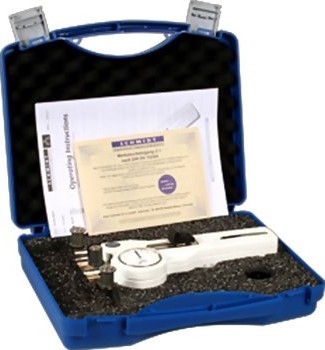

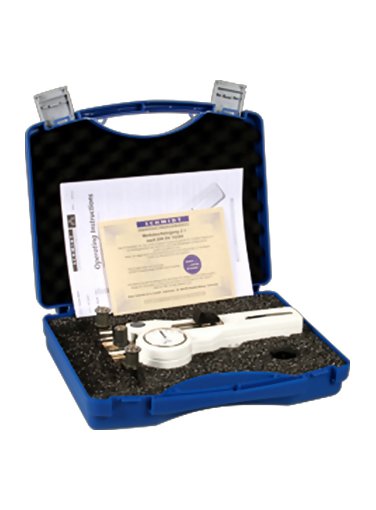

Kit Contents
line

RX2/BX2 Tension Meter
Instruction manual
Carrying case

line
Features
line

Dual-flanged outer guide rollers with various widths for better filament guide (single-flanged rollers optional, recommendable if the material being measured is wider than the tape roller)
Tape rollers with contact surface from 7 mm up to 50 mm are available
Roller shifting mechanism ensure easy acquisition of the running material

line
Specifications
line

Accuracy	± 1% of full scale or ± 1 graduation mark on scale
Diameter of Scale	41 mm
Maximum Speed	1000 m/min
Roller Material	Hardcoated aluminium
Housing Material	Die-cast aluminum
Temperature range	50 - 113°F (10 - 45°C)
Air humidity	85 % RH, max.
Housing dimensions (L x W x H)	7.5 x 3.3 x 1.8 in(188 x 85 x 45 mm)
Weight, net (gross)	1.2 lbs (3 lbs)

line
Tension Ranges
line

Model	Range	Outer Roller Spacing	Roller Widths
RX2-50 BX2-50	10 - 50 g	55	7
RX2-120 BX2-120	20 - 120 g	55	7, 10, 15, 20, 30
RX2-200 BX2-200	20 - 200 g	55	7, 10, 15, 20, 30
RX2-400 BX2-400	20 - 400 g	55	7, 10, 15, 20, 30
RX2-1000 BX2-1000	100 - 1000 g	55	7, 10, 15, 20, 30, 36, 41, 50
RX2-2000 BX2-2000	200 - 2000 g	117	7, 10, 15, 20, 30, 36, 41, 50
RX2-5000 BX2-5000	400 - 5000 g	117	7, 10, 15, 20, 30, 36, 41, 50
RX2-10K BX2-10K	2.5 - 10 kg	117	7, 10, 15, 20, 30, 36, 41
RX2-20K-L BX2-20K-L	5 - 20 kg	167	7, 10, 15, 20, 30

Calibration to customized material:

If process material differs significantly from the standard calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 15 ft. should be supplied.

line
Tape Rollers
line

Roller Widh	Line Speed ...m/min	Roller Material
7 mm	1000	Nickel-plated steel
10 mm	1000	Hardcoated aluminium
15 mm	1000	Hardcoated aluminium
20 mm	1000	Hardcoated aluminium
30 mm	1000	Hardcoated aluminium
36 mm	1000	Hardcoated aluminium
41 mm	1000	Hardcoated aluminium
50 mm	1000	Hardcoated aluminium

line
Options
line

Air Damping (A)

An adjustable, precision air dashpot provides steady tension reading as tension fluctuate

line

Lever (L)

A heavy duty, lever-operated mechanism moves the outer rollers for easy acquisition of the running filament. Recommended for models of 10 Kg or higher.
