Available in 6 load ranges
0 - 5 g through 0 - 50 Kg

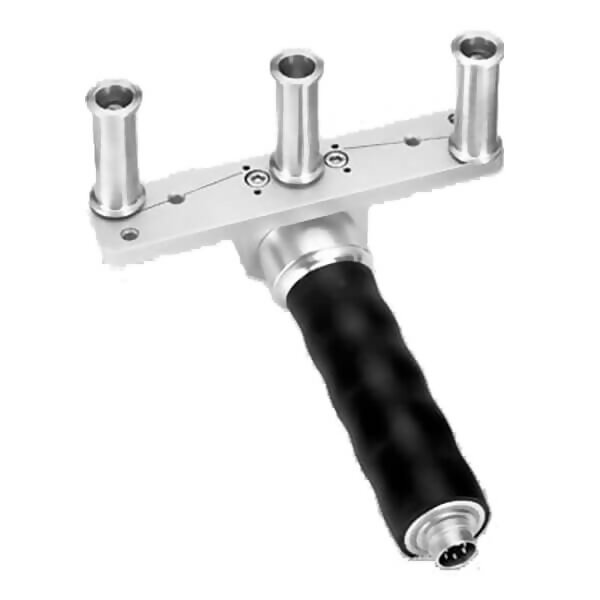

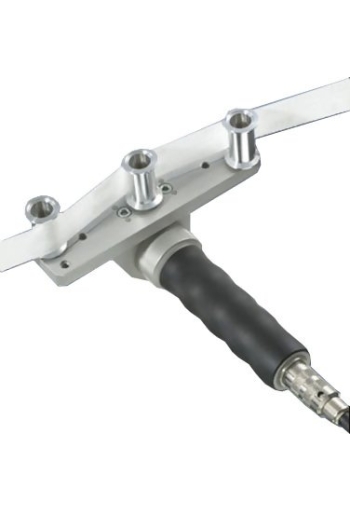

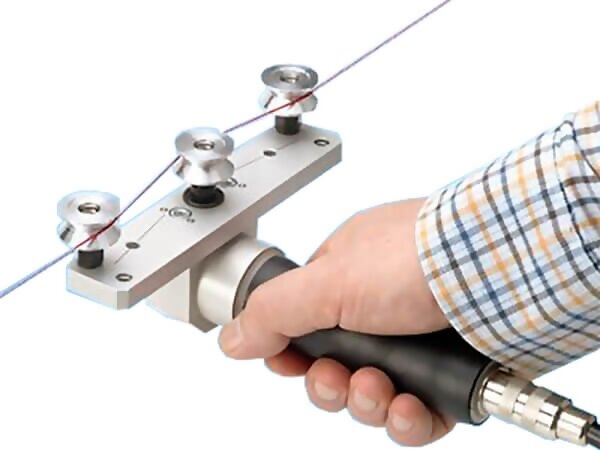

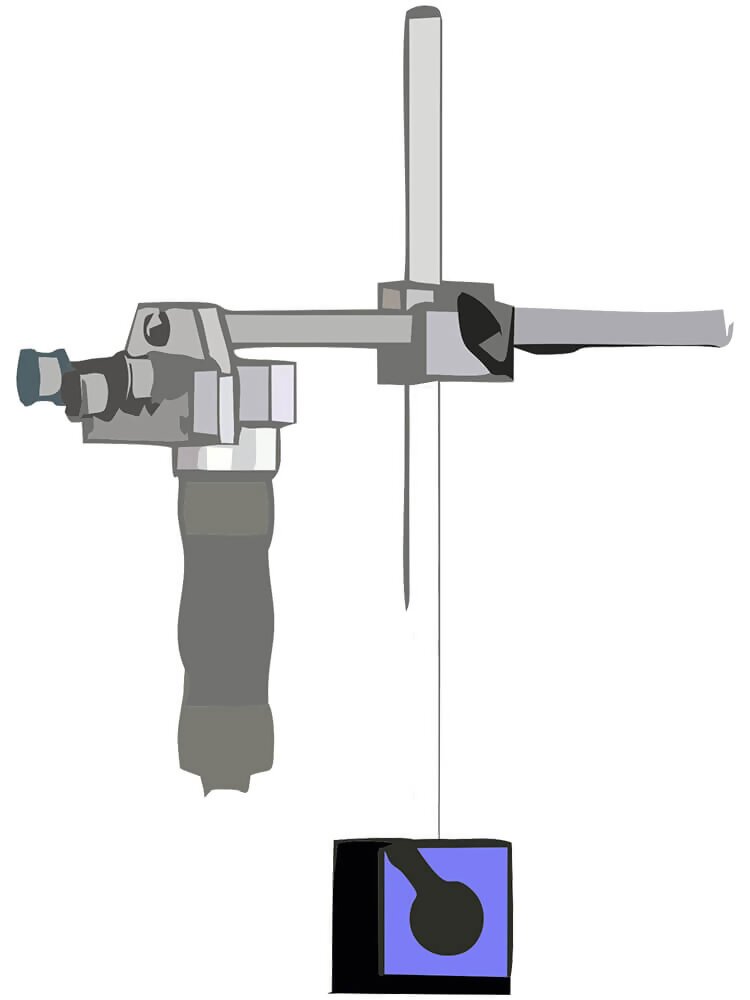

The angled design utilized in this series gives users a general-purpose sensor with a narrow profile. This makes for convenient measurement operations even where space is restricted - typical when measuring woven tapes and web threads.

The range of applications for this series of sensors covers extensive areas in research, quality control and production in the wire, cable, film and textile industries and the like

Features

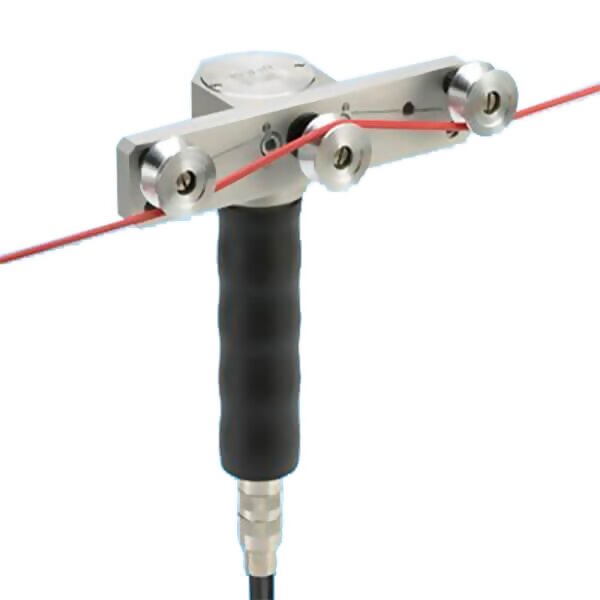

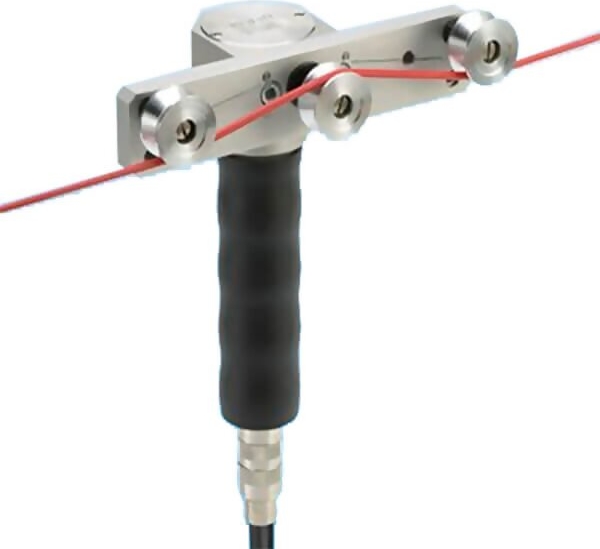

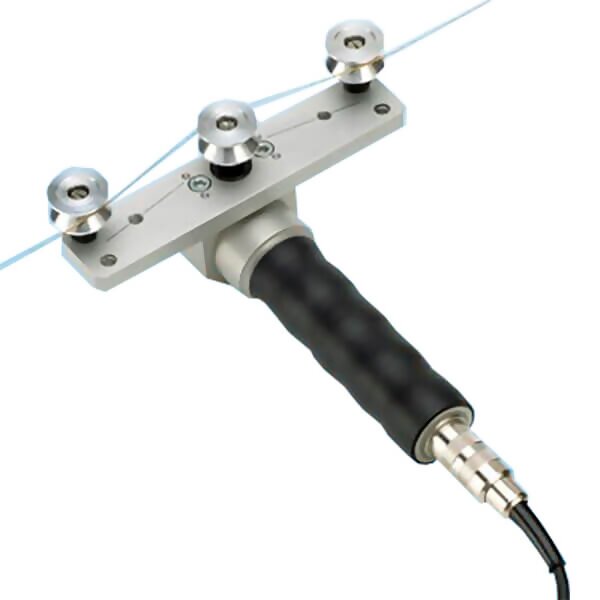

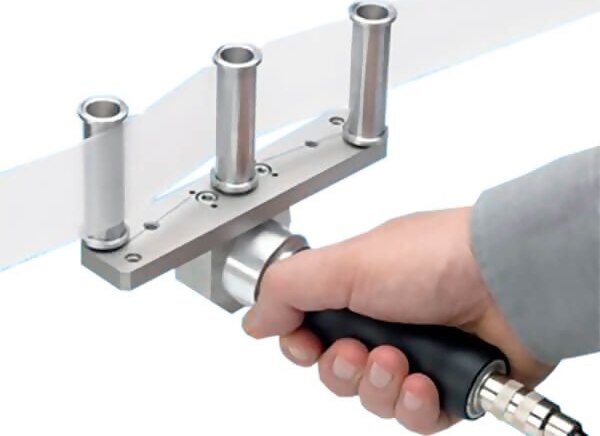

• For measuring monofilament textiles, copper- and steel wires, healds, carbon fibres up to 2.0 mm Ø, as well as tapes, belts, thread groups, films, foils, magnetic tapes, etc.

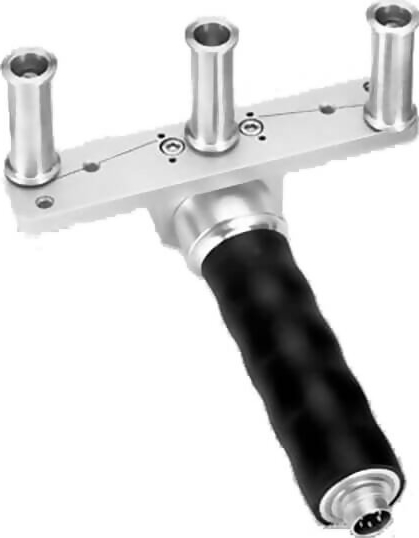

• Customized guide rollers optional

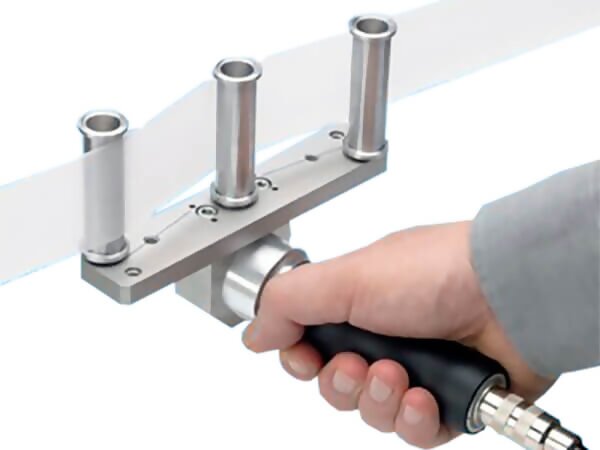

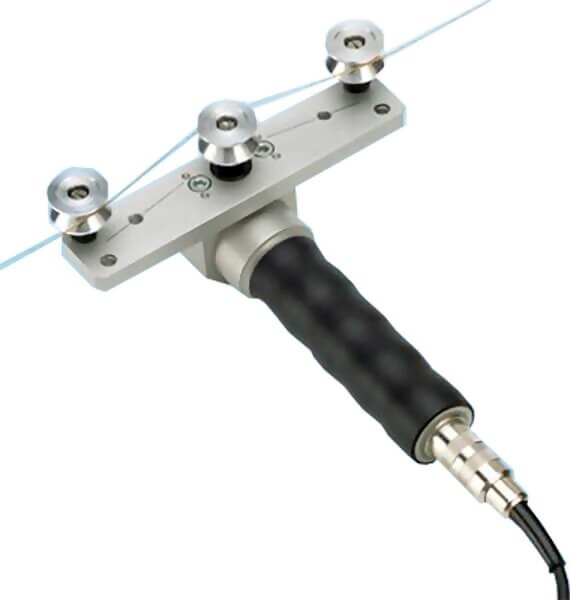

• Easy handling even when inserting into running products in cramped quarters
• Effective overload protection for uninterrupted availibility
• Measuring path: 100, 120 or 150mm
• Smallest possible angle of contact (10°) means minimum impact by:
  • Inherent stiffness
  • Acceleration torques
  • Inertial forces due to deflection

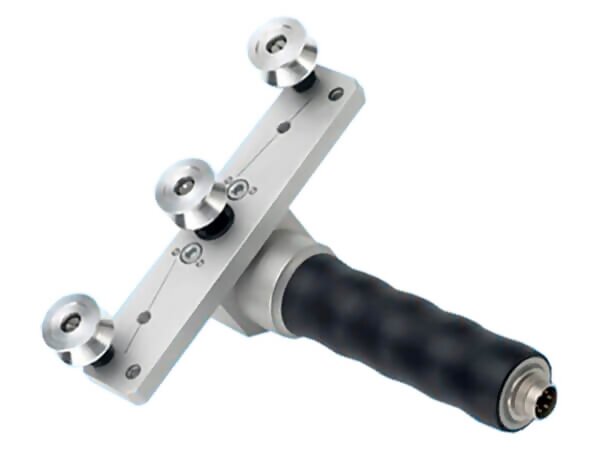

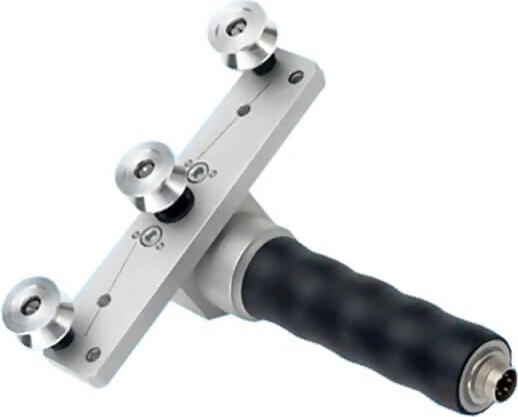

• 3 ball-bearing aluminium rollers with V-groove, root Ø 16mm
• Excellent long-term stability and high precision for reproducible measuring results
• Diameter, stiffness, weight and speed of the product being measured have no influence on measuring accuracy

Related Products

D-485 Digital Tension Indicator with Built-In Amplifier Automatic zero setting "Peak" function retains maximum reading on display

TM-353 Analog Tension Indicator with Built-In Amplifier Provides 0-1 VDC analog output for recording purposes

125-S-HDI Hand-Held Tension Sensor Ideal for high-strength, high denier yarns and fibers running at linear speeds up to 5000 m/min Special plasma-coated steel provides a ceramic-like coating with special "dimpled" surface structure which minimizes surface contact between the running yarn and the Non-rotating guide and sensor pins

Downloads

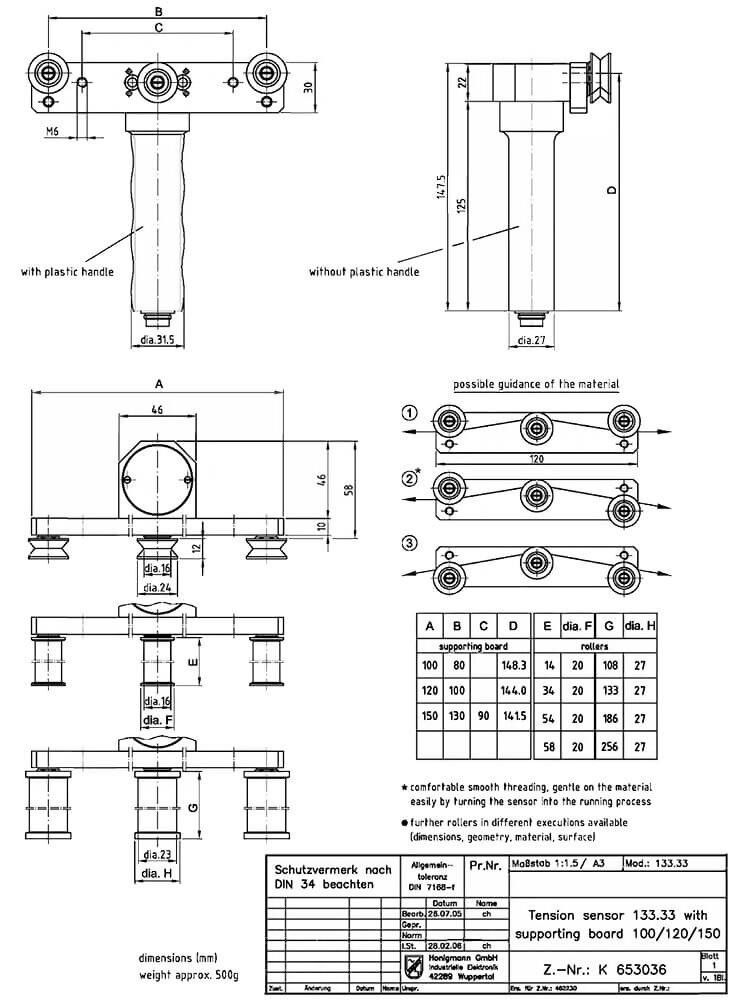

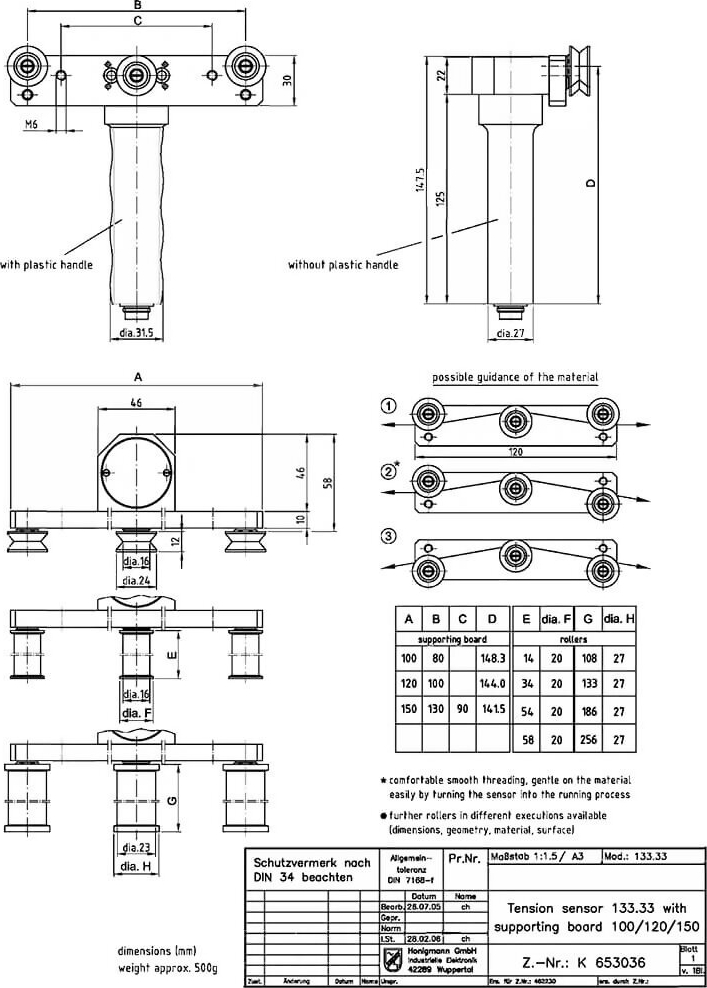

133-33 Precision Tension Meter - Dimensional Drawing
