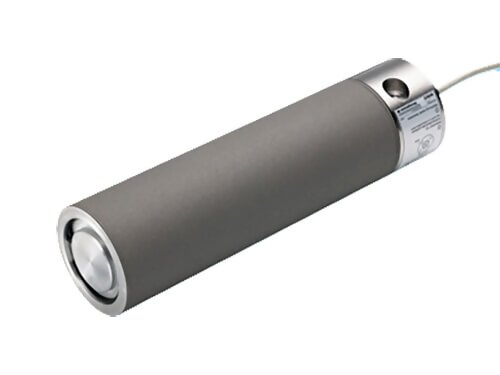

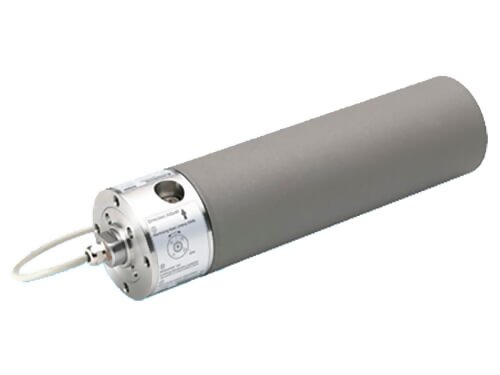

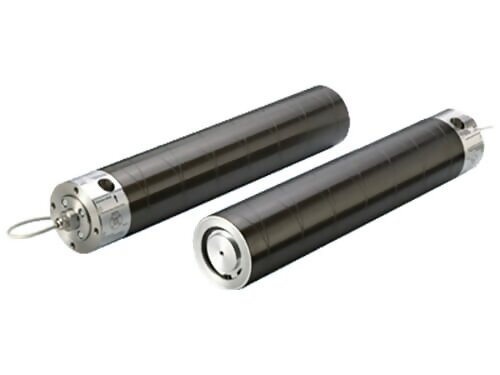

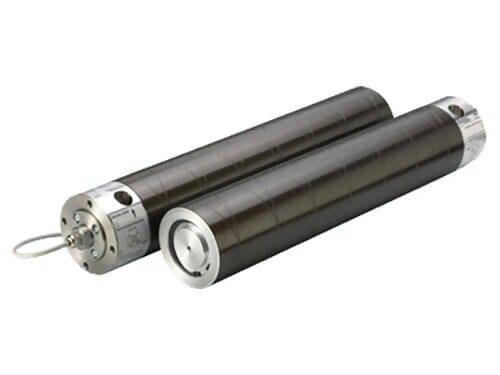

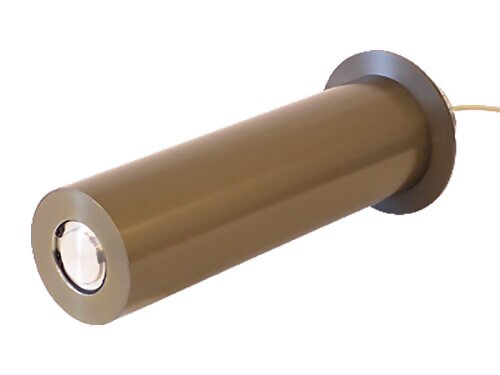

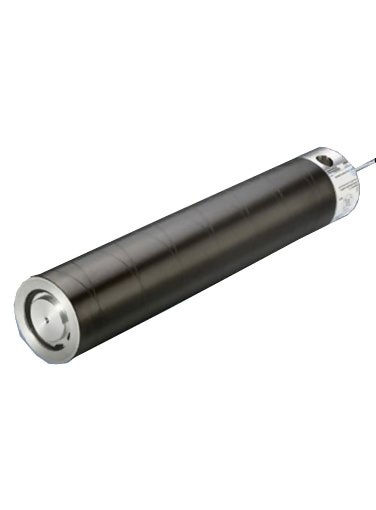

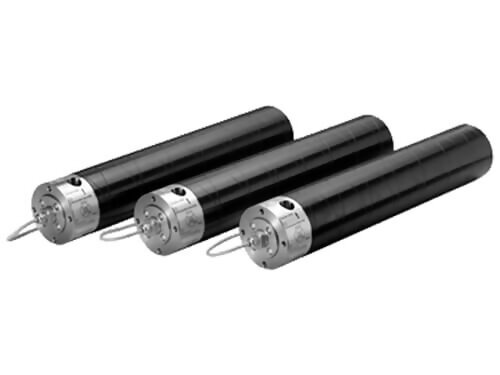

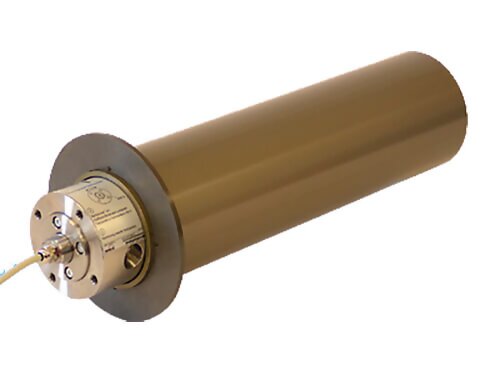

The Cantilever sensor roll with integrated force measurement can be installed just like an unilateral installed standard web guide roll without major mechanical modifications.

The Cantilever sensor roll provides two functions at once:

• Measurement of tension in the web
• Guiding and reversing the product web

The Cantilever sensor roll is checked and assembled ready for installation. For the customer the complicated installation of electromechanical and mechanical components is reduced to a minimum

Features

• easy and one-sided mounting with tapped hole

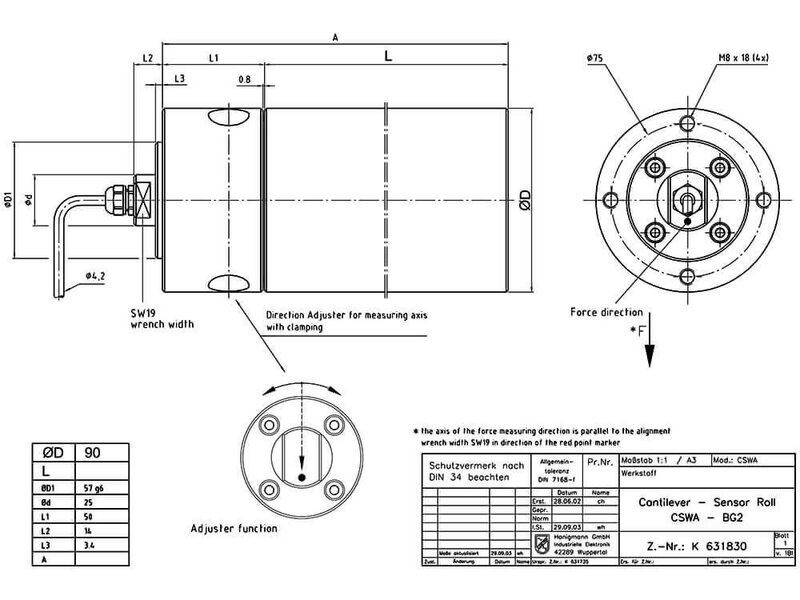

• integrated Direction Adjuster offers the possibility for precise and stepless direction adjustment of measurement axis, while the sensor roll is completely installed in the machine
• precise, the measuring accuracy is independent of the force introduction point, i.e. the sensor is not affected by lever arm action
• easy-turning roller bearings with lifetime lubrication
• floating and fixed bearing construction with contactless labyrinth seal
• precision dynamic balancing as per VDI 2060
• robust, efficient overload protection by mechanical fixed stop
• customer-specified dimensions and rated measuring ranges available
• every coating and geometric structure of the roll surface available - just like for standard web guide rolls

Specifications

Downloads

CSW Narrow Web Tension Sensor - Data Sheet
