Product Description
On-line Tension Sensor
0 to 40N capacity
stackable, easy installation on carrier rail

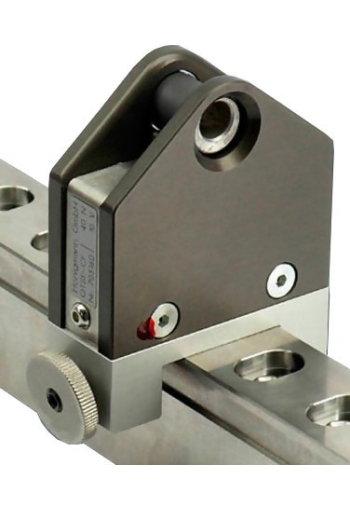

The sensor OTSE-CF is designed especially for tension measurement on fiber ribbons and fiber bundles, e.g. Carbon Fiber (CFK).

The compact design and the stackability allow an easy integration into a production line, e.g. behind an unwinding creel.

Any grid spacing and grouping is realizable by customizing the carrier rail


line
Features
line

  • Compact design - only 22 mm wide
  • Measures precisely and long-term stable
  • Very high overload protection
  • Geometry and surface of the sliding sleeve is optimized for carbon fiber bundles
  • Definite product guidance and gentle surface coating
  • Built-in measuring amplifier
  • Exchangeable sliding sleeve
  • Sophisticated system for easy installation on a carrier rail
  • Robust aluminium housing
  • Optional sealing gas connection


line
Specifications
line

Nominal force (FN)N40
Accuracy class 0,5
max. wrap angle°60
Supply voltage rangeV20 to 28
Current consumption (without load)mAapprox. 36
Output
- voltage rangeV0 to ±12, RL ≥ 1 kΩ
- voltage span at FNV10
Cut-off frequency (-3dB)Hz16
Zero point (in the range of)V-5 to -3
Nominal temperature range°C5 to 50
Operational temperature range°C-10 to 50
Storage temperature range°C-30 to 70
Reference temperature°C23
Temperature influence per 10 K
- on the zero point (TK0)% FN< ±0,2
- on the calibration (TKC)% FN< ±0,15
Creep after 30 minutes% FN< ±0,05
Linear output signal up to% FNapprox. 125
Mech. overload protection takes effect at% FNapprox. 140
Overload protected% FN> 1000
Typ. deflection at nominal force% FN0,07
Typ. natural frequency of the sensorkHz1,5
Weightgapprox. 160
Connectormale socket, Ø 8 mm, 4-pole, snap-on type gold-plated contacts
Sensor housingaluminium
Protection classIP54 in conjunction with sealing gas


line
Downloads
line

OTSE-CF Carbon Fiber Tension Sensor - Dimensional Drawing
