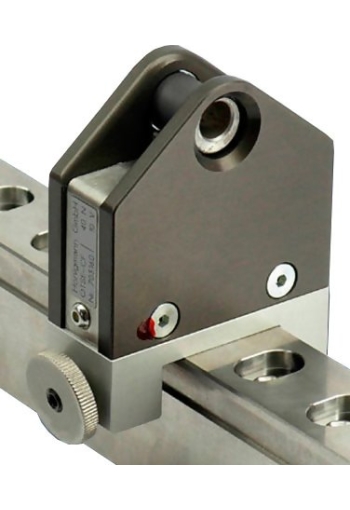

OTSE-CF On-line Tension Sensor

See More Tension Sensors, Online

On-line Tension Sensor

0 to 40N capacity

stackable, easy installation on carrier rail

The sensor OTSE-CF is designed especially for tension measurement on fiber ribbons and fiber bundles, e.g. Carbon Fiber (CFK).

The compact design and the stackability allow an easy integration into a production line, e.g. behind an unwinding creel.

Any grid spacing and grouping is realizable by customizing the carrier rail

line
Features
line

Compact design - only 22 mm wide
Measures precisely and long-term stable
Very high overload protection
Geometry and surface of the sliding sleeve is optimized for carbon fiber bundles
Definite product guidance and gentle surface coating
Built-in measuring amplifier
Exchangeable sliding sleeve
Sophisticated system for easy installation on a carrier rail
Robust aluminium housing
Optional sealing gas connection

line
Specifications
line

Nominal force (FN)	N	40
Accuracy class		0,5
max. wrap angle	°	60
Supply voltage range	V	20 to 28
Current consumption (without load)	mA	approx. 36
Output
- voltage range	V	0 to ±12, RL ≥ 1 kΩ
- voltage span at FN	V	10
Cut-off frequency (-3dB)	Hz	16
Zero point (in the range of)	V	-5 to -3
Nominal temperature range	°C	5 to 50
Operational temperature range	°C	-10 to 50
Storage temperature range	°C	-30 to 70
Reference temperature	°C	23
Temperature influence per 10 K
- on the zero point (TK0)	% FN	< ±0,2
- on the calibration (TKC)	% FN	< ±0,15
Creep after 30 minutes	% FN	< ±0,05
Linear output signal up to	% FN	approx. 125
Mech. overload protection takes effect at	% FN	approx. 140
Overload protected	% FN	> 1000
Typ. deflection at nominal force	% FN	0,07
Typ. natural frequency of the sensor	kHz	1,5
Weight	g	approx. 160
Connector	male socket, Ø 8 mm, 4-pole, snap-on type gold-plated contacts
Sensor housing	aluminium
Protection class	IP54 in conjunction with sealing gas
