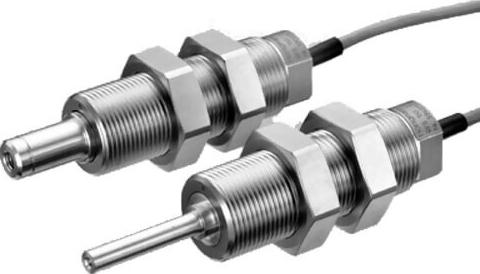

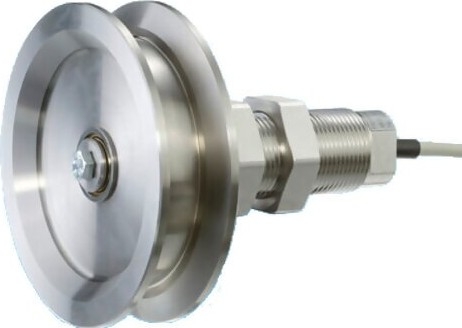

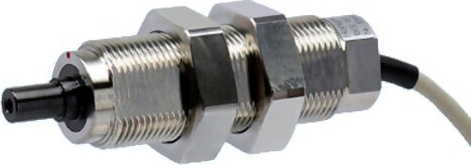

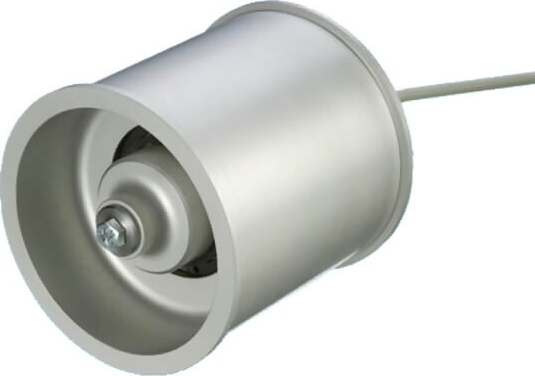

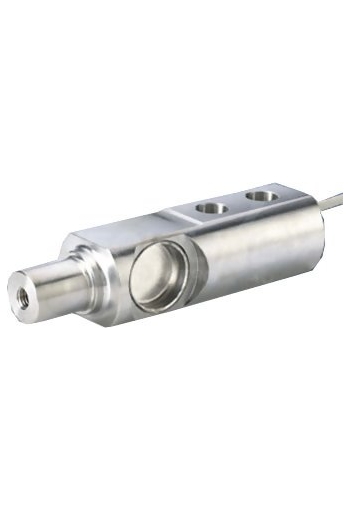

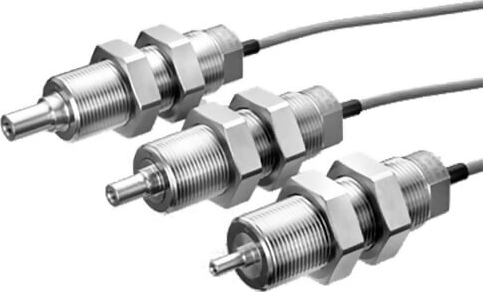

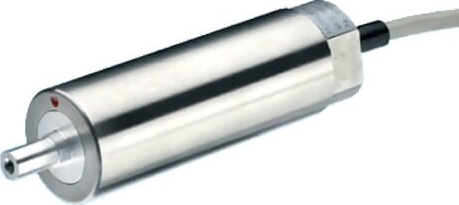

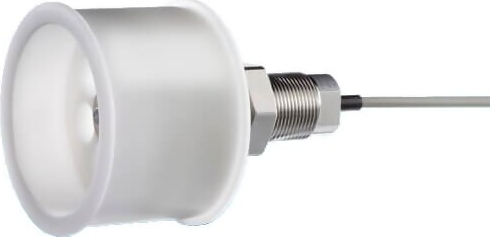

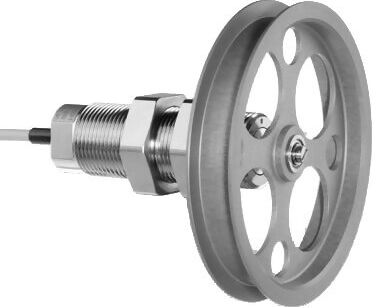

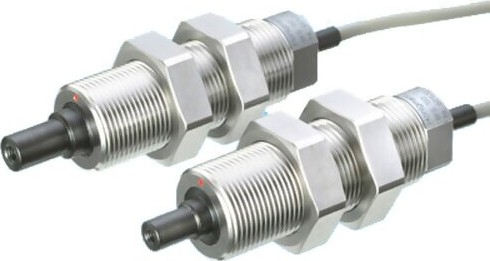

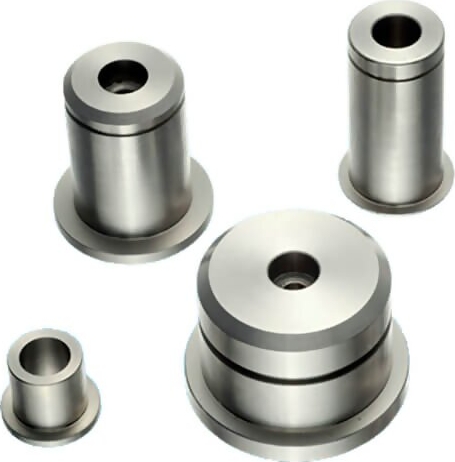

Radial force sensor with 2 measuring axis
Available in 14 rated load ranges:
0 - 5N to 0 - 1000N
The dual-axis radial force sensor offers two measuring axis, vertically to each other. Force introduction occurs radially at the bearing journal. Any acting force can be splitted vectorially into X- and Y-components.
- Fields of application:
- For research and industry
- Acquisition of axle loads, bearing reactions and unbalances
XY-force measurement on shafts and axles force measurement on pivot joints and crankshafts
Recording of polar force diagrams
The high mechanical stiffness of the load cell enables measurement with virtually no excursion
The specified and calibrated accuracy remains unchanged throughout the unit’s service life and, across wide ranges, is independent of direct axial forces

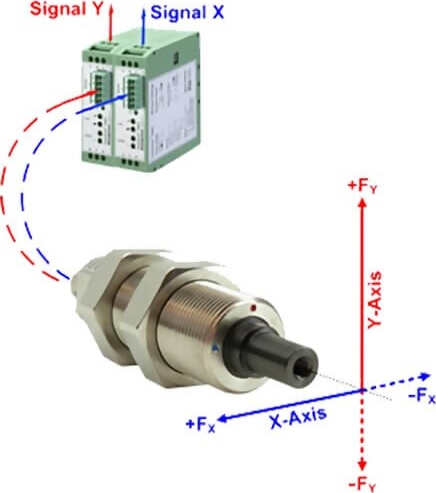

Both force signals get conditioned with a 2-channel measuring amplifier solution. Value and direction of the acting force are acquired.
For analysis the data can be stored in the PC, e.g. with the software HCC-Easy.
Its export function enables the user to transfer the data to further software for extended analysis, e.g. generating a XY-diagram.
Example: Polar diagram of the force in a crankshaft, force components against angle of rotation
Features
- 2 measuring axis, vertically to each other.
- Independent of the force introduction point, i.e. the sensor is not affected by lever arm action.
- Thought-through concept of housing for simple mounting.
- High overload protection.
- No influence of any axial tilt torques or direct axial forces which might appear.
- Robust, stainless steel housing
Specifications
| Measuring Principle | Strain Gauge |
| Accuracy | ±0.5% Full Scale or better |
| Sensor Excitation | 10 VDC (12 VDC, max.) |
| Sensor Output | 1.5 mV/V |
| Input Resistance | 350 Ohms |
| Output Resistance | 350 Ohms |
| Overload Protection | 400 - 800% |
| Deflection | 0.07mm (max.) |
| Housing Material | Stainless Steel |
| Environmental Protection | IP50 (Splash-Proof) |
| Cable Type | 4.5 mm diameter shielded cable with bare leads |
| Cable Length | 10 ft. (3 meter), longer lengths available. Inquire |
| Operating Temperature | 15 to 155° F (-10 to 70° C) |
| Sensor Excitation | 19 - 28 VDC
(24 VDC recommended @ 36 mA) |
| Sensor Output | 0 - 10 VDC (standard)
4 - 20 mA (optional) |
| Fequency Responce | 5 msec (200 Hz) |
| Zero Adjustment | ±45% |
| Weight | 500g |
Ranges
| RFS-100 | 0-100 g
(0.00-0.22 lbs) | RFS-5K | 0-5 Kg
(0.00-11.0 lbs) |
| RFS-200 | 0-200 g
(0.00-0.44 lbs) | RFS-10K | 0-10 Kg
(0.00-22.0 lbs) |
| RFS-500 | 0-500 g
(0.00-1.10 lbs) | RFS-20K | 0-20 Kg
(0.00-44.0lbs) |
| RFS-1K | 0-1 Kg
(0.00-2.20 lbs) | RFS-50K | 0-50 Kg
(0.00-110 lbs) |
| RFS-2K | 0-2 Kg
(0.00-4.40 lbs) | RFS-100K | 0-100 Kg
(0.00-220.0 lbs) |
