TE-22 Low Inertia Tension Sensor

See More Tension Sensors, Online

Low Inertia Tension Sensor For Fragile Filaments

5 Tension Ranges from 0-50 g up to 0-1000 g

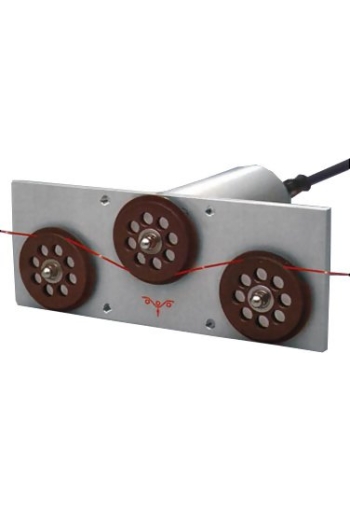

Lightweight 32mm diameter rollers minimize the deflection of the material path for fragile filaments or very low tension applications.

5 Tension Ranges
0-50 g up to 0-1000 g
TE-xx-22-PL (with Delrin Plastic Rollers)
TE-xx-22-AL (with Hardcoated Aluminum Rollers)

Lightweight 32mm diameter rollers minimize the deflection of the material path for fragile filaments or very low tension applications.

A built-in amplifier conditions the strain gauge signal, providing a 0–1 VDC output, minimizing the chance for signal interference.

Other important features include user-accessible calibration adjustment pots and gold-plated contacts on the connector.

line
Features
line

Lightweight 32mm diameter rollers are offered in Delrin Plastic (specify TE-xx-22-PL) or Harcoated Aluminum (specify TE-xx-22-AL).
Precision strain gauge sensing for highest accuracy and repeatability.
Frequency response of 100 Hz.
0-1 V DC output, proportional to tension (0-10 V DC optional).
Surface mount electronics provide long-term reliability.
Optional 10ft. connecting cable, TE-CABLE-CN is recommended.

line
Specifications
line

Accuracy	± 1.5% FS or better
Sensor Excitation	12 - 18 VDC, 21mA
Middle Roller Deflection	0.5 mm (maximum)
Sensor Output	0-1 V DC (standard) 0-10 V DC (optional) proportional to tension
Overload Protection	150% FS
Housing Material	Aluminum

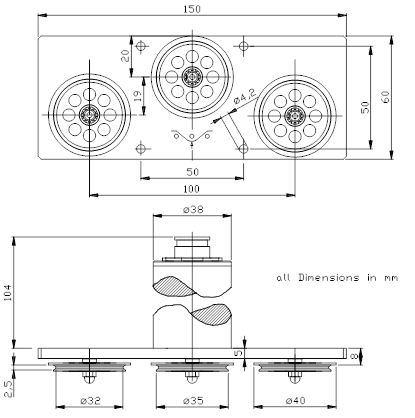

Spacing of Outer Rollers	See Dimensional Drawing
Roller Diameter (Root)	32 mm
Roller Material	Plastic (standard) Aluminum (optional)
Maximum Linear Speed	4000 m/min
5000 m/min	40 to 105° F (5-40° C)
Frequency Response	100 Hz
