Multi-Configuration Tension Sensor
Several Ranges up 500 Kg (5000 N / 1100 lbs)

Several Ranges up 500 Kg (5000 N / 1100 lbs)

The new CHECK-LINE Model TE-RFS Tension Sensor measures the running line tensions of wires, optic fibers and cables. It is designed to minimize the effects of different material rigidities when measuring on a variety of material sizes and also features a unique "tri-tens" system where the material can be threaded through the 3 rollers in 3 distinct paterns.

Its unique strain-gauge design delivers excellent measurement precision and stability as well as providing maximum overload protection.

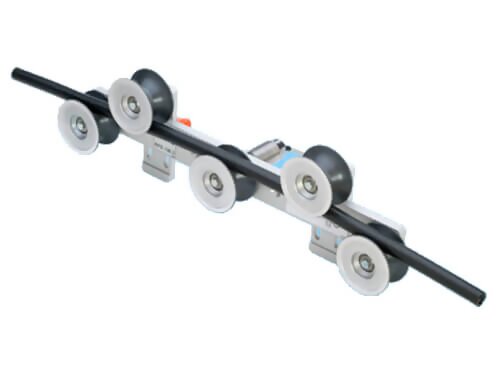

5-Roller version is offered to minimize tension fluctuations in applications where the process material vibrates, oscillates or is unsteady.

The 2 additional rollers mounted on top of the process material are mounted on adjustable brackets allowing them to be positioned so that they slightly contact the material

They provide additional control to insure that the process material travels over the three primary rollers (located under the material) in a smooth and even fashion


line
Features
line

  • Based on the precision tension sensor RFS 150.
  • Measure a wide range of materials without need to adjust calibration, when using threading pattern "D".
  • Wear-resistant, ball-bearing guide rollers.
  • Minimizes material deflection


line
Specifications
line

Accuracy± 1.5% Full Scale or better
Tension Ranges (Kg)Several Ranges up 500 Kg (5000 N / 1100 lbs)
Outer Roller Spacing (c:c)300 - 600 mm (depending upon material rigidity)
Guide RollersV Grooved, U Grooved or Flat Cylindrical (with or without flanges)
Roller MaterialNatural Aluminum, Hard Coat Aluminum, Ceramic Plasma-Coated Aluminum & Hardened Steel
Overload Protection200% +
Calibration CertificateOptional


line
Related Products
line

RMA-CSW
Cantilever Measuring Roll

  • Direct, radial force transfer
  • High precision and excellent long-term stability
related

line

RMA
Radial Force Measuring Axle

  • High spring constants for the sensor permit high rotation speed ratings for the deflector roll
  • High precision and excellent long-term stability
related

line

TS621
Strain Gauge Amplifier

  • Designed for use with a wide range of strain-gauge-based force, load and tension sensors
  • 0-10VDC analog output
related

line

DPM502
Digital Tension Indicator

  • Selectable “damping function” reduces display fluctuations
  • 24V DC power supply with galvanic isolation
related

line

MU621
Tension Indicator/Amplifier Console

  • For strain gauge sensors
  • 1 to 4 measuring channels
related


line
Downloadsline

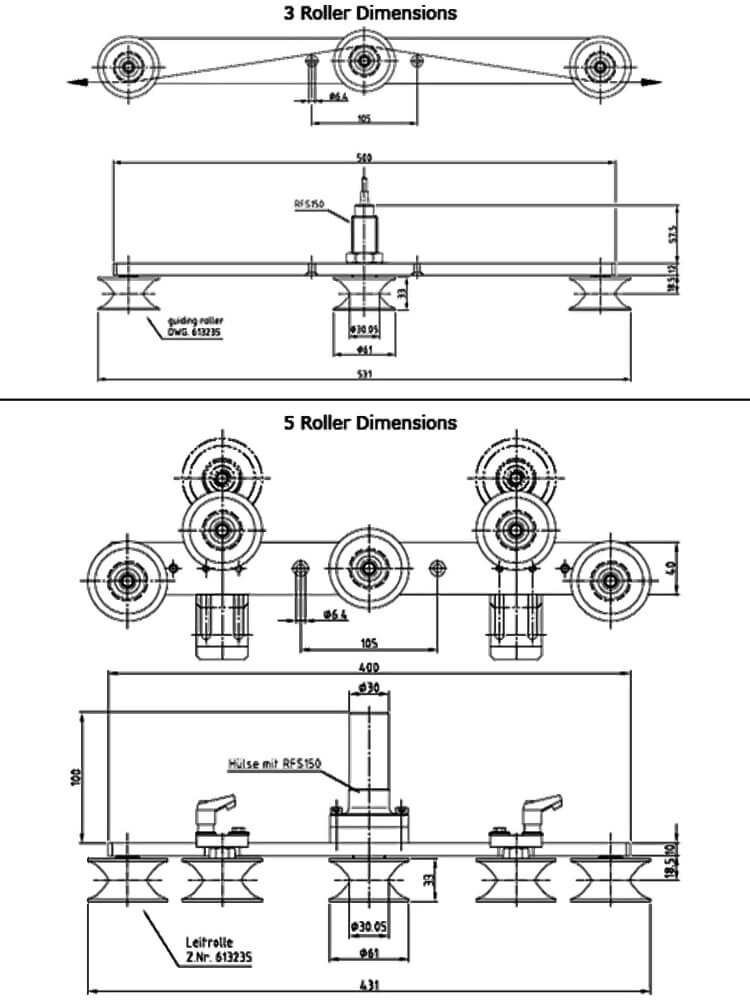

TE-RFS Multi-Configuration Tension Sensor - Drawing 3 Roller
