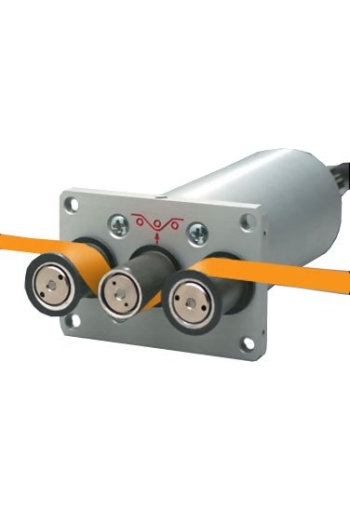

Tape & Band Tension Sensor

---

5 Tension Ranges 0-100 g up to 0-2000 g

---

Dual-flanged, cylindrical rollers are ball bearing mounted to provide a friction-free path for tapes, bands and narrow webs/warps up to 30mm wide

---

5 Tension Ranges: 0-100 g up to 0-2000 g

Dual-flanged, cylindrical rollers are ball bearing mounted to provide a friction-free path for tapes, bands and narrow webs/warps up to 30mm wide. TERX Tension Sensors are offered with roller width of 7, 10, 15, 20 and 30mm.

Features

• Roller shells are available in aluminum, chrome-plated and plastic
• Frequency response of 100 Hz
• Precision strain gauge sensing for highest accuracy and repeatability
• Optional 5ft. connecting cable
• 0-1 V DC output, proportional to tension (0-10 V DC optional)
• Surface mount electronics provide long-term reliability

Specifications

Accuracy	± 1.5% FS or better
Sensor Excitation	12 - 18 VDC, 21mA
Middle Roller Deflection	0.5 mm (maximum)
Sensor Output	0-1 V DC (standard) 0-10 V DC (optional proportional to tension
Overload Rating	150% FS
Housing Material	Aluminum
Maximum Linear Speed	1000 m/min (standard) 3000 m/min (k) (optional)
Roller Diameter (Root)	13 mm
Roller Material	Al (standard) Chromed-Plated Steel (ST) (optional) Plastic (PL) (optional)
Frequency Response	100 Hz
Operating Temperature	40 to 105° F (5-40° C)

Ranges

Model	Range	Outer Roller Spacing c:c
TERX-100-YY	0-100 g	40 mm
TERX-200-YY	0-200 g	40 mm
TERX-500-YY	0-500 g	40 mm
TERX-1K-YY	0-1000 g	40 mm
TERX-2K-YY	0-2000 g	100 mm
