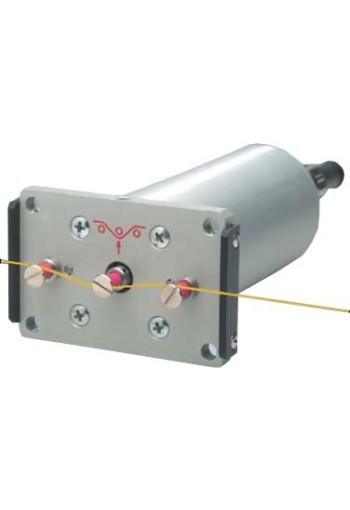

Yarn & Fiber Tension Sensor

---

4 Ranges from 0-50 g to 0-500 g

---

Non-rotation cermaic pins make this model especially suitable for yarns and fibers

---

4 Tension Ranges: 0-50 g up to 0-500 g

Non-rotation cermaic pins make the Model TP Tension Sensor ideal for yarns and fibers running at speeds up to 6,000 m/min

Features

• Precision strain gauge sensing for highest accuracy and repeatability.
• Frenquency response of 100 Hz.
• 0-1 V DC output, proportional to tension (0-10 V DC optional).
• Surface mount electronics provide long-term reliability.
• 4mm diameter ocide ceramic pins are rated for filament speeds up to 6,000 m/min

Specifications

Accuracy	±1% FS (10-90% of range) ±3% FS (balance of range)
Regulated Sensor Excitation	12-15 V DC (-) @ 10 mA 12-15 V DC (+) @ 20 mA
Sensor Output	0-1 V DC (standard) 0-10 V DC (optional) proportional to tension
Middle Roller Deflection	0.5 mm (maximum)
Overload Ration	150% FS
Housing Material	Aluminum
Operating Temp.	40 to 105 ºF (5-40 ºC)
Spacing of Outer Pins	40 mm (c:c)
Maximum Linear Speed	6,000 m/min

Ranges

Model	Range
TP-50	0-50 g
TP-100	0-100 g
TP-200	0-200 g
TP-500	0-500 g
