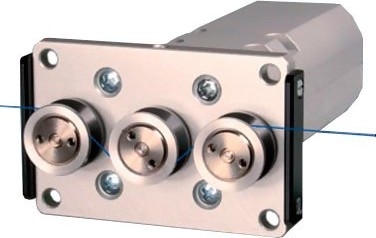

TS2 Online Tension Sensor

See More Tension Sensors, Online

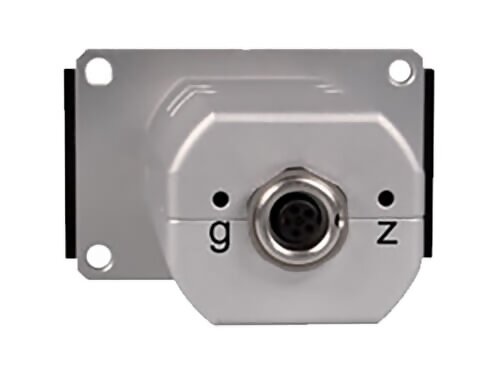

TS2 Online Tension Sensor

See More Tension Sensors, Online
Call for price
  • FREE Ground Shipping on Orders Over $150
warrenty

Product Description
Universal Tension Sensor for yarns, fibers, thin wires etc. for yarns, fibers, thin wires etc
10 Tension Ranges from 0-50 g to 0-50 kg

Universal Tension Sensor for yarns, fibers, thin wires etc.
10 Tension Ranges from 0-50 g to 0-50 kg

New designed tension sensor to measure accurately the running tension of wires, cables, yarns, tibers and similar process material.

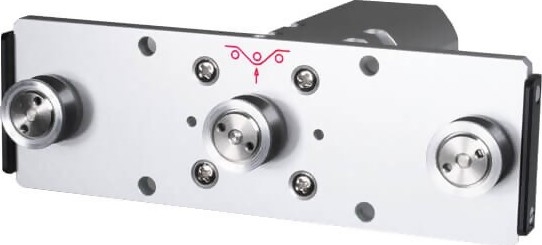

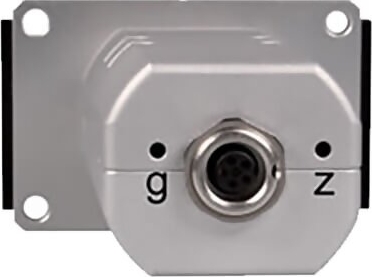

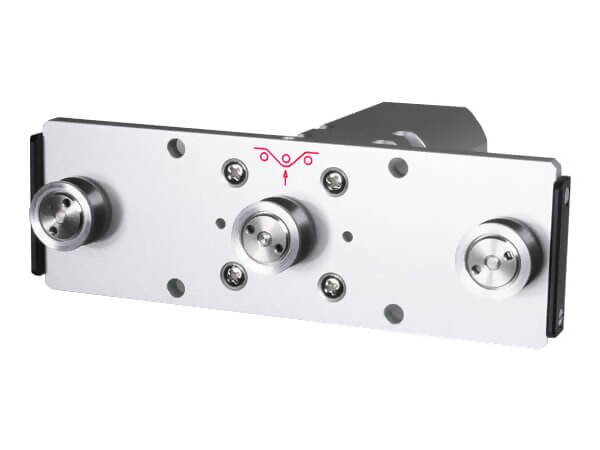

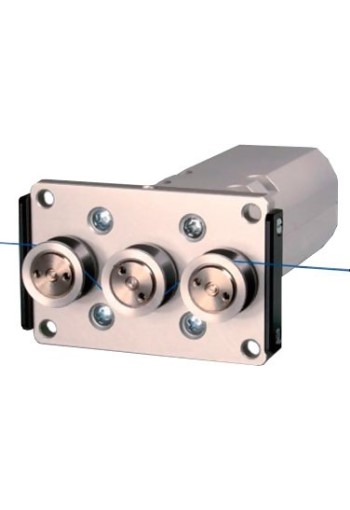

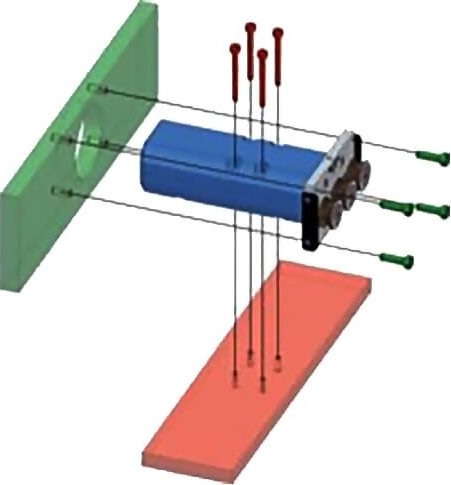

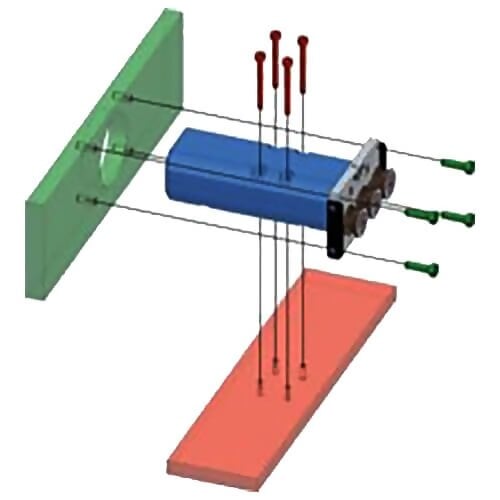

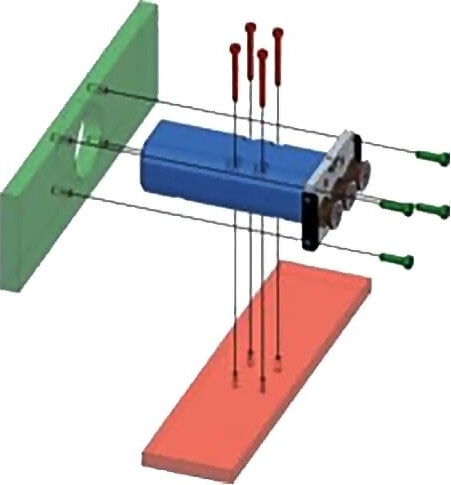

Mounting possibilities: Fixing housing on a flat platform or mounting the front plate


line
Features
line

  • Accuracy of 2 % Full scale or better.
  • Universal mounting possibility - easy to install: Housing mounting or cylindrical hole mounting.
  • Aluminum housing.
  • Mechanical overload protection.
  • Ball-Bearing mounted, V grooved guide rollers


line
Specifications
line

Accuracy± 2% Full Scale and 1 digit or better
Overload Protection100% of tension range
Measuring PrincipleStrain guage bridge
Meas. Roller Defelction0.5 mm, max

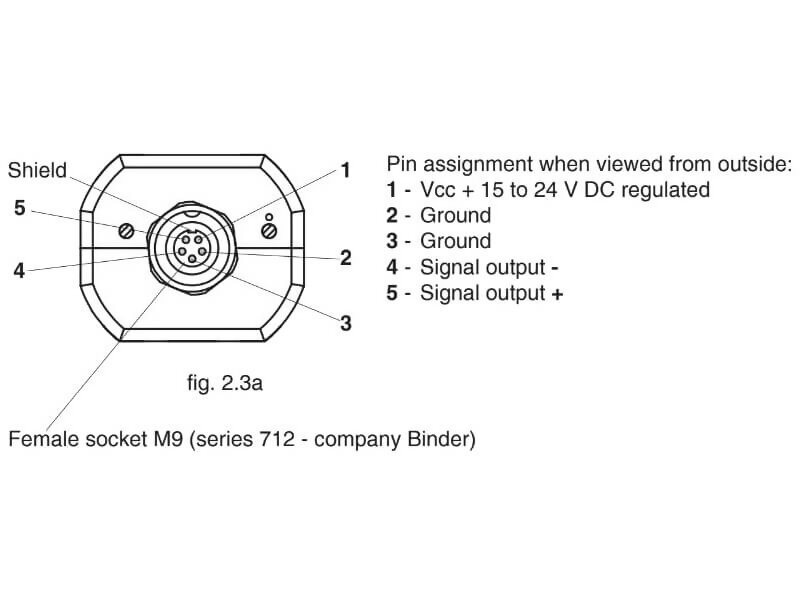

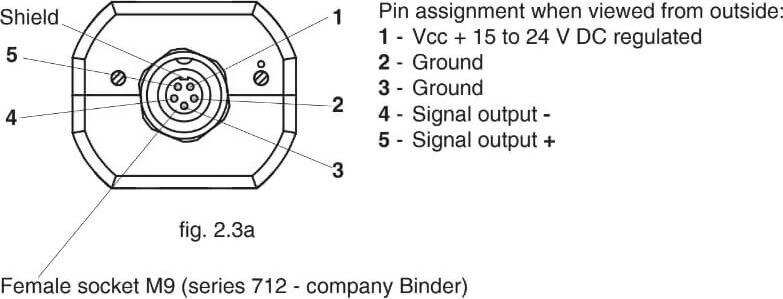

Output SignalStandard: 0 - 1 V DC (analog)
Option: 0 - 10 V DC
Option: USB
DampingStandard: 30 Hz (other values on request)
Temperature DriftLess than ± 0.1% Full Scale / °C
Temperature Range10 - 45 °C
Air Humidity85% RH, max

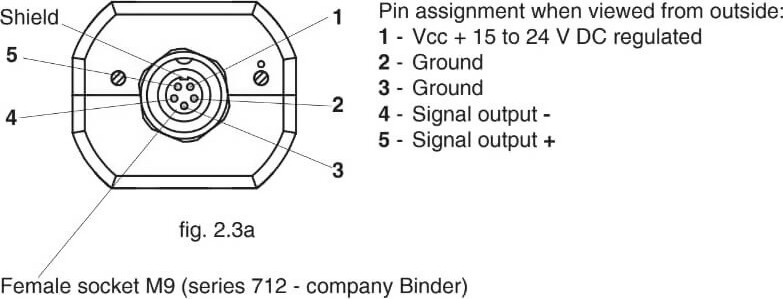

Power Required+15 ... 24 V DC, 50 mA (regulated)
Housing MaterialAluminum
Weight net (gross)Approx. 300 g (800 g)
Delivery IncludesConnector with 2 m cable with open ends


line
Ranges
line

ModelRange*Measuring Head Width**Calibration Material
TS2-500 - 50 g64 mmPA: 0.12 mm Ø
TS2-1000 - 100 g64 mmPA: 0.12 mm Ø
TS2-2000 - 200 g64 mmPA: 0.12 mm Ø
TS2-5000 - 500 g64 mmPA: 0.20 mm Ø
TS2-1K0 - 1000 g64 mmPA: 0.30 mm Ø

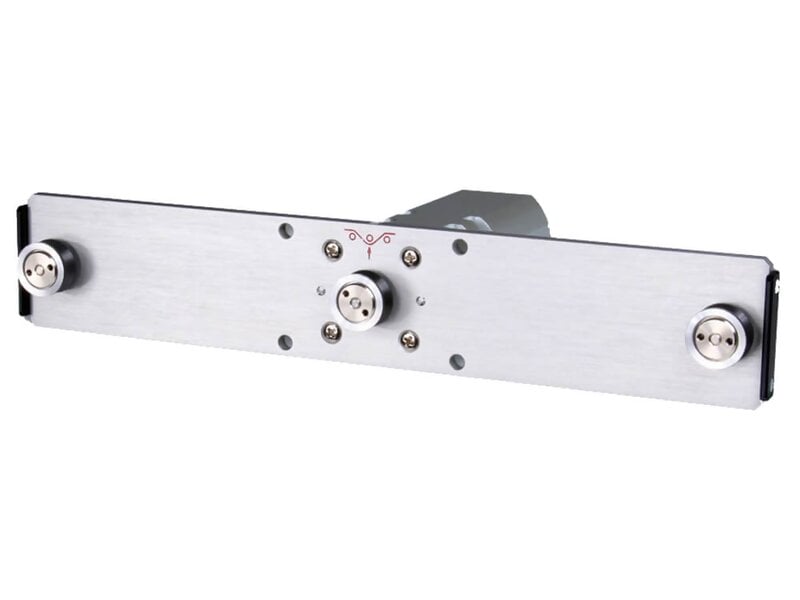

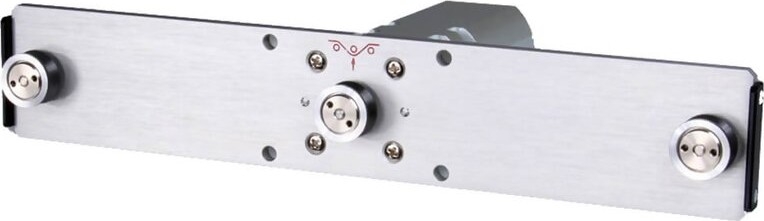

TS2-2K0 - 2000 g124 mmPA: 0.50 mm Ø
TS2-5K0 - 5000 g124 mmPA: 0.80 mm Ø
TS2-10K0 - 10 kg124 mmPA: 1.00 mm Ø
TS2-20K0 - 20 kg224 mmPA: 1.50 mm Ø
TS2-50K0 - 50 kg224 mmPA: 1.50 mm Ø

Other tensions ranges and measuring head widths available on request

* Outside dimensions of front plate
** Suitable for 95 % of applications
PA = Polyamide Monofi lament


line
Guide Rollers
line

V-GrooveLine Speed Vmax...m/minRoller Material
Standard2000Hardcoated aluminum
Code K3500Hardcoated aluminum
Code H5000Plasma-coated aluminium
(for model TS2-100 and higher ranges)
Code ST1000Hardened Steel
Code B1000Tempered steel, specially for measuring tire cordaluminum
Code CE11000Ceramic
Code ASY*1000Hardcoated aluminium,
asymetrical groove
Code ASYB*1000Tempered steel for tire cord,
asymetrical groove
* for TS2-500 and higher ranges with measuring head width 124 mm


line
Output Signal Models
line

Standard0 - 1 V DC (analog)
OptionCode A2: 0 - 10 V DC
OptionCode USB: digital USB


line
Related Products
line

TD-1-TE
Tension Indicator
  • User-set High & Low Alarm Limits with relays
  • TD-1 provides regulated +5 V DC for SR sensors
  • 4-20 mA and 0-10 VDC analog output for recording and control purpose
related


line
Downloadsline

TS2 Online Tension Sensor - Instruction Manual
