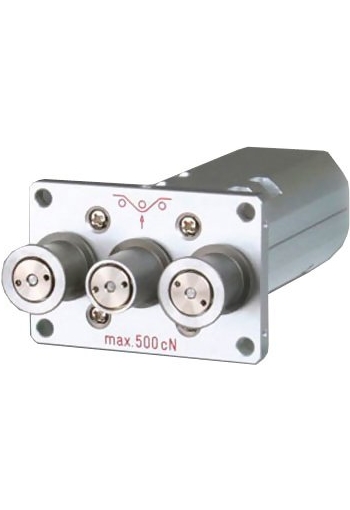

TS2B Tension Sensor

See More Tension Sensors, Online

TS2B Tension Sensor

See More Tension Sensors, Online
Call for price
  • FREE Ground Shipping on Orders Over $150
warrenty

Product Description
Stationary electronic tension sensor for measuring low tensions of textile ribbons, films, foils, fibre bunches etc
6 tension ranges from 0 - 100 g up to 0 - 5000 g

6 tension ranges from 0 - 100 g up to 0 - 5000 g

Stationary electronic tension sensor for measuring low tensions of textile ribbons, films, foils, fibre bunches etc.

Zylindrical tape rollers with up to max. 20 mm width, one-sided mounting

Universal mounting possibility: Housing mounting or cylindrical hole mounting (mounting cut out 38.5 - 40 mm)


line
Features
line

  • Tension sensor with integrated measuring amplifier
  • Universal mounting possibility - easy to install: Housing mounting or cylindrical hole mounting
  • Mechanical overload protection
  • Easy calibration to customized material by operator
  • Various roller widths from 7 mm up to 20 mm


line
Specifications
line

Accuracy± 1% Full Scale and 1 digit or better
Overload Protection100% of tension range
Measuring PrincipleStrain guage bridge
Meas. Roller Defelction0.5 mm, max
Natural frequencyApprox. 500 Hz, depending on tension range
Output SignalStandard: 0 - 1 V DC (analog) impedance: > 5 k?
Option: 0 - 10 V DC (analog)
DampingStandard: 30 Hz (other values on request)
Temperature Range10 - 45 °C
Air Humidity85% RH, max
Power Required+15 ... 24 V DC, 50 mA (regulated)
Housing MaterialAluminum


line
Ranges
line

ModelRange*Measuring Head Width**Calibration Material
TS2B-1000 - 100 g60 mm7 mm, 10 mm, 15 mm, 20 mm
TS2B-2000 - 200 g60 mm7 mm, 10 mm, 15 mm, 20 mm
TS2B-5000 - 500 g60 mm7 mm, 10 mm, 15 mm, 20 mm
TS2B-10000 - 1000 g60 mm7 mm, 10 mm, 15 mm, 20 mm
TS2B-20000 - 2000 g120 mm7 mm, 10 mm, 15 mm, 20 mm
TS2B-50000 - 5000 g120 mm7 mm, 10 mm

Other tensions ranges available on request.

** Outside dimensions of front plate

Important for your order: Please specify model and roller width!
Small dual-flanged outer guide rollers are standard. All 3 rollers can be equipped with one flange, if the material to be measured is wider than the rollers. Please request when you order.


line
Guide Rollers
line

V-GrooveLine Speed
Vmax...m/min
Roller Material
7 mm1000Nickel-plated steel
10 mm1000Hardcoated aluminium
15 mm1000Hardcoated aluminium
20 mm1000Hardcoated aluminium


line
Output Signal Models
line

Standard0 - 1 V DC (analog)
OptionCode A2: 0 - 10 V DC
OptionCode A3: 4 - 20 mA DC
OptionCode RS 422: digital RS 422
max. 32 sensors can be connected in line to a PC
