TS2L Tension Sensor

See More Tension Sensors, Online

TS2L Tension Sensor

See More Tension Sensors, Online
Call for price
  • FREE Ground Shipping on Orders Over $150
warrenty

Product Description

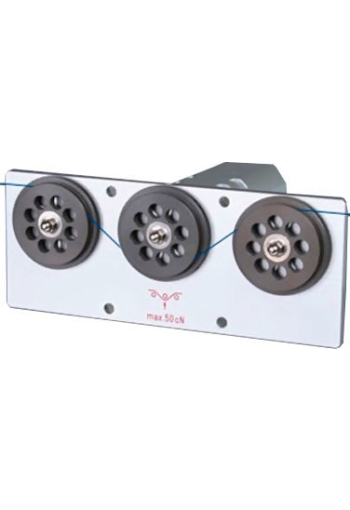

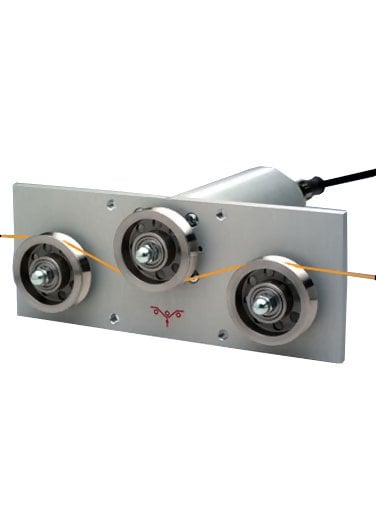

Stationary electronic tension sensors for measuring sensitive materials as optical fibres, carbon fibres, technical fibres etc
5 tension ranges from 0 - 50 g to 0 - 1000 g

5 tension ranges from 0 - 50 g to 0 - 1000 g

Stationary electronic tension sensors for measuring sensitive materials as optical fibres, carbon fibres, technical fibres etc

Large, smooth running guide rollers for minimized material deflection with 32 mm groove

Universal mounting possibility: Housing mounting or cylindrical hole mounting (mounting cut out 38.5 - 40 mm)


line
Features
line

  • Universal mounting possibility - easy to install: Housing mounting or cylindrical hole mounting
  • Smooth running, V-grooved guide rollers, ball-bearing mounted
  • Large bending radius for gentle handling of sensitive material
  • Mechanical overload protection
  • Easy calibration to customized material by operator
  • Best suitable for low tension ranges


line
Specifications
line

Accuracy± 1% Full Scale and 1 digit or better
Overload Protection100% of tension range
Measuring PrincipleStrain guage bridge
Meas. Roller Defelction0.5 mm, max
Natural frequencyApprox. 500 Hz, depending on tension range
Output SignalStandard: 0 - 1 V DC (analog) impedance: > 5 k?
Option: 0 - 10 V DC (analog)
DampingStandard: 30 Hz (other values on request)
Temperature Range10 - 45 °C
Air Humidity85% RH, max
Power Required+15 ... 24 V DC, 50 mA (regulated)
Housing MaterialAluminum
Weight net (gross)Approx. 340 g (440 g)


line
Ranges
line

ModelRange*Measuring Head Width**Calibration Material
TS2L-500 - 50 g150 mmPA: 0.12 mm Ø
TS2L-1000 - 100 g150 mmPA: 0.12 mm Ø
TS2L-2000 - 200 g150 mmPA: 0.12 mm Ø
TS2L-5000 - 500 g150 mmPA: 0.20 mm Ø
TS2L-10000 - 1000 g150 mmPA: 0.30 mm Ø

Other tensions ranges and measuring head widths available on request.

* Outside dimensions of front plate
** Suitable for 95 % of applications
PA = Polyamide Monofi lament


line
Guide Rollers
line

V-GrooveLine Speed
Vmax...m/min
Roller Material
Standard4000Hardened Steel
Code T4000Plastic red (PVC)
Other roller materials (nickel-Plated steel or plastic) are available on request


line
Output Signal Models
line

Standard0 - 1 V DC (analog)
OptionCode A2: 0 - 10 V DC
OptionCode A3: 4 - 20 mA DC
OptionCode RS 422: digital RS 422
max. 32 sensors can be connected in line to a PC
Other roller materials (nickel-Plated steel or plastic) are available on request


line
Related Products
line

TD-1-TE
Tension Indicator
  • User-set High & Low Alarm Limits with relays
  • TD-1 provides regulated +5 V DC for SR sensors
  • 4-20 mA and 0-10 VDC analog output for recording and control purpose
related


line
Downloadsline

TS2L Tension Sensor - Instruction Manual
