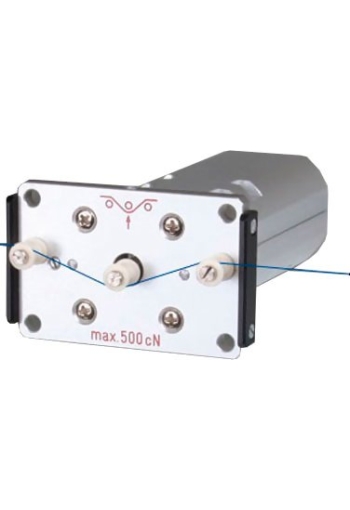

TS2P Tension Sensor

See More Tension Sensors, Online

TS2P Tension Sensor

See More Tension Sensors, Online
Call for price
  • FREE Ground Shipping on Orders Over $150
warrenty

Product Description

Stationary electronic tension sensors with non-rotating ceramic pins for threads and fibres
5 tension ranges from 0 - 50 g up to 0 - 1000 g

5 tension ranges from 0 - 50 g up to 0 - 1000 g

Stationary electronic tension sensors with non-rotating ceramic pins for threads and fibres


line
Features
line

  • Universal mounting possibility - easy to install: Housing mounting or cylindrical hole mounting
  • Non-rotating, exchangeable ceramic pins for line speed up to max. 6000 m/min
  • Usable for threads and fibres only
  • Analog output signal
  • Easy calibration to customized material by operator
  • Tension sensor with mechanical overload protection


line
Specifications
line

Accuracy± 1% Full Scale and ± 1 digit or better
Overload Protection100% of tension range
Measuring PrincipleStrain guage bridge
Meas. Roller Defelction0.5 mm, max
Natural frequencyApprox. 500 Hz, depending on tension range
Output SignalStandard: 0 - 1 V DC (analog) impedance: > 5
Option: 0 - 10 V DC (analog)
DampingStandard: 30 Hz (other values on request)
Temperature Range10 - 45 °C
Air Humidity85% RH, max
Power Required+15 ... 24 V DC, 50 mA (regulated)
Housing MaterialAluminum
Weight net (gross)Approx. 220 g (320 g)


line
Tension Ranges
line

ModelRange*Measuring
Head Width
**Calibration
Material
TS2P-500 - 50 g64 mmPA: 0.12 mm ⌀
TS2P-1000 - 100 g64 mmPA: 0.12 mm ⌀
TS2P-2000 - 200 g64 mmPA: 0.12 mm ⌀
TS2P-5000 - 500 g64 mmPA: 0.20 mm ⌀
TS2P-10000 - 1000 g64 mmPA: 0.30 mm ⌀

Other tensions ranges and measuring head widths available on request.

* Outside dimensions of front plate
** with running filament approx. 300 m/min. Suitable for 95 % of applications
PA = Polyamide Monofi lament


line
Guide Rollers
line

V-GrooveLine Speed
Vmax...m/min
Roller Material
Standard6000Oxid ceramic ⌀ 5.2 mm


line
Output Signal Models
line

Standard0 - 1 V DC (analog)
OptionCode A2: 0 - 10 V DC
OptionCode A3: 4 - 20 mA DC
OptionCode RS 422: digital RS 422
max. 32 sensors can be connected in line to a PC


line

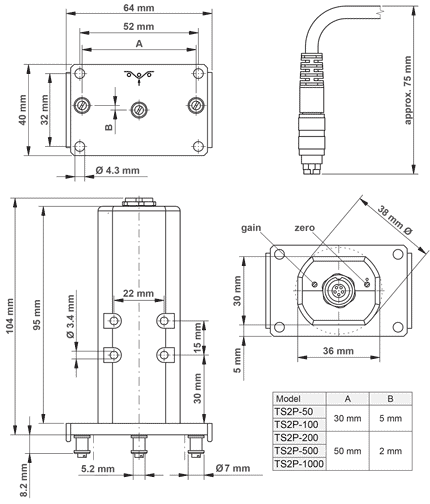

Dimensions
line


line
Downloads
line

TS2P Tension Sensor - Instruction Manual
