TSR Online Tension Sensor

See More Tension Sensors, Online

Online Tension Sensor

Tension sensor with integrated measuring amplifier

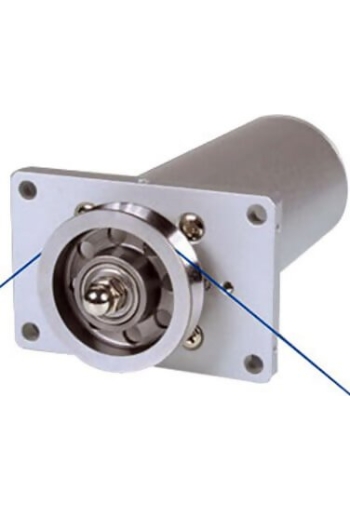

Stationary electronic tension sensor, single roller system, for mounting at an existing deflection pulley

Large, hardened guide rollers for minimized material deflection with 29.5 mm groove ⌀

Tension meter is available with digital output for data processing with PC

line
Features
line

V-grooved guide rollers, ball-bearing mounted
Tension sensor with integrated measuring amplifier
Various output signals: analog, digital (optional), current (optional), analog DMS (optional)
Many configurations are possible
Easy calibration to customized material by operator
Tension sensor with mechanical overload protection
Wide variety of roller types can be specified
Guide rollers 30 or 70 mm ⌀, made of Aluminium or steel
In- and outcoming angle β min 20°
Rugged aluminium housing
Certificate of Compliance with the order 2.1 according EN 10204 is included
Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

line
Specifications
line

Accuracy	factory calibration material: ±1 % full scale and ±1 digit other calibration material: ±3 % full scale or better
Overload protection	100 % of tension range
Measuring principle	Strain gauge bridge
Measuring roller deflection	Max. 0.5 mm
Natural frequency	Approx. 500 Hz, depending on tension range
Signal processing	Analog (option: digital)
Temperature drift	Less than ±0.05 % full scale/°C
Output signal	Standard: 0 - 1 V DC (analog) impedance: ≥ 5 kΩ Option: 0 - 10 V DC (analog), 4 - 20 mA (current) or mV/V (DMS) digital RS 232
Damping (fg)	Standard: 30 Hz (other values on request)
Temperature range	10 - 45 °C
Air humidity	85 % RH, max.
Power supply	+15...24 V DC, max. 50 mA regulated Code A10: max. +5 V DC, max. 20 mA regulated
Housing material	Aluminium
Weight, net (gross)	Approx. 250 g (approx. 400 g)

line
Available Models
line

Model	Resultant Force Capacity (G/KG)	Resultant Force Capacity (Newtons)
TSR-1000	1000 grams	10 N
TSR-2000	2000 grams	20 N
TSR-5K	5 Kg	50 N
TSR-10K	10 Kg	100 N

line
Guide Rollers
line

line
Output Signal
line

Standard

line

Code A2

line

Code A3

line

Code A10

line

Code 232

Output signal
- digital: RS 232
- analog: 0 - 1 V DC
Up to 100 readings can be transferred per second, (internal sampling rate max. 4800 times/s)
Click image for more information

line

Code 232-H

Output signal
- digital: RS 232
- analog: 0 - 1 V DC
Only for tension range 200 Kg or higher
Up to 500 readings can be transferred per second, (internal sampling rate max. 25000 times/s)
Only for certain tension ranges and designs available
Please contact us for details
Click image for more information

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price
