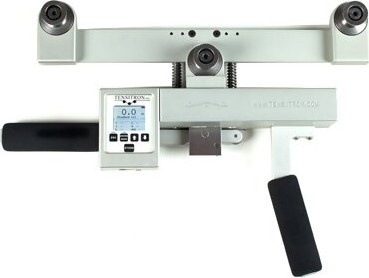

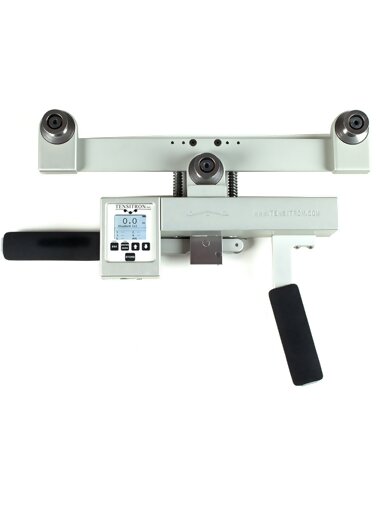

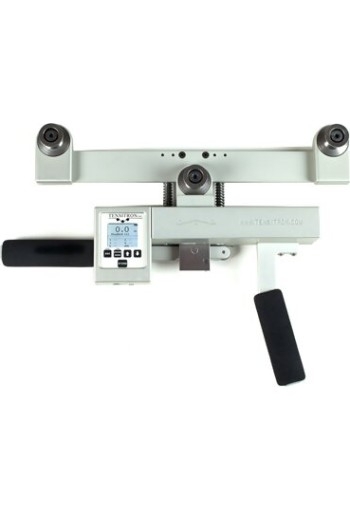

Tensitron CX-500-SM-1 Digital Tension Meter for Large Cables, Range 25 - 500 lbs, 3/16" Cable Max, 15" Wide

See More Cable Tension Meters

Tensitron CX-500-SM-1 Digital Tension Meter for Large Cables, Range 25 - 500 lbs, 3/16" Cable Max, 15" Wide

See More Cable Tension Meters
Price:
$2,499.00
    warrenty

    Product Description
    Up to 10 Calibrations - 1 Free
    Quick, easy operation
    Durable construction
    Backlit, digital display with color-bar graphic

    Safely install or monitor cables, wire rope, and other materials with a Tensitron CX-1 Digital Tension Meter for Large Cables. Achieve consistent tension to avoid mechanical stresses, and minimize the risk of damage on cables.

    Use CX-1 tension meters to measure the tension for catenary systems, elevator maintenance, telecommunications cables, guy wire, zip lines, theater rigging, and more. Check the tension on flexible cables from 1/16 inch to ¾ inch in diameter


    line
    Kit Contents
    line

    • Tensitron CX-1 Cable and Wire Rope Tension Meter
    • Re-chargeable NIMH battery assembly
    • NIST-Traceable Calibration Certificate
    • Power supply
    • Operating Instructions
    • Durable lightweight carrying case with protective foam inserts


    line
    Features
    line

    Fast & Versatile

    • Quickly and easily test cable and wire rope tension
    • Quick, easy operation
    • Can be used on:
      • Catenary systems
      • Elevator cables
      • Telecommunications cables
      • Guy wires
      • Zip lines
      • Entertainment rigging
      • Safety cables
      • Tension wire

    Accurate

    • Improve safety and performance
    • Measures tension from 10 to 2,000 lbs. on flexible cables from 1/16” to ¾” in diameter
    • Selectable units (lb, kg, or daN)
    • Measures slowly moving or stationary materials
    • Analog or serial output (optional)
    • Custom-calibrated for your application

    Dependable

    • Save time and costs with durable construction
    • Durable, reliable construction
    • Continuous or single-point data storage
    • Secure-grip handles
    • Includes carrying case and NISTtraceable calibration certificate

    Convenient

    • User-friendly and easy to transport
    • Equipped with rollers for moving materials
    • Easy-to-read backlit, digital display
    • Color-bar graphic provides quick visual of tension levels


    line
    Specifications
    line

    Accuracy+/- 2% full-scale. Accuracy may differ depending on material measured
    BatteryNiMH (NOT lithium ion). Rechargeable. Up to 8 hours continuous use per charge
    Warrantyone year against factory defects


    line
    Comparison Chart
    line

    ModelStyleRange Min LbRange Max LbResolution LbTolerance (Material Dependent) LbMaximum 7x19 Wire Rope*
    CX-250-SM-1Small (15” wide)202500.2+/- 53/16” (4.8 mm)
    CX-500-SM-1Small (15” wide)205001+/- 103/16” (4.8 mm)
    CX-1000- SM-1Small (15” wide)5010005+/- 203/16” (4.8 mm)
    CX-1000-M-1Medium (16.73” wide)5010005+/- 201/4” (6.35 mm)
    CX-2000-M-1Medium (16.73” wide)100200010+/- 401/4” (6.35 mm)
    CX-1000-1Standard (19.73” wide)5010005+/- 203/4” (19 mm)
    CX-2000-1Standard (19.73” wide)100200010+/- 403/4” (19 mm)

    *Contact about measuring more rigid materials and/or diameters up to 3/4 in. (19mm).


    line
    Downloads
    line

    Tensitron CX-1 Cable and Wire Rope Tension Meter - Data Sheet
    Tensitron CX-1 Cable and Wire Rope Tension Meter - Instruction Manual
    Tensitron CX-1 Cable and Wire Rope Tension Meter - Operation Calibration
    Tensitron CX-1 Cable and Wire Rope Tension Meter - Dimensions
