Quick, easy, one-handed operation
Lightweight, portable, and compact
Durable construction

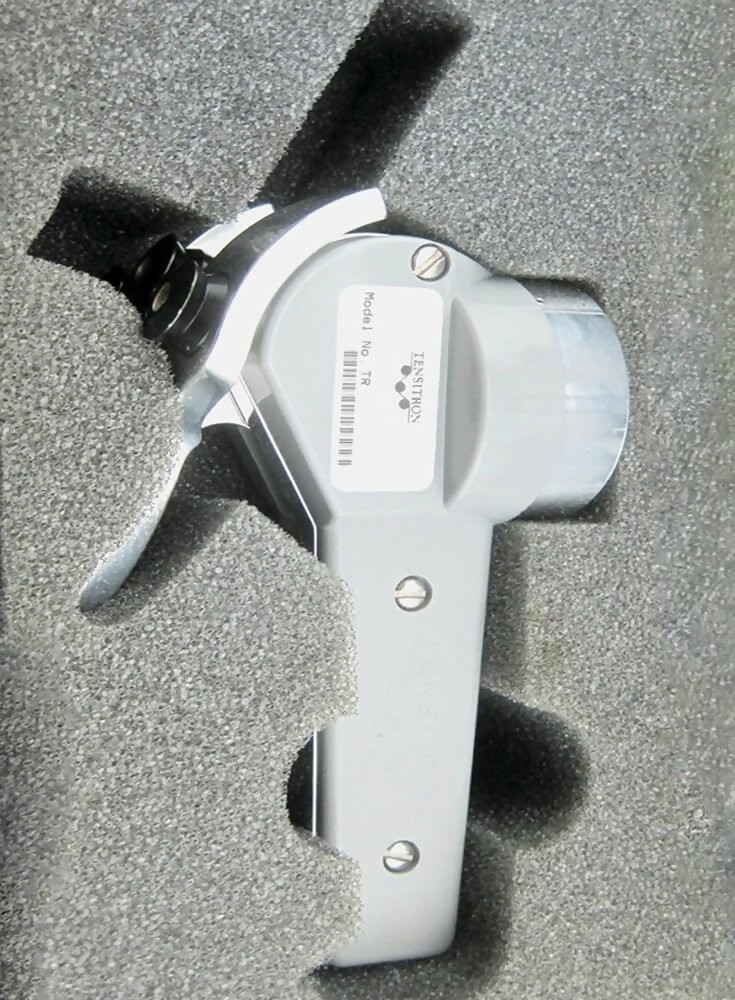

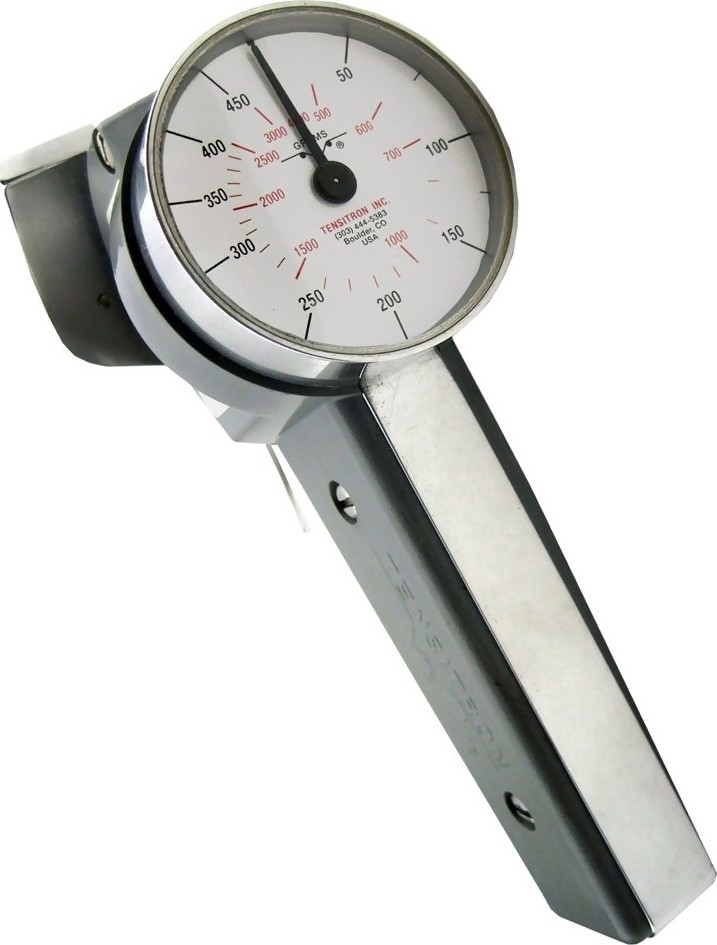

Maintain process and quality control in manufacturing and testing environments with the Tensitron TR tension meters. The Mechanical Trigger Tension Meter for Fine Wire & Filaments is used to check tensions on wire, yarn, fiber optics, film, tape, narrow fabrics, and flat materials. TR instruments provide measurable tension control for the major wire, textile, coil winding, EDM, fiber optic, and synthetic materials industries. For EDM wire, order TR-4000.
TR tension gauges are calibrated to one specific material for a direct tension reading. Digital instruments can be calibrated for up to ten different materials

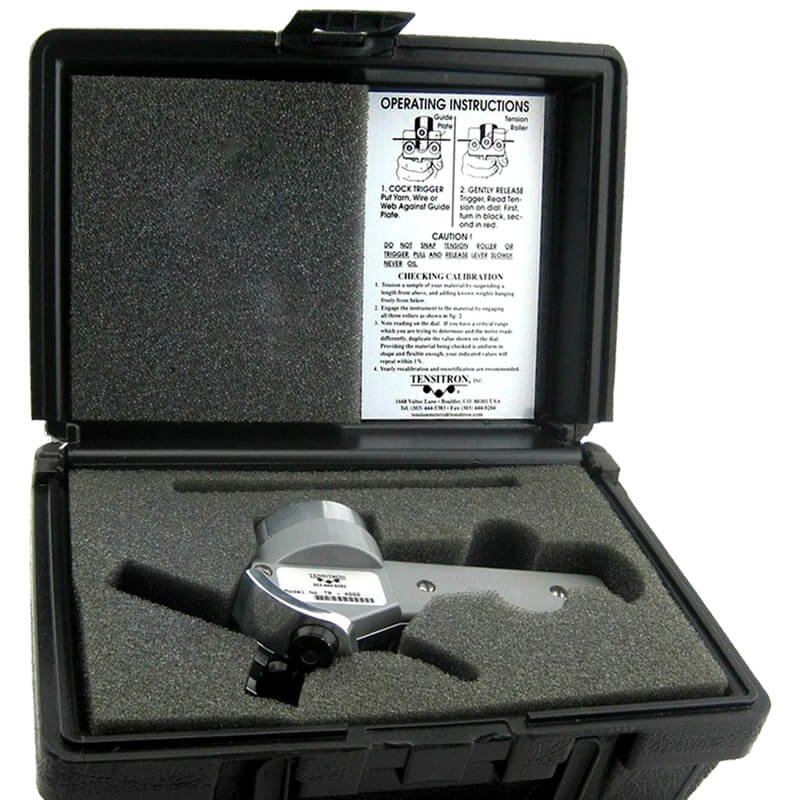

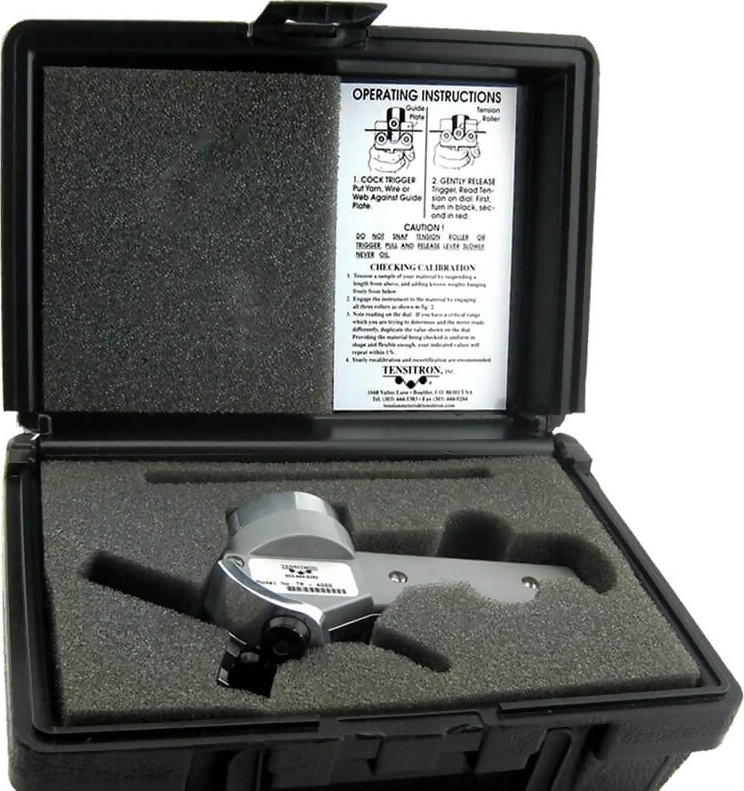

Kit Contents
- Tensitron TR Wire Filament Mechanical Tension Meter
- NIST-Traceable Calibration Certificate
- Operating Instructions
- Durable lightweight carrying case with protective foam inserts
Features
Quick, easy tension testing for fine wires, filaments, and other materials
- Improves yields and first quality
- Ensures consistency in your manufacturing or testing environments
Dependable, Convenient Tension Measurement

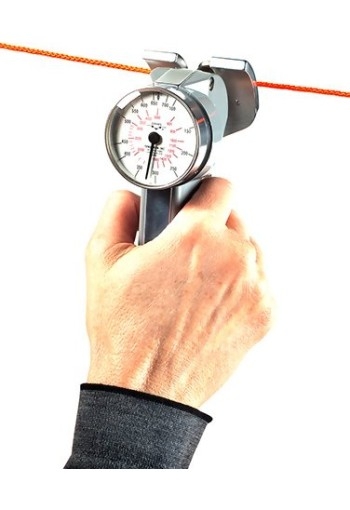

- Quick, easy, one-handed operation
- Lightweight, portable, and compact
- Durable construction
- Measures moving or stationary materials
- Tension ranges from 0 to 5,000 grams
- Equipped with rollers for dynamic or static measurement
- Custom rollers available for specialized applications
- Mounting Bracket allows for continuous, hands-free monitoring (optional)
- Magnetic dampening stabilizes readings
- Right- or Left-Hand Operation
- Corrosion-resistant versions available for damp environments
- Includes carrying case and NIST-traceable calibration certificate
- Warrantied for one year against factory defects
Versatile Tension Measurement for:
- Copper wire (up to 20 AWG)
- EDM wire, magnet wire (up to .8mm)
- Solid steel wire (up to .02”, .5mm)
- Stranded steel wire (up to .04”, 1mm)
- Yarn, thread, fibers, filaments
- Fiberglass roving
- Carbon fiber
- Fiber optic strands and thin cables
- Film, tape, ribbon (up to 1-1/2”, 38mm wide)
- Tubing (up to .2”, 6mm)
Specifications
Comparison Chart
* Calibrated for 1 material. Standard calibration is textile filament. Static or dynamic. For EDM wire, order TR-4000. V-groove roller for wire or filaments are standard. For other materials order Custom Roller Option.
