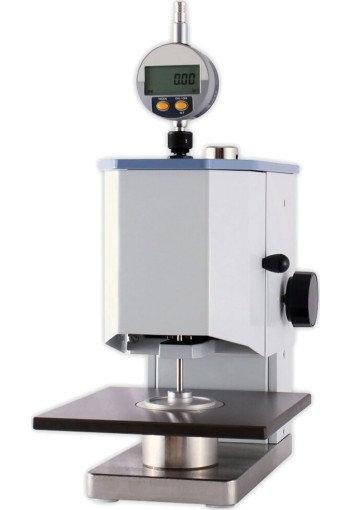

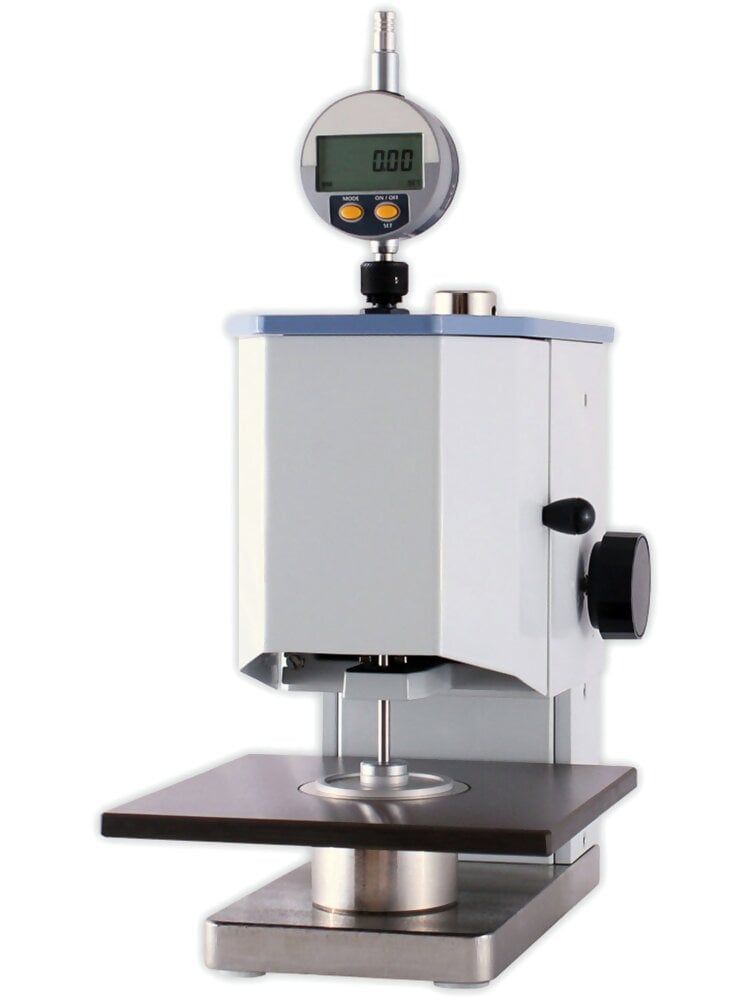

Checkline D-1000 Precision Material Thickness Gauge

See More Textile Test Instruments

Checkline D-1000 Precision Material Thickness Gauge

See More Textile Test Instruments
Call for price
  • Hassle Free 30-Day Returns
  • FREE Ground Shipping on Orders Over $150
warrenty

Product Description
High Accuracy & Repeatability due to a rigid frame
The standard resolution is 0.01 mm, with resolution of 0.001 mm available (Option R)

3 Ranges

  • Standard 0-10mm (0-0.394")
  • Option E25 0-25mm (0-1.000")
  • Option E50 25-50mm (1-2.000")
  • Resolution 0.01 or 0.001 mm

The D-1000 Precision Material Thickness Gauge accurately measures a wide variety of materials including fabrics, various textiles, non-wovens, felt, fleece, geomaterials, floor coverings, leather, foils, rubber etc.

Several different models are offered which supplied with specific contact footers providing a pre-determined test pressure as rewuired by various ASTM and DIN EN ISO norms and standards including:

  • DIN EN ISO 5084
  • DIN EN ISO 9073-2
  • DIN EN ISO 9863-1
  • DIN EN ISO 54540
  • DIN EN ISO 2589
  • DIN 53370
  • DIN 53370

We can alos supply custom models to cover various standards. We require that you specify the footer diameter (or shape) and required test pressure (or Load).


line
Kit Contents
line

  • D-1000 Precision Material Thickness Gauge
  • USB cable
  • Calibration report of manufacturer
  • Transport packing case
  • Instruction Manual


line
Features
line

  • High Accuracy & Repeatability due to a rigid frame
  • The standard resolution is 0.01 mm, with resolution of 0.001 mm available (Option R)
  • The standard measuring range is 0 – 10 mm; 0 – 25 mm and 25 – 50 mm are optional available
  • 95mm Throat Depth (center of measuring platform)
  • Measurement Feeler is controlled by the Hand-Wheel on the side of the frame
  • Optional USB interface
  • Battery-operated. AC-Adapter optionally available
  • Includes Manufacturer Calibration Certification
  • Traceable Calibration Certification (DakkS) - OPTIONAL
  • Customs models available with desired Footer Diameter/Shape and Desired Test Pressure


line
Specifications
line

Accuracy±0.02 mm (0.001")
±0.002 mm (0.0001") - Option Code R
Measuring range (standard)0 – 10 mm (0-0.400")
Measuring Range (Option E25)0 - 25 mm (0 - 1.000")
Measuring Range (Option E50)25 - 50 mm (1 - 2.000")
Resolution (standard)0.01 mm (0.001")
Resolution (optional)0.001 mm (0.00001"), Option Code R
Throat Depth95 mm / 3.75" (to center of platform)
Display6 digit LCD, 8.5 mm high
Measuring Unitmm or inch (user-selected)
Feeler ShapeAs per ISO, DIN or ASTM Sandard
Feeler DiameterAs per ISO, DIN or ASTM Sandard
Output signalUSB
Battery1 lithium battery 3 V, type CR2032, capacity of 220 mAh
Battery LifeApprox. 1 year
Low Battery IndicatorWhen "B" is shown on the display
Temperature range10 – 45 °C
Dimensions250 x 180 x 400 mm (L x W x H)
Weight (net/gross)12 kg (15 kg


line
Available Models
line

ModelStandardApplicationFeeler Ø mmFeeler cm²Test Pressure
D-1000-TDIN EN ISO 5084Textiles50.42200.1 kPa and 1 kPa
D-1000-VDIN EN ISO 9073-2Standard Fleece56.42250.5 kPa
D-1000-GDIN EN ISO 9863-1Geomaterials56.42252 kPa
D-1000-HYDIN EN ISO 54540Hygienic paper56.42252 kPa
D-1000-LDIN EN ISO 2589Leather100.78549.1 kPa
D-1000-GiRubber35.68105 kPa
D-1000-F1DIN 53370FoilR 30 mm0.5 N
D-1000-F2DIN 53370Foil7.50.4420.9 N


line
Downloads
line

D-1000 Precision Material Thickness Gauge - Instruction Manual
