Checkline D-2005 Motorized Precision Material Thickness Gauge

See More Textile Test Instruments

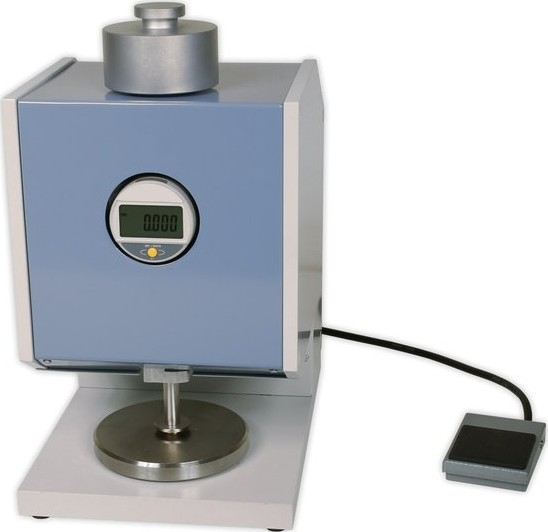

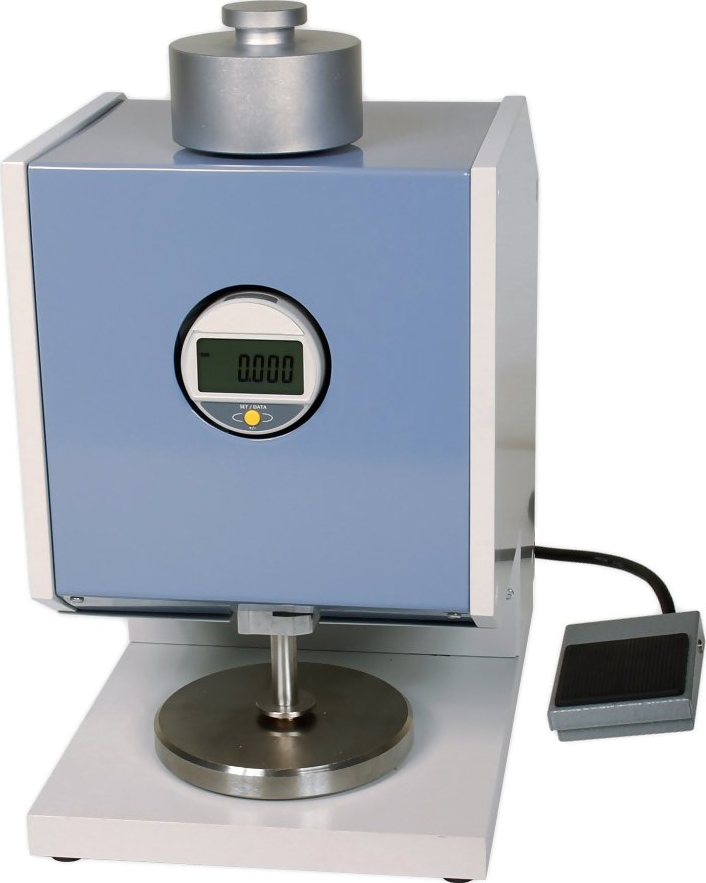

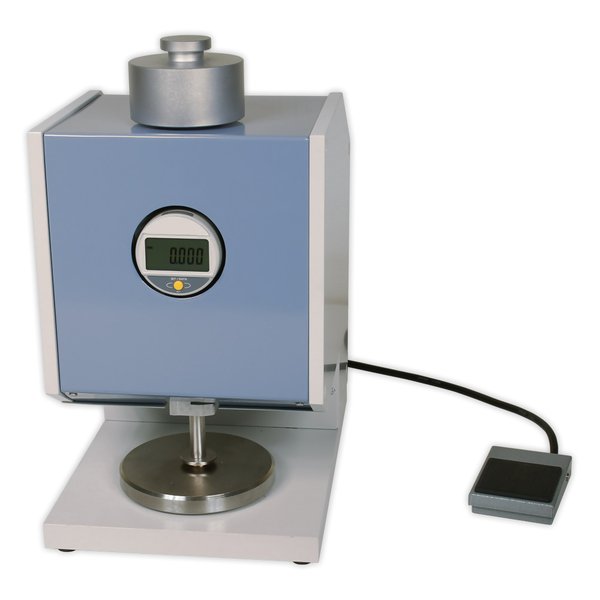

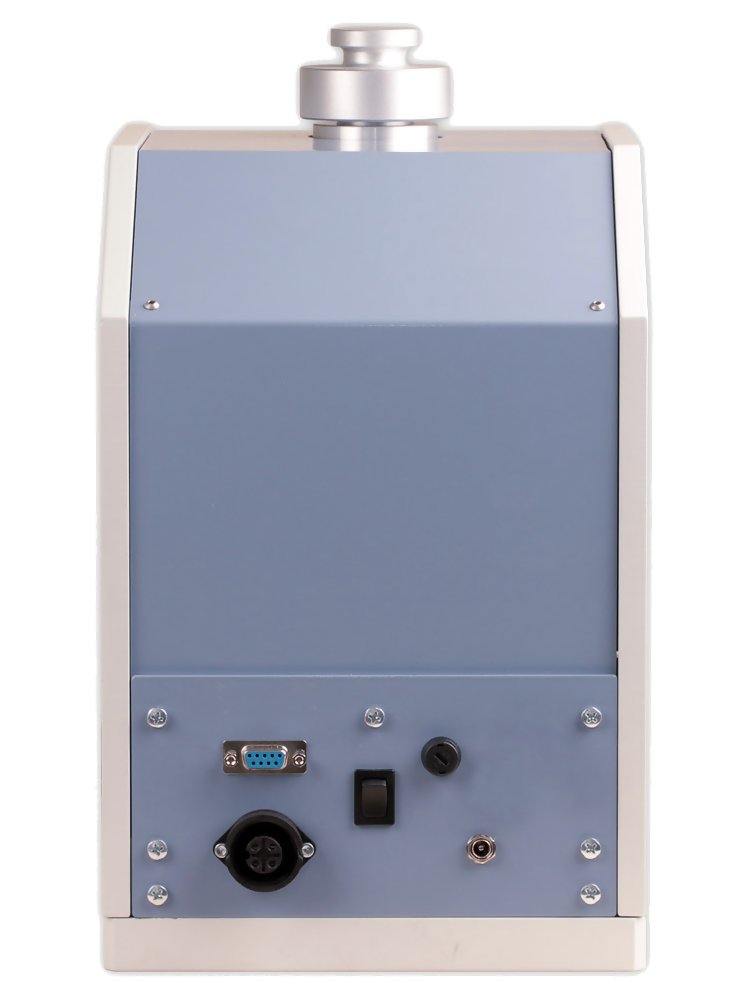

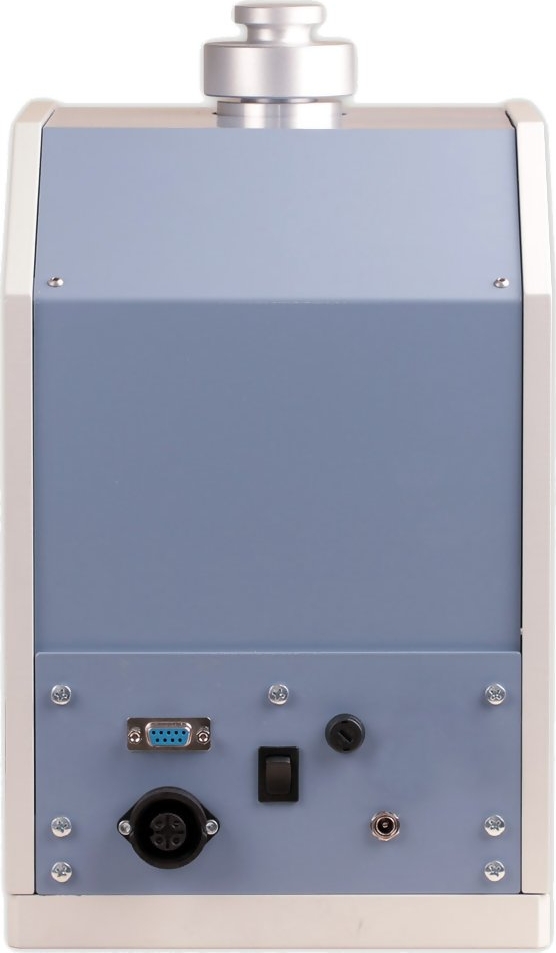

Checkline D-2005 Motorized Precision Material Thickness Gauge

Resolution 0.01 mm - standard, 0.001 mm - optional

The Checkline D-2005 Motorized Precision Material Thickness Gauge has a stable and rigid base frame with an encapsulated, separate measuring block. And is a top choice if you appreciate high precision (up to 0.001 mm), easy operation, automatic processing and objective, reproducible measurement results.

The device can be adapted to the materials to be measured according to your requirements. Thus, the calliper surfaces, the calliper materials and the measurement pressures fit in exactly with the guidelines of ISO, EN, DIN or also with your own test regulations.

Common Standards
For textiles and non-woven textiles according to DIN EN ISO 5084 (measuring face 20 cm²/pressure 0.1 kPa and 1 kPa)
For fleece according to DIN EN ISO 9073-2 (measuring face 25 cm²/pressure 0.1 kPa and 0.5 kPa)

For geomaterials according to DIN EN ISO 964-1 (measuring face 25 cm²/pressure 2 kPa and 20 kPa, not 200 kPa)

The D-2005 device is also available with different measurement ranges:
Ranges 0 – 10 mm, 0 – 25 mm and 0 – 50 mm (or with the equivalents in inch, switchable).

With this instrument the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber, plastic films etc.

This alternative to the D-2010 does not have an illuminated, menu controlled touch-screen with its statistics functions, instead it is equipped with a dial gauge with seven-segment display and individual keys. Of course, there is a data output for the digital processing of the measurement results.

The model D-2005 is also available with special equipment for calliper dwell time gauging range preselection.

line
Kit Contents
line

D-2005 Motorized Precision Material Thickness Gauge
Sub-D9/USB adapter cable
USB AC adapter
AC adapter

Switch pedal
Calibration report of manufacturer
Transport packing case
Instruction Manual

line
Features
line

Rigid housing frame
Separate measuring block, encased against outside external impacts, for highest accuracy and repeatability
Optional: Preselection of the measuring range
Optional: Adjustable dwell time
Footpedal included
Switch-selectable measuring units mm / inch

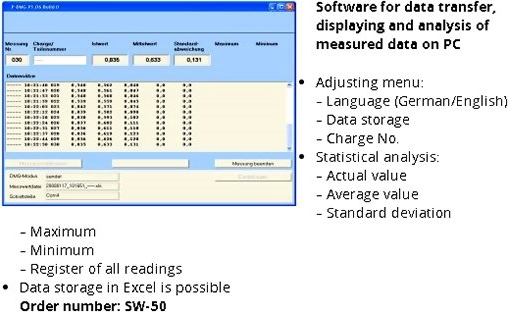

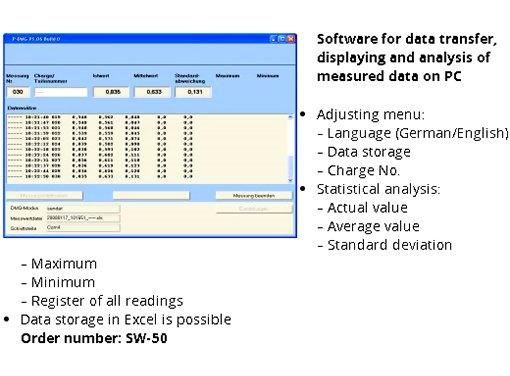

Optional: software for data transfer and analysis - Part No. SW-50
Motor-driven calliper movement
Seven-segment display
Resolution 0.01 mm - standard, 0.001 mm - optional (0.001 mm is standard for D-2005-P, D-2005-F)

line
Specifications
line

Measuring Range	0 - 10 mm, (25 mm optional, Code E)
Resolution	0.001 mm
Accuracy	± 0.002 mm
Depth of jaw	160 mm
Measuring system	Capazitive -> Sylvac
Display	LCD 6 digit, 8.5 mm high
Measuring unit	mm or inch
Preselection of the measuring range	Optional
Feeler shape and surface pressure	According international standards DIN, EN and ISO
Adjustable dwell time	Optional
Output signal	RS 232 for printer and USB for PC
Temperature range	10 - 45 °C
Air humidity	Max. 85 % r.H
Dimensions	300 x 210 x 300 mm (LxWxH)
Weight, net (gross)	23 kg

line
Available Models
line

Model	Standard	Application	Feeler Ø mm	Feeler cm²	Test Pressure
D-2005-T	DIN EN ISO 5084	Textiles	50.42	20	0.1 kPa and 1 kPa
D-2005-V1	DIN EN ISO 9073-2	Standard Fleece	56.42	25	0.5 kPa
D-2005-V2	DIN EN ISO 9073-2	Standard Fleece	56.42	25	0.1 and 0.5 kPa
D-2005-G1	DIN EN ISO 9863-1	Geomaterials	56.42	25	2 kPa
D-2005-G2	DIN EN ISO 9863-1	Geomaterials	56.42	25	2 kPa, 20 kPa and 200 kPa
D-2005-NW	EN ISO 9073-2	Non-woven textiles	56.42	25	0.5 kPa and 1 kPa
D-2005-P*	DIN EN ISO 534	Paper	16	2	50 kPa and 100 kPa
D-2005-HY	DIN EN ISO 54540	Hygienic paper	56.42	25	2 kPa
D-2005-L	DIN EN ISO 2589	Leather	10	0.785	49,1 kPa
D-2005-Gi		Rubber	35.68	10	5 kPa
			Feeler Calotte
D-2005-F*	DIN 53370	Foil	R 30 mm		0.5 N

*Resolution 0.001 mm is standard

line
Options
line

Code R	Higher resolution 0.001 instead of 0.01 mm(0.001 mm is standard for D-2005-P, D-2005-F)
Code E	Extended measuring range 0 - 25 mm
Code E2	Extended measuring range 0 - 50 mm
Code D	Adjustable dwell time
Code D2	Adjustable dwell time & measurement range
Code P	External power supply of the display
DKD-Cal	Calibration report from a DKD authorized laboratory
Code S	Software & Cable

line
Comparison Chart
line

	D-2000	D-2005	D-2010	D-2020
Touch screen with menu control in English or German	-	-
Seven-segment display			-	-
Display illumination	-	-
Statistics display	-	-
Automatic zero point control	-	-
Preselection of the measurment cycles	-	-
Preselection of the measuring range	-	optional
Adjustable dwell time	-	optional
Motor-driven caliper movement	-
Connection for pedal	-
Manual caliper movement via a control lever		-	-	-
Automatic material infeed, adjustable	-	-	-
Digital interface
Available scale divisions	0.001 mm, 0.01 mm
Possible measuring ranges	0 - 10 mm, 0 - 25 mm, 0 - 50 mm
LxWxH (for 0 - 10 mm range)	300 x 240 x 300 mm	300 x 210 x 300 mm	300 x 200 x 300 mm	300 x 300 x 320 mm
Weight (for 0 - 10 mm range)	22.5 kg	23.0 kg	24.0 kg	31.5 kg

line
Downloads
line

D-2005 Motorized Precision Material Thickness Gauge - Instruction Manual
