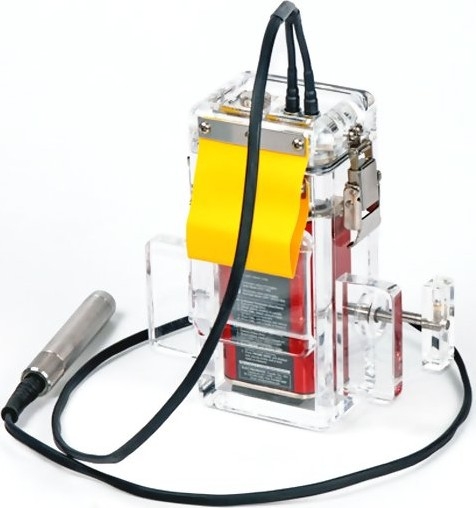

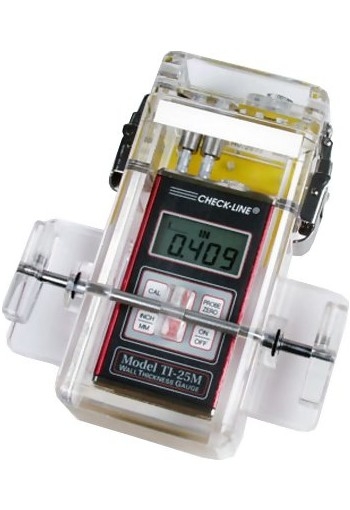

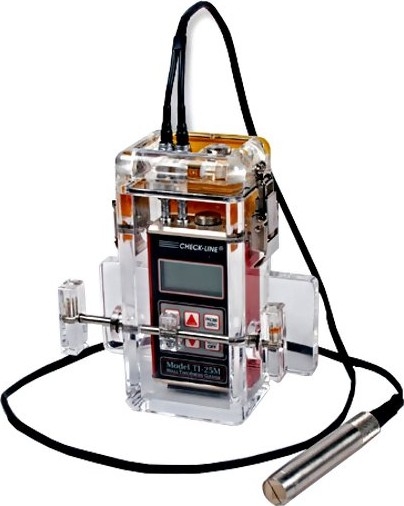

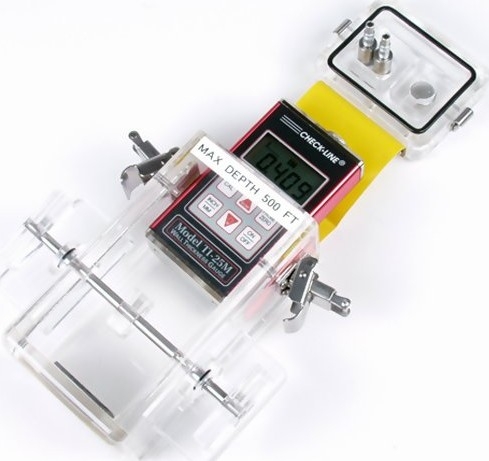

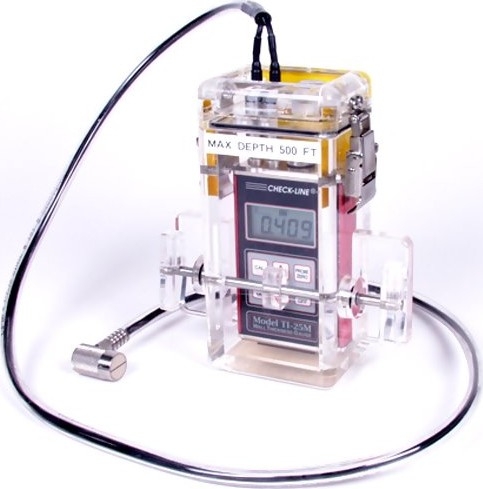

Checkline TI-25M-UWM Underwater Ultrasonic Thickness Gauge

See More Home

Underwater enclosure allows operation at depths to 300 feet

Range:0.050 - 19.99 inches - 1.27 - 508.0 mm

Resolution: 0.001" (0.01 mm)

Datalogging: NO

Measuring Range in Steel
0.050 - 19.99 inches
1.27 - 508.0 mm

The TI-25M-UWM Underwater Ultrasonic Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals at depths of up to 300 feet (91.44 m).

TI-25M-UWM Underwater Wall Thickness Gages can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.

line
Photo Gallery
line

line
Features
line

Resolution of 0.001 inch (0.01 mm)
Large, backlit LCD display retains last reading
Simple operator controls virtually eliminate training
Special-purpose probes are offered for a variety of applications
300 feet depth rating
Clear plexiglass construction, Stainless steel connectors, latches, and control bar
Switch-selected units for inches or mm
CE Certified
NEW Elastic wrist strap secures the gauge during dives

line Specifications line

Range in Steel	0.050-19.99" (1.27 - 508.0 mm)
Resolution	.001" (0.01 mm)
Display	4½ - Digit, 0.5" Backlit LCD
Velocity Range	6,500-33,000 ft./sec (2000-10,000 m/sec.)

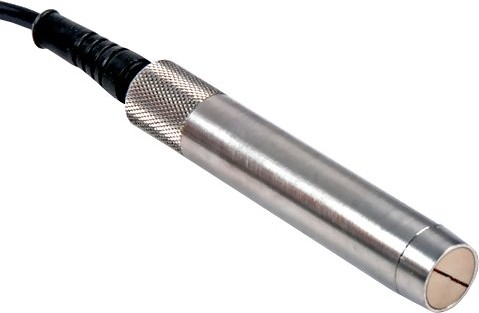

Probe	5 MHz, 0.5" Diameter
Cable	4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. Limits	Ambient: -20 to 120° F (-30 to 50° C) Material: -0 to 200° F (-20 to 100° C Special high temperature probes are optionally available.
Battery Type	Two AA batteries
Battery Life	200 hours
Weight	2.8 pounds
Size	3.5 x 7.5 x 2.75" (63.5 W x 190.5 H x 69.85 D mm)
Accessories Included	Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
Warranty	Gauge: 5 Years Probe: 90 Days Enclosure: 1 year

line Complete Kit line

TI-25M-UWM Underwater Ultrasonic Thickness Gages are supplied as a complete kit including gauge, underwater enclosure, underwater transducer, coupling fluid, instruction manual and calibration certificate in a foam lined hard plastic carrying case.

line
Related Products
line

TI-25M Ultrasonic Thickness Gages

Resolution of 0.001 inch (0.01 mm)
Simple operator controls virtually eliminate training

line

TI-25-UW-50
50 Foot Underwater Probe / Cable Assembly

50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors

line Downloads line

Checkline TI-25M-UWM Underwater Ultrasonic Thickness Gauge - Certificate

line line

F.A.Q.

Do Checkline Ultrasonic Thickness Gauges require any training for use?

No. Checkline Ultrasonic Thickness Gauges are designed for simple operation and feature easy-to-use instruction manuals. We also provide technical support via telephone and/or email, and a 30-day money back guarantee.

Are Checkline Ultrasonic Thickness Gauges calibrated at the factory?

Yes. Checkline Ultrasonic Thickness Gauges arrive fully calibrated and ready to measure.

Do Checkline Ultrasonic Thickness Gauges include Certificate of Calibration?

Yes. Checkline Ultrasonic Thickness Gauges Include NIST-Traceable Calibration Certificate, CE-Certified

Can I measure the thickness of non-metallic materials like plastic and rubber with Ultrasonic Thickness Gauges?

Yes. Checkline Ultrasonic Thickness Gauges features several preprogrammed sound velocities for common materials.

Can Checkline Ultrasonic Thickness Gauges measure cast/ductile iron or cast aluminum?

Yes. Checkline Ultrasonic Thickness Gauges instruments are designed to accurately measure the wall thickness of carbon steel, aluminum, stainless steel and plastic.
