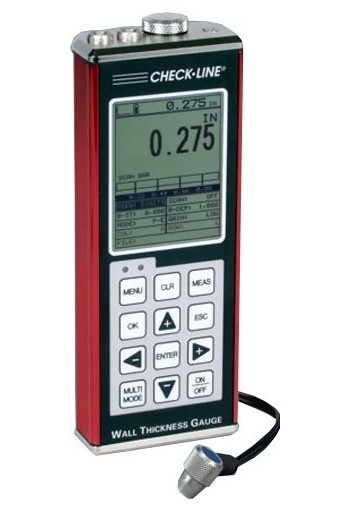

Checkline TI-MMX-SDL High Performance Ultrasonic Thickness Gauge

---

Enhanced Data Logging with time based B Scan for a cross section view

---

Range: 0.025 - 9.999" - 0.60 - 254.0 mm

---

Probe Sold Separately

---

Resolution:.001" (0.01 mm)

---

Datalogging: YES

---

The Checkline TI-MMX-SDL High Performance Data-Logging Thickness Gauge is a full featured ultrasonic thickness gauge offering an oversized display as well as a complete alphanumeric datalogging system with storage capacity of thousands of data values.

The Checkline TI-MMX-SDL High Performance Data-Logging Thickness Gauge features the highest resolution graphic LCD on the market and is especially engineered for optimal ease of use.

Kit Contents

---

Features

---

• The time-based B-Scan feature displays a cross section of the test material. It is commonly used to display the profile of the bottom surface of the test material.
• Built in hardware AGC gain control for through paint measurements in multi mode operation.
• The TI-MMX-SDL High Performance Data-Logging Ultrasonic Thickness Gauge has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location.
• CE Certified
• Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated.
• TheTI-MMX-SDL High Performance Data-Logging Ultrasonic Thickness Gauge also comes complete with our Windows® PC software for transferring data to and from a PC.
• The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material, and display the minimum measurement scanned.
• Use the AUTOFIND feature to locate the detection point, while automatically adjusting the display to bring the signal into view.
• Includes NIST Calibration Certificate
• 2 Year Warranty

Specifications

---

Range in Steel	Pulse-Echo Mode: Pit and Flaw detection measures from 0.63 to 254 millimeters (0.025 - 9.999inches) Echo-Echo Mode: Thru Paint & coatings measures from 2.54 to 102 mm (0.100 - 4.000 inches). Range will vary depending on the thickness of the coating.
Resolution	.001 inches (0.01mm)
Velocity Range	.0492 to .3936 in./ms 1250 to 9999 meters/sec
Units	English & Metric
Measurement Modes	Pulse-Echo (flaws, pits) Echo-Echo (thru-paint)
Transducer Types	Dual Element (1 to 10 MHz).
Memory	16 megabit non-volatile ram
Memory capacity	12,000 pages with 1 reading and waveform per page
Power Source	Three 1.5V alkaline or 1.2V NiCad AA cells
Battery Life	Typically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power off	if idle 5 min
Display	1/8 in. VGA grayscale display 62 x 45.7mm
Keyboard	Membrane switch with twelve tactile keys
Case	Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Operating Temperature	-14° to 140°F (-10° to 60°C)
Weight, net	383 grams
Dimensions	63.5 W x 165 H x 31.5 D mm
Warranty	2 year limited
Certification	CE Approved, Factory calibration traceable to national standards

Optional Accessories

---

NIST-Traceable Steel Test Block 3 Sizes Available Precision Machined and Finished Includes NIST Report and Test Data

Uncertified Steel Test Block For Ultrasonic Gauges For convenient confirmation of thickness gauge calibration

TICC-MVX Protective Holder for Ultrasonic Gauges Constructed from heavy duty Cordura Nylon Includes wrist & shoulder straps

V-Block Transducer Holder The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas
