Add more Cloud Sensors to your monitoring project

---

Ambient relative humidity and temperature

---

Remote Environmental Monitoring System

---

The Tramex AP-TREMS-10 Remote Environmental Monitoring System Accessory Pack adds more Cloud Sensors to your TREMS project.

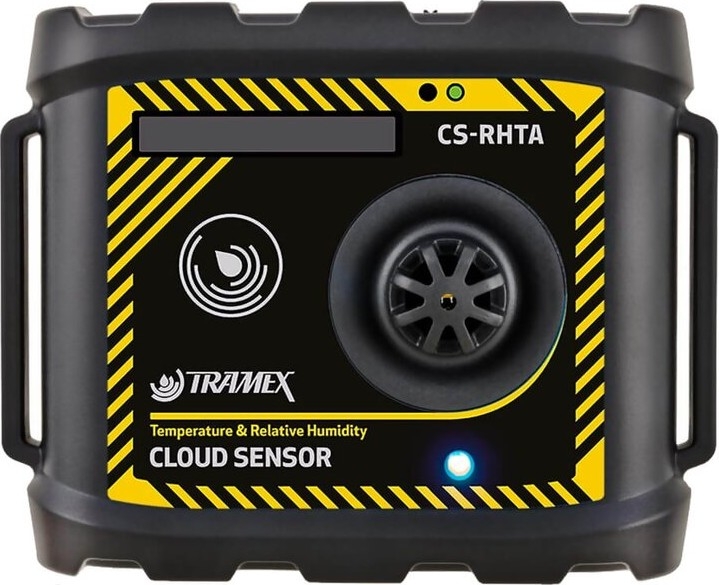

The Tramex AP-TREMS-10 Remote Environmental Monitoring System Accessory Pack comprises 10 CS-RHTA Tramex Cloud Sensors. Multiple Sensors can be used with one Tramex Cloud Station. Registration and on-site set-up is simple using a QR code check-in procedure.

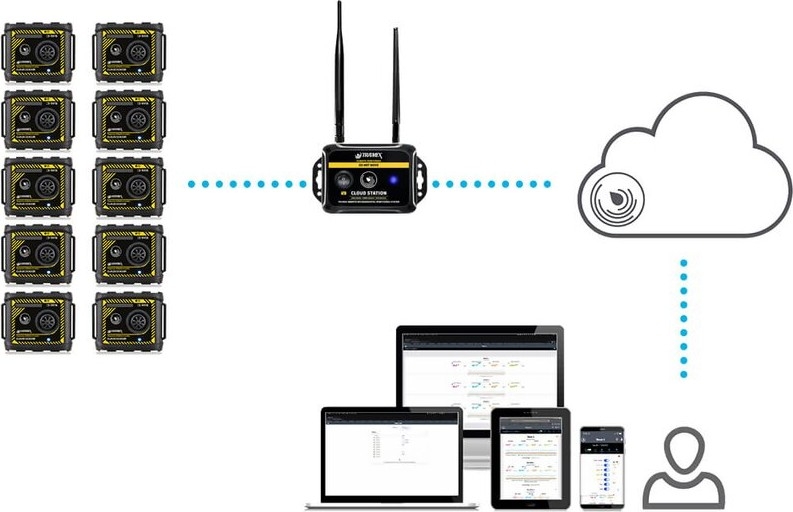

The on-site Sensors, with battery life of up to 15 years, transmit relative humidity, temperature (ºC and ºF), dew point and grains per pound / grams per kilo readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform. Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor status from any browser.

There are no subscription fees and there is free data storage for two years with the Tramex Remote Environmental Monitoring System.

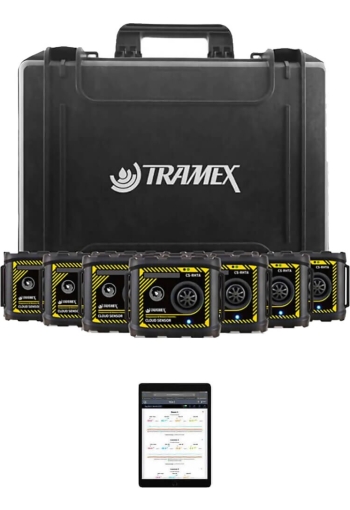

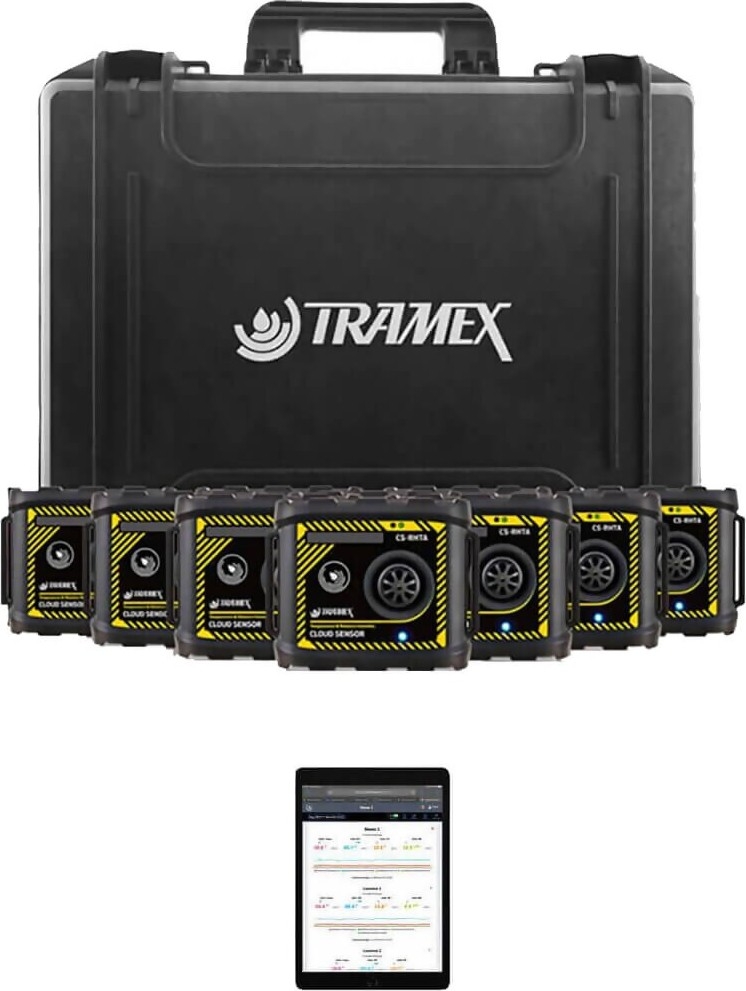

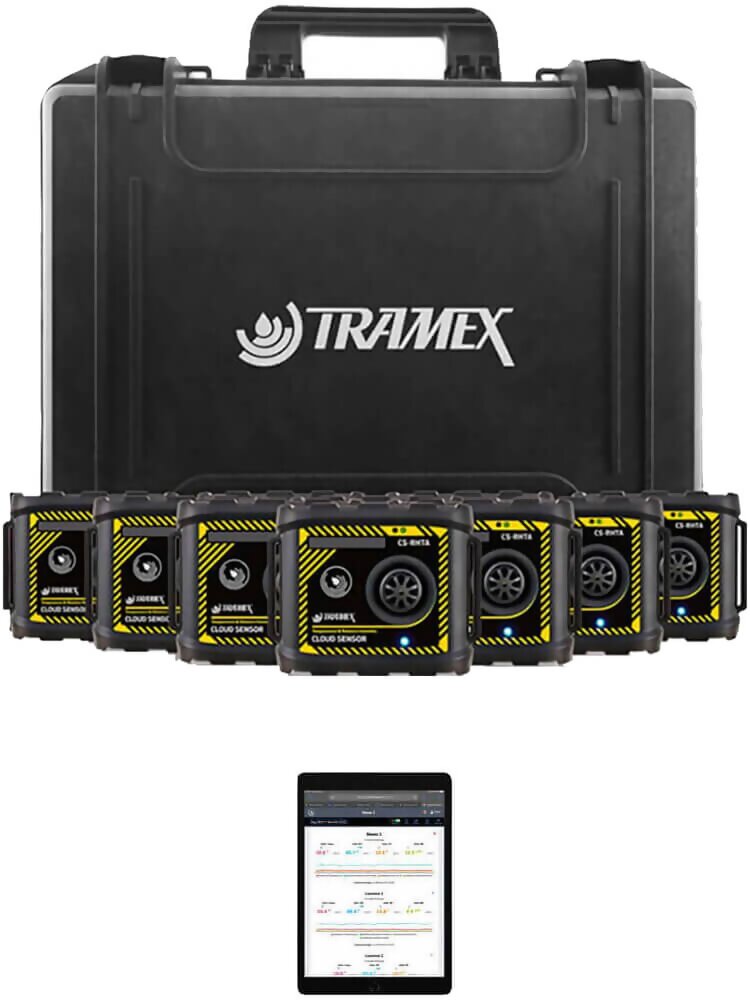

Kit Contents

10 x CS-RHTA Tramex Cloud Sensors Tramex Cloud Software Monitoring platform (Tablet Not Included)

Features

• Ambient relative humidity and temperature
• Remote Environmental Monitoring System

Specifications

Temperature Sensor Specifications

Exeptional Accuracy	±0.1 °C Range 20°C to 60°C (±0.1ºF Range 68ºF to 140ºF)
Range	-40ºC to 125ºC  (-40ºF to 257ºF)
Sensor Protection	PTFE Film protects sensor opening from water & dust
Drift	<0.03ºC (0.04ºF) per year

Relative Humidity Sensor Specifications

Exceptional Accuracy	±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 25ºC (77ºF))
Range	0 to 100%RH
Resolution	0.1% over the complete range
Drift	<0.25%RH per year

Sensor Specifications

Transmission Range	Over 3kms line-of-sight
Communication Frequency	Multiple readings per hour.
Identification	Items individually coded for ease of install and logging identification.
Size	100mm x 90mm x35mm (3.94” x 3.54” x 1.38”)
Weight	100g (3.53oz)
Construction	ABS enclosure
Power	Built in CR123A battery with up to 15 year lifespan
Included	Wall Mounting
