Tramex CCTK Concrete Coatings Tech Kit
Industry: Flooring Inspection, Concrete Coatings, Water Damage Restoration

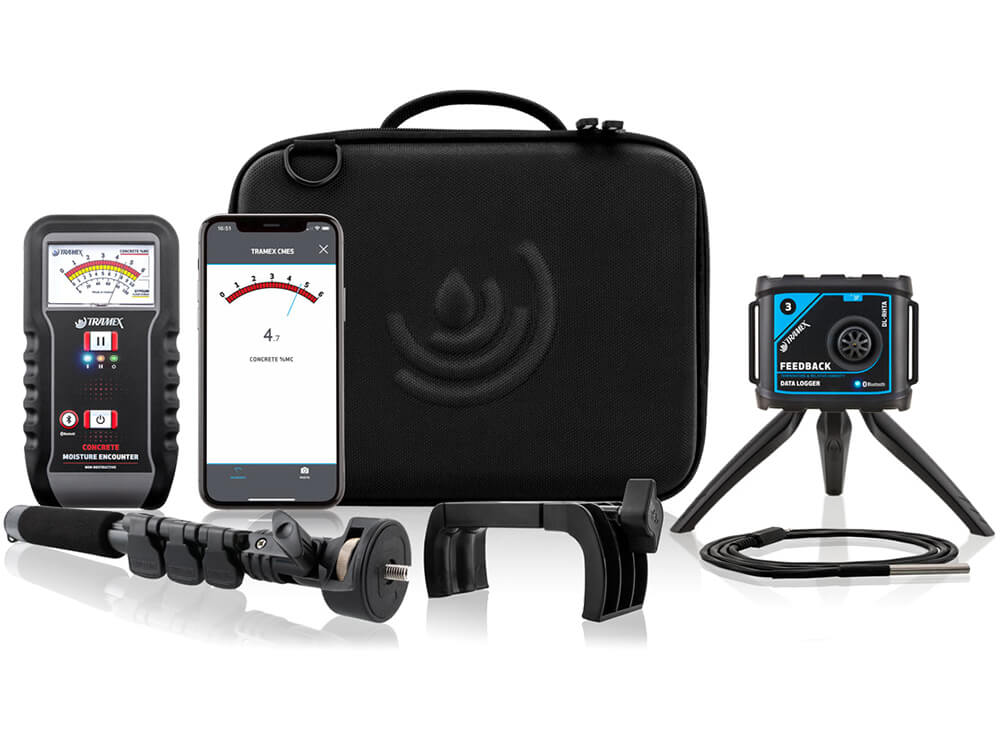

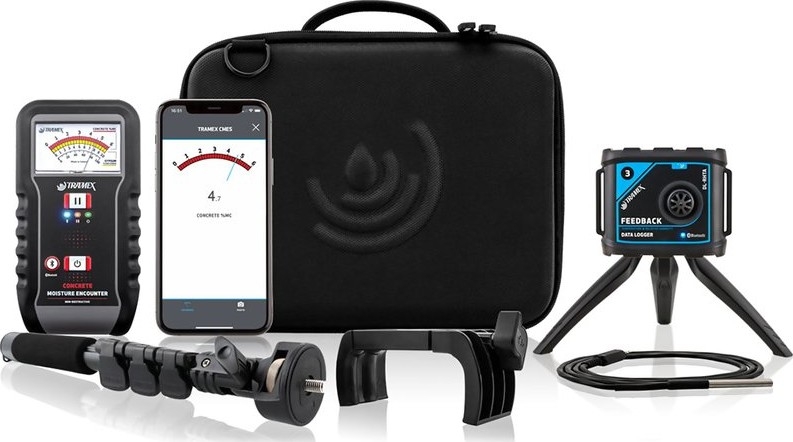

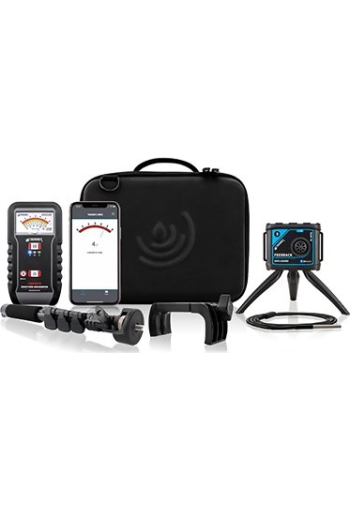

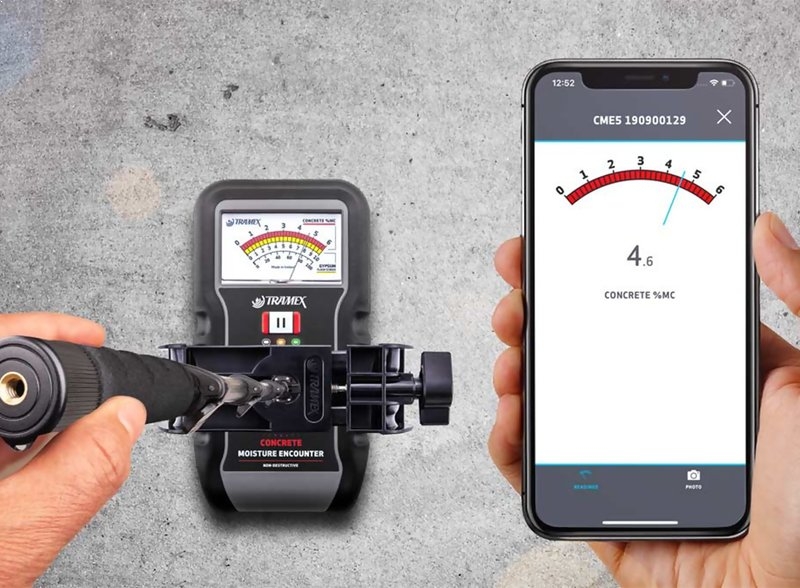

The Tramex CCTK Concrete Coatings Tech Kit is a compact kit for instant and precise moisture testing of concrete floors and slabs and ambient conditions. The Tramex CMEX5 Concrete Moisture Encounter X5 meter allows for non-destructive quantitative testing of concrete and comparative testing per ASTM F2659. The Tramex DL-RHTA Feedback DataLogger is used for testing, monitoring and time logging relative humidity, temperature and dew point in the environment. The Contact Temperature Probe provides temperature readings of the floor surface. The Concrete Coatings Tech Kit comes with an extension handle in a Tramex Easy-travel case. The Tramex Meters App allows you to GeoTag test results, create, save and share reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.
Kit Contents
Specifications
Kit:
| Size | 13.2" x 9.5" x 3.2" (33.5cm x 24cm x 8cm) |
| Weight | 2.8 lbs (1.3kg) |
| Power | 3 x AA batteries |

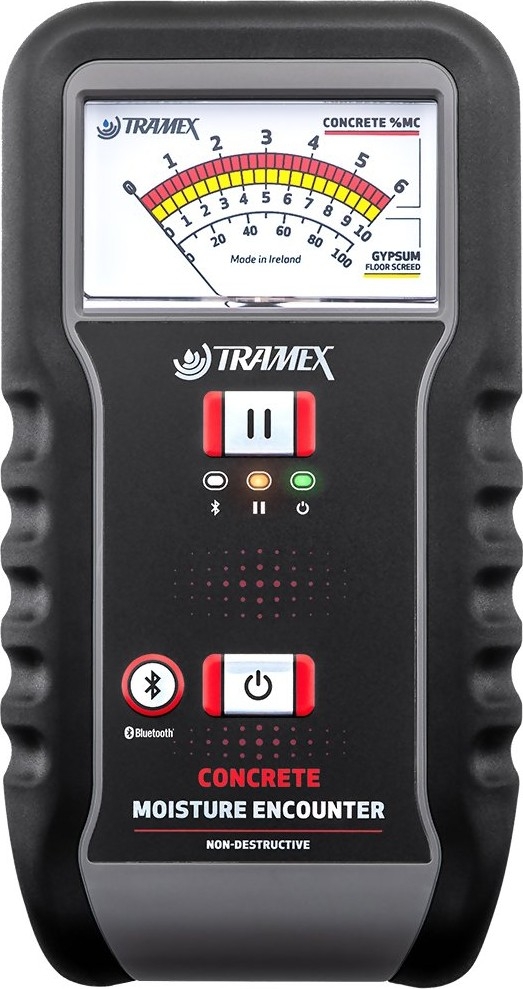

Tramex CMEX5 Concrete Moisture Encounter X5
| Size | 6.3" x 3.5" x 1.5" (160mm x 85mm x 38mm) |
| Weight | 12.1oz (344g) |
| Construction | ABS Body |
| Power | 2 x AALR6 ALKALINE (included) |
| Display | Analogue |
| Depth of penetration | approx. ¾" (20 mm) |
| Moisture Content for Concrete | 0 to 6 % |
| Comparative for Gypsum floor screed | 0 to 10 |
| Reference scale | 0 to 100 |

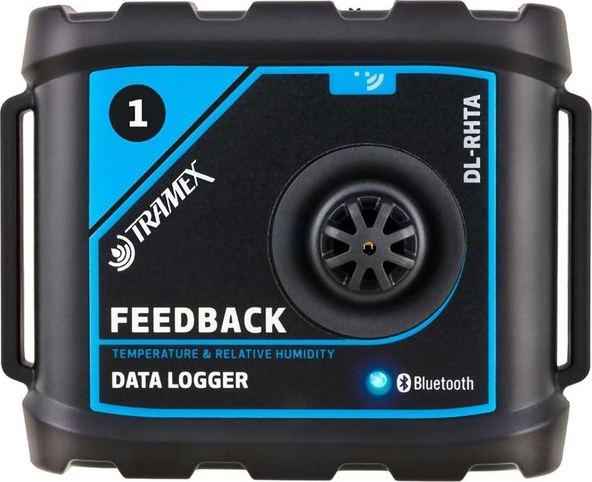

Tramex DL-RHTA Feedback DataLogger
| Size | 3.94" x 3.54" x 1.38" (100mm x 90mm x35mm) |
| Weight | 3.53oz (100g) |
| Construction ABS enclosure Power | 1 x AA type battery 1.5 Volt |
| Memory | 100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature) |
| Logging Rate | Logger interval adjustable between 5 minutes and 1 hour |
| Transmission Range | Up to 165ft (50m) line-of-sight Bluetooth: BLE Bluetooth Low Energy 4.2 compliant, Bluetooth 5 advertising Included: Wall Mounting and Tripod Stand |

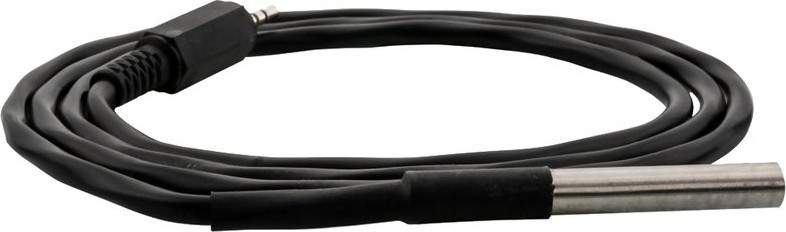

Tramex CTP Contact Temperature Probe
Units | ºC (ºF) |
| Temperature Range | -30ºC to +80ºC (-20ºF to +175ºF) |
| Accuracy | ±0.5ºC from -10ºC to +85ºC (±0.9ºF from 14ºF to 185ºF) |
| Resolution | 0.1% over the complete range |
Related Products
Tramex Extension Handle for ME5, CME5 and CMEX5
- The Extension Handle can be used with the ME5, CME5 and CMEX5 Moisture Meters. It is a useful accessory for measuring in out of reach, high places. It can also be used for taking readings on the floor and thus reduces the need for crouching or kneeling.
- Order Code: E5-HBS
