Tramex CDK Concrete Determinator Moisture Probe

See More Concrete Moisture Inspection Kits

Tramex CDK Concrete Determinator Moisture Probe

See More Concrete Moisture Inspection Kits
Price:
$970.00
  • Hassle Free 30-Day Returns
  • Availability: In Stock Usually ships within 1-2 business days
  • FREE - Standard Ground 3-5 Business Days View Faster Delivery Options
warrenty

Product Description

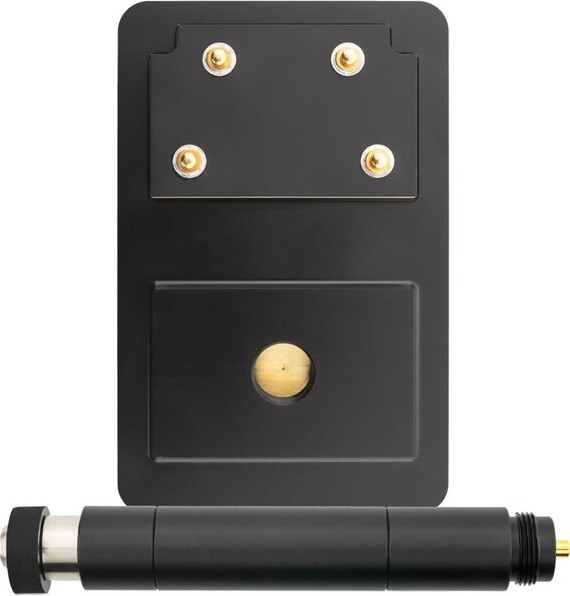

Providing In-Situ Moisture Content Readings In A Tramex Unified Moisture Content Test Method
Extending the capabilities of the Concrete Moisture Encounter Range

The Tramex Concrete Moisture Probe, The Determinator, extends the capabilities of the Tramex Concrete Moisture Encounter range, theTramex CMEX5 Concrete Moisture Encounter X5, Tramex CME5 Concrete Moisture Encounter Non Destructive Moisture Meter, providing in-situ Moisture Content readings in a Tramex Unified Moisture Content Test Method of quantitative Moisture Content measurements in both the top ¾ inch layer and within the body of concrete floors and slabs down to an extendable depth of up to 4" (100mm).

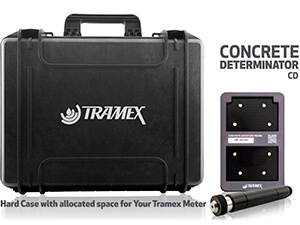

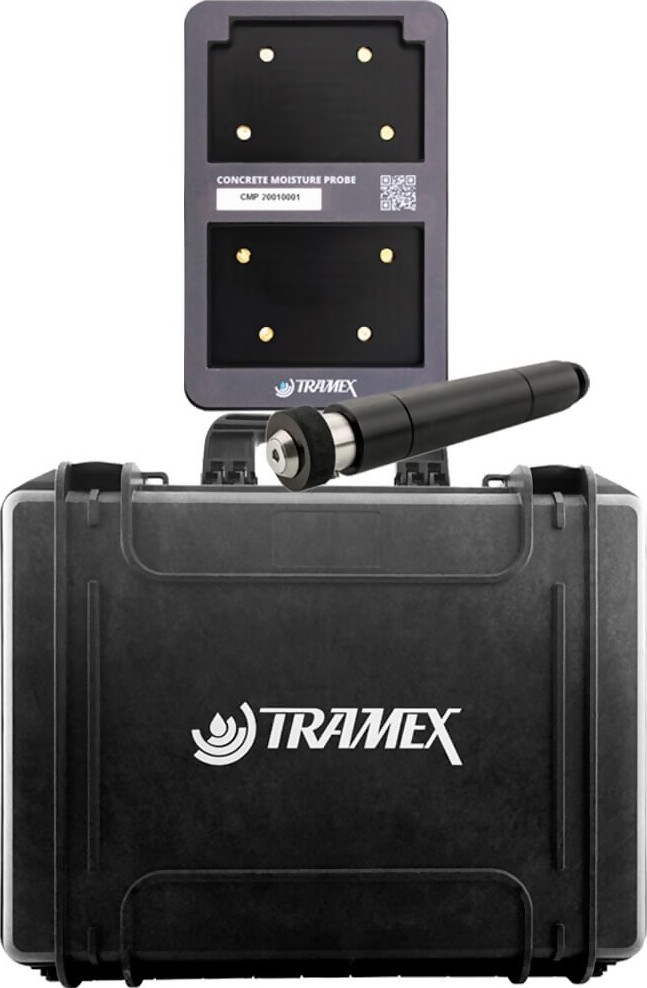

The Determinator is supplied in a Tramex hard case with allocated space for your Tramex Concrete Moisture meter.


line
Kit Contents
line


line
Features
line


line
Specifications
line

Size17.1” x 14.2” x 5.5” (43.5cm x 36cm x 14cm)
Weight5.7 lbs (2.6kg)
ConstructionABS Body

Concrete Moisture Probe 'The Determinator' - Measuring Range:

Moisture Content for Concrete with Tramex CMEX5 and CMEX20 - 6.9%
Moisture Content for Concrete with Tramex CME5 and CME40 - 6%
Depth of Penetration1 1/4” probe depth for concrete between 2” to 4”
2 1/4” probe depth for concrete between 4” to 6”
3 1/4” probe depth for concrete between 6” to 9”
4 1/4” probe depth for concrete between 9” to 11”


line
Related Products
line

Tramex CMEX5 Concrete Moisture Encounter X5

  • 4 Modes of Measurement
  • 8 Simple Membrane Keypad Controls
  • Display Digital
related

line

Tramex CME5 Concrete Moisture Encounter Non Destructive Moisture Meter

  • Clear easy-to-read analog dial
  • Instant and precise readings to a depth of approximately  3/4" into the slab
related


line
More Info
line

Design

The Concrete Moisture Probe when used with Tramex CME instruments operates on the principle that the electrical impedance of a material varies with its moisture content. The CME instrument is pressed onto the CMP cradle which is pressed onto the material surface with the pins fully compressed and the probe inserted into the pre-drilled 3/4" (19mm) hole to measure the moisture content. The electrical impedance is measured by creating a low frequency alternating electric field between the electrodes and the probe, to a depth of up to 4” (10cm). This field penetrates the material under test. The very small alternating current flowing through the field is inversely proportional to the impedance of the material. The instrument detects this current, determines its amplitude and thus derives the moisture value.


Operating

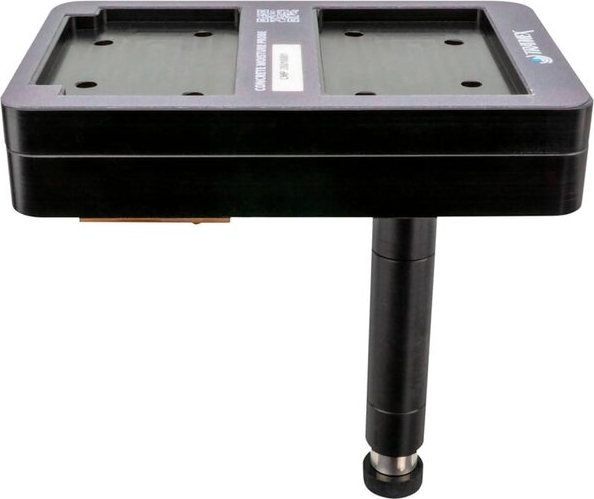

The Determinator cradle should be flat on the slab surface and the Tramex Concrete Moisture Meter placed and firmly pressed onto the cradle with the pins fully compressed. The probe reads from the bottom, within the body of the slab, up to the surface.


line
Downloads
line

Tramex CDK Concrete Determinator - Data Sheet
Tramex CDK Concrete Determinator - Quick Start
Tramex CDK Concrete Determinator - User Guide
Tramex Meters App - Visualizing, Photographing and Geo-tagging
Accessories for Tramex Moisture Meters - Online Catalog
