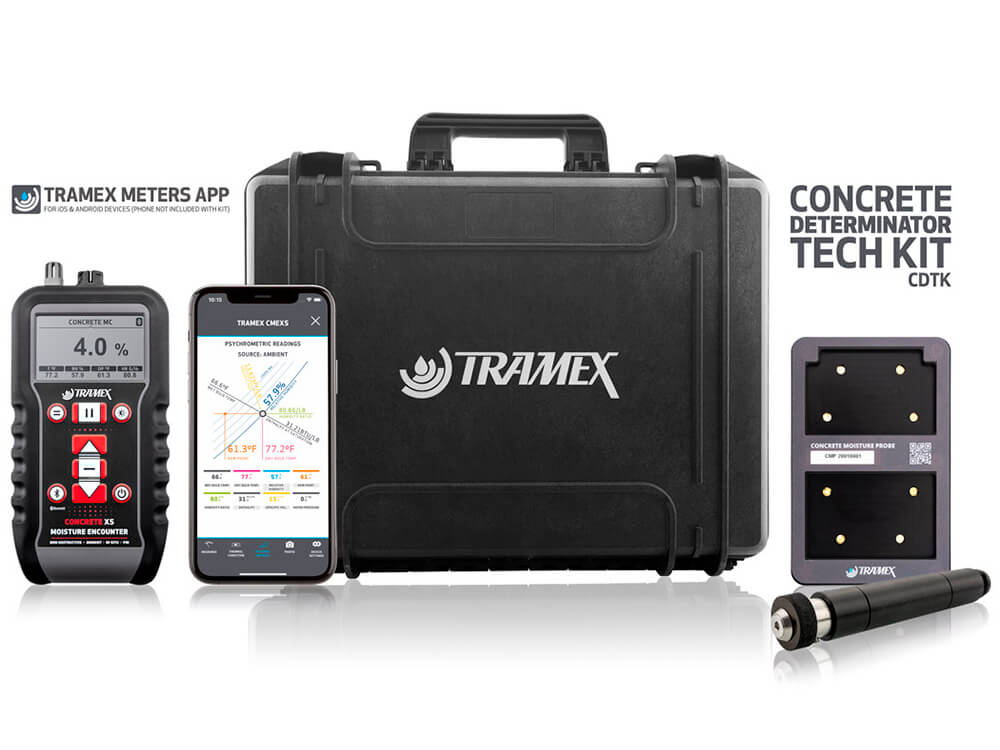

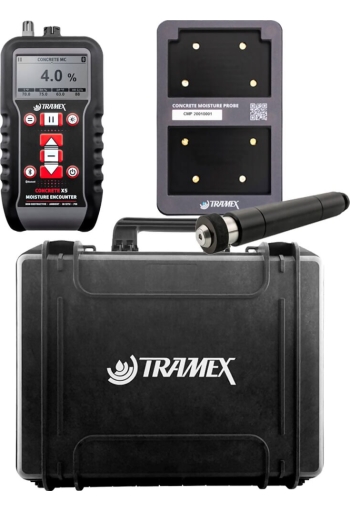

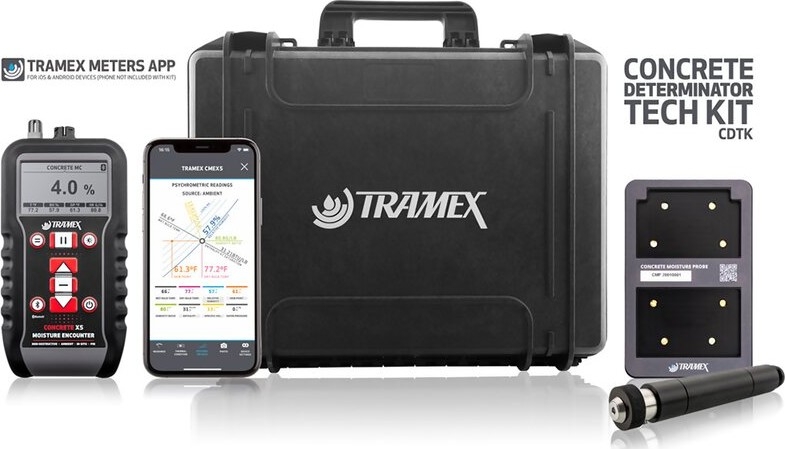

Tramex CDTK Concrete Determinator Tech Kit

See More Concrete Moisture Inspection Kits

Compact Moisture Meter Kit For Measuring Surface and In Situ Moisture Content Of Concrete Floors and Slabs

A Unified Quantitative Moisture Content Test Method

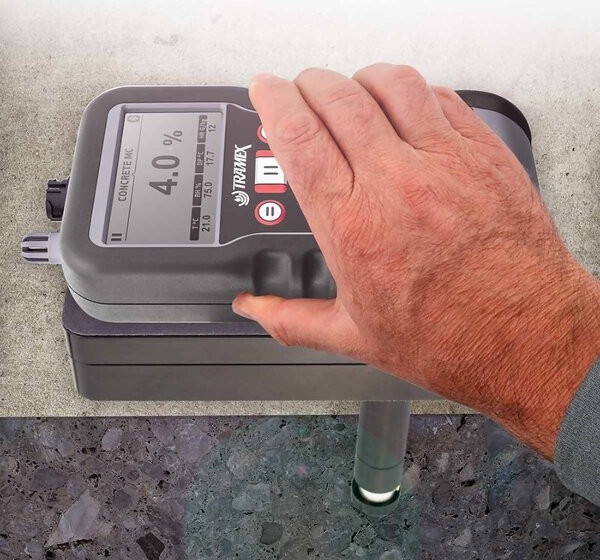

A compact kit for instant and precise testing of both Surface and In-Body concrete Moisture Content in ﬂoors and slabs using a uniﬁed gravimetric-based testing method. The Tramex CMEX5 Concrete Moisture Encounter X5 allows for non-destructive quantitative testing of concrete and comparative testing per ASTM F2659. The reusable Concrete Moisture Determinator Probe used with the CMEX5 allows for in-depth moisture content probe testing within the concrete, down to an extendable depth of up to 4" (100mm). The Concrete Determinator Tech Kit comes in a protective heavy-duty carrying case with die-cut foam lining. The Tramex Meters App allows you to GeoTag test results, create, save and share reports and charts.

line
Kit Contents
line

line
Features
line

line
Specifications
line

Size	17.1” x 14.2” x 5.5” (43.5cm x 36cm x 14cm)
Weight	6.5 lbs (2.95kg)
Power	2 x AA batteries

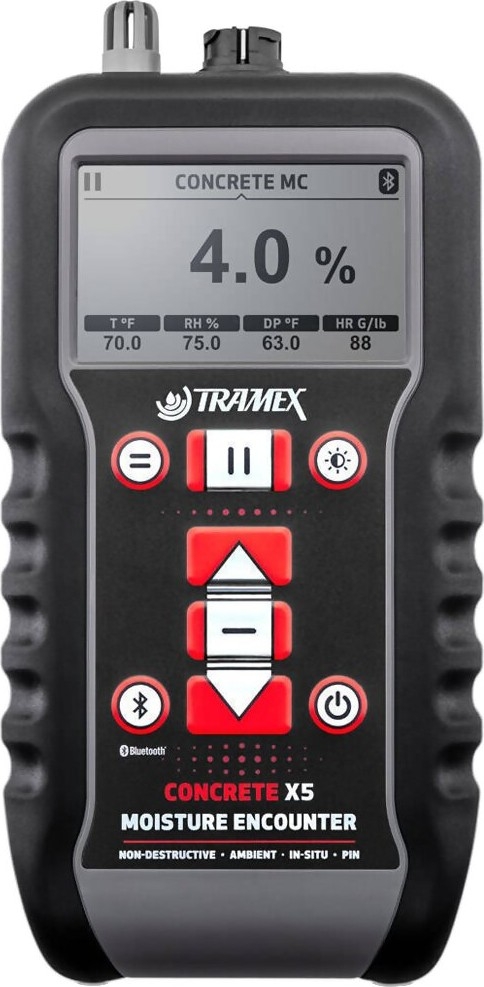

Tramex CME5 Concrete Moisture Encounter Non Destructive Moisture Meter:

Size	6.3" x 3.5" x 1.5" (160mm x 85mm x 38mm)
Weight	12.1oz (344g)
Construction	ABS Body
Power	2 x AALR6 ALKALINE (included)
Display	Analogue
Depth of penetration	approx. ¾" (20 mm)
Moisture Content for Concrete	0 to 6 %
Comparative for Gypsum floor screed	0 to 10
Reference scale	0 to 100

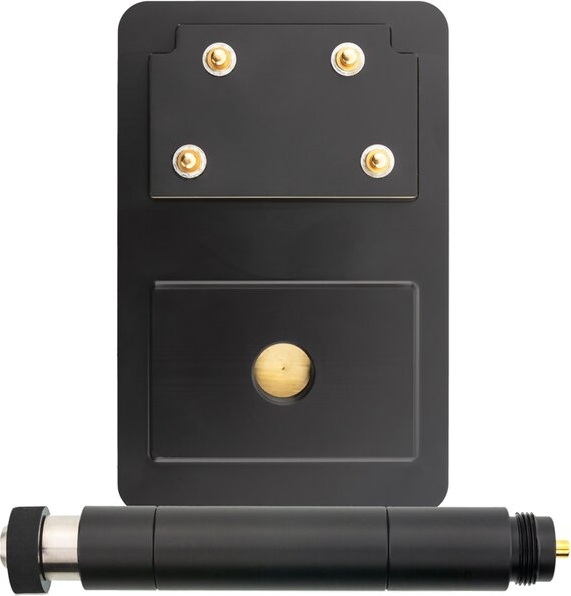

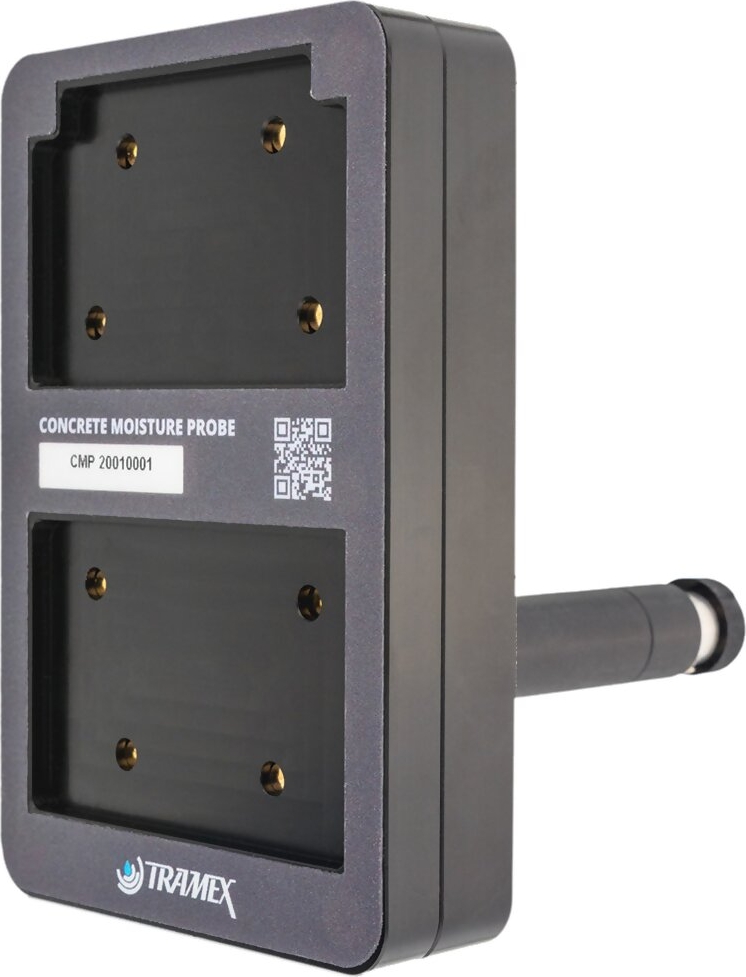

Tramex CDK Concrete Determinator Moisture Probe

Moisture Content for Concrete with Tramex CMEX5 and CMEX2	0 - 6.9%
Moisture Content for Concrete with Tramex CME5 and CME4	0 - 6%
Depth of Penetration	1 1/4” probe depth for concrete between 2” to 4” 2 1/4” probe depth for concrete between 4” to 6” 3 1/4” probe depth for concrete between 6” to 9” 4 1/4” probe depth for concrete between 9” to 11”
