Product Description
Compact Moisture Meter Kit For Measuring Surface and In Situ Moisture Content Of Concrete Floors and Slabs
A Unified Quantitative Moisture Content Test Method

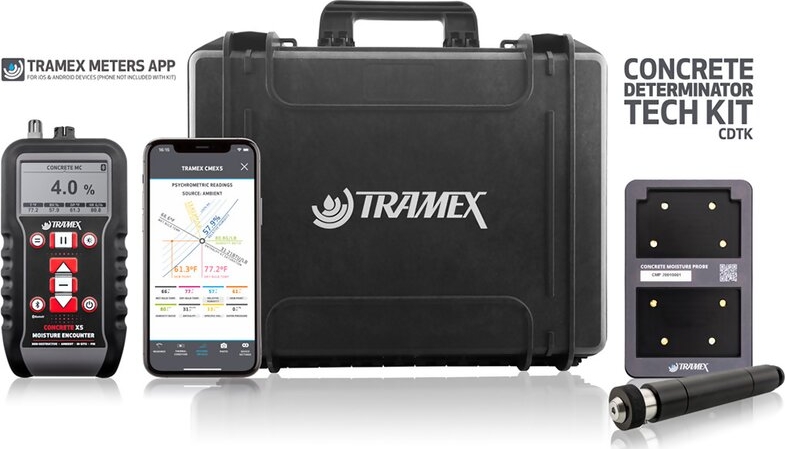

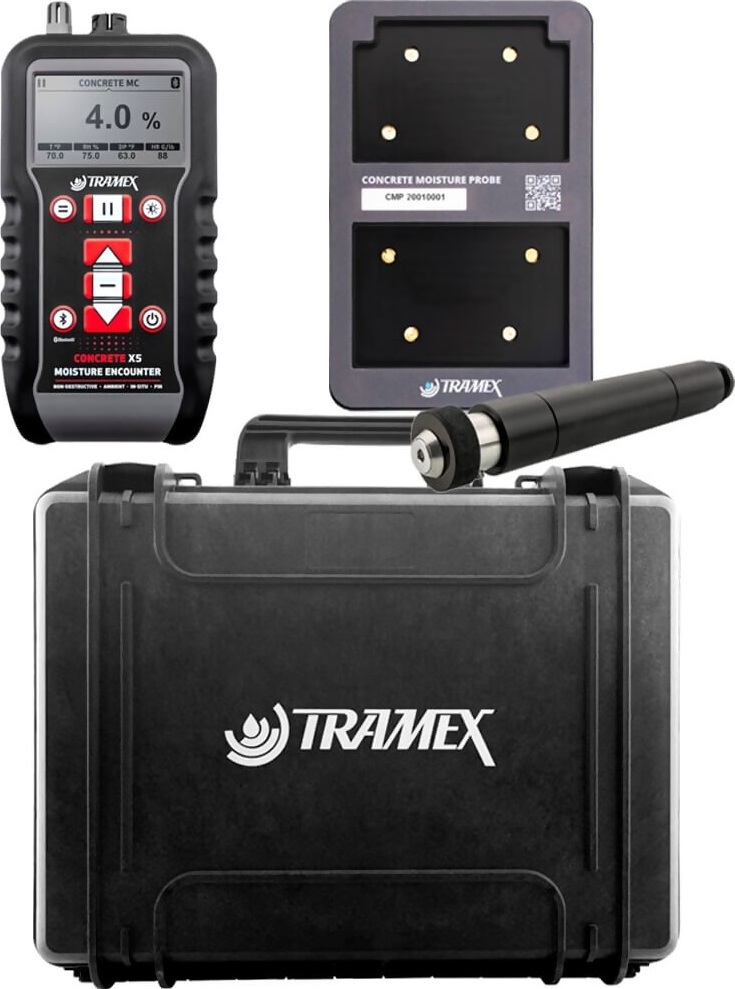

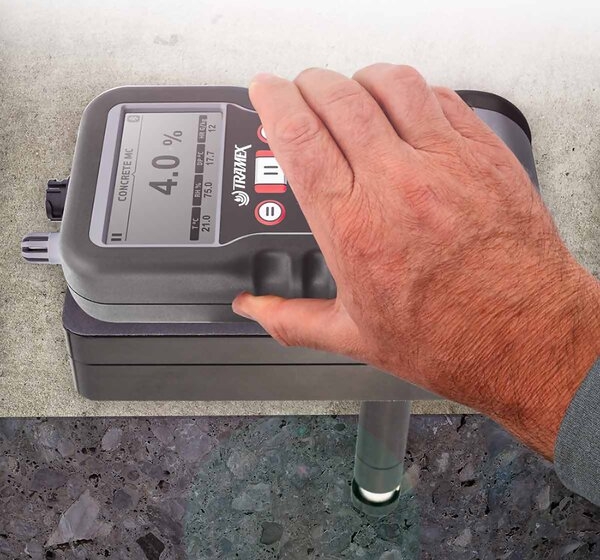

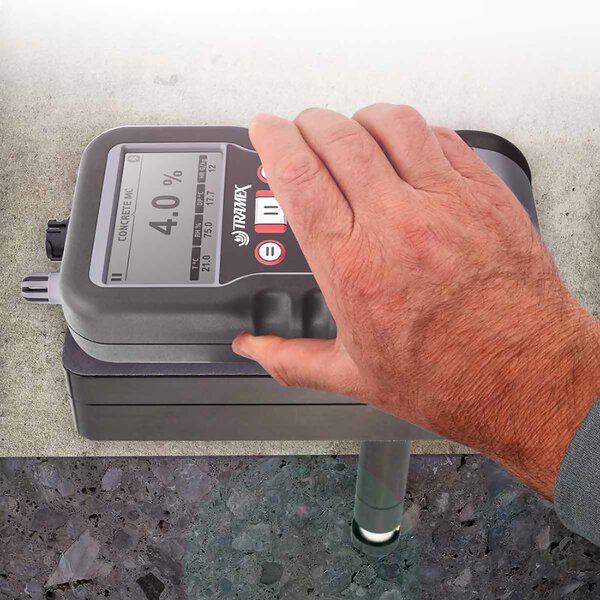

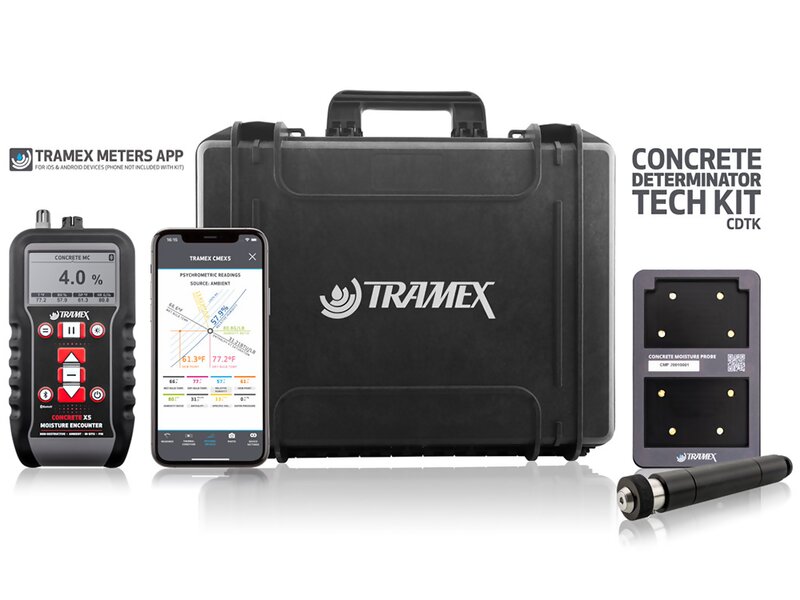

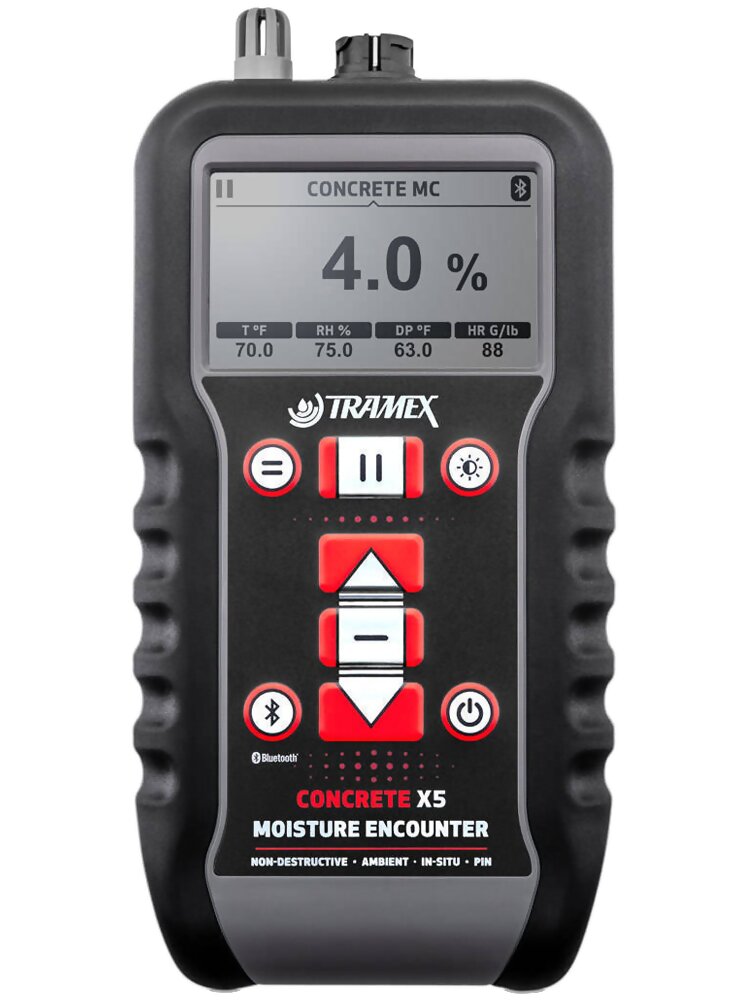

A compact kit for instant and precise testing of both Surface and In-Body concrete Moisture Content in floors and slabs using a unified gravimetric-based testing method. The Tramex CMEX5 Concrete Moisture Encounter X5 allows for non-destructive quantitative testing of concrete and comparative testing per ASTM F2659. The reusable Concrete Moisture Determinator Probe used with the CMEX5 allows for in-depth moisture content probe testing within the concrete, down to an extendable depth of up to 4" (100mm). The Concrete Determinator Tech Kit comes in a protective heavy-duty carrying case with die-cut foam lining. The Tramex Meters App allows you to GeoTag test results, create, save and share reports and charts.


line
Kit Contents
line


line
Features
line


line
Specifications
line

Size17.1” x 14.2” x 5.5” (43.5cm x 36cm x 14cm)
Weight6.5 lbs (2.95kg)
Power2 x AA batteries


Tramex CME5 Concrete Moisture Encounter Non Destructive Moisture Meter:

Size6.3" x 3.5" x 1.5" (160mm x 85mm x 38mm)
Weight12.1oz (344g)
ConstructionABS Body
Power2 x AALR6 ALKALINE (included)
DisplayAnalogue
Depth of penetrationapprox. ¾" (20 mm)
Moisture Content for Concrete0 to 6 %
Comparative for Gypsum floor screed0 to 10
Reference scale0 to 100

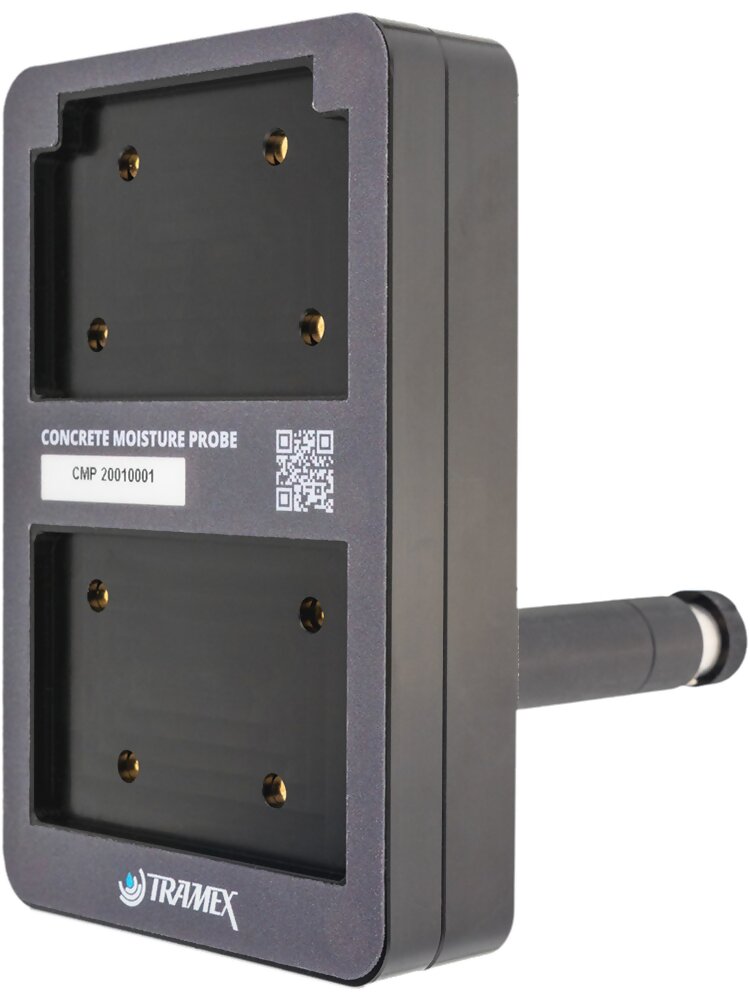

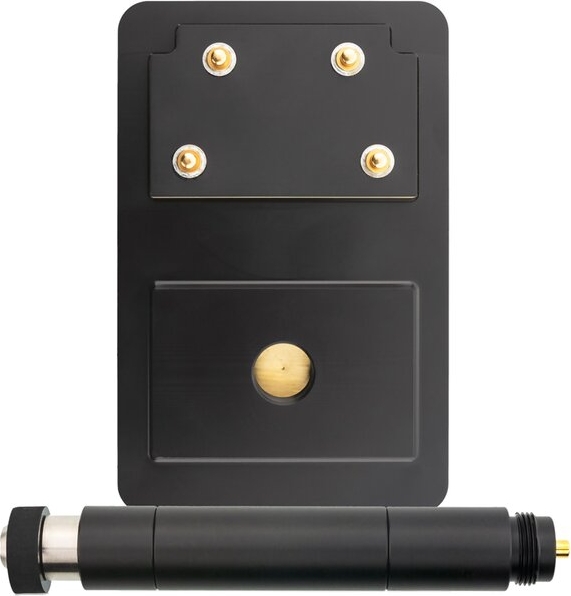

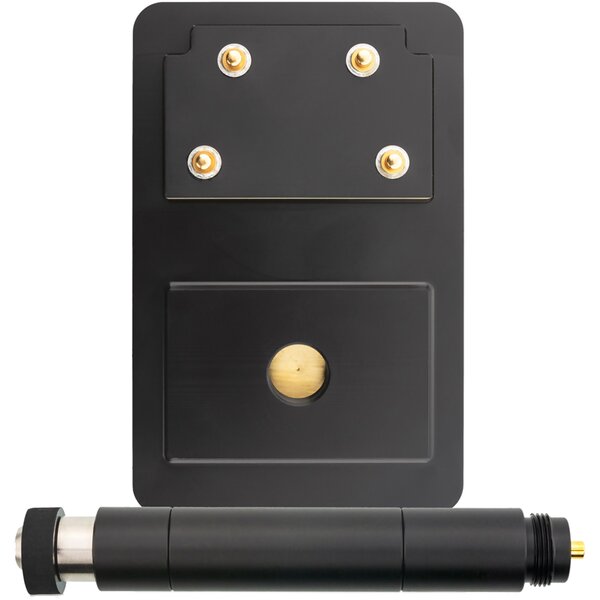

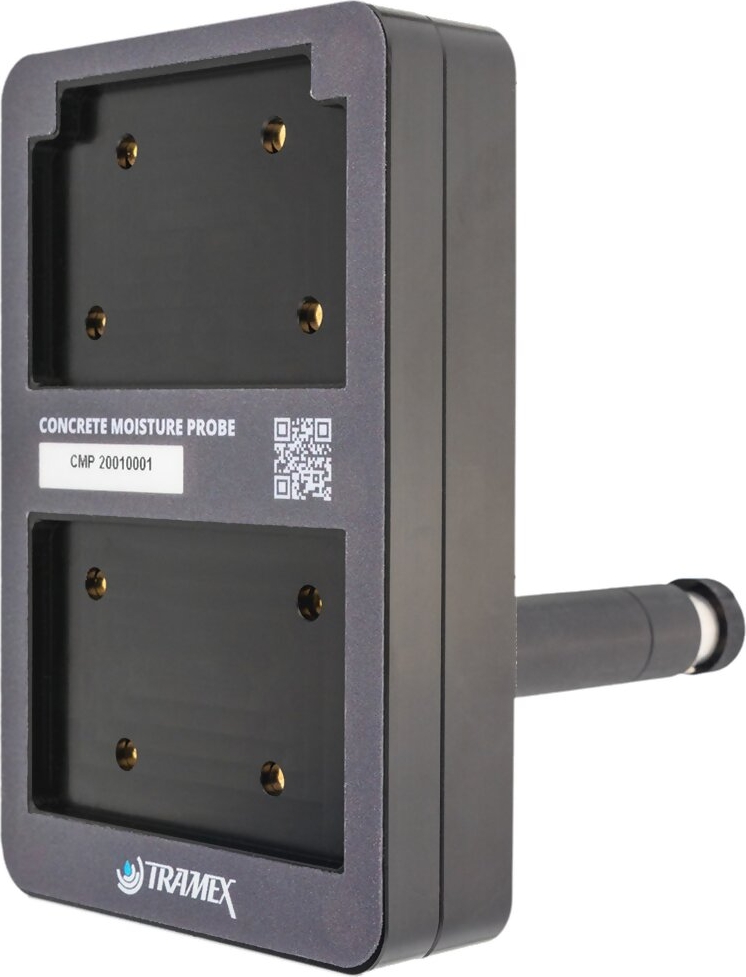

Tramex CDK Concrete Determinator Moisture Probe

Moisture Content for Concrete with Tramex CMEX5 and CMEX20 - 6.9%
Moisture Content for Concrete with Tramex CME5 and CME40 - 6%
Depth of Penetration1 1/4” probe depth for concrete between 2” to 4”
2 1/4” probe depth for concrete between 4” to 6”
3 1/4” probe depth for concrete between 6” to 9”
4 1/4” probe depth for concrete between 9” to 11”


line
Related Products
line

Tramex Hygro-i2 Relative Humidity Probe

  • Reusable Hygro-i2 ® Relative Humidity sensors prove to be the lowest cost per ASTM F2170 test
related

line

Tramex Heavy-duty Pin-type Wood Probe with Cable and Pins

  • For use with CMEX5, CMEX2, MRH3 & PTM.
  • Order Code: HH14TP30 (For use with CMEX2, MRH3 and PTM)
  • Order Code: HH14TP30B (For use with CMEX5)
related

line

Tramex Accessory Pack for Concrete Moisture Encounter 5 and 5X

  • For use with CMEX5, CMEX2, MRH3 & PTM.
  • Order Code: HH14TP30 (For use with CMEX2, MRH3 and PTM)
  • Order Code: HH14TP30B (For use with CMEX5)
related

line

Tramex CALCRH Calibration Check for CME5, CMEX5

  • The Tramex CALCRH is a calibration check plate used to easily verify if moisture meters yield proper moisture readings, or if or needs to be sent to a calibration lab.

related

line

Tramex HA21SP52 Hammer-Action Pin-Type Electrode

  • Hammer-action pin-type electrode (With Cable And Pins) for use with CMEX5, MRH3.
  • Order Code: HA21SP52 (For use with MRH3)
  • Order Code: HA21SP52B (For use with CMEX5)
related

line

Tramex SP200 Spare 7" Pins for Pin Probe HH14SP200

  • Heavy-Duty Electrode with Cable and 7" (200mm) Long Pins for use with CMEX5, MRH
  • Order Code: HH14SP200 For use with MRH3
  • Order Code: HH14SP200B For use with CMEX5
related

line

Tramex CALCRH Calibration Check for CME5, CMEX5

  • Heavy-duty Pin-type Electrode with Cable and 3" pins for use with CMEX5, MRH3
  • Order Code: HH14SP90 For use with MRH3
  • Order Code: HH14SP90 For use with CMEX5
related

line

Tramex ASTM F2170 Accessory Pack

  • Accessory Pack for RH testing
  • The AP-F2170-B for use with the: CMEX5 and DL-RHTX
  • The AP-F2170 for use with the: CMEX2 and MRH3
related

line

Tramex E5-HBS Extension Handle for ME5, CME5 and CMEX5

  • The Extension Handle can be used with the ME5CME5 and CMEX5 Moisture Meters. It is a useful accessory for measuring in out of reach, high places. It can also be used for taking readings on the floor and thus reduces the need for crouching or kneeling.
  • Order Code: E5-HBS
related

line

Tramex CMP Concrete Moisture Probe

  • Designed to work in the same drill-hole made for the F2170 test
  • Eliminate confusion between in-situ Relative Humidity tests and surface Moisture Content tests
related


line
Downloads
line

Tramex CDK Concrete Determinator - Data Sheet
Tramex CDK Concrete Determinator - Quick Start
Tramex CDK Concrete Determinator - User Guide
Tramex CMEX5 Concrete Moisture Encounter X5 - Data Sheet
Tramex CMEX5 Concrete Moisture Encounter X5 - Instruction Manual
Tramex Meters App - Getting Started & Moisture Mapping
Tramex Meters App - Visualizing, Photographing and Geo-tagging
Accessories for Tramex Moisture Meters - Online Catalog
