Instant and Accurate

---

Designed to work in the same drill-hole made for the F2170 test

---

Eliminate confusion between in-situ Relative Humidity tests and surface Moisture Content tests

---

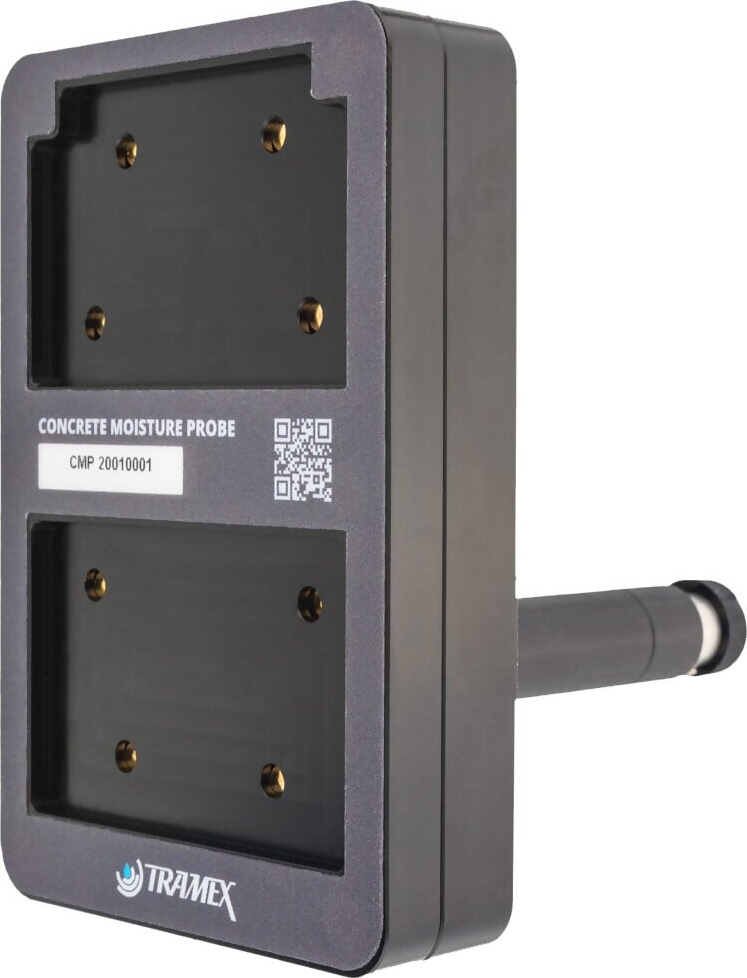

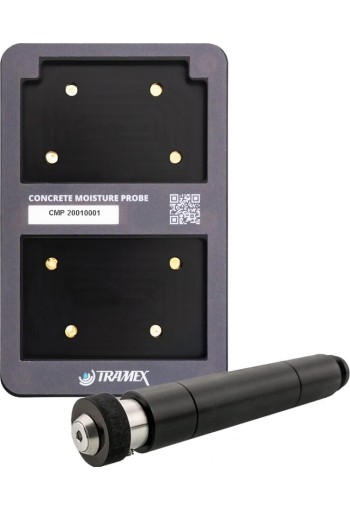

The Tramex CMP Concrete Moisture Probe - a.k.a. "The Determinator", measures the in-situ moisture content within a concrete floor or slab. This Tramex CMP Concrete Moisture Probe is used with a concrete moisture meter from the Tramex Concrete Moisture Encounter range, the Tramex CME5 Concrete Moisture Encounter Non Destructive Moisture Meter, Tramex CMEX5 Concrete Moisture Encounter X5 as well as previous versions of Tramex Concrete Moisture Meters, the CME4 and CMEX2.

The Tramex CMP Concrete Moisture Probe provides in-situ Moisture Content readings in a Tramex Unified Concrete Moisture Test Method - quantitative Moisture Content measurements are taken in both the top ¾ inch layer and within the body of concrete floors and slabs down to an extendable depth of up to 4" (100mm) and a Diameter 3/4" (19mm).

The Determinator helps determine if moisture within the concrete slab is originating from below, within or above the slab. This information can be essential in establishing the next step in fixing moisture problems in a concrete slab.

The Tramex CMP Concrete Moisture Probe can only be used with a Tramex Concrete Moisture Meter. It does not work alone.

Tramex CMP Concrete Moisture Probe Design

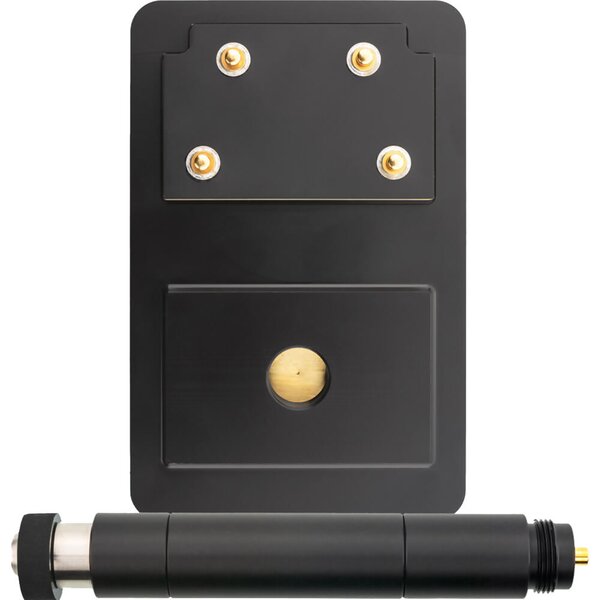

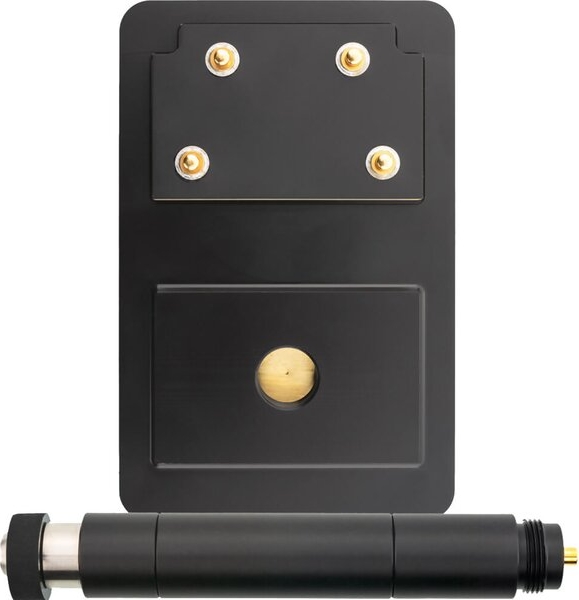

The Tramex CMP Concrete Moisture Probe when used with Tramex Concrete Moisture Encounter instruments operates on the principle that the electrical impedance of a material varies with its moisture content. The CME instrument is pressed onto the Tramex CMP Concrete Moisture Probe cradle which is pressed onto the material surface with the pins fully compressed and the probe inserted into the pre-drilled 3/4" (19mm) hole to measure the moisture content. The electrical impedance is measured by creating a low frequency alternating electric field between the electrodes and the probe, to a depth of up to 4" (10cm). This field penetrates the material under test. The very small alternating current flowing through the field is inversely proportional to the impedance of the material. The instrument detects this current, determines its amplitude and thus derives the moisture value.

Tramex CMP Concrete Moisture Probe - Operating Procedure

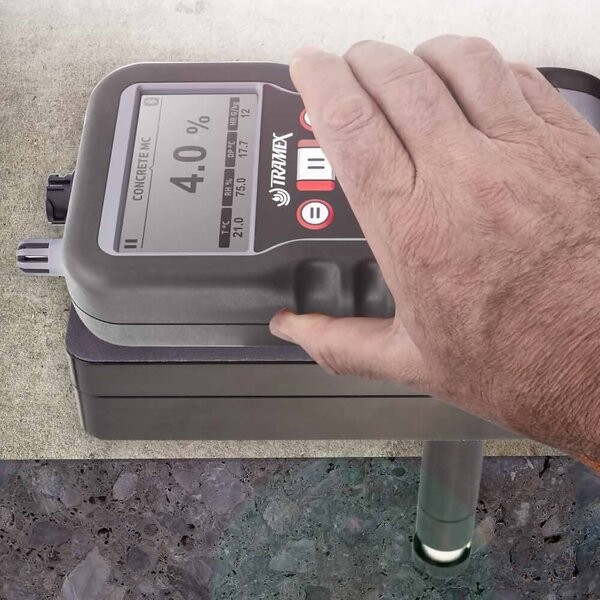

The Determinator cradle should be flat on the slab surface and the Tramex Concrete Moisture Meter placed and firmly pressed onto the cradle with the pins fully compressed. The probe reads from the bottom, within the body of the slab, up to the surface.

Kit Contents

Tramex CMP Concrete Moisture Probe Operating Instructions One (1) year warranty

Features

• Instant and Accurate
• Designed to work in the same drill-hole made for the F2170 test.
• Eliminate confusion between in-situ Relative Humidity tests and surface Moisture Content tests.
• Determine if moisture is coming from below or above the concrete slab surface.
• Determine the type and extent of mitigation if needed.
• Reusable, Extendable, and requires no plastic hole liners.
• Can be used in conjunction with Tramex Concrete Moisture Encounters CME5, CMEX5, (CME4 and CMEX2)

Specifications

Size	17.1" x 14.2" x 5.5" (43.5cm x 36cm x 14cm)
Weight	5.7 lbs (2.6kg)
Power	ABS Body
Moisture Content for Concrete with Tramex CMEX5 and CMEX2	0 - 6.9%
Moisture Content for Concrete with Tramex CME5 and CME4	0 - 6%
Depth of Penetration	1 1/4" probe depth for concrete between 2" to 4" | 2 1/4" probe depth for concrete between 4" to 6" | 3 1/4" probe depth for concrete between 6" to 9" | 4 1/4" probe depth for concrete between 9" to 11
