Name: Tramex DL-RHTX Feedback DataLogger
Brand: Tramex
SKU: 2027
Price: 235.00 USD
Availability: InStock

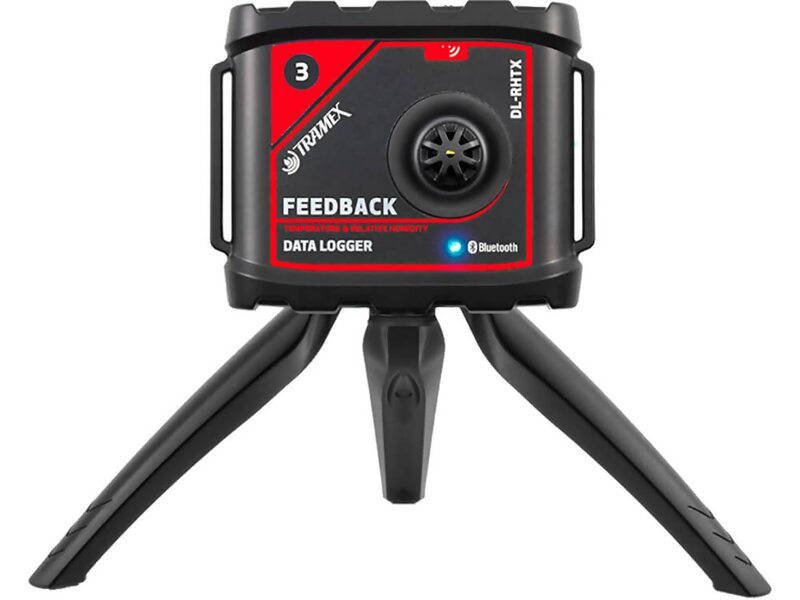

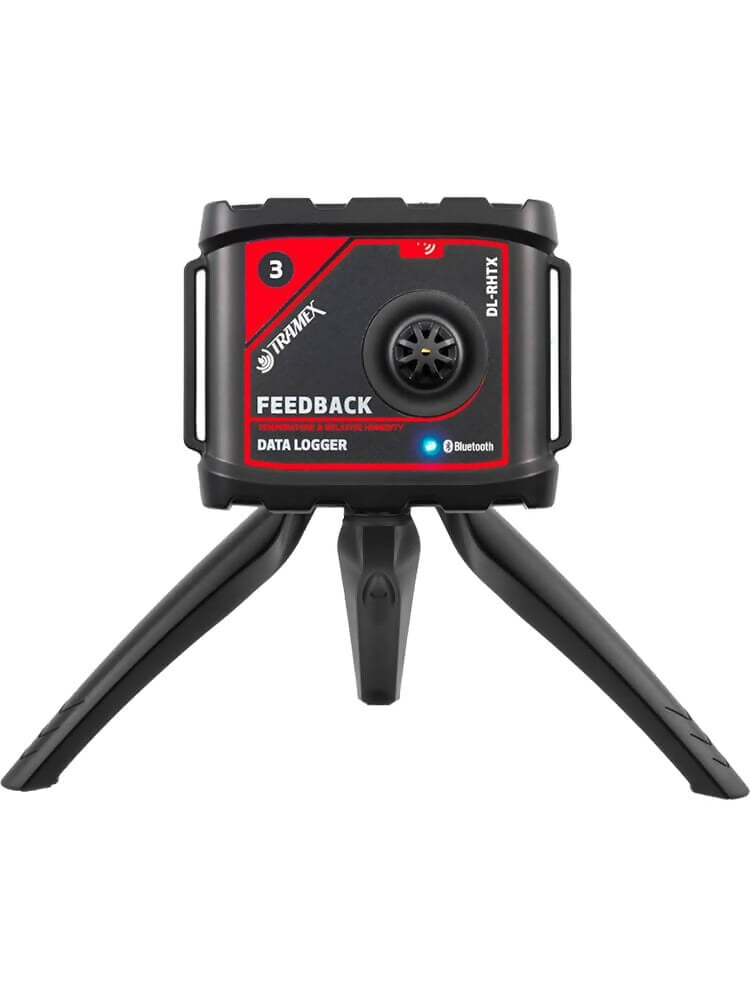

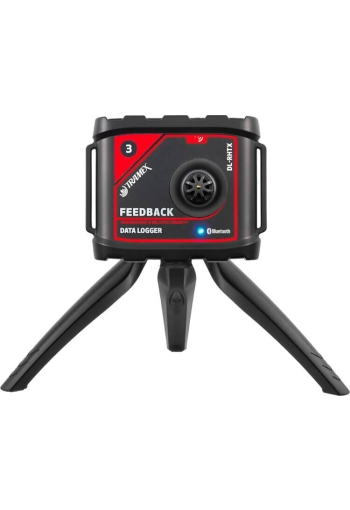

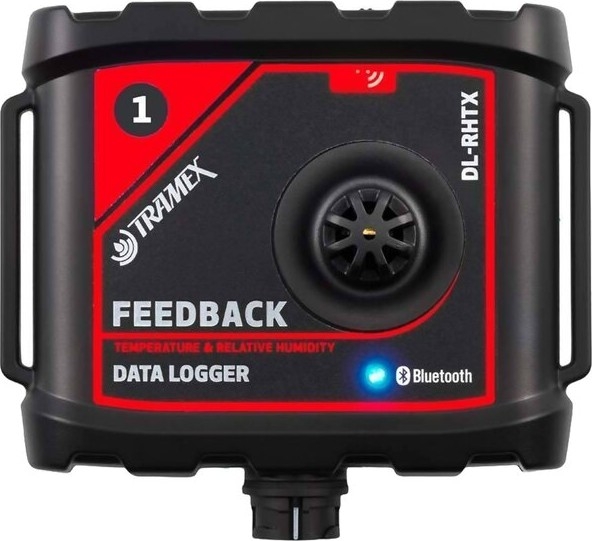

Tramex DL-RHTX Feedback DataLogger

See More Tramex Moisture Meters

Bluetooth BLE enabled for use with mobile devices.

Up to 100,000 data point entries. Instant set up and start modes.

Precise Ambient Relative Humidity and Temperature logging.

Wireless Humidity and Temperature Sensor

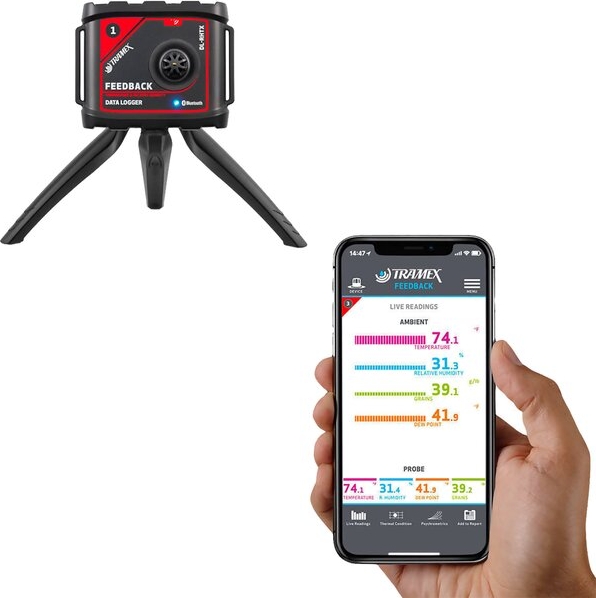

Create Visual Moisture Maps and Reports with Tramex Meter App

The Tramex DL-RHTX Feedback DataLogger and Tramex Meters App log up to 100,000 data point entries for relative humidity, temperature, dew point and grains per pound, transmitted wirelessly via Bluetooth BLE technology to your mobile device. On the App you can visualise Live Readings, Thermal Conditions and Psychrometric Charts as well as creating and exporting spreadsheets, charts and reports. The Tramex Feedback DataLogger requires the Tramex Meters App and a compatible iOS or Android mobile device. Using the optional plug-in Hygro-i2 RH probes, the DL-RHTX will measure Equilibrium Relative Humidity, Temperature, Dew Point and Humidity Ratio in structural materials. A structural material such as a concrete slab can be tested using the in-situ method or RH Hood methods (International Standards: ASTM F2170 & BS 8201, 8203, 5325). Relative Humidity Probes can also be used for ambient RH measurements within air spaces.

line
Kit Contents
line

Tramex DL-RHTX Feedback DataLogger
Wall Mounting and Tripod Stand
Tramex Free App available for Android and iOS

line
Features
line

Bluetooth BLE enabled for use with mobile devices.
Up to 100,000 data point entries. Instant set up and start modes.
Precise Ambient Relative Humidity and Temperature logging.
Used to perform BS 8201, 8203, 5325 and ASTM F2170.
Intuitive and instructive App interface.
Adjustable Interactive chart, spreadsheet, report and easy export functions.
Connectivity up to 165ft (50m) for highly accessible data downloads.
Ambient Relative Humidity, Temperature, Dew point, Grains per pound.
Psychrometric chart showing Relative Humidity, Specific Volume, Wet Bulb Temperature, Dry Bulb Temperature, Enthalpy, Humidity Ratio, Dew Point.
Contact Temperature, Estimated contact RH, Ambient Dew Point, Contact Delta Temperature (with optional Contact Temperature Probe)

line
Specifications
line

Size	3.94" x 3.54" x 1.38" (100mm x 90mm x35mm)
Weight	3.53oz (100g)
Construction ABS enclosure Power	1 x AA type battery 1.5 Volt
Memory	100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature)
Logging Rate	Logger interval adjustable between 5 minutes and 1 hour
Transmission Range	Up to 165ft (50m) line-of-sight Bluetooth: BLE Bluetooth Low Energy 4.2 compliant, Bluetooth 5 advertising Included: Wall Mounting and Tripod Stand
