Tramex FMK5.1 Flooring Master Inspection Kit

See More Flooring Moisture Inspection Kits

This product has been replaced by the Tramex FMK

Industry: Flooring Inspection, Flooring Installation

Measuring Range: Moisture Content of Concrete (NDT): 0 to 6.9 % (moisture by weight), Moisture Content using Pin Probe: 7- 40% using pin-type wood probe, Relative Humidity: 0 to 99%

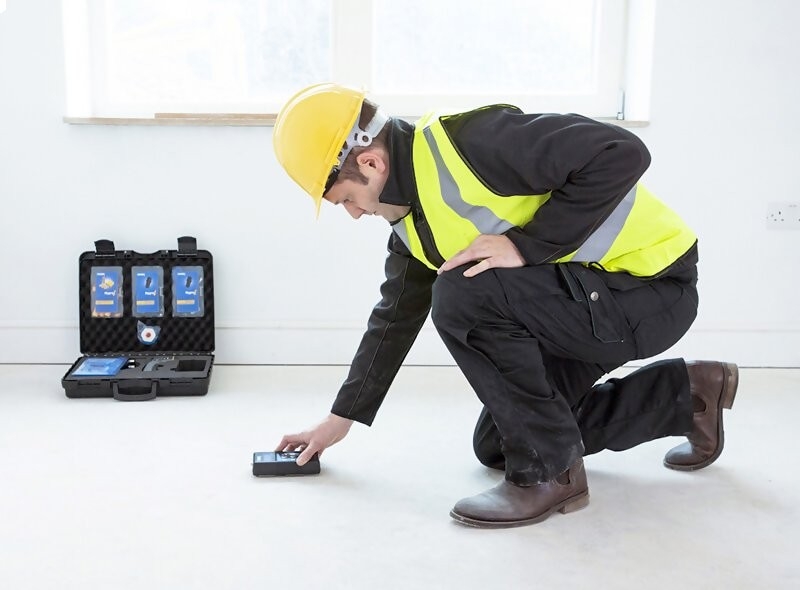

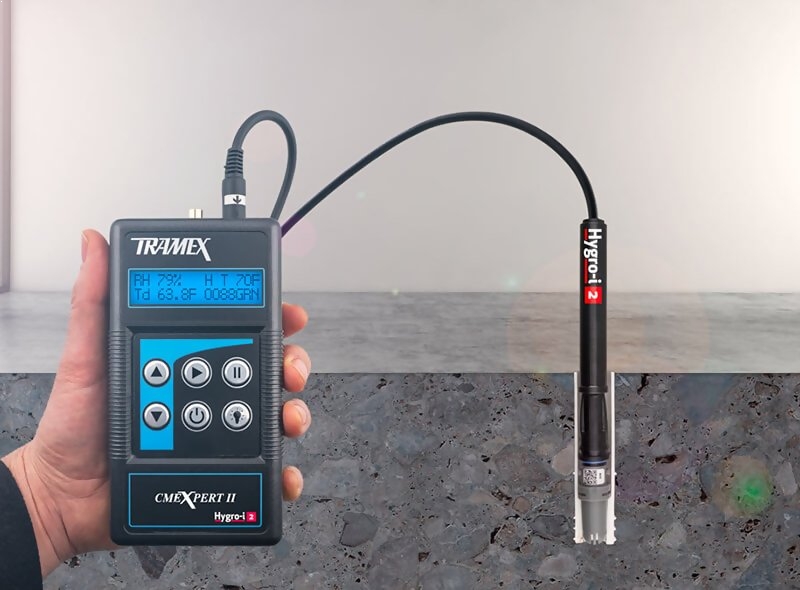

The Tramex FMK5.1 Flooring Master Inspection Kit is the ultimate kit for pre- & post-application moisture testing of concrete slabs, wood and various other floor covering materials. The Tramex FMK5.1 features the Tramex CMEX II digital concrete moisture meter for testing per ASTM F2659 and 3 best in class reusable Hygro-i2 ® relative humidity probes for testing relative humidity, temperature and dew point in the environment, or performing ASTM F2170 (or Hood Method with optional Hood) for relative humidity readings in concrete slabs. An infrared surface thermometer is included for testing surface temperatures and can be used in conjunction with the Hygro-i2 ® probe to monitor dew point conditions. A heavy-duty hammer pin-probe allows the user to measure the moisture content in wood. Also featuring a Tramex MRH III incorporating wood species calibration and temperature correction to accurately read the moisture content non-invasively in a variety of wood species and moisture conditions instantly and non-destructively in roofing, masonry, drywall and laminate. The MRH III can be used with optional Pin-type probe attachment for wood, and the relative humidity Hygro-i2 ® probe. Calibration check salts are included in the Flooring Inspection Master Kit, which comes in a protective heavy-duty carrying case with die-cut foam lining.

line

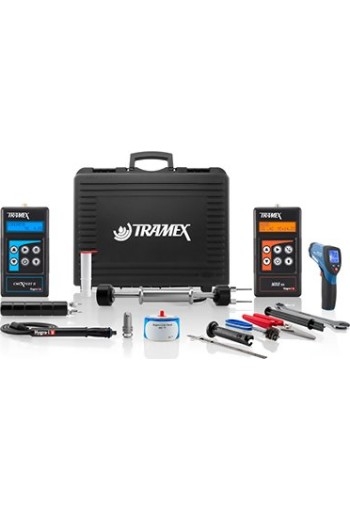

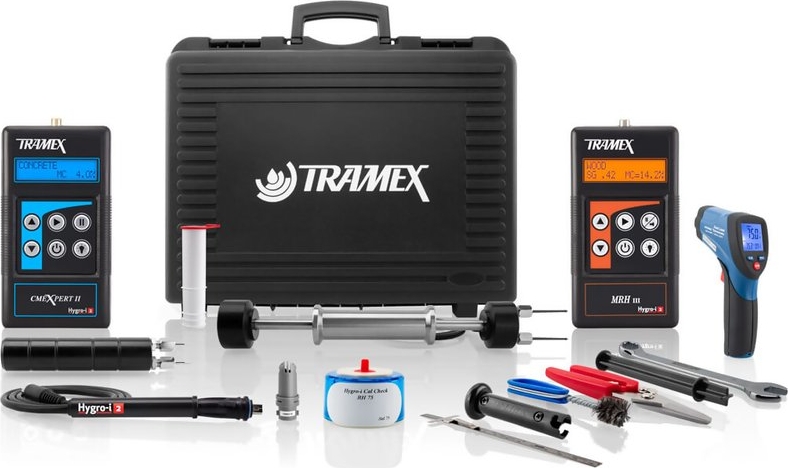

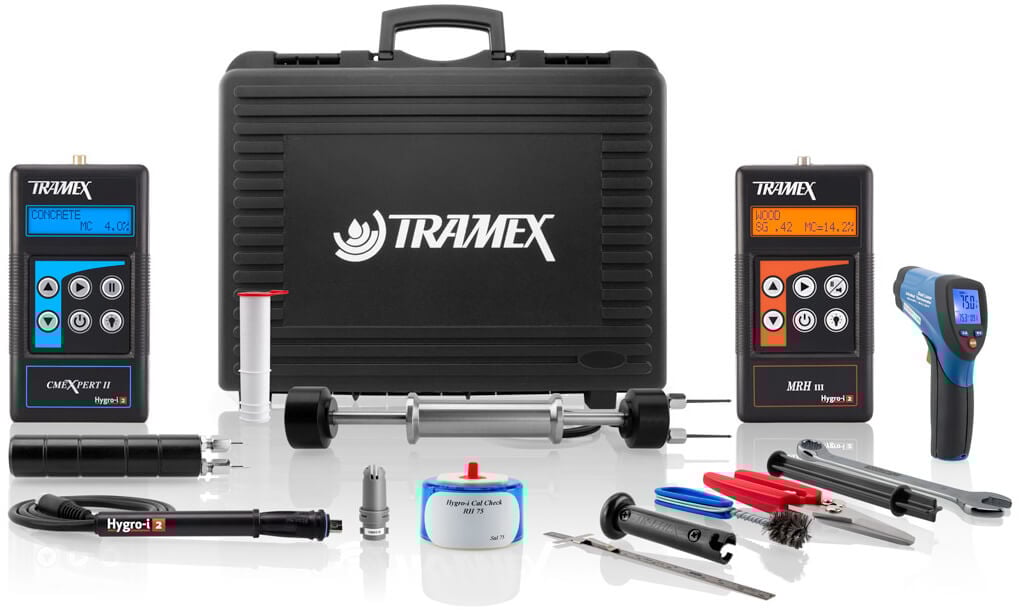

Kit Contents
line

CMEX II - concrete meter.
MRH III - moisture and humidity moisture meter.
3 x Hygro-i2 ® Relative Humidity probes.
25 x Hole Liners.
Heavy-duty pin-type wood probe.
Heavy-duty hammer pin-type wood probe.
3 x SAL75 (Calibration Check Salts).

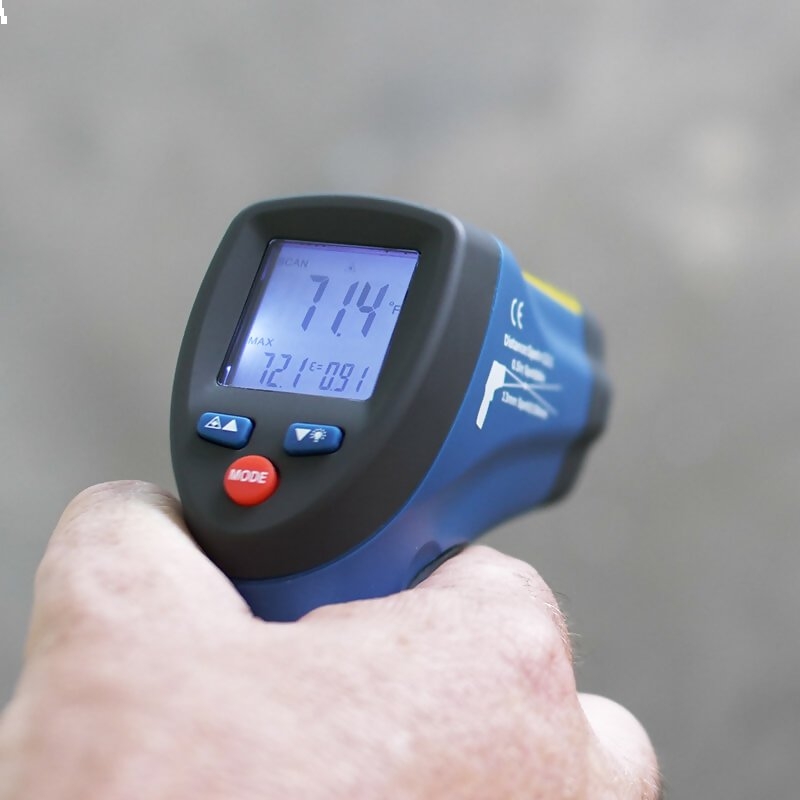

Infrared thermometer.

line
Features
line

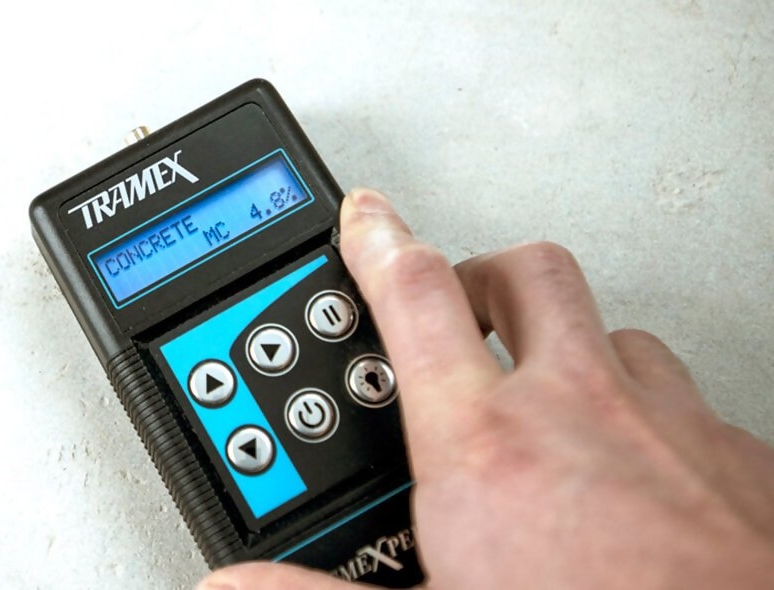

Measures up to 6.9% Moisture Content in Concrete.
Instant readings in Non-Destructive and Wood Probe modes.
Plug-in Hygro-i2 ® Probe for Relative Humidity, Temperature, Dew-Point and Mixing Ratio.
Fast acclimation time.
Reusable Hygro-i2 ® Relative Humidity probes prove to be the lowest cost per ASTM F2170.
Measures Moisture Content in Wood in non-invasive and pin-probe modes.
Relative Scale of 0-100 for other building materials including drywall, laminate and tiles.

line
Specifications
line

Size	16.9" x 13.6" x 5.1" (100%mm x 345mm x 130mm)
Weight	8.8lbs (4kg)
Power	3 x 9 volt PP3
Battery	Included
Measuring Range	CMEX II
Depth of penetration in concrete	(NDT*) approx. ¾" (20 mm)
Moisture content for concrete	(NDT*) 0 to 6.9 %
Comparative for Gypsum floor screed	(NDT*) 0 to 10
Reference scale	(NDT*) 0 to 100

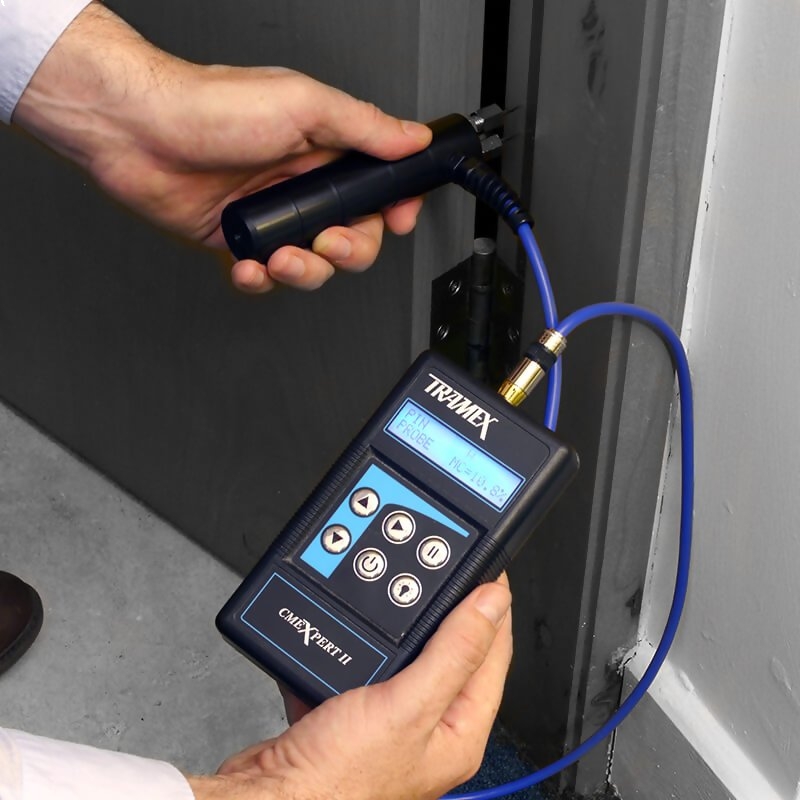

Moisture Content in wood using Pin Probe	7 to 40%
Relative Humidity with Hygro-i2 ® probe	0 to 99%
Humidity accuracy	0% to 99%RH +/- 2% @ 25°C / 77°F
Measuring Range	MRH III
Depth of penetration	(NDT*) up to 1¼" (30mm) (in wood, drywall)

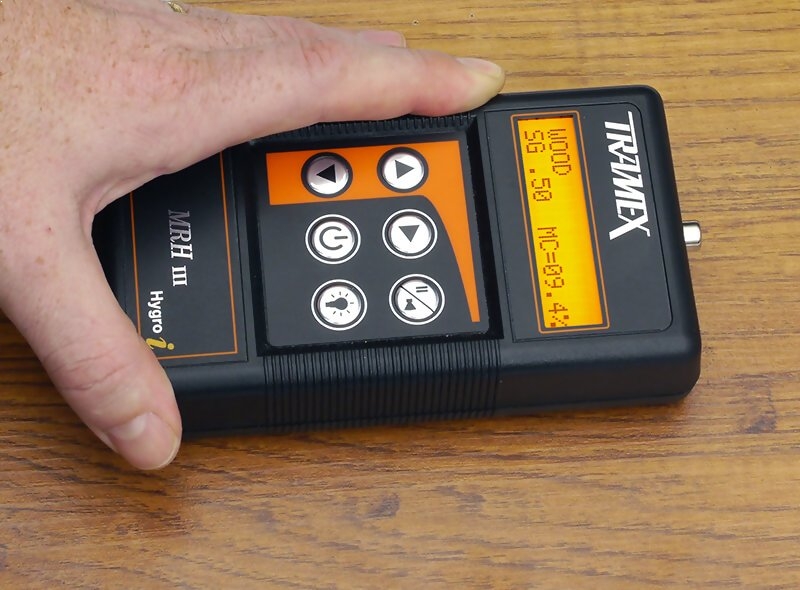

Wood Non-invasive Mode	5 to 55% (at SG of 0.3)

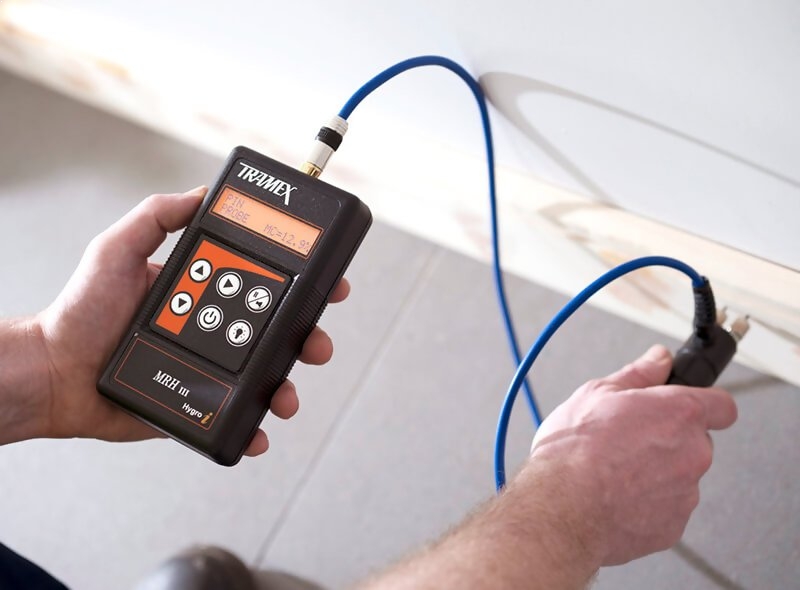

Wood Invasive Mode using Pin Probe	7 to 40%
Reference scale for building materials	0 to 100
Relative Humidity (with Hygro-i2 ® probe)	0 to 99%
Humidity accuracy	0% to 99%RH +/- 2% @ 25°C / 77°F

*NDT - Non-destructive Test
