Avoid Moisture Related Floor Failures with this Quick Check Procedure at Time of Install

---

Non-destructive, quantitative moisture content testing of concrete floors and ambient dew-point conditions at the time of installation

---

Compact Kit for performing the Tramex Installation Quick Check for Concrete Moisture
Avoid Moisture Related Floor Failures with this Quick Check Procedure at Time of Install

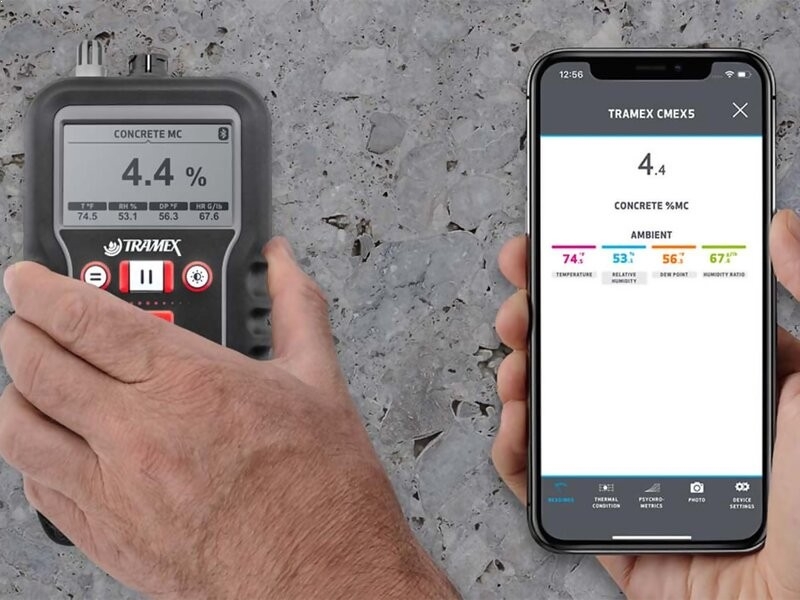

The Tramex IQCPK Flooring Installation Quick Check Plus Kit is a compact kit for instant, non-destructive, quantitative moisture content testing of concrete floors and ambient dew-point conditions at the time of installation. Even if pre-installation tests have been performed, checking the %MC and ambient dew-point conditions at the time of installation is crucial to ensure successful installation. The Tramex CMEX5 digital moisture meter allows for non-destructive quantitative testing of concrete moisture content using Gravimetric testing as a baseline. The CMEX5 has a built-in hygrometer providing ambient relative humidity, temperature and dew-point measurements. The Infrared Thermometer provides surface temperature readings for comparison with the dew-point conditions to avoid condensation-related issues at the time of installation and floor failures. The Tramex Meters App allows for data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts. The Tramex Flooring Installation Quick Check Plus Kit comes in a Tramex Easy-travel case.

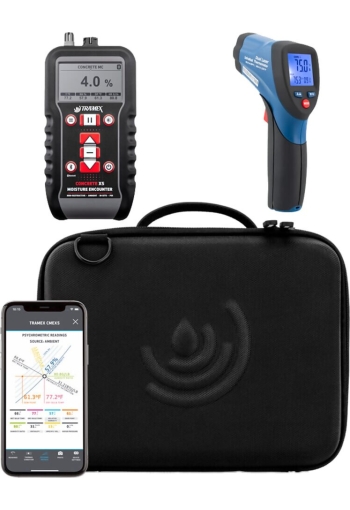

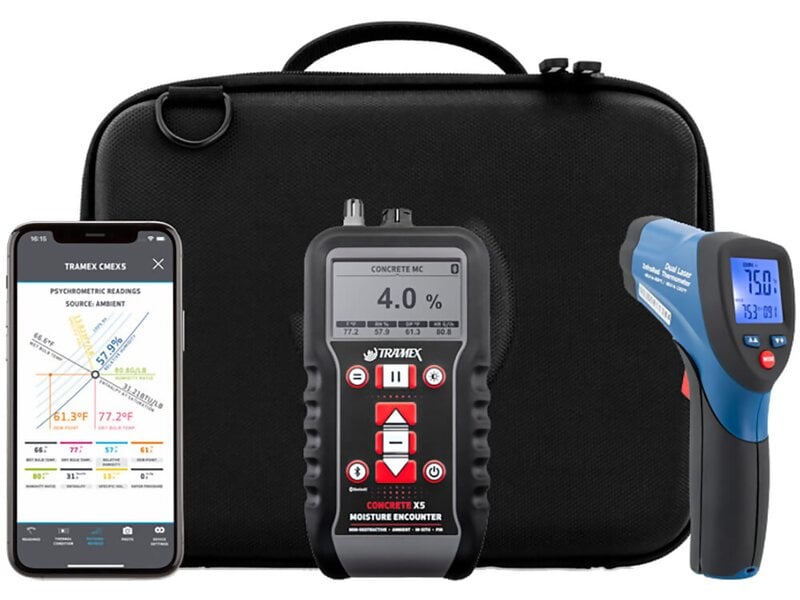

Kit Contents

Tramex CMEX5 Concrete Moisture Encounter X5 Tramex IRT2 Infrared Surface Thermometer Free App available for Android and iOS (phone not included) Carring Case

Specifications

Kit:

Size	13.8” x 9.1” x 3.5” (35cm x 23cm x 90cm)
Weight	2.8lbs (1.3kg)
Power	2 x AA batteries, 1 x 9 volt PP3 battery

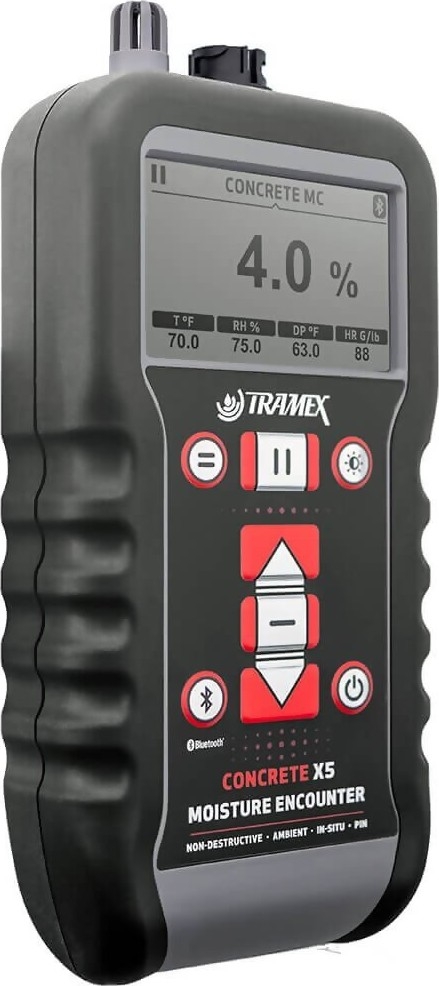

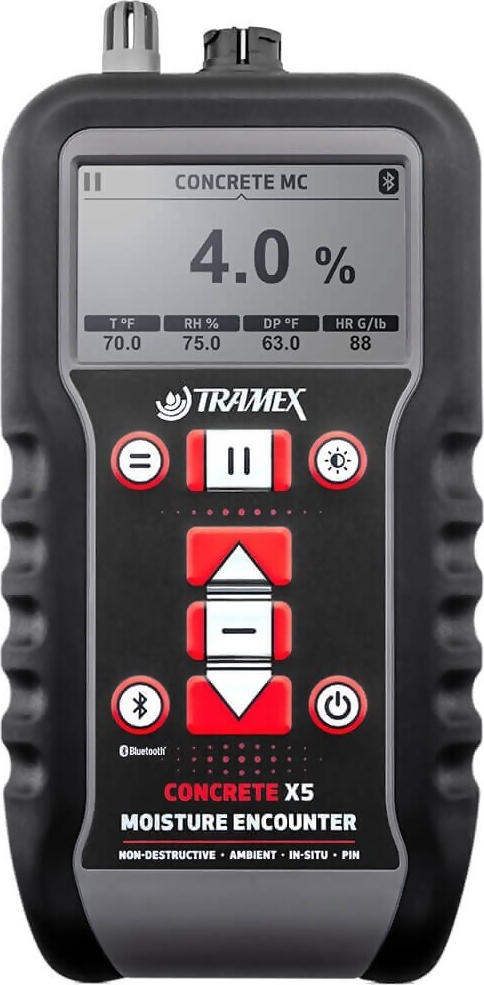

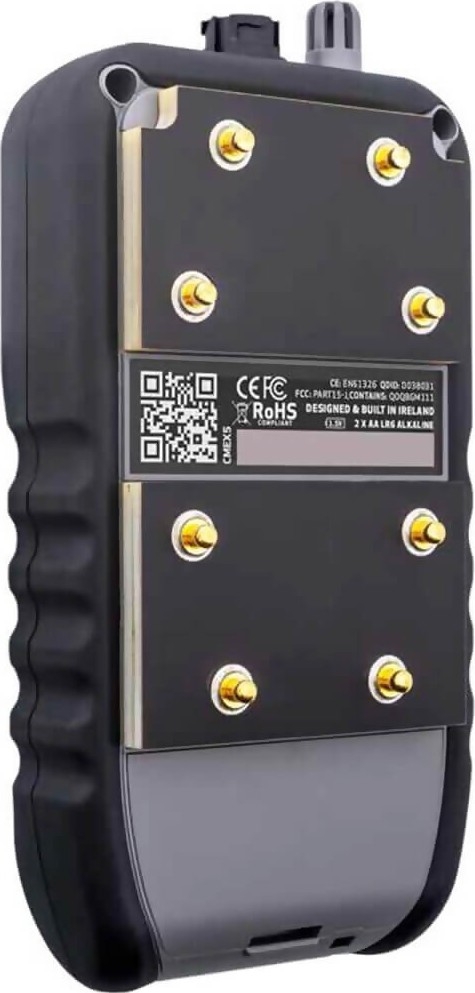

Tramex CMEX5 Concrete Moisture Encounter X5

Moisture content for Concrete	0 → 6.9 %
Comparative for Gypsum floor screed	0 → 12
CM Equiv Anhydrite/Concrete	0→2.7 / 0→ 4.3
Reference scale	0 → 100
Relative Humidity	0 → 99% (with optional Hygro-i2 ® probe)
Humidity accuracy	0% → 99%RH +/- 2% @ 25°C / 77°F
Moisture content for wood	5→ 30 % (with optional wood pin probes)
Construction	ABS Body
Power	2 x AALR6 ALKALINE (included)
Display	Digital
Depth of penetration in concrete	approx. ¾" (20mm)

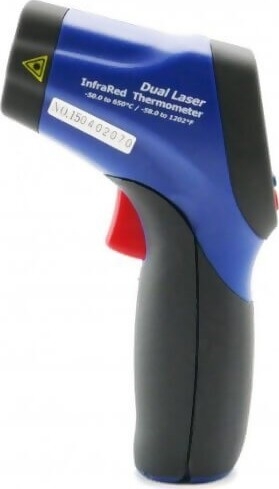

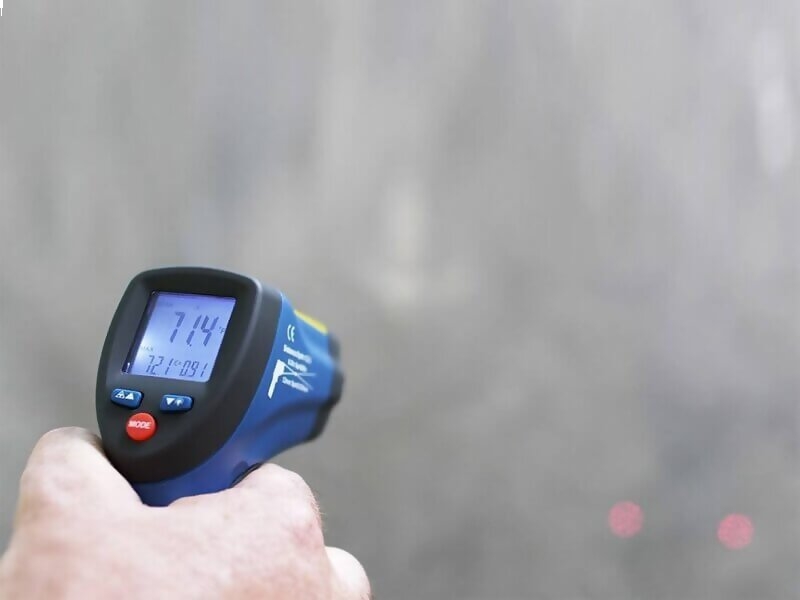

Tramex IRT2 Infrared Surface Thermometer

Temperature Measurement Range	-58° to 1202°F ( -50° to 650°C )
Temperature Measurement Accuracy	+/- 4°F/C or +/- 2% of reading >32°F (0°C) | +/- 3°F/C or +/- 3% of reading <32°F (0°C)
Sensitivity	1°F (0.5°C)
Distance -to-Spot Ratio	12:1
Emissivity	Adjustable from 0.10 to 1.0
Operating Temperature	32° to 122°F (0°to 50°C) @ 10 to 90%RH
