Tramex IQCPK Flooring Installation Quick Check Plus Kit

See More Flooring Moisture Inspection Kits

Tramex IQCPK Flooring Installation Quick Check Plus Kit

See More Flooring Moisture Inspection Kits
Price:
$1,145.00
  • Hassle Free 30-Day Returns
  • Availability: In Stock Usually ships within 1-2 business days
  • FREE - Standard Ground 3-5 Business Days View Faster Delivery Options
warrenty

Product Description
Avoid Moisture Related Floor Failures with this Quick Check Procedure at Time of Install
Non-destructive, quantitative moisture content testing of concrete floors and ambient dew-point conditions at the time of installation

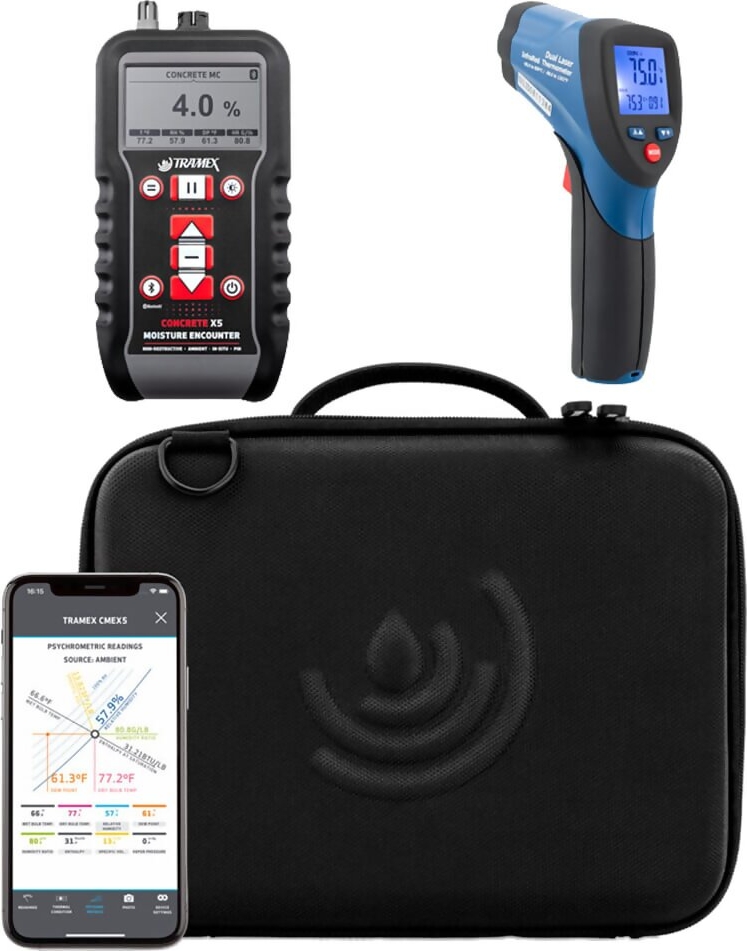

Compact Kit for performing the Tramex Installation Quick Check for Concrete Moisture
Avoid Moisture Related Floor Failures with this Quick Check Procedure at Time of Install

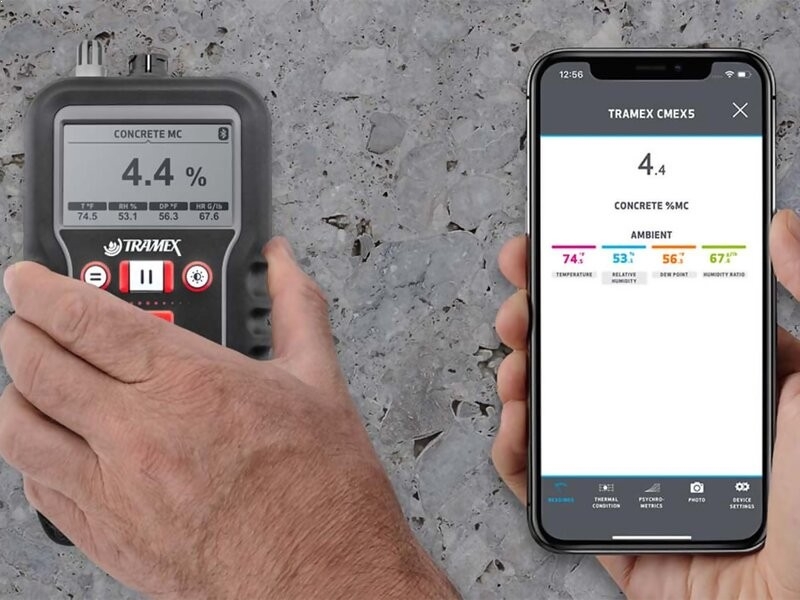

The Tramex IQCPK Flooring Installation Quick Check Plus Kit is a compact kit for instant, non-destructive, quantitative moisture content testing of concrete floors and ambient dew-point conditions at the time of installation. Even if pre-installation tests have been performed, checking the %MC and ambient dew-point conditions at the time of installation is crucial to ensure successful installation. The Tramex CMEX5 digital moisture meter allows for non-destructive quantitative testing of concrete moisture content using Gravimetric testing as a baseline. The CMEX5 has a built-in hygrometer providing ambient relative humidity, temperature and dew-point measurements. The Infrared Thermometer provides surface temperature readings for comparison with the dew-point conditions to avoid condensation-related issues at the time of installation and floor failures. The Tramex Meters App allows for data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts. The Tramex Flooring Installation Quick Check Plus Kit comes in a Tramex Easy-travel case.


line
Kit Contents
line


line
Specifications
line

Kit:

Size13.8” x 9.1” x 3.5” (35cm x 23cm x 90cm)
Weight2.8lbs (1.3kg)
Power2 x AA batteries, 1 x 9 volt PP3 battery

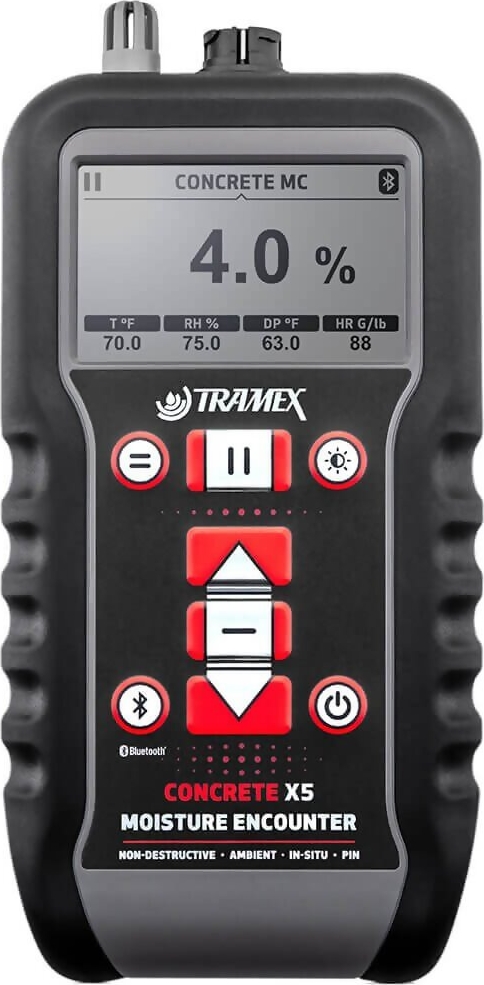

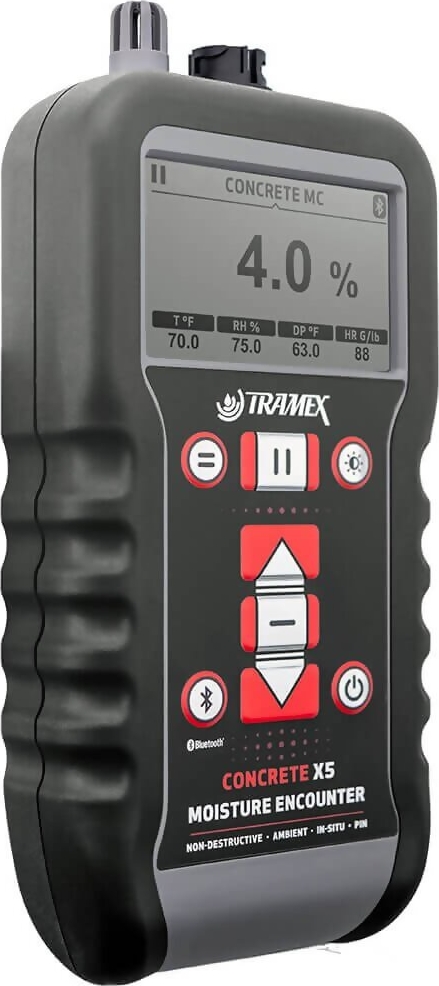

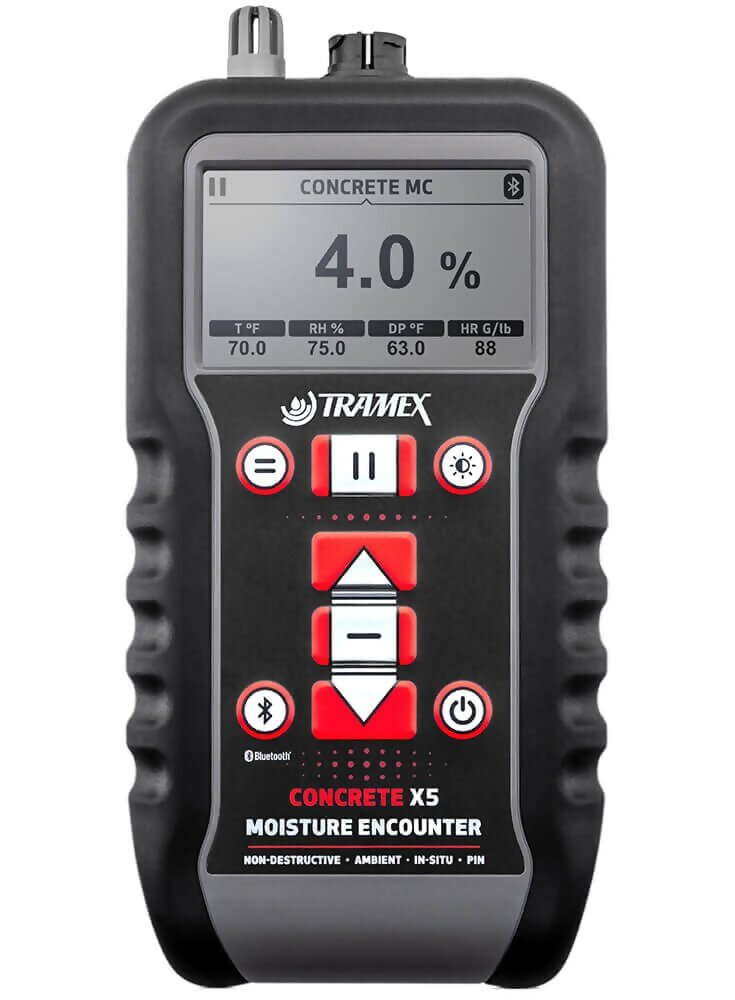

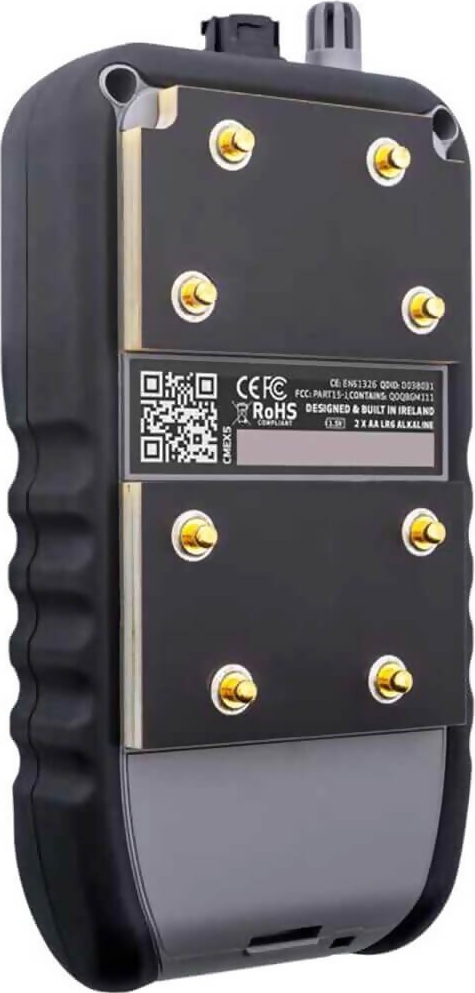

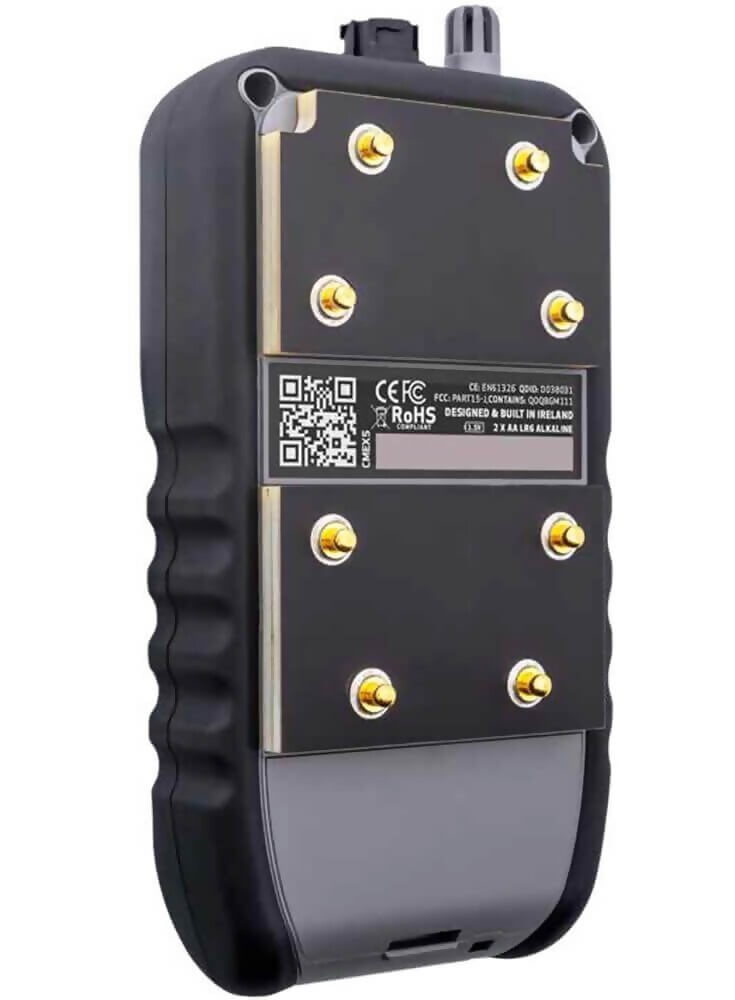

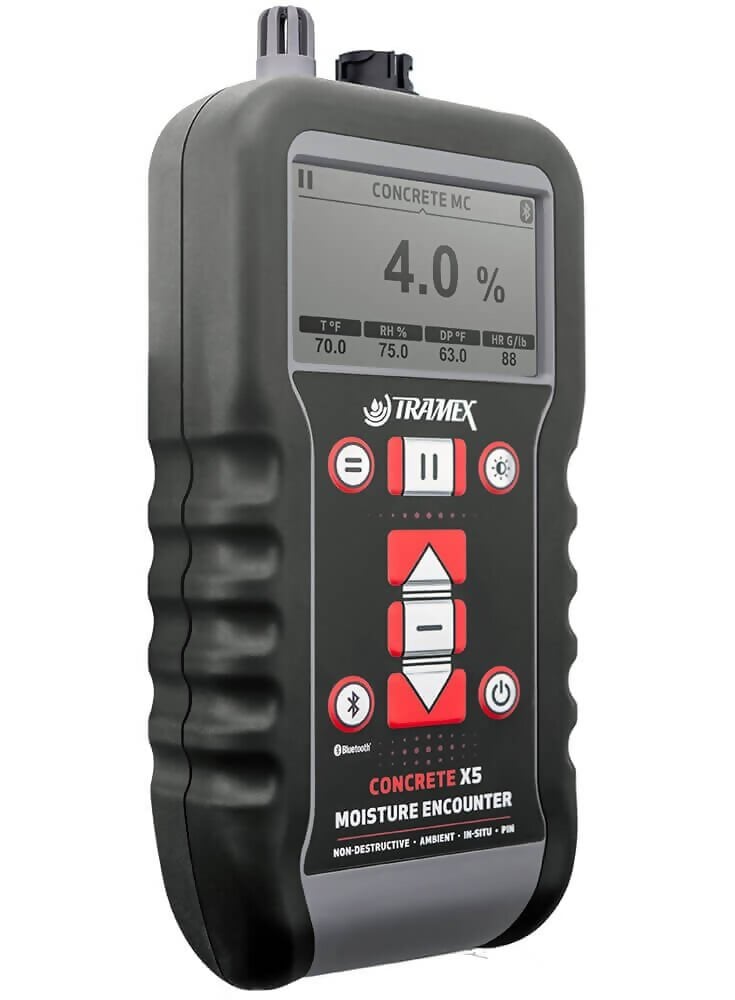

Tramex CMEX5 Concrete Moisture Encounter X5

Moisture content for Concrete0 → 6.9 %
Comparative for Gypsum floor screed0 → 12
CM Equiv Anhydrite/Concrete0→2.7 / 0→ 4.3
Reference scale0 → 100
Relative Humidity0 → 99% (with optional Hygro-i2 ® probe)
Humidity accuracy0% → 99%RH +/- 2% @ 25°C / 77°F
Moisture content for wood5→ 30 % (with optional wood pin probes)
ConstructionABS Body
Power2 x AALR6 ALKALINE (included)
DisplayDigital
Depth of penetration in concreteapprox. ¾" (20mm)

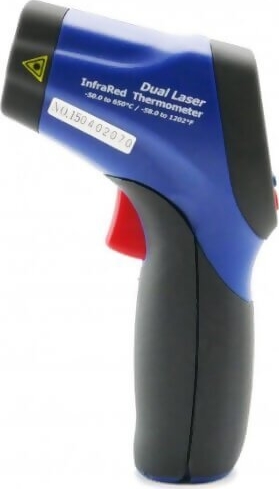

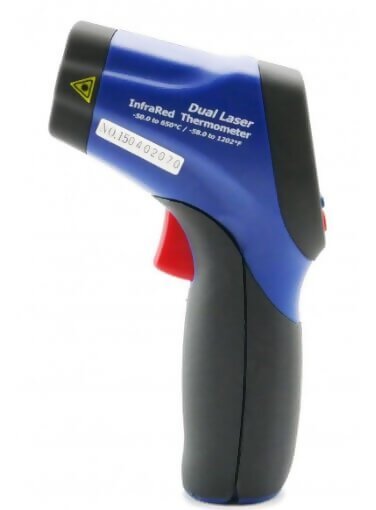

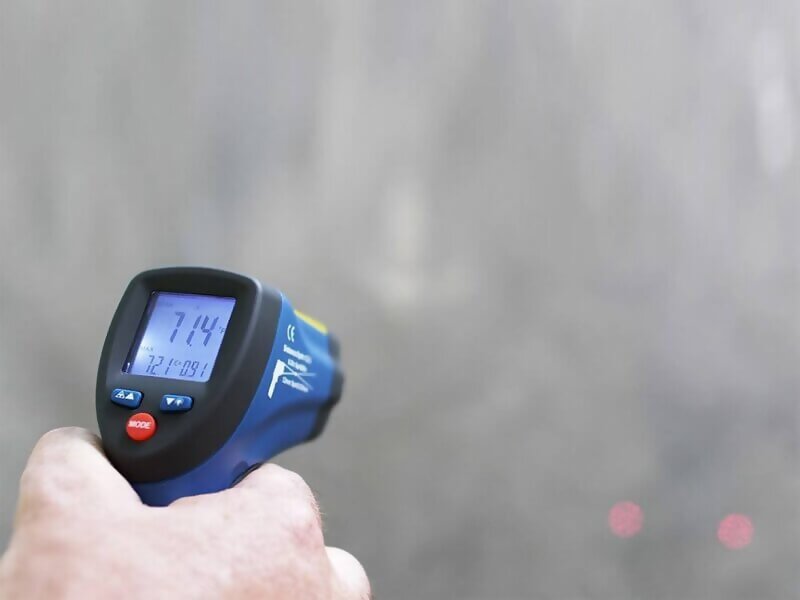

Tramex IRT2 Infrared Surface Thermometer

Temperature Measurement Range-58° to 1202°F ( -50° to 650°C )
Temperature Measurement Accuracy+/- 4°F/C or +/- 2% of reading >32°F (0°C) | +/- 3°F/C or +/- 3% of reading <32°F (0°C)
Sensitivity1°F (0.5°C)
Distance -to-Spot Ratio12:1
EmissivityAdjustable from 0.10 to 1.0
Operating Temperature32° to 122°F (0°to 50°C) @ 10 to 90%RH


line
Related Products
line

Tramex CMEX5 Concrete Moisture Encounter X5

  • 4 Modes of Measurement
  • 8 Simple Membrane Keypad Controls
  • Display Digital
related

line


Tramex IRT2 Infrared Surface Thermometer

  • His hand held, infrared surface thermometer features a laser target pointer to gain instant readings on almost any surface from a distance
related

line


Tramex Accessory Pack for Concrete Moisture Encounter 5 and 5X

  • For use with CMEX5, CMEX2, MRH3 & PTM.
  • Order Code: HH14TP30 (For use with CMEX2, MRH3 and PTM)
  • Order Code: HH14TP30B (For use with CMEX5)
related

line

Tramex Extension Handle for ME5, CME5 and CMEX5

  • The Extension Handle can be used with the ME5CME5 and CMEX5 Moisture Meters. It is a useful accessory for measuring in out of reach, high places. It can also be used for taking readings on the floor and thus reduces the need for crouching or kneeling.
  • Order Code: E5-HBS

line

Tramex Calibration Check Plate

  • Calibration Check Plate Tramex CME5, CMEX5, CME4 and CMEX2
  • Order Code: CALCRH


line
Downloads
line

Tramex IQCPK Flooring Installation Quick Check Plus Kit - Data Sheet
Tramex CMEX5 Concrete Moisture Encounter X5 - Data Sheet
Tramex CMEX5 Concrete Moisture Encounter X5 - Instruction Manual
Tramex Meters App - Visualizing, Photographing and Geo-tagging
Accessories for Tramex Moisture Meters - Online Catalog
