Monitor Temperature and Ambient Relative Humidity Remotely with Secure Monitoring Software
Remote Environmental Monitoring System
Tablet Not Included
The Tramex TREMS-2 Remote Environmental Monitoring System has been designed and developed by Tramex for professionals who depend on the most accurate, reliable, real-time building environment temperature and relative humidity readings using state of the art technology to respond quickly to environmental changes and notify users.
The Tramex TREMS-2 Remote Environmental Monitoring System comprises 2 CS-RHTA Tramex Cloud Sensors and a Tramex Cloud Station router. Multiple Sensors can be used with one Station and additional sensor Accessory Packs are also available. Registration and on-site set-up is simple using a QR code check-in procedure.

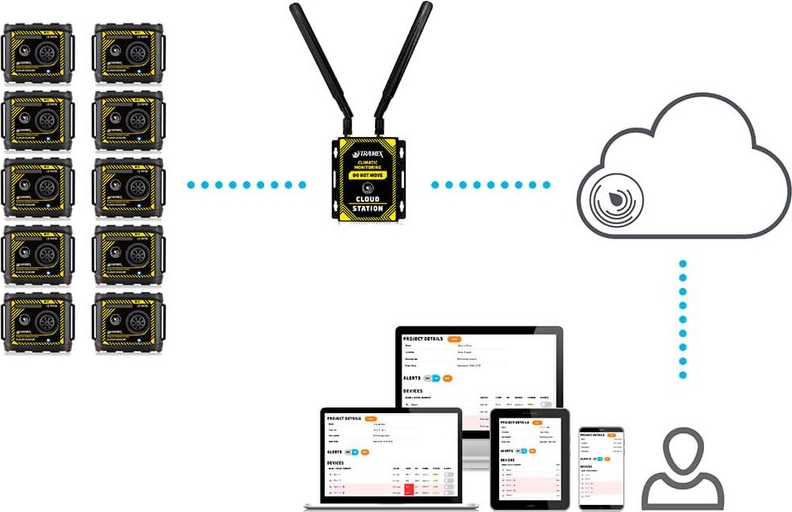

The on-site Sensors, with long-life batteries, transmit relative humidity, temperature (ºC and ºF), dew point and grains per pound / grams per kilo readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform. Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor status from any browser.
There are no subscription fees and there is free data with the Tramex TREMS-2 Remote Environmental Monitoring System.

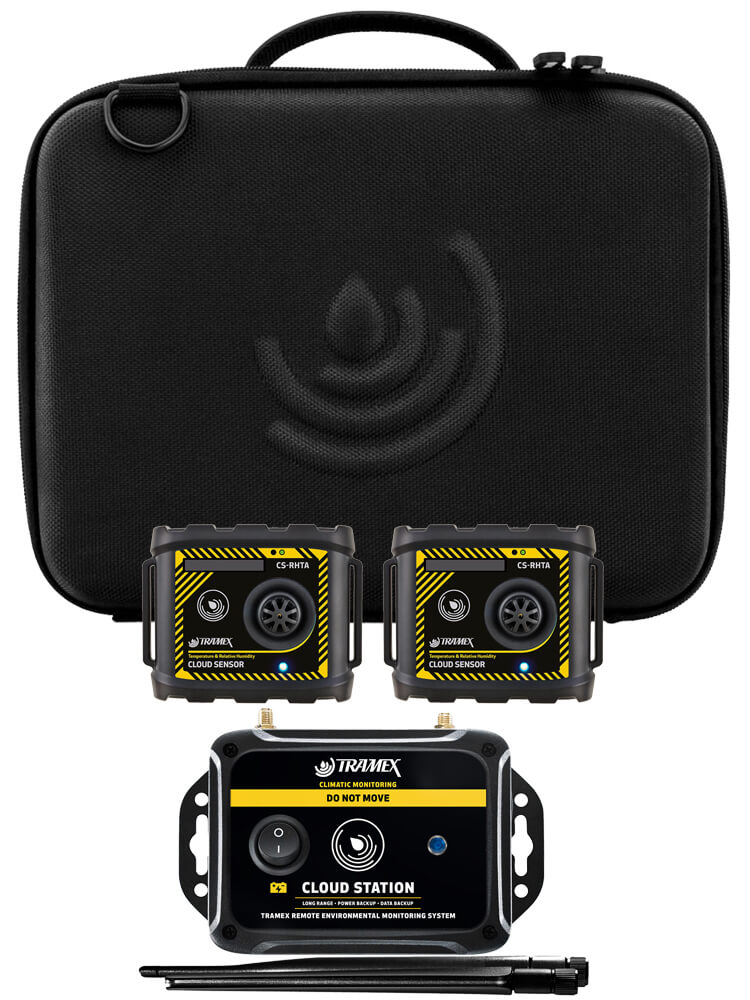

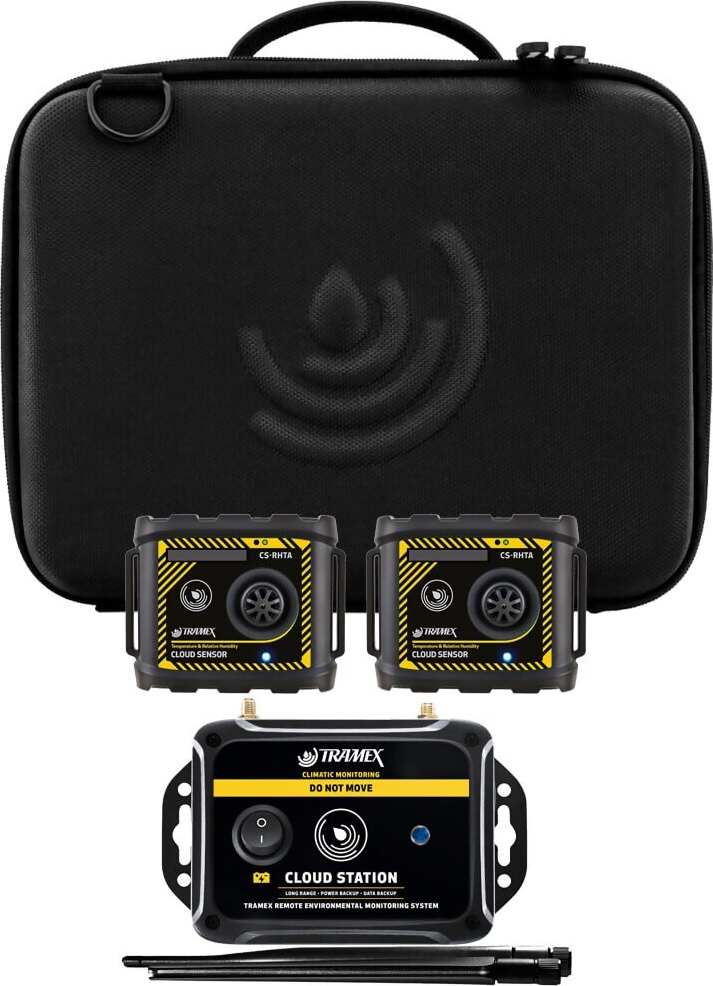

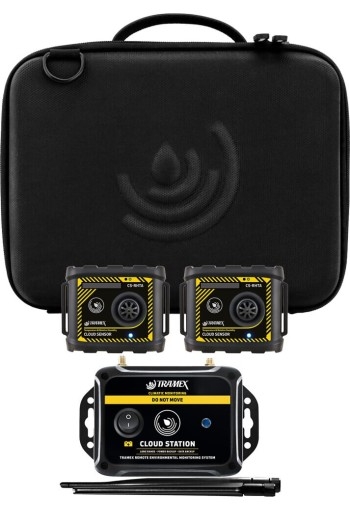

Kit Contents

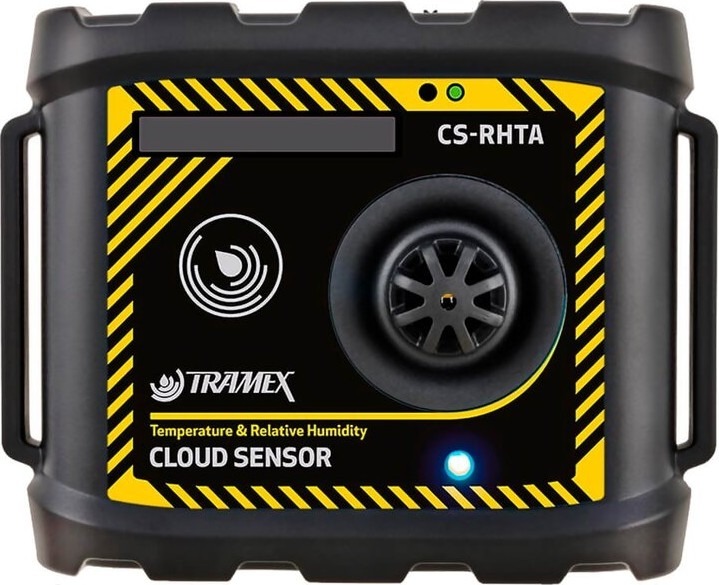

- 2 x CS-RHTA Tramex Cloud Sensors

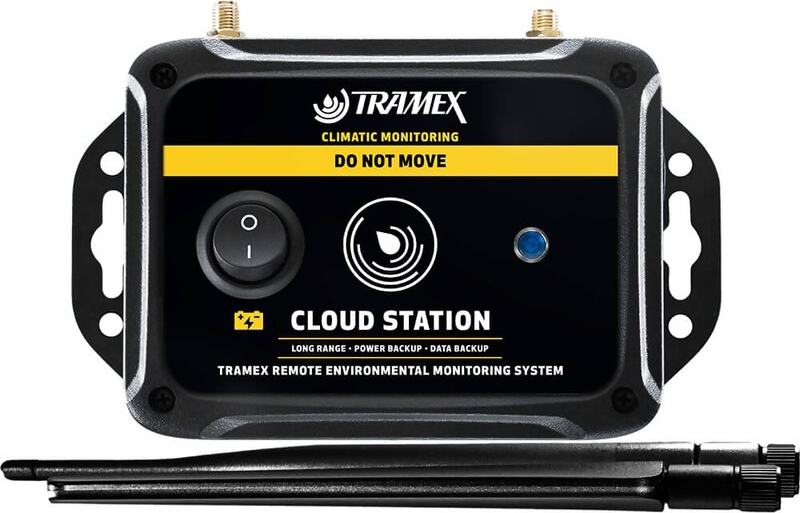

- 1 x Tramex Cloud Station
- 1 x Tramex ALLBAG Carrying Case
- Tramex Cloud Software Monitoring platform (Tablet Not Included)
- Antennae for Cloud Station
Features
- Ambient relative humidity and temperature
- Remote Environmental Monitoring System
Specifications
Temperature Sensor Specifications:
| Exeptional Accuracy | ±0.1 °C Range 20°C to 60°C (±0.1ºF Range 68ºF to 140ºF) |
| Range | -40ºC to 125ºC (-40ºF to 257ºF) |
| Sensor Protection | PTFE Film protects sensor opening from water & dust |
| Drift | <0.03ºC (0.04ºF) per year |
Relative Humidity Sensor Specifications:
| Exceptional Accuracy | ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 25ºC (77ºF)) |
| Range | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
Sensor Specifications:
| Transmission Range | Over 3kms line-of-sight |
| Communication Frequency | Multiple readings per hour. |
| Identification | Items individually coded for ease of install and logging identification. |
| Size | 100mm x 90mm x35mm (3.94” x 3.54” x 1.38”) |
| Weight | 100g (3.53oz) |
| Construction | ABS enclosure |
| Power | Built in CR123A battery with up to 15 year lifespan |
| Included | Wall Mounting |
Tramex Cloud Specifications
| Frequency | Region Specific frequency available |
| Security | WPA2-PSK encryption, no unwarranted telemetry/tracking. |
| Size | 130mm x 115mm x 30mm (5.12” x 4.53” x 1.19”) |
| Weight | 270g (9.5oz) |
| Power | Universal AC Power Adapter |
| Construction | Wall-mountable Industrial Aluminium |
