Monitor Ambient and In-situ Temperature and Relative Humidity remotely

---

With Secure Monitoring Software

---

Multiple Sensors can be used with one Station and additional sensor Accessory Packs are also available

---

The Tramex TREMS-Xtra Remote Environmental Monitoring System Xtra is design and developed by Tramex for professionals who depend on the most accurate, reliable, real-time building environment temperature and relative humidity readings using state of the art technology to respond quickly to environmental changes and notify users.

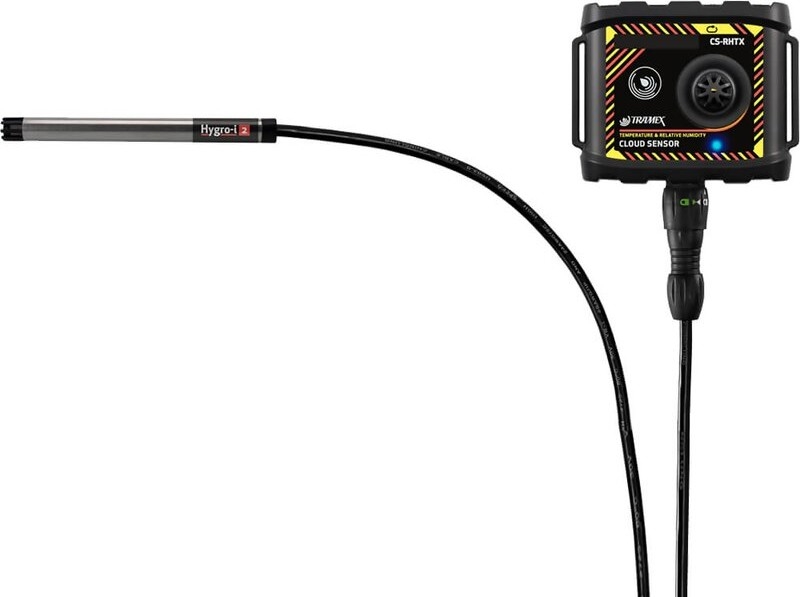

The Tramex TREMS-Xtra Remote Environmental Monitoring System Xtra comprises a Tramex Cloud Station router, CS-RHTX Tramex Cloud Sensors for ambient conditions, as well as external Relative Humidity probes. These external probes extend the benefits of the remote monitoring system allowing for in-situ readings within building structures cavities in walls and ceilings and in situ RH readings in concrete.

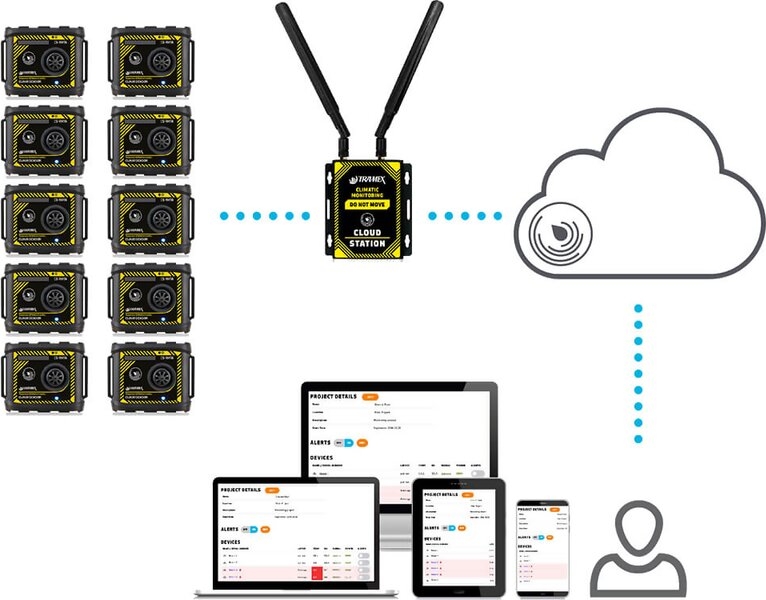

Multiple Sensors can be used with one Station and additional sensor Accessory Packs are also available. Registration and on-site set-up is simple using a QR code check-in procedure. The on-site Sensors, with battery life of up to 15 years, transmit relative humidity, temperature (ºC and ºF), dew point and grains per pound / grams per kilo readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform.

Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor status from any browser.

There are no subscription fees and there is free data with the Tramex Remote Environmental Monitoring System.

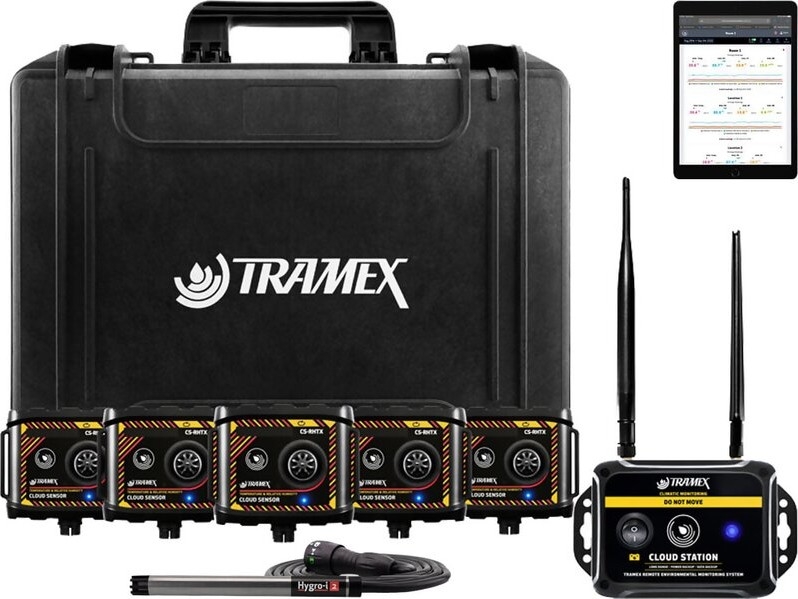

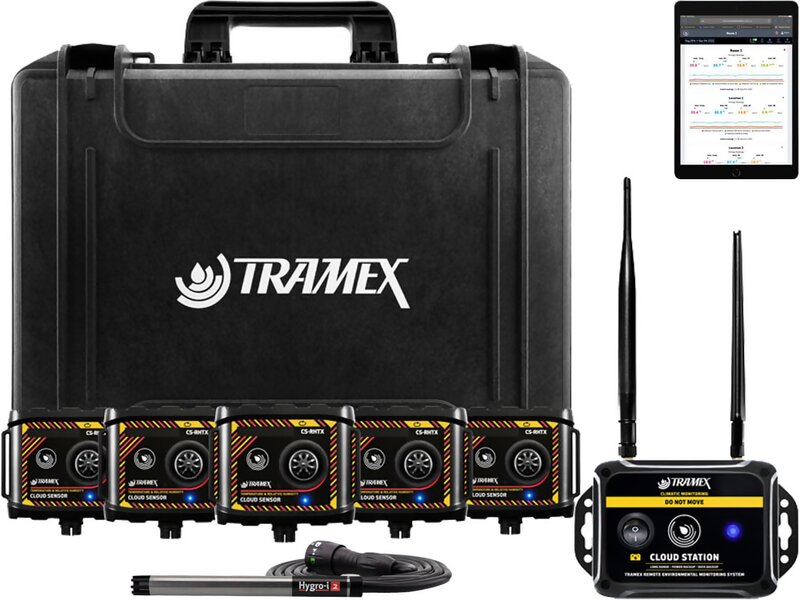

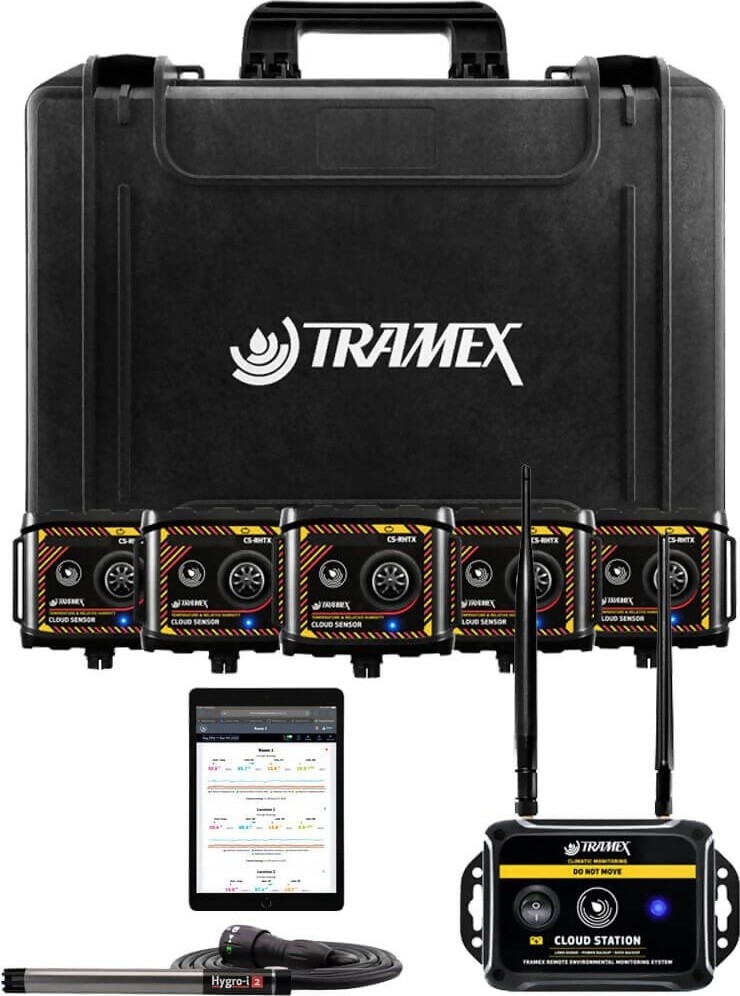

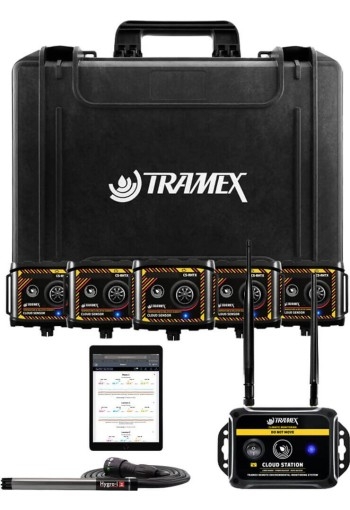

Kit Contents

Tramex TREMS-Xtra-5 Remote Environmental Monitoring System Xtra

5 x Tramex CS-RHTX Tramex Cloud Sensors 5 x Tramex RHP-SW Relative Humidity Probes for in-situ 1 x Tramex Cloud Station

1 x Tramex MAXMULTI Heavy Duty Protective Carry Case Tramex Cloud Software Monitoring platform (Tablet not included) Antennae for Cloud Station

Tramex TREMS-Xtra-25 Remote Environmental Monitoring System Xtra

25 x Tramex CS-RHTX Tramex Cloud Sensors 25 x Tramex RHP-SW Relative Humidity Probes for in-situ 1 x Tramex Cloud Station

1 x Tramex MAXMULTI Heavy Duty Protective Carry Case Tramex Cloud Software Monitoring platform (Tablet not included) Antennae for Cloud Station

Tramex TREMS-Xtra-50 Remote Environmental Monitoring System Xtra

50 x Tramex CS-RHTX Tramex Cloud Sensors 50 x Tramex RHP-SW Relative Humidity Probes for in-situ 1 x Tramex Cloud Station

1 x Tramex MAXMULTI Heavy Duty Protective Carry Case Tramex Cloud Software Monitoring platform (Tablet not included) Antennae for Cloud Station

Features

• Ambient Relative Humidity and Temperature
• In-Situ Ambient Relative Humidity and Temperature
• Remote Environmental Monitoring System Cloud

Specifications

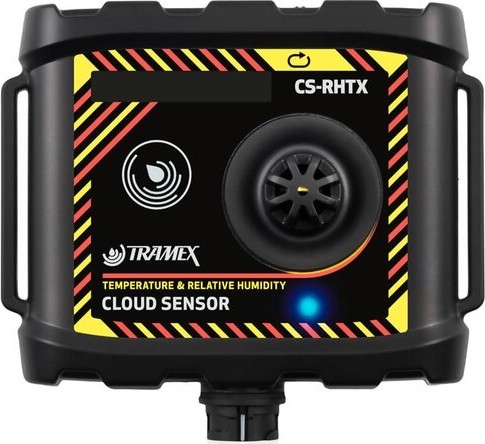

Cloud Xtra Sensor

Temperature Sensor Specifications

Exceptional Accuracy	±0.1ºF Range 68ºF to 140ºF± (0.1 °C Range 20°C to 60°C)
Range	-40ºF to 257ºF  (-40ºC to 125ºC)
Sensor Protection	PTFE Film protects sensor opening from water & dust
Drift	< 0.04ºF (0.03ºC) per year

Relative Humidity Sensor Specifications

Exceptional Accuracy	±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
Range	0 to 100%RH
Resolution	0.1% over the complete range
Drift	< 0.25%RH per year

Sensor Specifications

Transmission Range	Up to 2 miles line-of-sight
Communication Frequency	Multiple readings per hour.
Identification	Items individually coded for ease of install and logging identification.
Size	3.94" x 3.54" x 1.38" (100mm x 90mm x35mm)
Weight	3.53oz (100g)
Construction	ABS enclosure
Power	Built in CR123A battery with up to 15 year lifespan
Included	Wall Mounting

Relative Humidity Sensor

Temperature Sensor Specifications

Exceptional Accuracy	±0.1ºF Range 68ºF to 140ºF± (0.1 °C Range 20°C to 60°C)
Range	-40ºF to 257ºF  (-40ºC to 125ºC)
Sensor Protection	PTFE Film protects sensor opening from water & dust
Drift	< 0.04ºF (0.03ºC) per year

Relative Humidity Sensor Specifications

Exceptional Accuracy	±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
Range	0 to 100%RH
Resolution	0.1% over the complete range
Drift	< 0.25%RH per year

Tramex Cloud Specifications

Frequency	Region Specific frequency available
Security	WPA2-PSK encryption, no unwarranted telemetry/tracking.
Size	5.12" x 4.53" x 1.19" (130mm x 115mm x 30mm)
Weight	9.5oz (270g)
Power	Universal AC Power Adapter
Construction	Wall-mountable Industrial Aluminium

Data is stored free of charge for a period of 2 years, after which, following our data retention policy, you will need to download it.

Kit Specifications

Size	17.1" x 14.2" x 5.5" (43.5cm x 36cm x 14cm)
Weight	7.6lbs (3.56kg)
Power	5 x CR123A 3-volt batteries (included)

Related Products

Tramex TREMS Remote Environmental Monitoring System With Secure Momitoring Software Ambient relative humidity and temperature Remote Environmental Monitoring System

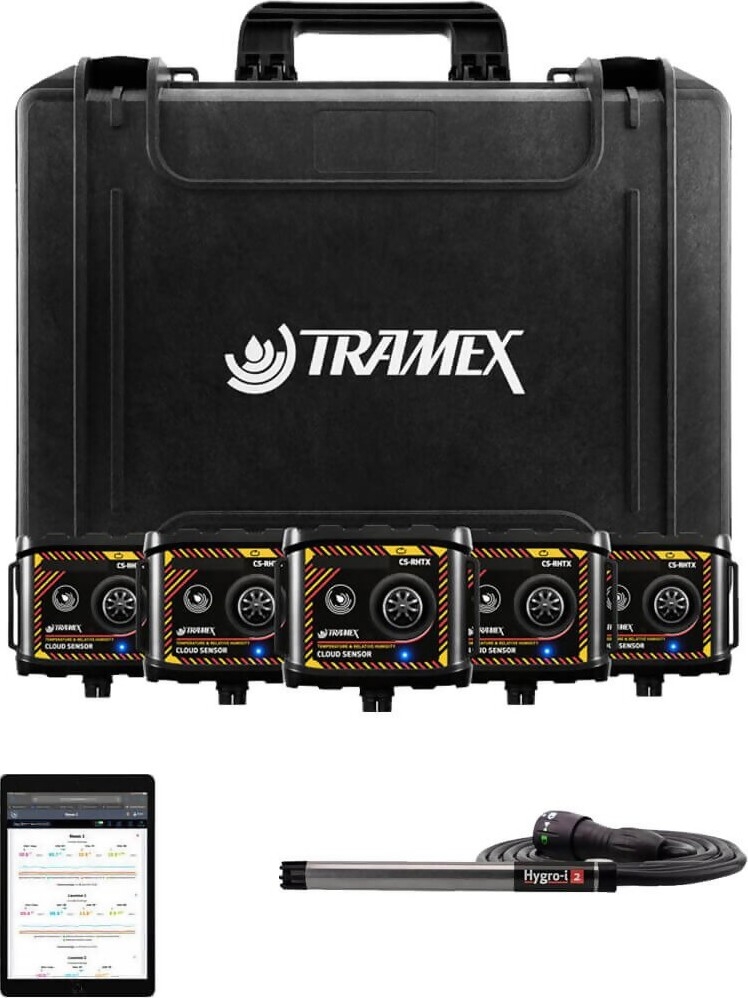

Tramex AP-TREMS Remote Environmental Monitoring System Accessory Pack Add more Cloud Sensors to your monitoring project Ambient relative humidity and temperature Remote Environmental Monitoring System
