Tramex WDIK-HH Restoration Inspector Kit with Pin Probe
Industry: Water Damage Restoration

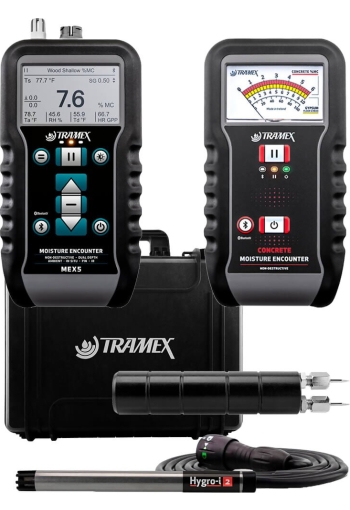

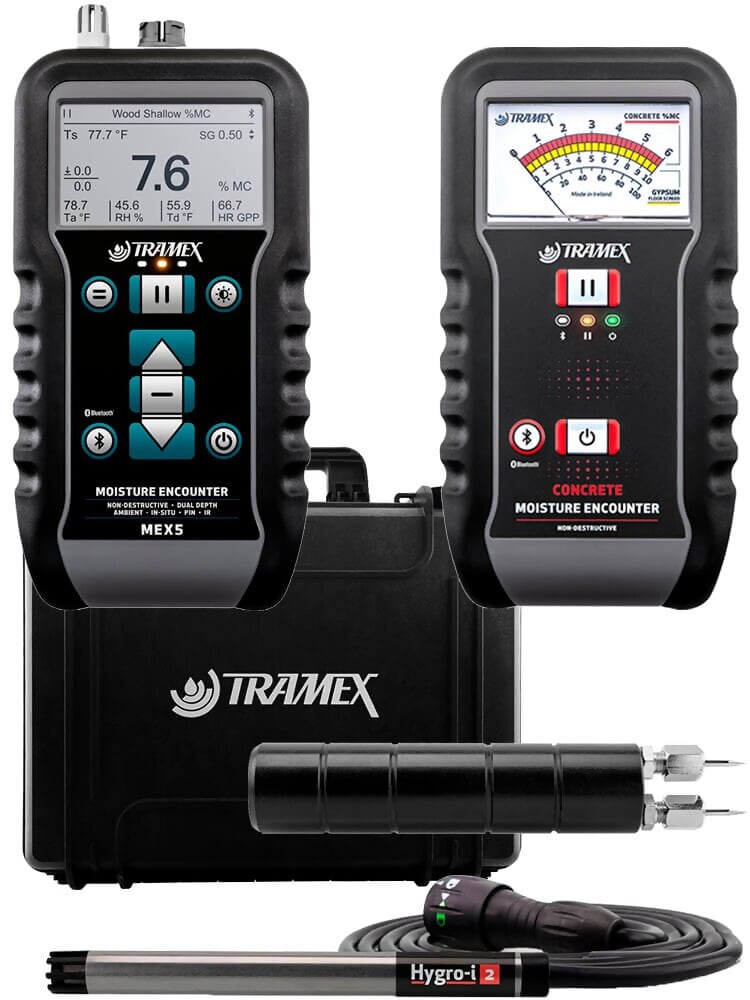

The Tramex WDIK-HH Restoration Inspector Kit with Pin Probe is a complete kit for moisture and relative humidity testing and monitoring of buildings and building materials.

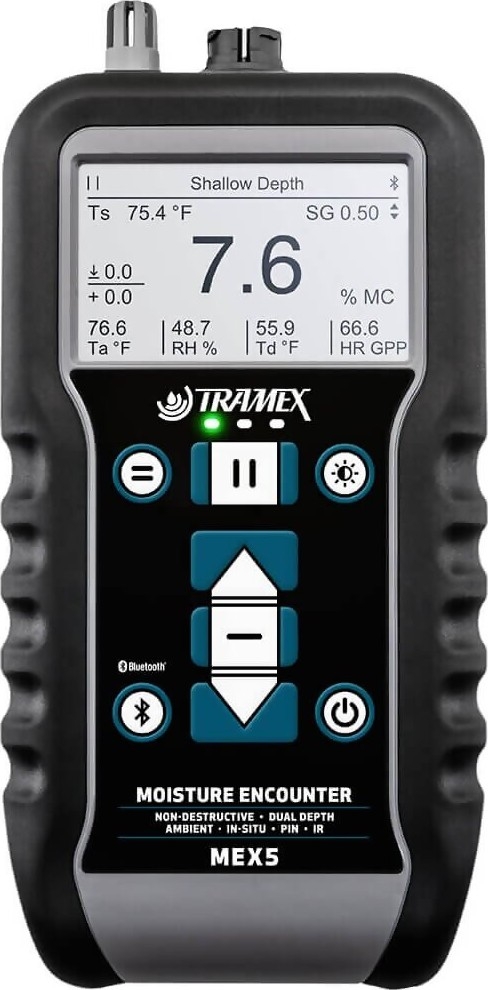

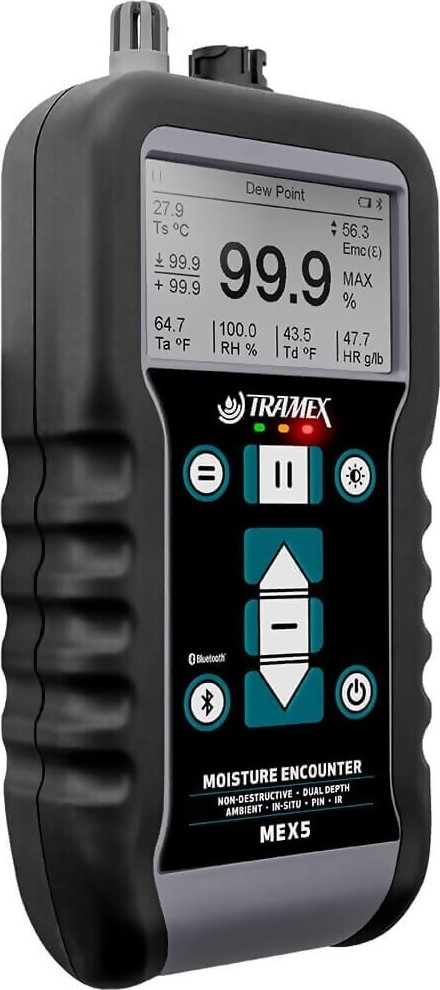

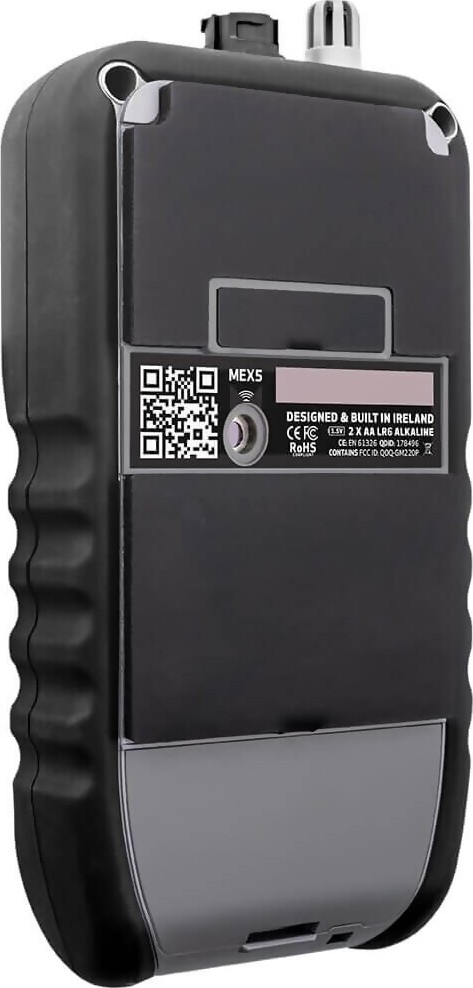

The Tramex MEX5 Moisture Encounter and Humidity Meter content in wood and drywall and provides comparative readings in various building materials such as roofing, plaster, tile and masonry. It also features a built-in hygrometer for ambient conditions and psychrometric values, an Infrared Surface Thermometer and also incorporates optional external in-situ RH probes for in-situ equilibrium RH readings, as well as Pin probes for wood, drywall, and WME readings. These individual and collective features make the Tramex MEX5 Moisture Encounter and Humidity Meter a essential and indispensable asset for professionals in the building moisture inspection and restoration industry

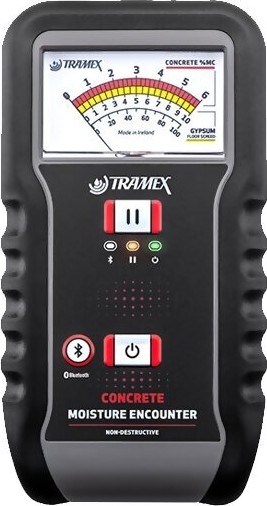

The Tramex CME5 Concrete Moisture Encounter Non Destructive Moisture Meter is a non-destructive meter for measuring moisture content instantly in concrete slabs per ASTM F2659 and giving comparative or equivalent readings in other cementitious floor screeds. Easy-to-use, giving precise and repeatable results, the Concrete Moisture Encounter allows the user to make multiple tests over a large area in the shortest possible time.
The Tramex CME5 Concrete Moisture Encounter Non Destructive Moisture Meter detects and evaluates the moisture conditions within the slab or screed by non-destructively measuring the electrical impedance. A low frequency electronic signal is transmitted into the material under test via the electrodes in the base of the instrument. The strength of this signal varies in proportion to the amount of moisture present in the material. The Tramex CME5 Concrete Moisture Encounter Non Destructive Moisture Meter determines the strength of the current and converts this to a moisture content value for concrete slabs and a comparative value for other cementitious floor screeds, displayed on a large clear analog dial.
The Tramex RHP-SNW-B Short Narrow Wand Relative Humidity Probe, 5" (127mm) Short Narrow Wand Relative Humidity Probe has a 4mm diameter and is ideal for taking Relative Humidity Readings in small or narrow crevices, in between tiles, and for the evaluation of moisture conditions of wall and cavity structures within the building envelope. The probe measures Relative Humidity, Temperature, Dew Point temperature and grains per pound (grams per kilo) humidity ratio. This thin probe is ideal for use by Flood and Water Damage Restoration as well as Building Survey professionals. The Tramex Relative Humidity Probes are the most advanced, resilient and re-usable RH probes on the market today, allowing the user to evaluate moisture conditions within the building structure and can be used with Tramex digital meters and DataLoggers. The speed and accuracy of the Tramex Hygro-i2® probes set them apart from all other RH probes on the market.
Kit Contents
Features
Tramex MEX5 Moisture Encounter and Humidity Meter - Features

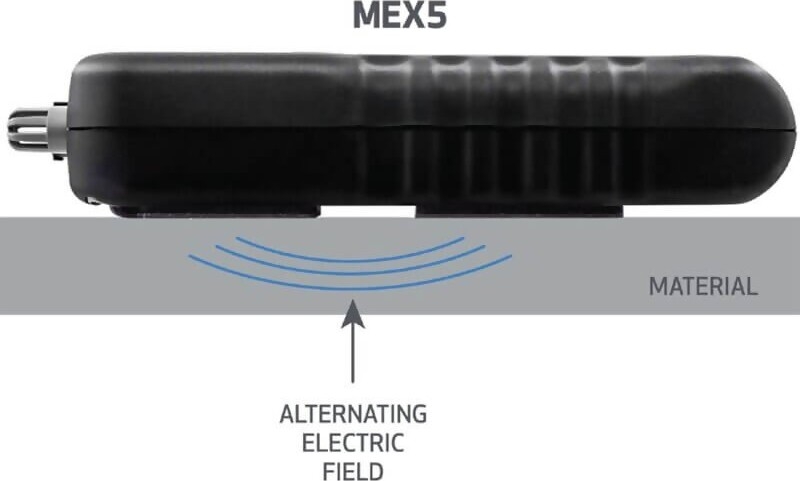

NDT - Non destructive testing
- %MC dual depth measurement of wood
- Comparative dual depth of drywall, roofing, plaster, tile and masonry
- Dual depth comparative readings of surface and core moisture for eliminating influence of substrate on moisture testing of coverings
- LED indicator Low/Med/High for all NDT scales
- Built-in Hygrometer readings on permanent display
- Built-in Surface Temperature Infrared Thermometer
- Adjustable Specific Gravity for NDT wood readings
- Baseline reference reading set point adjuster to compare to known dry / drying goal reading
Built-in hygrometer and Infrared Surface Thermometer
- Psychrometric evaluations of Ambient RH, Temp, Dew Point Temp, Humidity Ratio (GPP, g/kg)
- Sufrace Temperature
- Delta Temperature value
- Enthalpy readings
- Emissivity adjustment for surface temperature correction

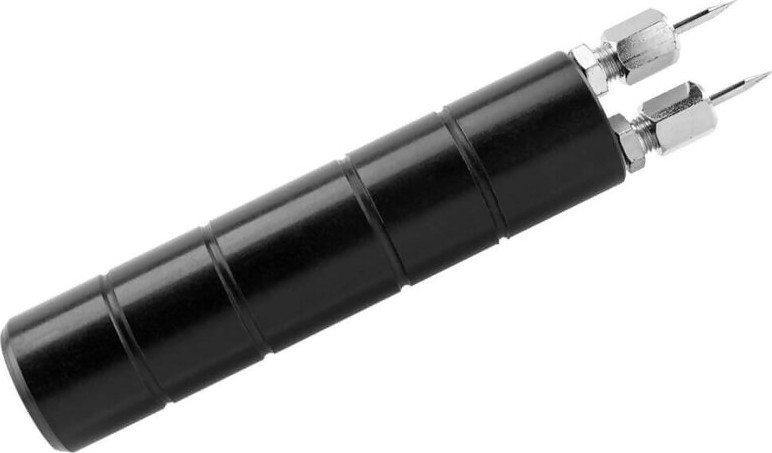

Pin Probe (optional plug-in probe)
- Variety of external pin probes and electrodes can be used
- %MC wood, pre-set international standards / access to various preset wood species
- WME readings
- Drywall %MC
- Auto calibration check
- Temperature correction of %MC in wood
- EMC Expected Moisture Content indication based on ambient conditions and wood selection
In-Situ Equilibrium RH Probe (optional plug-in probe)
- Variety of external RH probes can be used:
- In-situ RH probes for concrete moisture testing
- In-situ RH for probes for the building envelope, building materials, insulation, crawl spaces, HVAC systems.
Uses
- Locating moisture-related problems and relative humidity issues within and behind a variety of building materials in the building envelope.
- Mapping the extent of moisture damage caused to buildings.
- Monitoring progressive drying conditions in the drying process of building materials and surfaces.
- Dual-Depth penetration allows for comparison of surface and core moisture and elimination of substrate influence on the testing of coverings.
Tramex CME5 Concrete Moisture Encounter Non Destructive Moisture Meter - Features
- Non-destructive in operation with no need to probe, drill or mechanically damage the surface.
- Clear easy-to-read analog dial.
- Instant and precise readings to a depth of approximately 3⁄4" into the slab.
- Bluetooth connection to accompanying IOS & Android App allowing for continual development and integration of apps and reporting.
- Hold function “freezes” meter reading when inspecting areas where the meter face is not visible, and for easy recording of data.
- Reproducible and reliable results.
- Spring-loaded contact pins compensate for uneven concrete and boost signal penetration.
- Rugged ergonomically designed enclosure.
Tramex RHP-SNW-B Short Narrow RH Probe - Features
- 5" (127mm) Long Probe for Deep Cavity Inspection.
- Fast Acclimation and Temperature response time.
- Proven robustness, Durable and Reusable.
- Best in class accuracy and reliable, even at high RH >90%.
- Measures giving in situ relative humidity and ambient RH, temperature, dew point temperature & grains per pound.
- Relative Humidity range: 0% to 100%
- Temperature Range: -40°C to 80°C (-40°F to 176°F)
- Best temperature accuracy of +/-0ºC to 90 ºC (2º over 32ºF to 194ºF)
Specifications
Tramex MEX5 Moisture Encounter and Humidity Meter - Specifications
| NDT Moisture content for Wood | 0 - 30% MC |
| NDT Comparative for Building Materials | 0 - 100 |
| Pin % MC Wood | 6 - approx 50% MC |
| Pin % MC Drywall | 0 - 8.5% MC |
| Relative Humidity | 0 - 99% |
| With optional Hygro-i2 ® Probe | Humidity accuracy: 0% - 99%RH +/- 2% @ 25°C / 77°F |
Tramex CME5 Concrete Moisture Encounter Non Destructive Moisture Meter - Specifications
| Display | Analogue |
| Depth of penetration | approx. ¾" (20 mm) |
| Moisture Content for Concrete | 0 to 6 % |
| Comparative for Gypsum floor screed | 0 to 10 |
| Reference scale | 0 to 100 |
Tramex RHP-SNW Short Narrow Wand Relative Humidity Probe
| Range | 0 → 100%RH |
| Accuracy | 0% → 99%RH ±2.0%RH (@ 77°F (25°C)) |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
| Range | -40°F → 257°F (-40°C → 125°C) |
| Accuracy | ±0.1°F Range 68°F → 140°F
(±0.1 °C Range 20°C → 60°C) |
| Sensor Protection | PTFE Film protects sensor opening from water & dust |
| Drift | <0.04°F (0.03°C) per year |
| NIST traceable | (National Institute of Standards and Technology) |
