Dakota Ultrasonics BT1-DL (TI-MINIMAX) Bolt Tension Monitor Meter Z-182-0002 / Z-156-0008 Extensometer

See More Bolt Tension Meter and Monitors

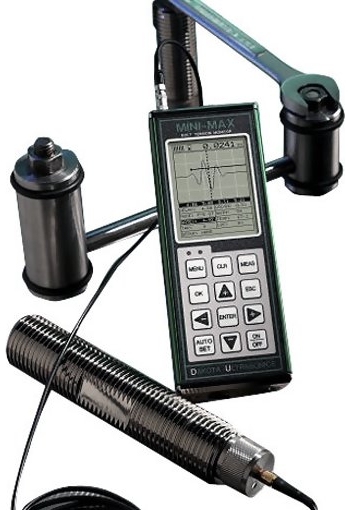

Dakota Ultrasonics TI-MINIMAX-C Bolt Tension Meter Z-182-0002

Probe Sold Separately

The first cost effective ultrasonic solution available on the market

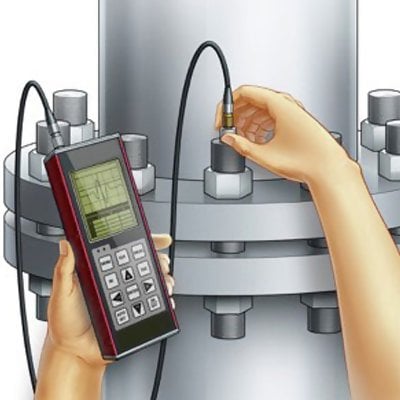

Effectively monitor your bolts during periodic shutdowns over the service life of the fastener

Bolt Tension Meter

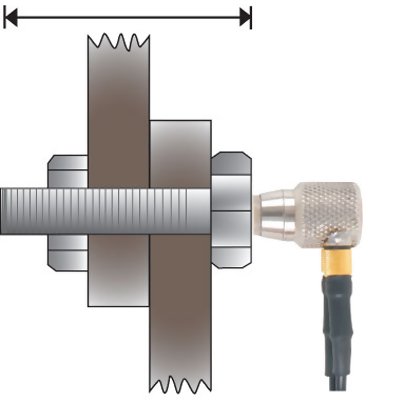

The Dakota Ultrasonics BT1-DL (TI-MINIMAX) Bolt Tension Monitor Meter Z-182-0002 / Z-156-0008 Extensometer, is a state of the art instrument designed to measure elongation produced by tightening a threaded fastener. The Dakota Ultrasonics BT1-DL (TI-MINIMAX) Bolt Tension Monitor Meter Z-182-0002 / Z-156-0008 Extensometer can measure the elongation very accurately in fasteners of virtually any material from 1/2 inch to 4 feet in length. The measurement is achieved by determining the change in the transit time of an ultrasonic shock wave along the length of the fastener as the fastener is tightened by any method. The on-board microcomputer automatically interprets this time measurement to display the time(nanoseconds), elongation, load, stress, or %strain from stretching a fastener.

line

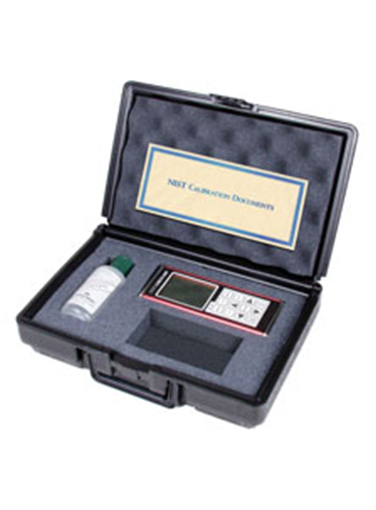

Kit Contents
line

Dakota Ultrasonics BT1-DL (TI-MINIMAX) Bolt Tension Monitor Meter
4 oz. Bottle of Couplant
RS232 Transfer Cable
Lemo to DB9 M/F 10' Lemo to Microdot Transducer Cable
Windows Utility Software
2 AA batteries
Operation Manual
Carrying Case

line
Features
line

The first cost effective ultrasonic solution available on the market.
Visually compare the unloaded to the loaded waveform.
Display Options - RF, Rectified, Large Digits with Limits Bar.
Effectively monitor your bolts during periodic shutdowns over the service life of the fastener.
Measurement quanities - Time (nanoseconds), Elongation, Load, Stress, and %Strain.
Display Resolution - 1/8" VGA 240 x 160 pixels.
Stores 8000 readings and waveforms in multiple groups.
Built-in Linear regression or vector for optimizing load measurements.
The Auto Set feature automatically optimizes detection and adjusts display.
Hi/Lo alarm tolerance limits work in conjunction with the data port and external pump shut-off device.
IP 65 Rated

line
Specifications
line

Measuring Range	From 1" to 48" (25.4mm to 122cm) bolts
Time	Nanoseconds
Elongation	Change in length (inches/millimeters)
Load	Force load applied (pounds kIP or kN Killonewtons)
Stress	Force for unit area stress applied (pounds kPSI or megapascals MPa)
Strain %	percentage strain applied (inches per inch or millimeters per millimeter)
Resolution	+/- .00001 inches (0.0001 mm)
Velocity Range	.0492 to .3936 in/ms 1250 to 9999 meters/sec
Calibration	Fixed, Single, and Two point zero calibration options. Select bolt material types from a preset or custom list.
Units	English & Metric - Fahrenheit & Centigrade
Measuring Modes	Pulse-Echo (standard) Pulse-Echo w/Gate (fine adjust)
Pulser	Square wave pulser with adjustable pulse width (spike, thin, wide)
Receiver	Manual or Auto Set gain control with 40dB range
Timing	10 bit 250 MHz digitizer
Display Modes	A-Scan - Rectified +/- (half wave view), or RF (full waveform view)
Alarm Limits	Set hi and lo tolerances with audible beeper, viewable scan bar, and visual LEDs
Data Logger (Internal)	Total of 8,000 readings, multiple bolt groups. Stores both waveform views, nanoseconds, elongation, load, stress, and strain for each reading
Memory	16 megabit non-volatile ram
Transducer	Single Element (1 to 10 MHz & 1/8" to 1" diameters)
Transducer Cable Lenght	10 foot (custom lengths available, inquire)
Temperature Probe	for automatic temperature compensation
Setup Memory	64 custom user defined setups. Factory setups can also be edited by the user
Gate	Gate used to fine adjust where the detection point occurs
Auto Set	Locates the detection signal, optimizes the gain setting, and adjusts the overall display to show the waveform and detection point automatically
Field Calibration	Vector & linear regression. Includes Factory calibration traceable to national standards
Power	Three 1.5V alkaline or 1.2V NiCad AA cells. Typically operates for 150 hours on alkaline and 100 hours on NiCad (charger not included.)
Dimensions	Width (2.5in/63.5 mm) Height (6.5 in/165 mm) Depth (1.24 in/31.5 mm)
Weight	13.5 ounces (with batteries)
Operating Temperature	14 to 140F (-10C to 60C)

line
Downloads
line

Dakota Ultrasonics BT1-DL (TI-MINIMAX) Bolt Tension Monitor Meter Z-182-0002 / Z-156-0008 - Instruction Manual (NEW MODEL)

Dakota Ultrasonics Dual Element Corrosion Thickness Gauges - List

Dakota Ultrasonics TI-MINIMAX Bolt Tension Monitor Meter Z-182-0002 Extensometer - Data Sheet

Dakota Ultrasonics TI-MINIMAX Bolt Tension Monitor Meter Z-182-0002 Extensometer - Instruction Manual (OLD MODEL)

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Dakota Ultrasonics BT1-DL (TI-MINIMAX) Bolt Tension Monitor Meter Z-182-0002 / Z-156-0008 Extensometer

$4,200.00

Recommended Accessories

PRICE

T-700-4405 1/8in., 10 Mhz Magenetic Probe for Steel Bolts

$897.00

T-700-2405 1/8in., 5 Mhz Magenetic Probe for Steel Bolts

$875.00

T-702-1405 1/4 in - 2.25Mhz Magnetic Probe for steel bolts

$897.00

T-702-2405 1/4in., 5 Mhz Magenetic Probe for Steel Bolts

$897.00

T-704-2405 1/2in., 5 Mhz Magenetic Probe for Steel Bolts in Petro/Power Plants

$919.00

T-704-1405 1/2in., 2.25 Mhz Magenetic Probe for Steel Bolts up to 53 in/1.3 Meter length

$919.00

T-702-4405 1/4in., 10 Mhz Magnetic Probe for Steel Bolts

$919.00

T-703-2405 3/8in., 5 Mhz Magenetic Probe for Steel Bolts

$908.00

T-706-1405 3/4in., 2.25 Mhz Magenetic Probe for Steel Bolts

$980.00

T-706-2405 3/4in., 5 Mhz Magenetic Probe for Steel Bolts

$980.00

T-602-1405 1/4 in 2.25 MHz Non-magnetic transducer

$330.00

FCR2510 1/4 in 10 Mhz Single Element Contact Transducer

$441.00

X-000-0011 3 in Steel Calibration Bar

$408.00

X-000-0010 One each of 3 in & 6 in Steel Cal Bars for Probe zero purposes

$688.00

A-156-8001 Magnetic Temperature Sensor for temp compensation

$627.00

CF4-MAX Coupling Fluid - 4oz

$72.00

TICC-MVX Protective Holder for TI-MVX, TI-PVX and TI-MMX-SDL

$94.00

BATT-RC4AA-WC 4-pack 2300mAh AA Ni-MH Rechargeable Batteries & Charger Kit

$39.00
