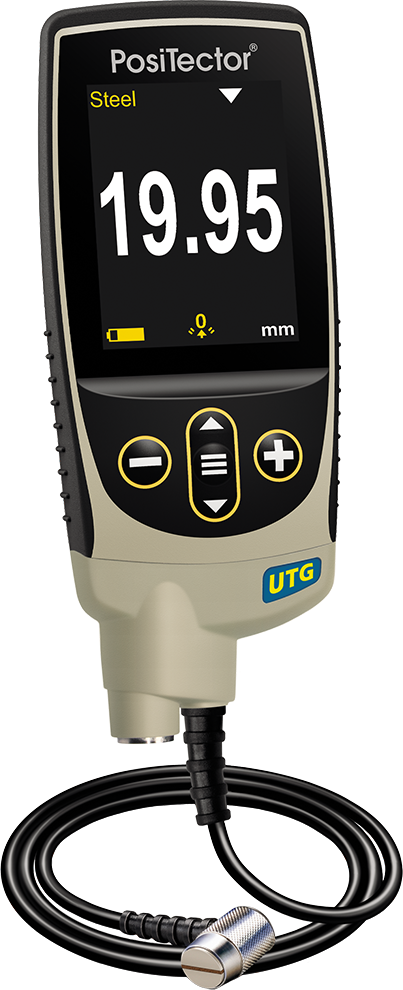

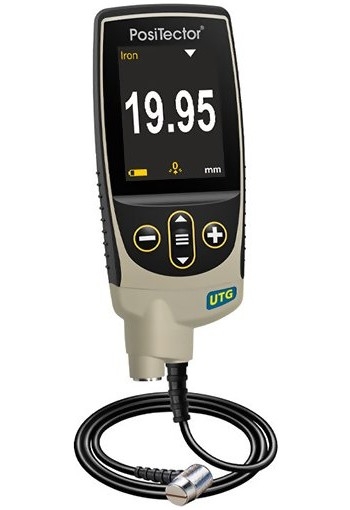

DeFelsko UTGCLF1-G PosiTector UTG CLF1 Standard Ultrasonic Thickness Gage with Low Frequency Probe , 2.25 MHz Dual Element

---

Measuring Range: 0.080" to 5.000" - 2.00 to 125.00mm

---

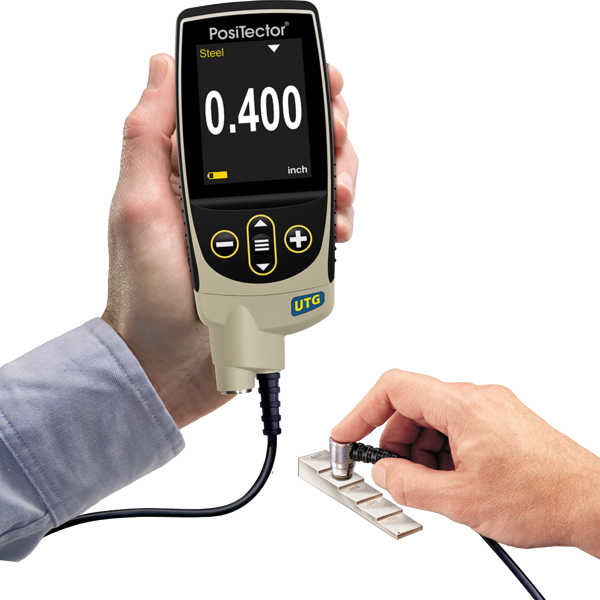

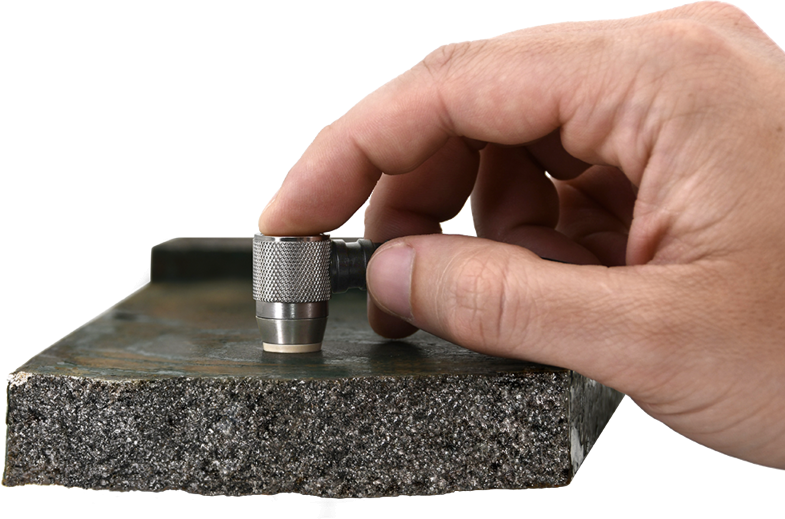

The DeFelsko UTGCLF1-G PosiTector UTG CLF1 Standard Ultrasonic Thickness Gage with Low Frequency Probe measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.

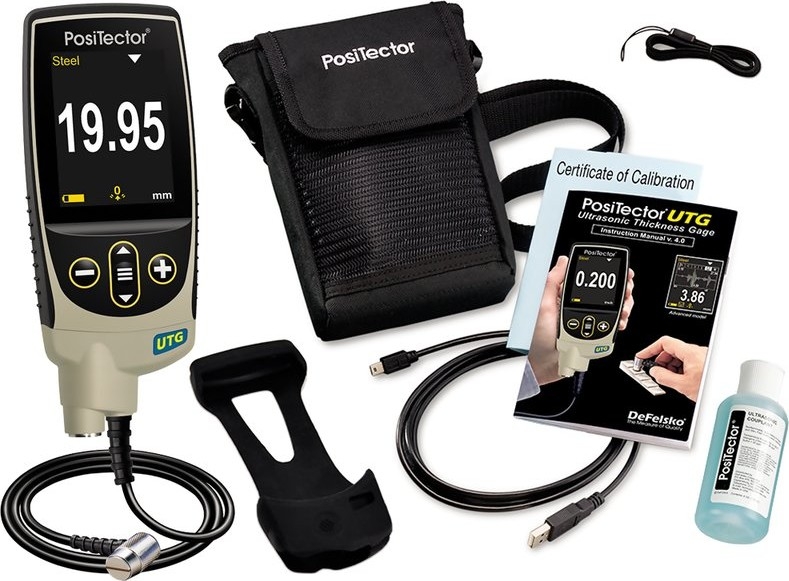

Kit Contents

The DeFelsko PosiTector UTG CLF1 Standard Ultrasonic Thickness Gage Kit includes everything needed for testing:

PosiTector Standard Gage Body BDYSTD-G PosiTector UTG CLF Probe PRBUTGCLF Couplant (ultrasonic gel) Precision plastic shims Protective rubber holster with belt clip Wrist strap 3 AAA alkaline batteries Protective lens shield PosiSoft Software and USB cable Long Form Certificate of Calibration traceable to NIST Nylon carrying case with shoulder strap and instructions Two (2) year warranty

Features

Simple

• Large, easy-to-read, graphics LCD
• Pre-programmed velocities - Simply select from a list of common materials or enter your own with ease
• Smart Couple™ - Eliminates inadvertent decoupling - ideal for analyzing large areas using multiple passes
• Enhanced one-handed menu navigation
• Flashing display — ideal in a noisy environment
• RESET feature instantly restores factory settings

Durable

• Braided stainless steel cable and heavy-duty strain reliefs for demanding applications (PosiTector UTG CX only)
• Impact resistant lens
• Wear-resistant probe tip
• Shock-absorbing, protective rubber holster with belt clip
• Two year warranty on gage body AND probe

Accurate

• Precision ultrasonic transducers provide fast, accurate readings
• Certificate of Calibration (Long Form) showing traceability to NIST included
• Conforms to national and international standards including ASTM E797
• Built-in temperature compensation ensures measurement accuracy

Versatile

• High contrast LCD with backlit display
• Single or two point adjustment
• Inch/mm switchable
• Selectable display languages
• Flip display enables right-side-up viewing
• Uses alkaline or rechargeable batteries (built-in charger)

Powerful

• Min Scan - measurement rate of up to 20 readings per second with onscreen min and max for quick inspection over a large area
• Statistics Mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
• HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
• Sealed USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included
• Software Updates via web keep your gage current
• Screen Capture - record and save image into USB flash memory for record keeping and review
• Software Solutions for viewing, analyzing & reporting data
• Every stored measurement is date and time stamped

Standard Model Features

Standard Models, includes ALL features as shown on left plus

• Storage of 250 readings per probe- stored readings can be viewed or downloaded

PosiSoft Suite of Software

Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More
