    Product Description

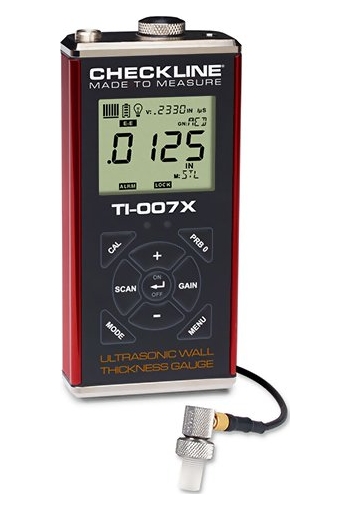

    Checkline TI-007X Precision Ultrasonic Wall Thickness Gauge
    Precision Ultrasonic Wall Thickness Gauge for Thin Walls
    Resolution: .0001" (0.001 mm)
    Includes NIST-Traceable Calibration Certificate, CE-Certified
    5-Year Warranty, Made in USA
    Datalogging: NO

    Range with Standard Delay Line Transducer 0.0060" - 1.000" / 0.150 - 25.40 mm

    Range with Contact Transducers up to 36.00" / 915.0 mm

    The Checkline TI-007X is a precision ultrasonic wall thickness gauge designed for high-resolution measurements on thin-wall metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.

    The TI-007X has measuring range in steel from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in Echo-Echo Mode (E-E) as well as automatically switch to Interface Echo Mode (I-E)when measuring thicker materials, For measurement of plastics, the user would select Plastic Mode (PLAS) and use the option Graphite Delay Line Tip (p/n X-633-0000).

    Additional Measuring Modes include Differential (DIFF) where a user sets a "nominal value" and the gauge displays the ± difference between then nominal and actual wall thickness, Alarm (user-set Hi/Low Limits) trigger Hi/Lo LED's when the measured values are out of tolerance and Velocity Mode

    The TI-007X can also be used with single element contact transducers for wall thickness measurements up to 36 inches (923 mm). Although the TI-007X does not have any built-in memory, it can transfer single values (value on the display) via the USB port to a PC or compatible data collector. No Software is required.


    line
    Kit Contents
    line

    • Checkline TI-007X Precision Ultrasonic Wall Thickness Gauge
    • Probe
    • 4 oz. bottle of coupling fluid
    • USB-C Data transfer cable
    • 2 AA batteries
    • NIST Traceable Calibration Certificate
    • Carrying case
    • Instruction Manual


    line
    Features
    line

    • Includes NIST Traceable Calibration Certificate
    • Resolution of 0.0001 inch (0.001 mm)
    • Large, backlit LCD display retains last reading
    • Selectable units of inch or mm
    • Selectable Backlight ON/OFF/AUTO
    • Optional serial RS-232 or Bluetooth output
    • IP 65 Rated for protection even in the toughest field conditions
    • Operates on two (2) AA Batteries - 45 hours continuous operation
    • Powered by: 120MHz FPGA timing & 100 volt spike pulser
    • Measure Modes: Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS)
    • Additional Modes Include Differential (from user-entered "nominal value"), Alarm (user-set Hi/Low Limits) and Velocity Mode
    • LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero and units
    • Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
    • Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
    • USB Data output of single values for transfer to data collection devices (no internal memory)
    • Adjustable GAIN (AGC) in 5 steps to fine tune the gauge for use on challenging materials or applications
    • Can be used with both Single Element Delay Line and contact transducers (5 to 20MHz)
    • CE-Certified
    • Warranty: Gauge: 5 Years Probes: 90 Days
    • Made in the USA


    line
    Specifications
    line

    Total Measuring Range | (Steel)0.006 - 36.000 inches | 0.15 - 924 mm | (depends on material and transducer/probe type)
    Range with Standard Probe0.0060-1.0000" (0.15-25.40 mm) with standard delay line transducer in steel
    Resolution0.0001" (0.001 mm) . 0.001" (0.01 mm), user-selected units and resolution
    Measuring ModesPulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS), Differential, Alarm, Scan and Velocity (VX)
    GainAutomatic time dependent gain (TDG) with manual override
    Velocity Range0.0120 to .7300 in/μs (305 to 18,542 m/sec)
    Probe (Standard)1/4" diameter, 15 MHz delay line transducer with cable (p/n T-402-5507)
    Probes (optional)Various Single Element Delay Line and Contact Transducers (5 to 20MHz)
    Cable4 ft. (1.2 m) with Microdot/Lemo00 connector.
    DisplayMulti-function 7 segment 4.5 digit liquid crystal display with Back-light
    Display BacklightBacklight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
    Display Update Rate10 Hz (10 updates/sec)
    OutputUSB single value only (no internal memory) TI-007DLX for a model with build-in memory for 40,000 values USB output
    Output OptionalRS-232 and Bluetooth
    Operating Temperature-22 to 167F (-30 to 75C)
    Battery Type2x AA 1.5V alkaline, 1.2V NiCad, or 1.5V lithium AA cells (rechargeable batteries can be used)
    Battery LifeTypically operates for 35 hours on alkaline and 18 hours on NiCad
    Weight11 ounces (308 grams)
    Dimensions2.5 x 5.17 x 1.25" | (64 x 131 x 32 mm)
    HousingExtruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
    Housing ProtectionIP65
    CertificationsNIST Traceable and MIL-STD-45662A
    KeypadSealed membrane that is resistant to both water and petroleum products
    Seven or eight tactile-feedback keys
    Pulse Repetition Frequency (PRF)200 Hz (200 pulses/sec)
    To Lock SettingsWith gauge powered off, press and hold the "+" key while powering on the gauge | The LOCK icon will be illuminated on the Display
    To unLock SettingsWith gauge powered off, press and hold the "-" key while powering on the gauge | The LOCK icon will turn off
    WarrantyGauge: 5 Years | Probes: 90 Days


    line
    Delay Line Tips for TI-007X
    line

    P/N Description Standard / Optional Image
    X-231-0000 1/4" x 3/8" for all metals (Short) Standard
    X-241-0000 1/4" x 1/2" for all metals (Long) Standard
    X-633-0000 1/4" x 3/8" Graphite Tip for thin plastics (Graphite Short) OPTIONAL


    line
    Related Products
    line

    TI-25-UW-50
    50 Foot Underwater Probe / Cable Assembly

    • 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors
    related

    line

    V-Block
    Ultrasonic Transducer Holder

    related

    line

    TI-PVX
    Precision Ultrasonic A-scan Thickness Gauge

    • Hardware AGC gain control for multiple echo and thru-paint measurement
    • 16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications
    • PVX is equipped with an alpha-numeric data logger to provide increased versatility for those custom reporting needs
    related


    line
    Downloads
    line

    Checkline TI-007X Precision Ultrasonic Wall Thickness Gauge - Data Sheet
    Checkline TI-007X Precision Ultrasonic Wall Thickness Gauge - Instruction Manual
    Checkline TI-007X Precision Ultrasonic Wall Thickness Gauge - Add Couplant Notice

    F.A.Q.

    Do Checkline Ultrasonic Thickness Gauges require any training for use?

    No. Checkline Ultrasonic Thickness Gauges are designed for simple operation and feature easy-to-use instruction manuals. We also provide technical support via telephone and/or email, and a 30-day money back guarantee.

    Are Checkline Ultrasonic Thickness Gauges calibrated at the factory?

    Yes. Checkline Ultrasonic Thickness Gauges arrive fully calibrated and ready to measure.

    Do Checkline Ultrasonic Thickness Gauges include Certificate of Calibration?

    Yes. Checkline Ultrasonic Thickness Gauges Include NIST-Traceable Calibration Certificate, CE-Certified

    Can I measure the thickness of non-metallic materials like plastic and rubber with Ultrasonic Thickness Gauges?

    Yes. Checkline Ultrasonic Thickness Gauges features several preprogrammed sound velocities for common materials.

    Can Checkline Ultrasonic Thickness Gauges measure cast/ductile iron or cast aluminum?

    Yes. Checkline Ultrasonic Thickness Gauges instruments are designed to accurately measure the wall thickness of carbon steel, aluminum, stainless steel and plastic.
