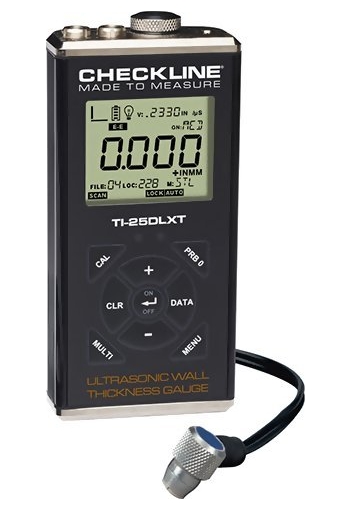

Checkline TI-25DLXT Data-Logging Thru-Paint Ultrasonic Thickness Gauge with 8 Presets, Adjustable Velocity and the ability to Calibrate to a Sample of Known Thickness
Includes NIST-Traceable Calibration Certificate, CE-Certified
5-Year Warranty, Made in USA
Datalogging: Built-in datalogging for 10,000 data values, USB Output
Measuring Range on Steel (with standard T-102-2700 probe)
Pulse-Echo (PE) Mode (Pit & Flaw Detection) - 0.040 to 8.00 inches / 1.00 to 199.9mm
Echo-Echo (EE) Mode (Through Paint & Coatings) - 0.100 to 1.000 inch / 2.54 to 25.40 mm
Total Measuring Range (Probe Dependant)
Pulse-Echo (PE) Mode (Pit & Flaw Detection) - 0.025 to 36.000 inches / 0.63 to 914.4 mm
Echo-Echo (EE) Mode (Through Paint & Coatings) - 0.100 to 1.000 inch / 2.54 to 25.40 mm
The Checkline TI-25DLXT Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics from one side. When operated in E-E Mode (Thru-Paint Mode), the coating is eliminated from the reading and the gauge will display only the thickness of the metal wall.
The Checkline TI-25DLXT offers datalogging for 10,000 values with 250 readings per batch, up to 40 separate batches and USB Output. Data can be transferred into any program in CSV format or viewed in Datacomm Software (free download).
The TI-25DLXT permits the operator to select from 8 preset materials as well as program 2 custom material velocities, plus allows free adjustment of the velocityand allows the end-user to calibrate to a sample of known thickness where the velocity is automatically calculated. Additionally, to optimize linearity over a wide range, the user can perform a 2 point calibration to two samples of known thickness. The optimal velocity is automatically calculated to provide the highest accuracy and linearity between the low and high calibration points.
The TI-25DLXT's probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed (IP65) to provide trouble-free operation under the toughest field conditions.
The TI-25DLXT can be used with any of the following hi-damped dual-element transducers specifically designed for use with E-E Thru-Paint Mode.
T-101-2700, 3/16" Diameter, 5.0 MHz Hi-damped transducer for thru paint measurement
T-101-3700, 3/16" Diameter, 7.5 MHz Hi-damped transducer for thru paint measurement
T-102-2700, 1/4" Diameter, 5.0 MHz Hi-Damped transducer for thru paint measurement - Standard Probe
T-102-3700, 1/4" Diameter, 7.5 MHz Hi-Damped Transducer for thru paint measurement
T-104-2700, 1/2" Diameter, 5.0 MHz Hi-Damped Transducer for thru paint measurement
T-104-9700, 1/2" diameter, 3.5 MHz Hi-Damped transducer for thru paint measurement

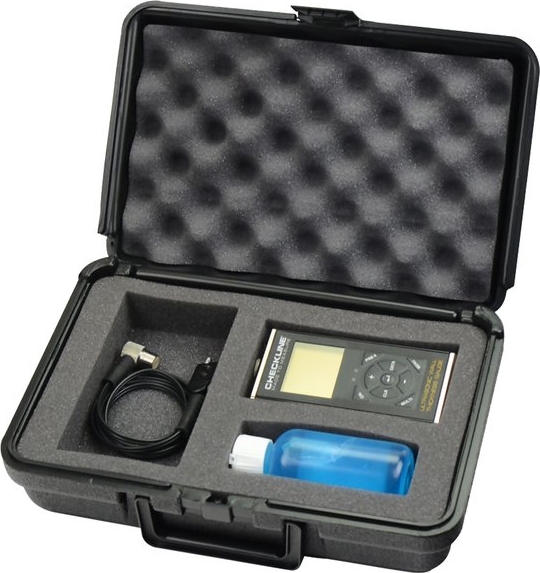

Kit Contents
- Checkline TI-25DLXT Thru-Paint Ultrasonic Wall Thickness Gauge
- Probe
- 4 oz. bottle of coupling fluid
- 2 AA batteries
- USB output cable
- NIST-Traceable Calibration Certificate
- Carrying case
- Instruction Manual
| |
Features
- Includes NIST Traceable Calibration Certificate
- Built-in datalogging for 10,000 data values stored in up to 40 batches with 250 values/batch with USB Output.
- Data can be transferred into any program in ".csv" format or viewed in Datacomm Software (free download)
- Includes both Pulse-Echo Mode (Pit & Flaw Detection) and Echo-Echo Mode (Through Paint & Coatings Mode)
- Using the standard probe T-102-2700, the gauge will read thru 0.040" coating thickness (1 mm)
- Using one of the optional probes T-104-2700, the gauge will read thru 0.075" coating thickness (1.9 mm)
- User can select from 8 preset materials as well as program 2 custom material velocities
- Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
- 2-Point Calibration to optimize linearity over a wide measurement range, automatically calculates the optimal acoustic velocity
- Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
- Adjustable GAIN in 5 steps to fine tune the gauge for use on challenging materials or applications
- Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
- The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65)
to provide trouble-free operation under the toughest field conditions - High visibility LCD Display is readable in all lighting conditions and temps as low as 22 °F (-30 °C)
- LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero, units and stored data
- Switch-selected units for inches or mm with Resolution of 0.001 inch (0.01 mm)
- Selectable Backlight ON/OFF/AUTO
- 5 Year Warranty, CE-Certified and Made in USA
Specifications
| Range in Steel | Pulse-Echo Mode (Pit & Flaw Detection) measures from 0.025 to 19.999 inches
(0.63 to 500 millimeters)
Echo-Echo Mode (Through Paint & Coatings) measures from 0.100 to 1.000 inch
(2.54 to 25.40 millimeters)
(range depends upon probe selected) - five probes to choose from |
| Resolution | 0.001 inch (0.01 mm) |
| Velocity Range | 0.0120 to .7300 in/μs. 305 to 18,542 meters/sec |
| LCD Display | Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes |
| Display Backlight | Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options |
| Display Update Rate | 10 Hz (10 updates/sec) |
| Probe (Standard) | 1/4", 5 MHz Hi-Damp Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2700 |
| Probes (optional) | 1 to 10 MHz, 3/16" up to 1 inch (custom probes available) |
| Probe Wearface | PEEK (Polyethylethylkytone) |
| Cable | 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors |
| Temp. Limits | Ambient: -30 to 75° C (-22 to 167° F)
Material: -20 to 100° C (0 to 200° F)
High temperature probes available |
| Battery Type | 2x AA batteries (rechargeable batteries can be used) |
| Battery Life | 45 hours continuous use |
| Weight | 308 grams (11 ounces) |
| Dimensions | 63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25") |
| Accessories | Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Housing | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed) |
| Housing Rating | IP65 |
| Certifications | NIST Traceable and MIL-STD-45662A |
| Keypad | Sealed membrane that is resistant to both water and petroleum products
Seven or eight tactile-feedback keys |
| Pulse Repetition Frequency (PRF) | 200 Hz (200 pulses/sec) |
| To Lock Settings | With gauge powered off, press and hold the "+" key while powering on the gauge
The LOCK icon will be illuminated on the Display |
| To unLock Settings | With gauge powered off, press and hold the "-" key while powering on the gauge
The LOCK icon will turn off |
| GAIN Adjustment | Adjustable GAIN 5-position (VLOW, LOW, MED, HIGH, VHI), in 3dB steps, 40-52dB |
| Measuring Mode | Pulse-Echo (P-E), Echo-Echo (E-E, Thru-Paint Mode), Scan, Differential, Alarm and VX-velocity |
| Output Type | USB-C (plug-n-play, view files on PC which can be dragged and dropped) |
| Built-In Memory | 10,000 data values stored in up to 40 batches with 250 values/batch |
| Memory Type | Sequential data file (single column) |
| Warranty | Gauge: 5 Years
Probes: 90 Days |
Measuring Limits
| Minimum Radius for Convex Surfaces | 0.350" (8.89 mm) |
| Minimum Radius for Concave Surfaces | 3" (76.2 mm) |
| Minimum Headroom | 1" (25.0 mm) |
| Minimum Sample Diameter | 0.150" (3.8 mm) |
| Minimum Substrate Thickness - F | na |
| Minimum Substrate Thickness - NFe | na |
Related Products
Downloads
F.A.Q.
Do Checkline Ultrasonic Thickness Gauges require any training for use?
No. Checkline Ultrasonic Thickness Gauges are designed for simple operation and feature easy-to-use instruction manuals. We also provide technical support via telephone and/or email, and a 30-day money back guarantee.
Are Checkline Ultrasonic Thickness Gauges calibrated at the factory?
Yes. Checkline Ultrasonic Thickness Gauges arrive fully calibrated and ready to measure.
Do Checkline Ultrasonic Thickness Gauges include Certificate of Calibration?
Yes. Checkline Ultrasonic Thickness Gauges Include NIST-Traceable Calibration Certificate, CE-Certified
Can I measure the thickness of non-metallic materials like plastic and rubber with Ultrasonic Thickness Gauges?
Yes. Checkline Ultrasonic Thickness Gauges features several preprogrammed sound velocities for common materials.
Can Checkline Ultrasonic Thickness Gauges measure cast/ductile iron or cast aluminum?
Yes. Checkline Ultrasonic Thickness Gauges instruments are designed to accurately measure the wall thickness of carbon steel, aluminum, stainless steel and plastic.
