Checkline TI-25DLXT-WOP Data Logging Thru-Paint Ultrasonic Thickness Gauge Kit, without Probe

See More Ultrasonic Thickness Gauges

Checkline TI-25DLXT-WOP Data Logging Thru-Paint Ultrasonic Thickness Gauge Kit, without Probe

See More Ultrasonic Thickness Gauges
Price:
$1,815.00
    warrenty

    Product Description
    Checkline TI-25DLXT Data-Logging Thru-Paint Ultrasonic Thickness Gauge with 8 Presets, Adjustable Velocity and the ability to Calibrate to a Sample of Known Thickness
    Includes NIST-Traceable Calibration Certificate, CE-Certified
    5-Year Warranty, Made in USA
    Datalogging: Built-in datalogging for 10,000 data values, USB Output

    Measuring Range on Steel (with standard T-102-2700 probe)
    Pulse-Echo (PE) Mode (Pit & Flaw Detection) - 0.040 to 8.00 inches / 1.00 to 199.9mm
    Echo-Echo (EE) Mode (Through Paint & Coatings) - 0.100 to 1.000 inch / 2.54 to 25.40 mm

    Total Measuring Range (Probe Dependant)
    Pulse-Echo (PE) Mode (Pit & Flaw Detection) - 0.025 to 36.000 inches / 0.63 to 914.4 mm
    Echo-Echo (EE) Mode (Through Paint & Coatings) - 0.100 to 1.000 inch / 2.54 to 25.40 mm

    The Checkline TI-25DLXT Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics from one side. When operated in E-E Mode (Thru-Paint Mode), the coating is eliminated from the reading and the gauge will display only the thickness of the metal wall.

    The Checkline TI-25DLXT offers datalogging for 10,000 values with 250 readings per batch, up to 40 separate batches and USB Output. Data can be transferred into any program in CSV format or viewed in Datacomm Software (free download).

    The TI-25DLXT permits the operator to select from 8 preset materials as well as program 2 custom material velocities, plus allows free adjustment of the velocityand allows the end-user to calibrate to a sample of known thickness where the velocity is automatically calculated. Additionally, to optimize linearity over a wide range, the user can perform a 2 point calibration to two samples of known thickness. The optimal velocity is automatically calculated to provide the highest accuracy and linearity between the low and high calibration points.

    The TI-25DLXT's probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed (IP65) to provide trouble-free operation under the toughest field conditions.

    The TI-25DLXT can be used with any of the following hi-damped dual-element transducers specifically designed for use with E-E Thru-Paint Mode.

    T-101-2700, 3/16" Diameter, 5.0 MHz Hi-damped transducer for thru paint measurement
    T-101-3700, 3/16" Diameter, 7.5 MHz Hi-damped transducer for thru paint measurement
    T-102-2700, 1/4" Diameter, 5.0 MHz Hi-Damped transducer for thru paint measurement - Standard Probe
    T-102-3700, 1/4" Diameter, 7.5 MHz Hi-Damped Transducer for thru paint measurement
    T-104-2700, 1/2" Diameter, 5.0 MHz Hi-Damped Transducer for thru paint measurement
    T-104-9700, 1/2" diameter, 3.5 MHz Hi-Damped transducer for thru paint measurement


    line

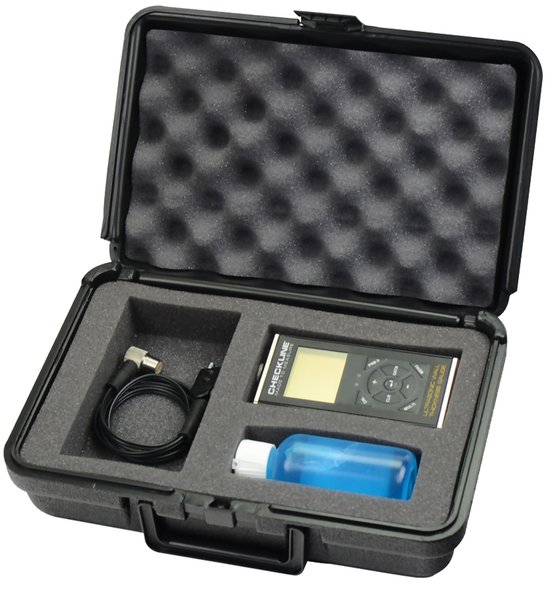

    Kit Contents
    line

    • Checkline TI-25DLXT Thru-Paint Ultrasonic Wall Thickness Gauge
    • 4 oz. bottle of coupling fluid
    • 2 AA batteries
    • USB output cable
    • NIST-Traceable Calibration Certificate
    • Carrying case
    • Instruction Manual
    Probe not included


    line
    Features
    line

    • Includes NIST Traceable Calibration Certificate
    • Built-in datalogging for 10,000 data values stored in up to 40 batches with 250 values/batch with USB Output.
    • Data can be transferred into any program in ".csv" format or viewed in Datacomm Software (free download)
    • Includes both Pulse-Echo Mode (Pit & Flaw Detection) and Echo-Echo Mode (Through Paint & Coatings Mode)
    • Using the standard probe T-102-2700, the gauge will read thru 0.040" coating thickness (1 mm)
    • Using one of the optional probes T-104-2700, the gauge will read thru 0.075" coating thickness (1.9 mm)
    • User can select from 8 preset materials as well as program 2 custom material velocities
    • Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
    • 2-Point Calibration to optimize linearity over a wide measurement range, automatically calculates the optimal acoustic velocity
    • Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
    • Adjustable GAIN in 5 steps to fine tune the gauge for use on challenging materials or applications
    • Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
    • The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65)
      to provide trouble-free operation under the toughest field conditions
    • High visibility LCD Display is readable in all lighting conditions and temps as low as 22 °F (-30 °C)
    • LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero, units and stored data
    • Switch-selected units for inches or mm with Resolution of 0.001 inch (0.01 mm)
    • Selectable Backlight ON/OFF/AUTO
    • 5 Year Warranty, CE-Certified and Made in USA


    line
    Specifications
    line

    Range in SteelPulse-Echo Mode (Pit & Flaw Detection) measures from 0.025 to 19.999 inches
    (0.63 to 500 millimeters)
    Echo-Echo Mode (Through Paint & Coatings) measures from 0.100 to 1.000 inch
    (2.54 to 25.40 millimeters)
    (range depends upon probe selected) - five probes to choose from
    Resolution0.001 inch (0.01 mm)
    Velocity Range0.0120 to .7300 in/μs. 305 to 18,542 meters/sec
    LCD DisplayMulti-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes
    Display BacklightBacklight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
    Display Update Rate10 Hz (10 updates/sec)
    Probe (Standard)1/4", 5 MHz Hi-Damp Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2700
    Probes (optional)1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
    Probe WearfacePEEK (Polyethylethylkytone)
    Cable1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
    Temp. LimitsAmbient: -30 to 75° C (-22 to 167° F)
    Material: -20 to 100° C (0 to 200° F)
    High temperature probes available
    Battery Type2x AA batteries (rechargeable batteries can be used)
    Battery Life45 hours continuous use
    Weight308 grams (11 ounces)
    Dimensions63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25")
    AccessoriesProbe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
    HousingExtruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
    Housing RatingIP65
    CertificationsNIST Traceable and MIL-STD-45662A
    KeypadSealed membrane that is resistant to both water and petroleum products
    Seven or eight tactile-feedback keys
    Pulse Repetition Frequency (PRF)200 Hz (200 pulses/sec)
    To Lock SettingsWith gauge powered off, press and hold the "+" key while powering on the gauge
    The LOCK icon will be illuminated on the Display
    To unLock SettingsWith gauge powered off, press and hold the "-" key while powering on the gauge
    The LOCK icon will turn off
    GAIN AdjustmentAdjustable GAIN 5-position (VLOW, LOW, MED, HIGH, VHI), in 3dB steps, 40-52dB
    Measuring ModePulse-Echo (P-E), Echo-Echo (E-E, Thru-Paint Mode), Scan, Differential, Alarm and VX-velocity
    Output TypeUSB-C (plug-n-play, view files on PC which can be dragged and dropped)
    Built-In Memory10,000 data values stored in up to 40 batches with 250 values/batch
    Memory TypeSequential data file (single column)
    WarrantyGauge: 5 Years
    Probes: 90 Days


    line
    Measuring Limits
    line

    Minimum Radius for Convex Surfaces0.350" (8.89 mm)
    Minimum Radius for Concave Surfaces3" (76.2 mm)
    Minimum Headroom1" (25.0 mm)
    Minimum Sample Diameter0.150" (3.8 mm)
    Minimum Substrate Thickness - Fna
    Minimum Substrate Thickness - NFena


    line
    Related Products
    line

    TI-25-UW-50
    50 Foot Underwater Probe / Cable Assembly

    • 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors
    related

    line

    V-Block
    Ultrasonic Transducer Holder

    related


    line
    Downloads
    line

    Checkline TI-25DLXT Thru-Paint Ultrasonic Wall Thickness Gauge with Datalogging and USB Output - Data Sheet
    Checkline TI-25DLXT Thru-Paint Ultrasonic Wall Thickness Gauge with Datalogging and USB Output - Instruction Manual

    F.A.Q.

    Do Checkline Ultrasonic Thickness Gauges require any training for use?

    No. Checkline Ultrasonic Thickness Gauges are designed for simple operation and feature easy-to-use instruction manuals. We also provide technical support via telephone and/or email, and a 30-day money back guarantee.

    Are Checkline Ultrasonic Thickness Gauges calibrated at the factory?

    Yes. Checkline Ultrasonic Thickness Gauges arrive fully calibrated and ready to measure.

    Do Checkline Ultrasonic Thickness Gauges include Certificate of Calibration?

    Yes. Checkline Ultrasonic Thickness Gauges Include NIST-Traceable Calibration Certificate, CE-Certified

    Can I measure the thickness of non-metallic materials like plastic and rubber with Ultrasonic Thickness Gauges?

    Yes. Checkline Ultrasonic Thickness Gauges features several preprogrammed sound velocities for common materials.

    Can Checkline Ultrasonic Thickness Gauges measure cast/ductile iron or cast aluminum?

    Yes. Checkline Ultrasonic Thickness Gauges instruments are designed to accurately measure the wall thickness of carbon steel, aluminum, stainless steel and plastic.
