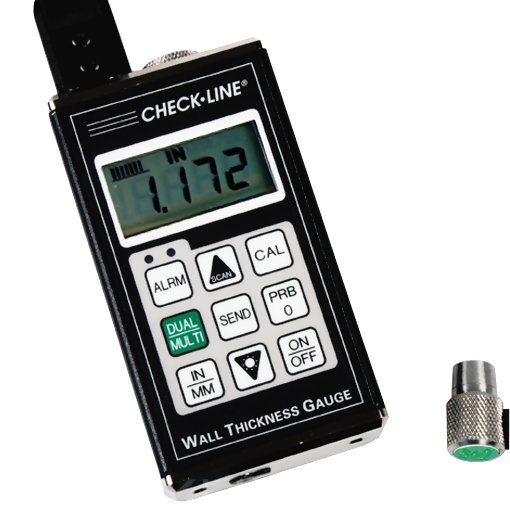

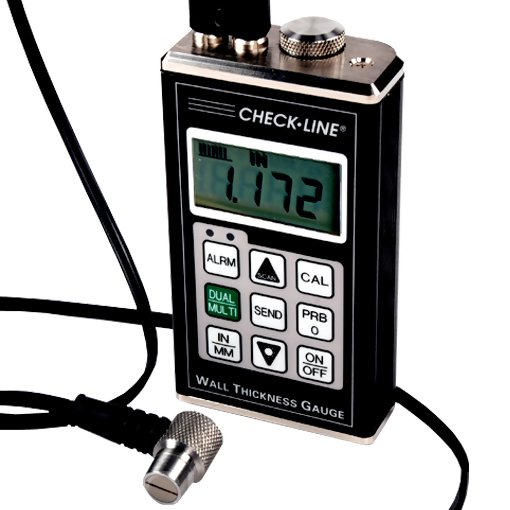

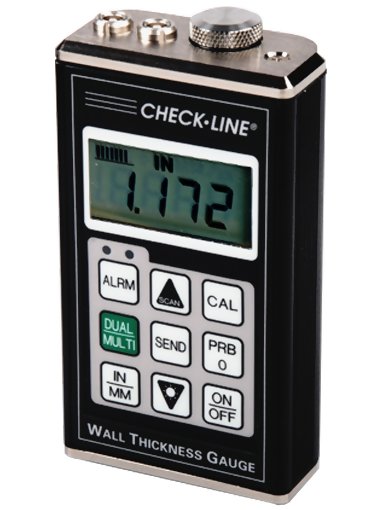

Checkline TI-25M-MMX Through Paint Ultrasonic Thickness Gauge

See More Ultrasonic Thickness Gauges

This product has been discontinued

Measures on coated materials and eliminates the coating from the measurement

Range: Pulse-Echo Mode (Pit & Flaw Detection) 0.025 - 19.99 inches 0.63 - 500 mm - Echo-Echo Mode (Through Paint & Coatings) 0.1 - 1 inch 2.54 - 25.4 mm

Resolution: 0.001" (0.01 mm)

Datalogging: NO

Measuring Range in Steel

Pulse-Echo Mode (Pit & Flaw Detection) measures from 0.025 to 19.999 inches (0.63 to 500 millimeters).

Echo-Echo Mode (Through Paint & Coatings) measures from 0.1 to 1 inch (2.54 to 25.4 millimeters).

The TI-25M-MMX Through Paint Ultrasonic Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

TI-25M-MMX Through Paint Ultrasonic Thickness Gauges can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.

The TI-25M-MMX Through Paint Ultrasonic Thickness Gauge probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.

line
Photo Gallery
line

line
Features
line

Ability to measure through paint and eliminate coatings
Resolution of 0.001 inch (0.01 mm)
Large, backlit LCD display retains last reading
Simple operator controls virtually eliminate training
Special-purpose probes are offered for a variety of applications
Switch-selected units for inches or mm
For underwater surveying, probe cable lengths up to 50 feet are optionally
CE Certified
Includes NIST Calibration Certificate

line Typical Applications line

typical

line Measuring Limits line

	Minimum Radius for Convex Surfaces	0.350" (8.89 mm)
	Minimum Radius for Concave Surfaces	3" (76.2 mm)
	Minimum Headroom	1" (25.0 mm)
	Minimum Sample Diameter	0.150" (3.8 mm)
	Minimum Substrate Thickness - F	na
	Minimum Substrate Thickness - NFe	na

line Specifications line

Range	Pulse-Echo Mode(Pit & Flaw Detection) measures from 0.025 to 19.999 inches (0.63 to 500 millimeters). Echo-Echo Mode (Through Paint & Coatings) measures from 0.1 to 1 inch (2.54 to 25.4 millimeters).
Resolution	.001" (0.01 mm)
Display	4½ - Digit, 0.5" Backlit LCD
Velocity Range	0.0492 to .3937 in./µs. (1250 to 10,000 meters/second)
Probe	5 MHz, 0.25" Diameter (6.35 mm)
Probe Wearface	PEEK (Polyethlethylketone)
Cable	4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. Limits	Ambient: -20 to 120° F (-30 to 50° C) Material: 0 to 200° F (-20 to 100° C) Special high temperature probes are optionally available
Battery Type	Two AA batteries
Battery Life	200 hours
Weight	7 ounces (196 g)
Size	2.5 x 4.5 x 1.25" (64 x 114 x 32 mm)
Accessories Included	Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
Warranty	Gauge: 5 Years Probes: 90 Days

line Model Selection Guide line

Selection Guide - Pit & Flaw Detection (Pulse-Echo) Mode

Model Number	Maximum Coating	Minimum Wall	Maximum Wall
All Models	0.020" (0.50mm)	0.100" (2.54mm)	6.000" (152.4mm)

Selection Guide - Thru-Paint (Echo-Echo) Model

Model Number	Maximum Coating	Minimum Wall	Maximum Wall
TI-25M-MMX	0.040" (1.00mm)	0.100" (2.54mm)	1.000" (25.4mm)
TI-25M-MMX-EXT	0.080" (2.00mm)	0.200" (5.08mm)	5.000" (127.0mm)

line Complete Kit line

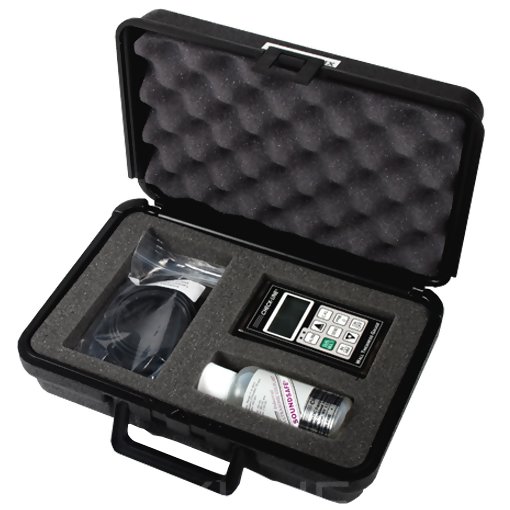

The TI-25M-MMX Through Paint Ultrasonic Thickness Gauge is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.

line Optional Accessories line

NIST-Traceable Steel Test Block
3 Sizes Available

Precision Machined and Finished
Includes NIST Report and Test Data

line

Uncertified Steel Test Block
For Ultrasonic Gauges

For convenient confirmation of thickness gauge calibration

line

TICC-M
Protective Holder for Ultrasonic Gauges

Constructed from heavy duty Cordura Nylon
Built-in belt loop

line

CF12
Coupling Fluid

Used to create an ultrasonic coupling between the probe and material to be measured
12 oz Bottle

line

V-Block
Transducer Holder

The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas

line Downloads line

Checkline TI-25M-MMX Through Paint Ultrasonic Thickness Gauge - Certificate

Checkline TI-25M-MMX Through Paint Ultrasonic Thickness Gauge - Data Sheet

Checkline TI-25M-MMX Through Paint Ultrasonic Thickness Gauge - Instruction Manual

line line

F.A.Q.

Do Checkline Ultrasonic Thickness Gauges require any training for use?

No. Checkline Ultrasonic Thickness Gauges are designed for simple operation and feature easy-to-use instruction manuals. We also provide technical support via telephone and/or email, and a 30-day money back guarantee.

Are Checkline Ultrasonic Thickness Gauges calibrated at the factory?

Yes. Checkline Ultrasonic Thickness Gauges arrive fully calibrated and ready to measure.

Do Checkline Ultrasonic Thickness Gauges include Certificate of Calibration?

Yes. Checkline Ultrasonic Thickness Gauges Include NIST-Traceable Calibration Certificate, CE-Certified

Can I measure the thickness of non-metallic materials like plastic and rubber with Ultrasonic Thickness Gauges?

Yes. Checkline Ultrasonic Thickness Gauges features several preprogrammed sound velocities for common materials.

Can Checkline Ultrasonic Thickness Gauges measure cast/ductile iron or cast aluminum?

Yes. Checkline Ultrasonic Thickness Gauges instruments are designed to accurately measure the wall thickness of carbon steel, aluminum, stainless steel and plastic.
