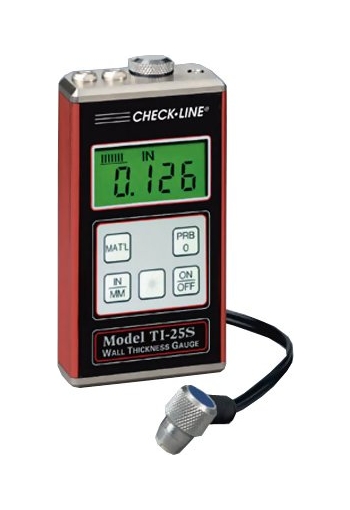

Checkline TI-25S Ultrasonic Thickness Gauge

See More Ultrasonic Thickness Gauges

More flexible for users that have a need to measure more than one material type

Range: 0.025 - 19.99 inches - 0.63 - 199.99 mm

Resolution:0.001" (0.01 mm)
Datalogging: NO

The TI-25S Ultrasonic Thickness Gauge is ideal for the person that tests a few different materials regularly. The TI-25S Ultrasonic Thickness Gauge contains 8 velocities of the most common materials (refer to complete list of Materials below) and two velocities that the user can set using a simple software program

The tool's backlit display is easy to read, even in dim light, and the unit operates for up to 200 hours on a single set of batteries.

The TI-25S Ultrasonic Thickness Gauge comes complete, ready to use, and is protected by our 5 year limited warranty.

Velocity Settings

The TI-25S Ultrasonic Thickness Gauge has 8 preset velocities and 2 custom velocities allowing the user to customize it for specific applications, or to tune the calibration to be optimized for a specific type of material. Each time the "MATL Key" is pressed the velocity will toggle from one to the next in a circular pattern. The list of preset velocities are as follows:

Aluminum 2024 (0.251 in/µs )
Stainless Steel 303(0.223 in/µs )
Steel4340 (0.233 in/µs)
Cast Iron (0.179 in/µs )
Plexiglass (0.106 in/µs )
PVC (0.094 in/µs)
Polystyrene (0.092 in/µs)
Polyurethane (0.070 in/µs)
Custom 1
Custom 2

Note: If the Custom 1 & 2 are needed, they are set using the PC software (free) & downloaded to gauge using the data cable (optional, p/n N-306-0010)

line
Features
line

Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions
Measurements displayed in inches, inches/microsecond, millimeters, and meters/second
Measures from 0.040 to 6.000 inches (1.00 to 150.0 millimeters) switch to select English or metric units
Four readings per second for single point measurements
8 pre-set velocities and 2 custom velocities
Ability to change between velocities without the use of computer software

line 10 User-Selected Material Types line

Each time the "Matl" key is pressed, the material type (calibration setting of the acoustic velocity) changes from one type to the other. The abbreviations, description and sequence is shown below.

*Note: If the Custom 1 & 2 are needed, they are set using the PC software (free) & downloaded to gauge using the data cable (optional, p/n N-306-0010)

line Typical Applications line

typical

line Measuring Limits line

	Minimum Radius for Convex Surfaces	0.350" (8.89 mm)
	Minimum Radius for Concave Surfaces	3" (76.2 mm)
	Minimum Headroom	1" (25.0 mm)
	Minimum Sample Diameter	0.150" (3.8 mm)
	Minimum Substrate Thickness - F	na
	Minimum Substrate Thickness - NFe	na

line Specifications line

Measuring Range	0.040 to 6.000 inches 1.00 to 150.0 millimeters depends on material and probe used
Range in Steel	0.025-6.00" (0.60-150.0 mm)
Resolution	.001" (0.01 mm)
Velocity Range	.0492 to .3937 in/µs 1250 to 10,000 meters/sec
Dimensions	2.5 W x 4.75 H x 1.25 D inches
Display	4½ - Digit, 0.5" Backlit LCD
Probe	1/4", 7.5 MHz, actual wearface is 3/8" (10 mm) Probe P/N: T-102-3300
Cable	4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. Limits	Ambient: -20 to 120° F (-30 to 50° C) Material: -0 to 200° F (-20 to 100° C Special high temperature probes are optionally available.
Battery Type	Two 1.5V alkaline or 1.2V NiCad AA cells.
Battery Life	Typically operates for 200 hours on alkaline and 130 hours on NiCad.
Weight	10 ounces (283 g)
Accessories Included	Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
Warranty	Gauge: 5 Years Probes: 90 Days

line Complete Kit line

Complete Kit includes: Gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate and Operating Instruction Manual - all in a foam-fitted carrying case

line Optional Accessories line

NIST-Traceable Steel Test Block
3 Sizes Available

Precision Machined and Finished
Includes NIST Report and Test Data

line

Uncertified Steel Test Block
For Ultrasonic Gauges

For convenient confirmation of thickness gauge calibration

line

TICC-M
Protective Holder for Ultrasonic Gauges

Constructed from heavy duty Cordura Nylon
Built-in belt loop

line

CF12
Coupling Fluid

Used to create an ultrasonic coupling between the probe and material to be measured
12 oz Bottle

line

V-Block
Transducer Holder

The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas

line

DataComm
Software

Free data acquisition software

line

N-306-0010
Transfer Cable
