Checkline TI-45NA General Purpose Wall Thickness Gauge for measuring on a variety of materials

---

Range: 0.040 - 8.00 inches- 1.00 - 200.00 mm

---

Resolution: .001" (0.01mm)

---

Datalogging: NO

---

Detachable Probe: YES

---

Measuring Range in Steel
0.040 - 8.00 inches
1.00 - 200.0 mm

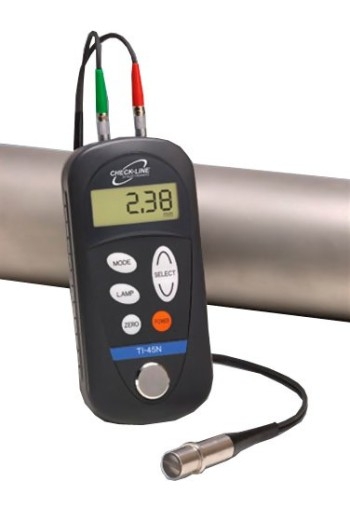

The Checkline TI-45NA Ultrasonic Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

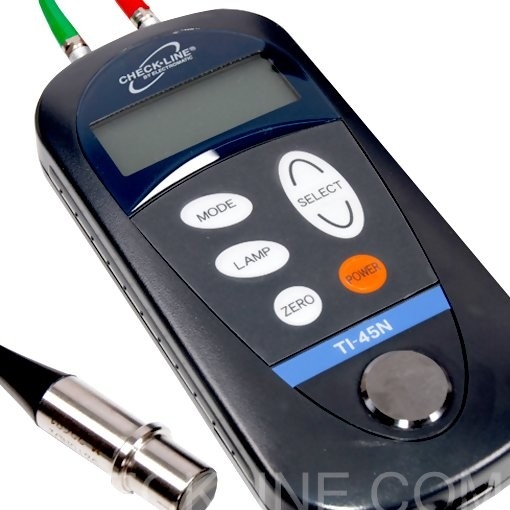

The attractive, ergonomic housing design is extremely compact, lightweight and rugged. It fits comfortably in the palm of your hand and incorporates a back light that illuminates the LCD in poorly lit areas.

Kit Contents

---

Features

---

• NIST-Traceable Calibration Certificate & Test Report is optionally available
• TI-45NA includes new Pipe Mode for stable measurement on small diameter pipe (1" and larger)
• Resolution of 0.001" (0.01mm)
• Extremely small & lightweight operates from a single AA battery
• Switch-selectable units - inches or mm
• Built-in calibration test plate
• Quick display update with last reading retained on the display
• Display symbols alert user to poor coupling and low battery conditions
• TI-45N-HD includes slip-on, ergonomic rubber sleeve for improved grip and additional physical protection
• User Adjustment of Acoustic Velocity or selection 10 preset velocities
• Warranty: Gauge: 1 year Probe: 90 days
• Made in Japan

Specifications

---

Range in Steel	0.040 - 8.000" (1.0 - 200.0 mm)
Resolution	.001" (0.01 mm)
Display	4½ - digit LCD display, 0.39" (10mm) high with push button illumination
Velocity Range	1,000 - 12,000 m/sec, continuously adjustable

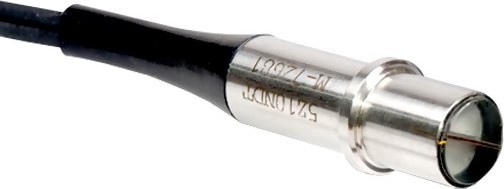

Probe	5 MHz, .39" (10 mm) diameter without Centering Shell
Cable	39" (1m) 2-wire, long cable with quick-disconnect connectors
Minimum Pipe Size	1" nominal (27mm) steel pipe, wall thickness starting at 0.060" (1.50 mm)
Temp. Limits	Ambient: 25 to 125° F (-5 to 50° C) Material: -15 to 140° F (-10 to 60° C)
Calibration Plate	0.200" (5.00mm) steel plate, built into the front of the housing
Battery Type	1x AA battery
Battery Life	200 hours
Weight	Gauge: 7 ounces (200 g)
Size	5.2" x 2.7" x 1.1" (131 x 68 x 29 mm)
Warranty	Gauge: 1 years Probe: 90 days

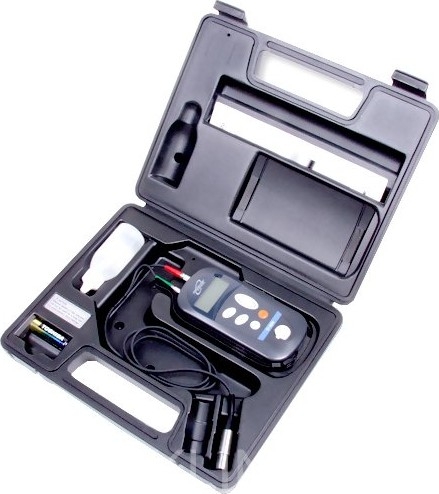

Accessories Included	Fitted, hard-plastic carrying case, probe shell attachment, 2 oz. bottle of coupling fluid, 1 spare battery and operating instruction guide

Measuring Limits

---

	Minimum Radius for Convex Surfaces	1" (27 mm)
	Minimum Radius for Concave Surfaces	3" (76.2 mm)
	Minimum Headroom	3" (76.2 mm)
	Minimum Sample Diameter	0.5" (12.7 mm)
	Minimum Substrate Thickness - F	na
	Minimum Substrate Thickness - NFe	na
