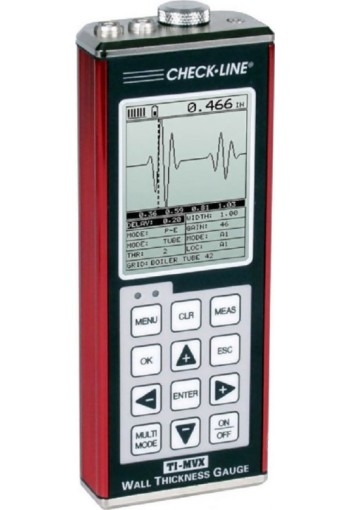

Checkline TI-MVX Ultrasonic Thickness Gauge with Enhanced Display with T-102-2700 Probe

---

Enhanced graphic scope Displays A Scan & B Scan for a cross section view

---

Range: 0.025 - 9.999" - 0.63 - 254.0 mm

---

Probe Sold Separately

---

Resolution:.001" (0.01 mm)

---

Datalogging: YES

---

The Checkline TI-MVX Ultrasonic Thickness Gauge with Enhanced Display offers a series of advanced features including A-Scan, B-Scan as well as a complete alphanumeric datalogging system with storage capacity of thousands of data values and A-scan captures.

The Checkline TI-MVX TI-MVX Ultrasonic Thickness Gauge with Enhanced Display features the highest resolution graphic LCD on the market and is especially engineered for optimal ease of use. The TI-MVX Ultrasonic Thickness Gauge with Enhanced Display is supplied as a complete kit with all accessories in carrying case with FREE software, transfer cable and NIST-Traceable Calibration Certificate.

Kit Contents

Checkline TI-MVX Ultrasonic Thickness Gauge With Enhanced Display 4 oz. bottle of coupling fluid 2 AA batteries NIST Calibration Certificate Data Transfer Software Serial Output Carrying case Instruction Manual Probe Sold Separately

Features

• The MVX is equipped with multiple viewing options to provide users with a complete set of inspection tools: (RF waveform, +/- Rectified waveform, Time based B-Scan, and Large Digits).
• The A-Scan rectified mode is commonly used for detecting flaws/pits in pulse-echo mode and measuring through paint and coatings in echo-echo mode.
• The time-based B-Scan feature of the MVX displays a cross section of the test material. It is commonly used to display the profile of the bottom surface of the test material.
• Built in hardware AGC gain control for through paint measurements in multi mode operation.
• The MVX has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location.
• CE Certified
• Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated.
• Use the find feature to locate the detection point, while automatically adjusting the display to bring the signal into view.
• MVX also comes complete with our Windows® PC software for transferring data to and from a PC.
• Includes Flaw Inspection - Prove Up Mode, (special probe required)
• The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the tesst material, and display the minimum measurement scanned.
• Includes NIST Calibration Certificate

Specifications

Range in Steel*	Pulse-Echo Mode: Pit and Flaw detection measures from 0.63 to 254 millimeters (0.025 - 9.999inches) Echo-Echo Mode: Thru Paint & coatings measures from 2.54 to 102 mm (0.1 - 4.0 inches). Range will vary +/- depending on the thickness of the coating. *Range varies by transducer, multiple transducers are required to cover entire range
Resolution	.001 inches (0.01mm)
Velocity Range	.0492 to .3936 in./ms 1250 to 9999 meters/sec
Units	English & Metric
Measurement Modes	Pulse-Echo (flaws, pits) Echo-Echo (thru-paint)
Transducer Types	Dual Element (1 to 10 MHz).
Memory	16 megabit non-volatile ram
Memory capacity	12,000 pages with 1 reading and waveform per page
Power Source	Three 1.5V alkaline or 1.2V NiCad AA cells
Battery Life	Typically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power off	if idle 5 min
Display	1/8 in. VGA grayscale display 62 x 45.7mm
Keyboard	Membrane switch with twelve tactile keys
Case	Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Operating Temperature	-14° to 140°F (-10° to 60°C)
Weigth, net	383 grams
Dimensions	63.5 W x 165 H x 31.5 D mm
Warranty	2 year limited
Certification	CE Approved, Factory calibration traceable to national standards

Optional Accessories

NIST-Traceable Steel Test Block 3 Sizes Available Precision Machined and Finished Includes NIST Report and Test Data

Uncertified Steel Test Block For Ultrasonic Gauges For convenient confirmation of thickness gauge calibration

TICC-M Protective Holder for Ultrasonic Gauges Constructed from heavy duty Cordura Nylon Built-in belt loop

V-Block Transducer Holder The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas

TICC-MVX Protective Holder for Ultrasonic Gauges Constructed from heavy duty Cordura Nylon Includes wrist & shoulder straps
