Dakota Ultrasonics CX Thickness Gauges

See More Ultrasonic Thickness Gauges

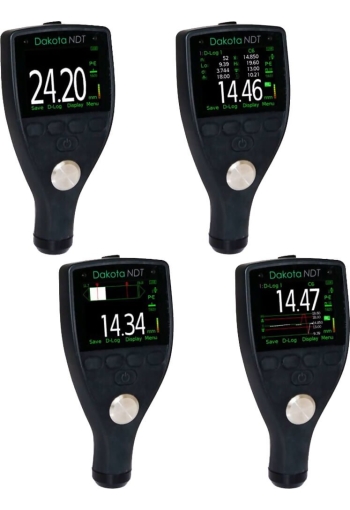

Dakota Ultrasonics CX Thickness Gauges

See More Ultrasonic Thickness Gauges
Price:
$1,295.00 - $2,865.00
    warrenty
    View All 4 Models in this Product Family

    Similar Products
    TI-25DL-MMX Checkline TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness TI-25DL-M
    430 ElektroPhysik MiniTest 430 Ultrasonic Wall Thickness Gauge 430
    TI-25S Checkline TI-25S Ultrasonic Thickness Gauge TI-25S
    TI-44N Checkline TI-44NA Ultrasonic Wall Thickness Gauge TI-44N
    TI-25M-MMX Checkline TI-25M-MMX Through Paint Ultrasonic Thickness Gauge TI-25M-MM
    TI-25M Checkline TI-25M Ultrasonic Thickness Gauge TI-25M
    ZX-5 Dakota Ultrasonics ZX-5 Ultrasonic Wall Thickness Gauge Z-303-0001 / Z-303-0003 ZX-5
    TI-PVX Checkline TI-PVX Precision Ultrasonic A-scan Thickness Gauge TI-PVX
    ZX-6 Dakota Ultrasonics ZX-6 Through-Paint Ultrasonic Thickness Gauge Z-305-0001 / Z-305-0003 ZX-6
    TI-CMXDL Checkline TI-CMXDL Data-Logging Ultrasonic Coating and Wall Thickness Gauge TI-CMXDL

    Product Description
    Auto recognition, ensures correct probe is identified when transducer is changed
    Scan Mode at 16Hz, ideal for measuring a large surface area
    User selectable reading resolution; 0.1mm (0.01") or 0.01mm (0.001")


    The Dakota CX Ultrasonic Material Thickness Gauges have all the features and functionality necessary for measuring material thickness and velocity on virtually any material - for a wide range of applications.


    line
    Kit Contents
    line

    Dakota Ultrasonics CX2 Ultrasonic Material Thickness Gauge - Z-310-0001
    • Dakota Ultrasonics CX2 Ultrasonic Material Thickness Gauge
    • 5MHz ¼" right angle dual element transducer (TXC5M00CP-4)
    • Ultrasonic couplant
    • Plastic Transit Case
    • 3 x Screen Protectors
    • Wrist Harness
    • 2 x AA batteries
    • Operating Instructions
    • Calibration certificate
    • DakMaster® Software CD & USB Cable

    line

    Dakota Ultrasonics CX4 Ultrasonic Material Thickness Gauge - Z-311-0001
    • Dakota Ultrasonics CX4 Ultrasonic Material Thickness Gauge
    • 5MHz ¼" HD right angle dual element transducer (TXC5M00CP-10)
    • Ultrasonic couplant
    • Plastic Transit Case
    • 3 x Screen Protectors
    • Wrist Harness
    • 2 x AA batteries
    • Operating Instructions
    • Calibration certificate
    • DakMaster® Software CD & USB Cable

    line

    Dakota Ultrasonics CX6-DL Ultrasonic Material Thickness Gauge - Z-312-0001
    • Dakota Ultrasonics CX6-DL Ultrasonic Material Thickness Gauge
    • 5MHz ¼" HD right angle dual element transducer (TXC5M00CP-10)
    • Ultrasonic couplant
    • Plastic Transit Case
    • 3 x Screen Protectors
    • Wrist Harness
    • 2 x AA batteries
    • Operating Instructions
    • Calibration certificate
    • DakMaster® Software CD & USB Cable

    line

    Dakota Ultrasonics CX8-DL Ultrasonic Material Thickness Gauge - Z-313-0001
    • Dakota Ultrasonics CX8-DL Ultrasonic Material Thickness Gauge
    • 5MHz ¼" HD right angle dual element transducer (TXC5M00CP-10)
    • Ultrasonic couplant
    • Plastic Transit Case
    • 3 x Screen Protectors
    • Wrist Harness
    • 2 x AA batteries
    • Operating Instructions
    • Calibration certificate
    • DakMaster® Software CD & USB Cable


    line
    Features
    line

    • Auto recognition, ensures correct probe is identified when transducer is changed
    • Scan Mode at 16Hz, ideal for measuring a large surface area
    • User selectable reading resolution; 0.1mm (0.01") or 0.01mm (0.001")
    • Pulse Echo (PE), Echo Echo ThruPaint™ & Velocity (VM) measurement modes
    • Hi & Lo limit indicators provides indication of problem areas
    • Integrated zero disc, ensures maximum accuracy
    • Stores up to 100,000 readings in up to 1,000 sequential batches
    • Selectable reading rate of 4, 8, 16Hz (4, 8, 16 readings per second)

    Intelligent

    • User definable limits for pass/fail indication
    • Users are able to set upper and lower limits with audible and visual pass/fail warnings. Limits can be set for individual readings or for each batch.

    Accurate

    • A range of calibration options for accuracy and efficiency
    • The Dakota Ultrasonics CX Thickness Gauges have a range of calibration options including the 1-Point calibration method. Users can also select one of 39 pre-set materials stored within the gauge or store up to three calibrations into the memory.

    Versatile

    • Measures uncoated & coated surfaces
    • Flexible & easy to use, the Dakota corrosion gauge range doesn’t just measure uncoated surfaces but can also measure coated surfaces. Using Echo Echo ThruPaint™ Mode (EE), coatings up to 2mm (80mils) are ignored.


    line
    Specifications
    line

    Operating Temperature-10 to 50°C (14 to 122°F)
    Power Supply2 x AA batteries
    Battery LifeAlkaline: 15 hours Lithium: 28 hours
    Gauge Weight210g (7.4oz) - including batteries, without transducer
    Gauge Dimensions145 x 73 x 37mm (5.7 x 2.84 x 1.46"), without transducer
    CertificateYes


    lineComparison Chartline


    Part NumberCX2CX4CX6-DLCX8-DL
    Pulse Echo (PE)0.63 - 500mm (0.025 - 19.999")0.63 - 500mm (0.025 - 19.999")0.63 - 500mm (0.025 - 19.999")0.63 - 500mm (0.025 - 19.999")
    Echo Echo ThruPaint™ (EE)2.54 - 20.00mm (0.100-0.787")2.54 - 20.00mm (0.100-0.787")2.54 - 20.00mm (0.100-0.787")
    Velocity Mode (VM)1,250-10,000m/s (0.0492 - 0.3937in/μs)1,250-10,000m/s (0.0492 - 0.3937in/μs)1,250-10,000m/s (0.0492 - 0.3937in/μs)
    Measurement Accuracy
    Pulse Echo (PE)±0.1mm (0.63-19.99mm)
    ±0.5% (20.00-500.00mm)    		±0.1mm (0.63-19.99mm)
    ±0.5% (20.00-500.00mm)    		±0.05mm (0.63-9.99mm)
    ±0.5% (10.00-500.00mm)
    ±0.004" (0.025-0.393")
    ±0.5% (0.394-20.00")    		±0.05mm (0.63-9.99mm)
    ±0.5% (10.00-500.00mm)
    ±0.004" (0.025-0.393")
    ±0.5% (0.394-20.00")
    Echo Echo ThruPaint™ (EE)±0.1mm (2.54-25.4mm)±0.1mm (2.54-25.4mm)±0.05mm (2.54-9.99mm)
    ±0.5% (10.00-20.00mm)
    ±0.004" (0.100-0.393")
    ±0.5% (0.394-0.787")    		±0.05mm (2.54-9.99mm)
    ±0.5% (10.00-20.00mm)
    ±0.004" (0.100-0.393")
    ±0.5% (0.394-0.787")
    Easy to use menu structure in multiple languages
    Tough, impact, waterproof and dust resistant equivalent to IP64
    Bright colour screen; with permanent backlight
    Ambient light sensor, with adjustable brightness
    Scratch and solvent resistant display; 2.4" (6cm) TFT
    Large positive feedback buttons
    USB power supply; via PC
    Gauge software updates via DakMaster™ Software
    2 year gauge warranty
    Limits: 40 definable audible & visual pass/fail warnings―――
    Measurement Mode
    Pulse Echo (PE)
    Echo Echo ThruPaint™ (EE)―
    Velocity Mode (VM)――
    Measurement Rate
    4, 8, 16Hz―4Hz4, 8, 16Hz4, 8, 16Hz
    Thickness Range
    PE 0.63-500mm (0.025-19.999")―
    EE 2.54 - 25.4mm (0.100-1.0")―
    Measurement Units
    mm or inches―
    m/s, inch/μs
    Repeatability / Stability Indicator
    Display Mode
    Reading―
    Selected statistics――
    Scan thickness bar graph――
    Run Chart――
    Readings and Differential―――
    B-Scan cross sectional display―――
    Selectable Reading Resolution
    Lo; 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs
    Hi; 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs――
    Statistics
    Number of readings,n; Mean average, x ; Standard deviation, σ.――
    Lowest reading, Lo; Highest reading, Hi――
    Low / high limit value―――
    Reading Range Value―――
    Nominal Value―――
    Number of readings below the low limit―――
    Number of readings above the high limit―――
    Calibration Options
    Zero (using the integral zero disc)―
    1 - point―
    2 - point――
    Material selection; 39 preset materials―
    Factory; resets to the factory calibration―
    Velocity (speed of sound)――
    Known thickness value――
    Calibration Features
    Calibration lock; with optional PIN Lock――
    Test calibration feature――
    Calibration memories: 3 programmable memories―――
    Measurement outside calibration warning―――
    Data Logging
    Number of readings――1,500100,000
    Number of batches――11,000
    Sequential batching――
    Grid batching―――
    Fixed Batch Size Mode; with batch linking―――
    Obstruct entry; add 'obst' into grid location―――
    Delete last reading――
    Date & time stamp――
    Review, clear & delete batches――
    Alpha numeric batch names; user definable―――
    Batch review graph―――
    Data Output
    USB to PC―
    Bluetooth® to PC, Android™ & iOS devices――
    DakMaster™ software――
    Transducer Probe Type
    Dual Element―
    Auto transducer recognition
    Auto V-path correction


    line
    Downloads
    line

    Dakota Ultrasonics CX2 & CX4 Material Thickness Gauge - Instruction Manual
    Dakota Ultrasonics CX2 & CX4 Material Thickness Gauge - Declaration Conformity
    Dakota Ultrasonics CX2 & CX4 Material Thickness Gauge - Declaration Conformity UKCA
    Dakota Ultrasonics CX6-DL & CX8-DL Material Thickness Gauge - Instruction Manual
    Dakota Ultrasonics CX6-DL & CX8-DL Material Thickness Gauge - Declaration Conformity
    Dakota Ultrasonics CX6-DL & CX8-DL Material Thickness Gauge - Declaration Conformity UKCA
    Dakota Ultrasonics Dual Element Corrosion Thickness Gauges - List
