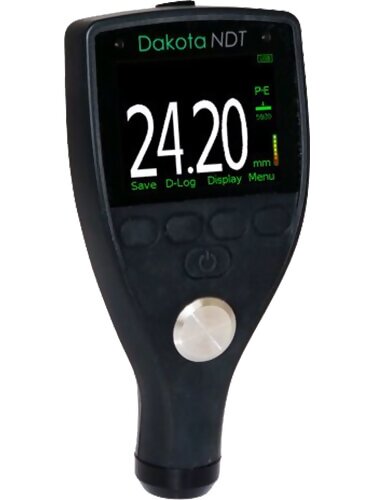

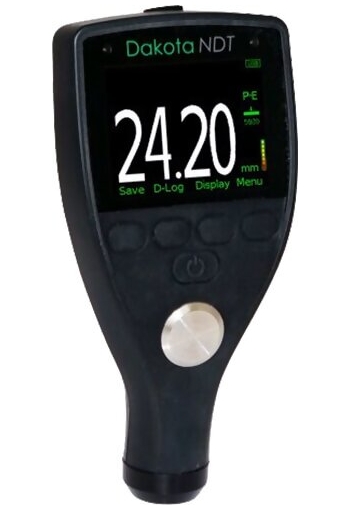

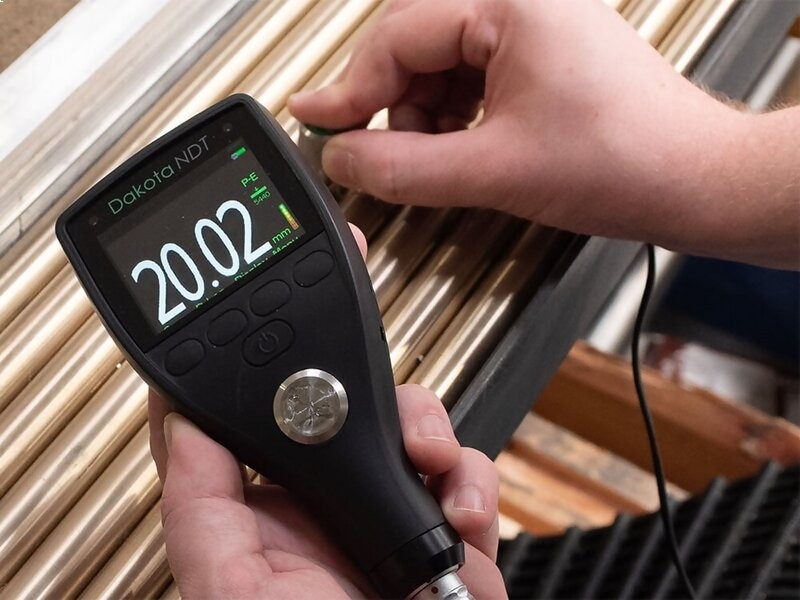

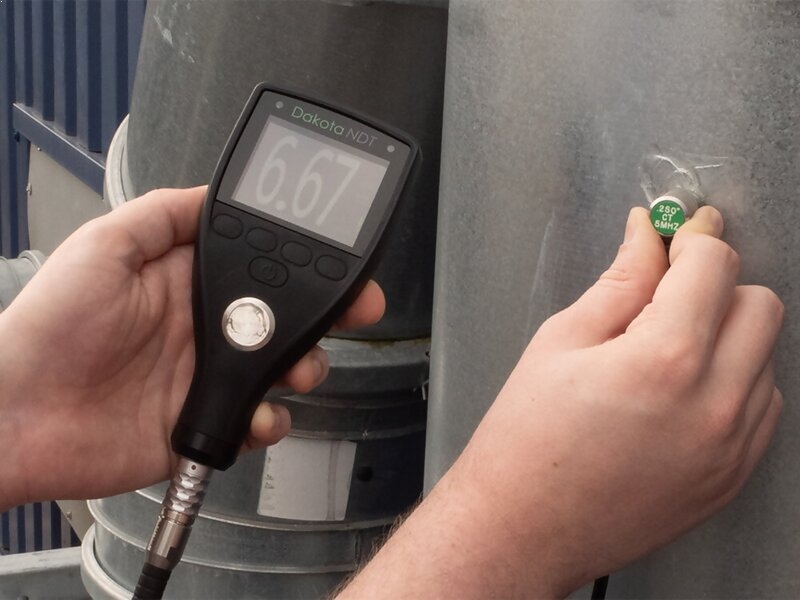

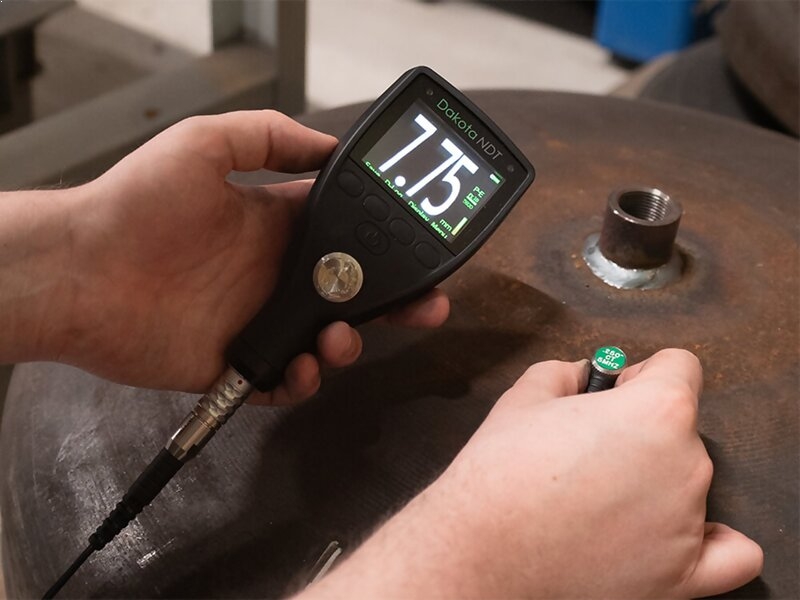

Name: Dakota Ultrasonics CX2 Ultrasonic Material Thickness Gauge - Z-310-0001
Brand: Dakota Ultrasonics
SKU: 2183
Price: 1295.00 USD
Availability: InStock

Dakota Ultrasonics CX2 Ultrasonic Material Thickness Gauge - Z-310-0001

See More Ultrasonic Thickness Gauges

Auto recognition, ensures correct probe is identified when transducer is changed

Scan Mode at 16Hz, ideal for measuring a large surface area

User selectable reading resolution; 0.1mm (0.01") or 0.01mm (0.001")

The Dakota CX Ultrasonic Material Thickness Gauges have all the features and functionality necessary for measuring material thickness and velocity on virtually any material - for a wide range of applications.

line
Kit Contents
line

Dakota Ultrasonics CX2 Ultrasonic Material Thickness Gauge
5MHz ¼" right angle dual element transducer (TXC5M00CP-4)
Ultrasonic couplant
Plastic Transit Case
3 x Screen Protectors

Wrist Harness
2 x AA batteries
Operating Instructions
Calibration certificate
DakMaster® Software CD & USB Cable

line
Features
line

Auto recognition, ensures correct probe is identified when transducer is changed
Scan Mode at 16Hz, ideal for measuring a large surface area
User selectable reading resolution; 0.1mm (0.01") or 0.01mm (0.001")
Pulse Echo (PE), Echo Echo ThruPaint™ & Velocity (VM) measurement modes
Hi & Lo limit indicators provides indication of problem areas
Integrated zero disc, ensures maximum accuracy
Stores up to 100,000 readings in up to 1,000 sequential batches
Selectable reading rate of 4, 8, 16Hz (4, 8, 16 readings per second)

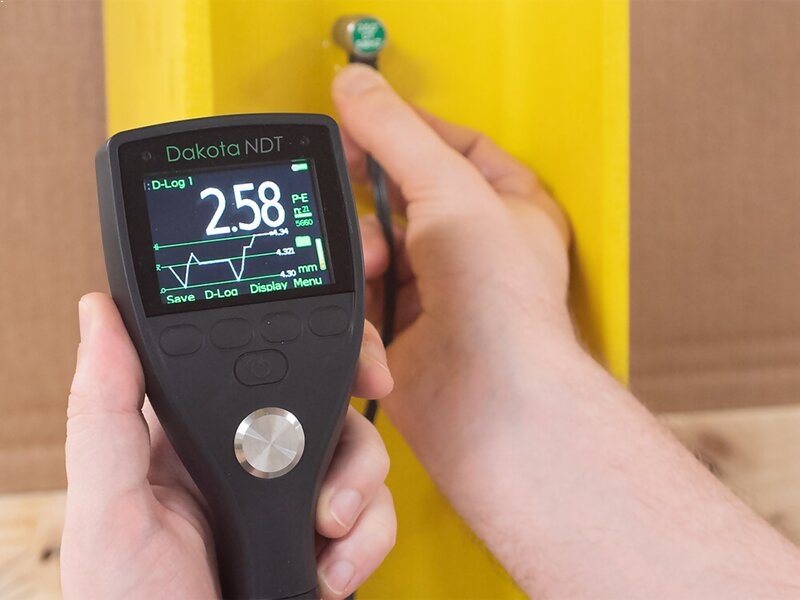

Intelligent

User definable limits for pass/fail indication
Users are able to set upper and lower limits with audible and visual pass/fail warnings. Limits can be set for individual readings or for each batch.

Accurate

A range of calibration options for accuracy and efficiency
The Dakota Ultrasonics CX Thickness Gauges have a range of calibration options including the 1-Point calibration method. Users can also select one of 39 pre-set materials stored within the gauge or store up to three calibrations into the memory.

Versatile

Measures uncoated & coated surfaces
Flexible & easy to use, the Dakota corrosion gauge range doesn’t just measure uncoated surfaces but can also measure coated surfaces. Using Echo Echo ThruPaint™ Mode (EE), coatings up to 2mm (80mils) are ignored.

line
Specifications
line

Operating Temperature	-10 to 50°C (14 to 122°F)
Power Supply	2 x AA batteries
Battery Life	Alkaline: 15 hours Lithium: 28 hours
Gauge Weight	210g (7.4oz) - including batteries, without transducer
Gauge Dimensions	145 x 73 x 37mm (5.7 x 2.84 x 1.46"), without transducer
Certificate	Yes

line Comparison Chart line


Part Number	CX2	CX4	CX6-DL	CX8-DL
Pulse Echo (PE)	0.63 - 500mm (0.025 - 19.999")	0.63 - 500mm (0.025 - 19.999")	0.63 - 500mm (0.025 - 19.999")	0.63 - 500mm (0.025 - 19.999")
Echo Echo ThruPaint™ (EE)		2.54 - 20.00mm (0.100-0.787")	2.54 - 20.00mm (0.100-0.787")	2.54 - 20.00mm (0.100-0.787")
Velocity Mode (VM)		1,250-10,000m/s (0.0492 - 0.3937in/μs)	1,250-10,000m/s (0.0492 - 0.3937in/μs)	1,250-10,000m/s (0.0492 - 0.3937in/μs)
Measurement Accuracy
Pulse Echo (PE)	±0.1mm (0.63-19.99mm) ±0.5% (20.00-500.00mm)	±0.1mm (0.63-19.99mm) ±0.5% (20.00-500.00mm)	±0.05mm (0.63-9.99mm) ±0.5% (10.00-500.00mm) ±0.004" (0.025-0.393") ±0.5% (0.394-20.00")	±0.05mm (0.63-9.99mm) ±0.5% (10.00-500.00mm) ±0.004" (0.025-0.393") ±0.5% (0.394-20.00")
Echo Echo ThruPaint™ (EE)	±0.1mm (2.54-25.4mm)	±0.1mm (2.54-25.4mm)	±0.05mm (2.54-9.99mm) ±0.5% (10.00-20.00mm) ±0.004" (0.100-0.393") ±0.5% (0.394-0.787")	±0.05mm (2.54-9.99mm) ±0.5% (10.00-20.00mm) ±0.004" (0.100-0.393") ±0.5% (0.394-0.787")
Easy to use menu structure in multiple languages
Tough, impact, waterproof and dust resistant equivalent to IP64
Bright colour screen; with permanent backlight
Ambient light sensor, with adjustable brightness
Scratch and solvent resistant display; 2.4" (6cm) TFT
Large positive feedback buttons
USB power supply; via PC
Gauge software updates via DakMaster™ Software
2 year gauge warranty
Limits: 40 definable audible & visual pass/fail warnings	―	―	―
Measurement Mode
Pulse Echo (PE)
Echo Echo ThruPaint™ (EE)	―
Velocity Mode (VM)	―	―
Measurement Rate
4, 8, 16Hz	―	4Hz	4, 8, 16Hz	4, 8, 16Hz
Thickness Range
PE 0.63-500mm (0.025-19.999")	―
EE 2.54 - 25.4mm (0.100-1.0")	―
Measurement Units
mm or inches	―
m/s, inch/μs
Repeatability / Stability Indicator
Display Mode
Reading		―
Selected statistics	―	―
Scan thickness bar graph	―	―
Run Chart	―	―
Readings and Differential	―	―	―
B-Scan cross sectional display	―	―	―
Selectable Reading Resolution
Lo; 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs
Hi; 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs	―	―
Statistics
Number of readings,n; Mean average, x ; Standard deviation, σ.	―	―
Lowest reading, Lo; Highest reading, Hi	―	―
Low / high limit value	―	―	―
Reading Range Value	―	―	―
Nominal Value	―	―	―
Number of readings below the low limit	―	―	―
Number of readings above the high limit	―	―	―
Calibration Options
Zero (using the integral zero disc)	―
1 - point	―
2 - point	―	―
Material selection; 39 preset materials	―
Factory; resets to the factory calibration	―
Velocity (speed of sound)	―	―
Known thickness value	―	―
Calibration Features
Calibration lock; with optional PIN Lock	―	―
Test calibration feature	―	―
Calibration memories: 3 programmable memories	―	―	―
Measurement outside calibration warning	―	―	―
Data Logging
Number of readings	―	―	1,500	100,000
Number of batches	―	―	1	1,000
Sequential batching	―	―
Grid batching	―	―	―
Fixed Batch Size Mode; with batch linking	―	―	―
Obstruct entry; add 'obst' into grid location	―	―	―
Delete last reading	―	―
Date & time stamp	―	―
Review, clear & delete batches	―	―
Alpha numeric batch names; user definable	―	―	―
Batch review graph	―	―	―
Data Output
USB to PC	―
Bluetooth® to PC, Android™ & iOS devices	―	―
DakMaster™ software	―	―
Transducer Probe Type
Dual Element	―
Auto transducer recognition
Auto V-path correction
