Measuring Range in Steel
Pulse-Echo Mode (Pit & Flaw Detection) measures from 0.025 to 19.999 inches (0.63 to 500 millimeters).

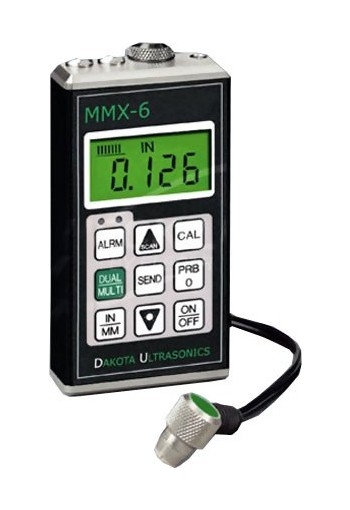

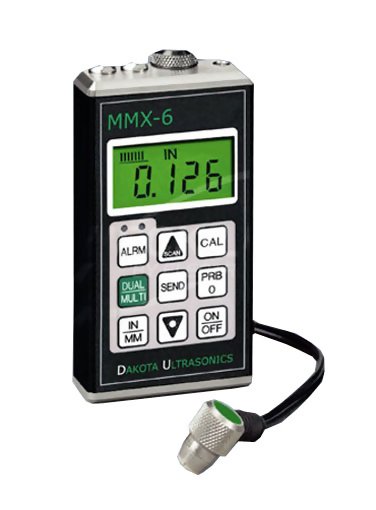

Echo-Echo Mode (Through Paint & Coatings) measures from 0.1 to 1 inch (2.54 to 25.4 millimeters). The new MMX-6 Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side! The MMX-6 can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed. The MMX-6 probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions
Features
- Ability to measure through paint and eliminate coatings
- Resolution of 0.001 inch (0.01 mm)
- Large, backlit LCD display retains last reading
- Simple operator controls virtually eliminate training
- Special-purpose probes are offered for a variety of applications
- Switch-selected units for inches or mm
- For underwater surveying, probe cable lengths up to 50 feet are optionally
- CE Certified
- Includes NIST-Traceable Calibration Certificate
Typical Applications
Measuring Limits
| Minimum Radius for Convex Surfaces | 0.350" (8.89 mm) | | Minimum Radius for Concave Surfaces | 3" (76.2 mm) | | Minimum Headroom | 1" (25.0 mm) | | Minimum Sample Diameter | 0.150" (3.8 mm) | | Minimum Substrate Thickness - F | na | | Minimum Substrate Thickness - NFe | na |
Model Selection Guide
Selection Guide - Pit & Flaw Detection (Pulse-Echo) Mode | Model Number | Maximum Coating | Minimum Wall | Maximum Wall | | All Models | 0.020" (0.50mm) | 0.100" (2.54mm) | 6.000" (152.4mm) | Selection Guide - Thru-Paint (Echo-Echo) Model | Model Number | Maximum Coating | Minimum Wall | Maximum Wall | | MMX-6 | 0.040" (1.00mm) | 0.100" (2.54mm) | 1.000" (25.4mm) | | MMX-6-EXT | 0.080" (2.00mm) | 0.200" (5.08mm) | 5.000" (127.0mm) |
Specifications
| Range | Pulse-Echo Mode(Pit & Flaw Detection) measures from 0.025 to 6.000 (up to 19.999 inches if uncoated using T-102-2000 probe)
0.63 to 150 millimeters (up to 500 mm if uncoated using T-102-2000 probe).
Echo-Echo Mode (Through Paint & Coatings) measures from 0.1 to 1 inch (2.54 to 25.4 millimeters). | | Resolution | .001" (0.01 mm) | | Display | 4½ - Digit, 0.5" Backlit LCD | | Velocity Range | 0.0492 to .3937 in./µs. (1250 to 10,000 meters/second) | | Probe | 5 MHz, 0.25" Diameter (6.35 mm) | | Probe Wearface | PEEK (Polyethlethylketone) | | Cable | 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). | | Temp. Limits | Ambient: -20 to 120° F (-30 to 50° C)
Material: 0 to 200° F (-20 to 100° C) Special high temperature probes are optionally available | | Battery Type | Two AA batteries | | Battery Life | 200 hours | | Weight | 7 ounces (196 g) | | Size | 2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm) | | Accessories Included | Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. | | Warranty | Gauge: 5 Years
Probes: 90 Days |
Complete Kit
The MMX-6 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case
Related Products
CF12
Coupling Fluid - Used to create an ultrasonic coupling between the probe and material to be measured
- 12 oz Bottle
V-Block
Transducer Holder - The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas
