Advanced Ultrasonic Gauge measures a variety of materials
Range: 0.025 - 19.99 inches - 0.63 - 199.99 mm
Resolution: 0.001" (0.01 mm)
Alarm mode, Differential mode, high speed scanning, and data send
Measuring Range in Steel
0.040 - 8.00 inches

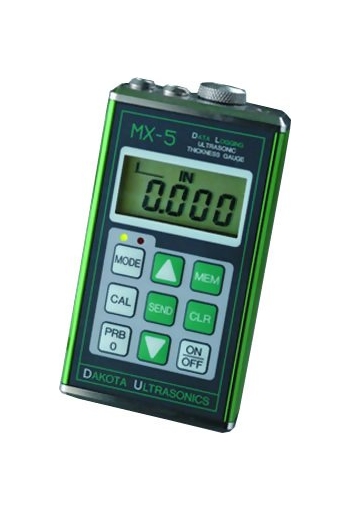

1.00 - 199.0 mm The Dakota Ultrasonics MX-5 Ultrasonic Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side! The MX-5 Ultrasonic Thickness Gauge can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed. The MX-5 Ultrasonic Thickness Gauge probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions
Features
- Resolution of 0.001 inch (0.01 mm)
- Large, backlit LCD display retains last reading
- Simple operator controls virtually eliminate training
- Special-purpose probes are offered for a variety of applications
- Switch-selected units for inches or mm
- CE Certified
- For underwater surveying, probe cable lengths up to 50 feet are optionally
- Differential Mode
- Alarm Mode
- RS-232C Serial output for sending signle data points to a printer or computer
- Includes NIST Calibration Certificate
Typical Applications
Measuring Limits
| Minimum Radius for Convex Surfaces | 0.350" (8.89 mm) | | Minimum Radius for Concave Surfaces | 3" (76.2 mm) | | Minimum Headroom | 1" (25.0 mm) | | Minimum Sample Diameter | 0.150" (3.8 mm) | | Minimum Substrate Thickness - F | na | | Minimum Substrate Thickness - NFe | na |
Specifications
| Range in Steel | 0.040-8.00" (1.00-199.9 mm) | | Resolution | .001" (0.01 mm) | | Display | 4½ - Digit, 0.5" Backlit LCD | | Velocity Range | 6,500-33,000 ft./sec (2000-10,000 m/sec.) | | Probe | 1/4", 5 MHz, actual wearface is 5/8" (17mm) | | Cable | 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). | | Temp. Limits | Ambient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available. | | Battery Type | Two AA batteries | | Battery Life | 200 hours | | Weight | 7 ounces (196 g) | | Size | 2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm) | | Accessories Included | Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. | | Warranty | Gauge: 5 Years
Probes: 90 Days |
Complete Kit
The MX-5 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case
Related Products
CF12
Coupling Fluid
- Used to create an ultrasonic coupling between the probe and material to be measured
- 12 oz Bottle
| |
V-Block
Transducer Holder
- The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas
| |
|
|
F.A.Q.
Do Dakota Ultrasonics Thickness Gauges require any training for use?
No. Dakota Ultrasonics Thickness Gauges are designed for simple operation and feature easy-to-use instruction manuals. We also provide technical support via telephone and/or email, and a 30-day money back guarantee.
Are Dakota Ultrasonics Thickness Gauges calibrated at the factory?
Yes. Dakota Ultrasonics Thickness Gauges arrive fully calibrated and ready to measure.
Do Dakota Ultrasonics Thickness Gauges include Certificate of Calibration?
Yes. Dakota Ultrasonic Thickness Gauges includes NIST-Traceable Calibration Certificate, CE-Certified
Can I measure the thickness of non-metallic materials like plastic and rubber with Dakota Ultrasonics Thickness Gauges?
Yes. Dakota Ultrasonics Thickness Gauges features several preprogrammed sound velocities for common materials.
Can Dakota Ultrasonics Thickness Gauges measure cast/ductile iron or cast aluminum?
Yes. Dakota Ultrasonics Thickness Gauges instruments are designed to accurately measure the wall thickness of carbon steel, aluminum, stainless steel and plastic.
