Range: 0.025 - 19.999 inches - 0.60 - 254.0 mm

---

Dakota Ultrasonics MMX-7 High Performance Data Logging Wall Thickness Gauge Z-160-0003 with Enhanced Data Logging with time based B Scan for a cross section view

---

Resolution: .001" (0.01 mm)

---

Datalogging: YES

---

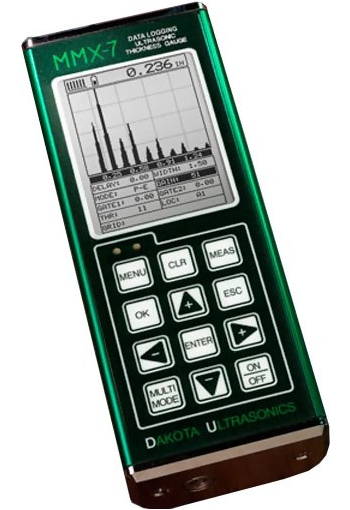

The Dakota Ultrasonics MX1-DL (MMX-7) High Performance Data Logging Wall Thickness Gauge Z-160-0003 / Z-160-0005is a full featured ultrasonic thickness gauge offering an oversized display as well as a complete alphanumeric datalogging system with storage capacity of thousands of data values.

The Dakota Ultrasonics MX1-DL (MMX-7) High Performance Data Logging Wall Thickness Gauge Z-160-0003 / Z-160-0005 features the highest resolution graphic LCD on the market and is especially engineered for optimal ease of use.

Kit Contents

Dakota Ultrasonics MX1-DL (MMX-7) High Performance Data Logging Wall Thickness Gauge Z-160-0003 / Z-160-0005 With T-102-2700 Probe 4 oz. bottle of coupling fluid 2 AA batteries

NIST Traceable Calibration Certificate Data Transfer Software Serial Output Carrying case Instruction Manual

Features

• The time-based B-Scan feature displays a cross section of the test material. It is commonly used to display the profile of the bottom surface of the test material.
• The MMX-7 also comes complete with our Windows® PC software for transferring data to and from a PC.
• Built in hardware AGC gain control for through paint measurements in multi mode operation.
• The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material, and display the minimum measurement scanned.
• The MMX-7 has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location.
• Use the AUTOFIND feature to locate the detection point, while automatically adjusting the display to bring the signal into view.
• CE Certified
• Includes NIST-Traceable Calibration Certificate
• Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated.
• 2 Year Warranty

Specifications

Range in Steel	Pulse-Echo Mode: Pit and Flaw detection measures from 0.63 to 254 millimeters (0.025 - 9.999inches) Echo-Echo Mode: Thru Paint & coatings measures from 2.54 to 102 mm (0.100 - 4.000 inches). Range will vary depending on the thick
Resolution	.001 inches (0.01mm)
Velocity Range	.0492 to .3936 in./ms 1250 to 9999 meters/sec
Units	English & Metric
Measurement Modes	- Pulse-Echo (flaws, pits) - Echo-Echo (thru-paint)
Transducer Types	Dual Element (1 to 10 MHz).
Memory	16 megabit non-volatile ram
Memory capacity	12,000 pages with 1 reading and waveform per page
Power Source	Three 1.5V alkaline or 1.2V NiCad AA cells
Battery Life	Typically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power off	if idle 5 min
Display	1/8 in. VGA grayscale display 62 x 45.7mm
Keyboard	Membrane switch with twelve tactile keys
Case	Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Operating Temperature	-14° to 140°F (-10° to 60°C)
Weight, net	383 grams
Dimensions	63.5 W x 165 H x 31.5 D mm
Warranty	2 year limited
Certification	CE Approved, Factory calibration traceable to national standards
